Product Description

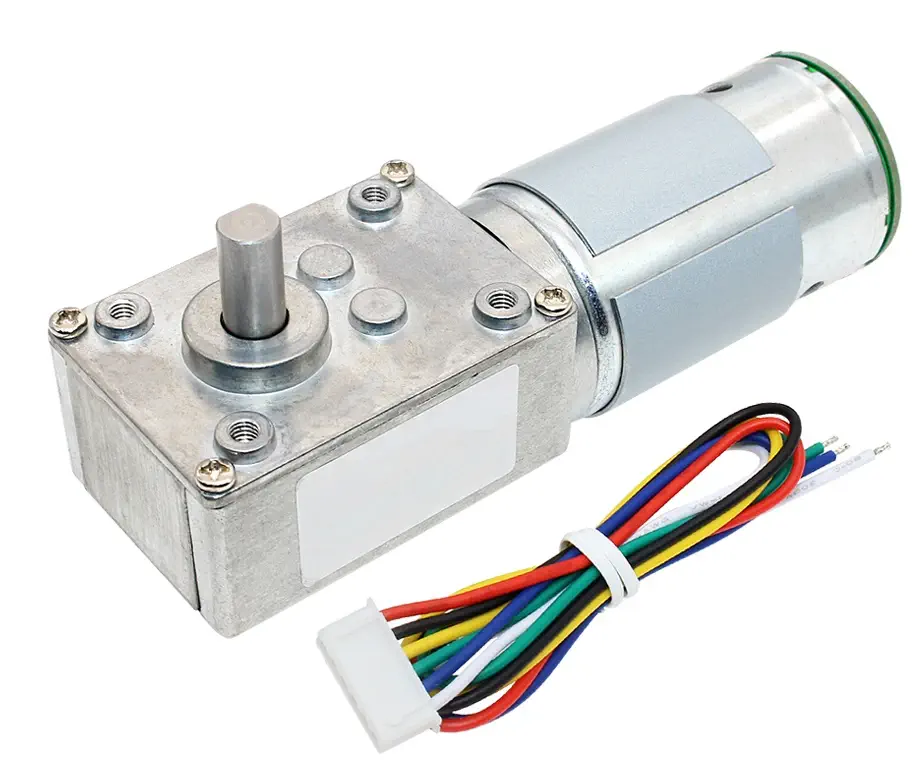

This 12V high torque self-locking worm gear motor with encoder is engineered for applications requiring controlled low-speed rotation and high torque output. The self-locking worm gearbox provides reliable hold-in-place performance without additional brakes. A built-in magnetic encoder with two channels and 11 pulses per revolution (11PPR) delivers accurate position and speed feedback for closed-loop motion systems.

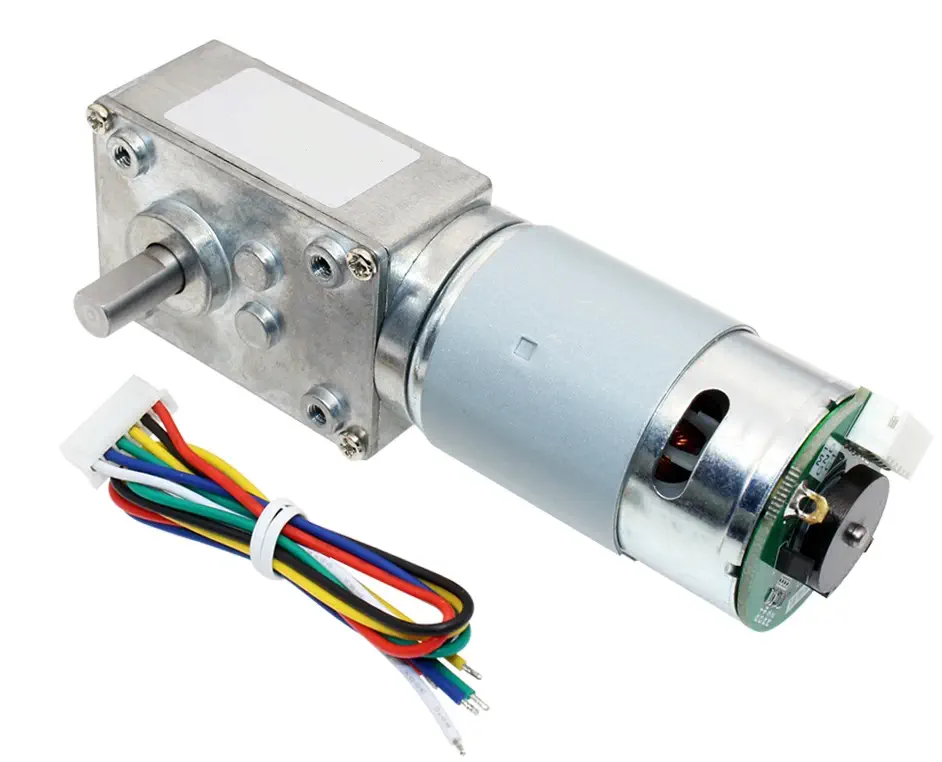

With an 8mm diameter D-shaped output shaft supported by dual ball bearings, this motor can support larger radial loads directly on the shaft. The rugged metal geartrain is designed to handle torque loads without gear tooth failure, making it suitable for robotics, special effects, automation systems, and DIY mechanical projects.
Specifications
-
Rated Voltage: 12V DC
-
Gear Ratio: 1:72
-
No-Load Speed: 105RPM
-
Rated Speed: 54RPM
-
No-Load Current: <0.5A
-
Rated Current: <5A
-
Stall Current: <13A
-
Rated Torque: 40kg·cm
-
Stall Torque: 70kg·cm
-
Encoder Type: Magnetic encoder, 2 channels, 11PPR
-
Self-Locking: Yes
-
Rotation Direction: Reversible (change polarity)
Physical Dimensions
-
Gearbox Size: 58mm (L) × 40mm (W) × 26.8mm (H)
-
Motor Size: 36mm (D) × 75mm (L)
-
Output Shaft Diameter: 8mm (D-shaped)
-
Output Shaft Length: 15mm
-
Dual Ball Bearing Support: Yes
Applications
This worm gear motor with encoder is ideal for:
-
Robotics drive systems and articulated joints
-
Precision motion control and positioning systems
-
Automated lifts, gates and slow motion mechanisms
-
Heavy load slow speed drives
-
Feedback-controlled systems with encoders
-
DIY machinery and engineering projects
What’s Included
-

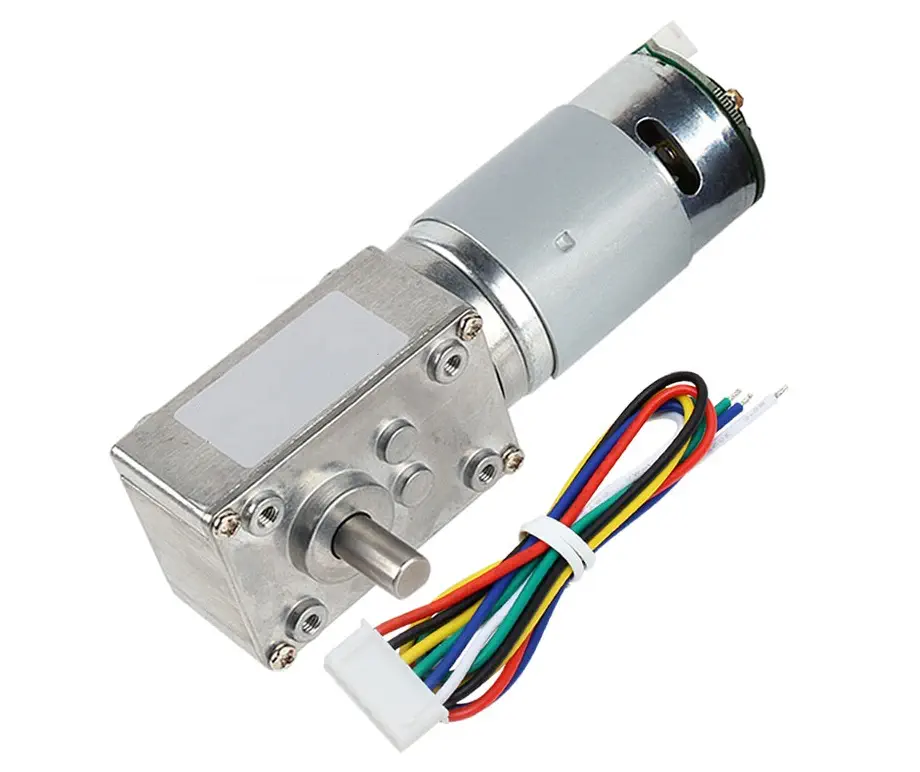

1 × 12V High Torque Self-Locking Worm Gear Motor with Encoder (105RPM)
