Overview

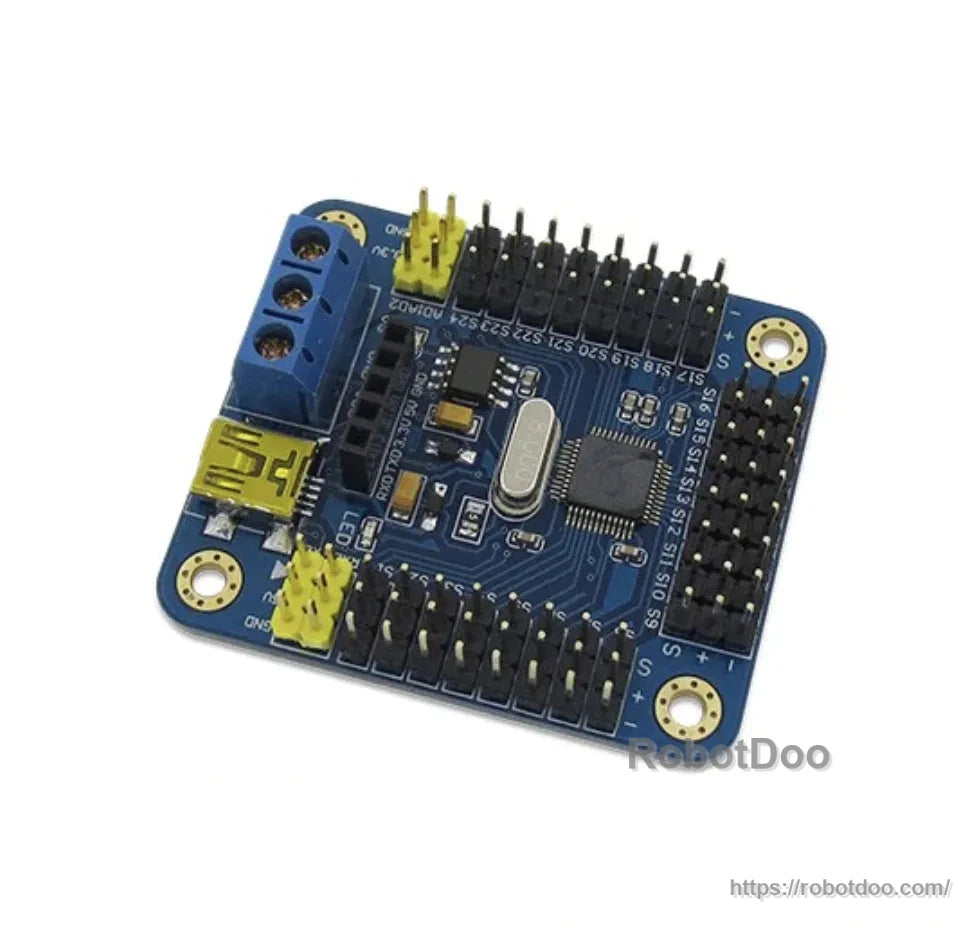

This 16 Channel Servo Controller Board provides simultaneous PWM control for up to 16 servo motors. It accepts commands from PC software through USB or from an MCU through UART TTL/USART, making it suitable for multi-servo robotics, motion-control prototypes, and embedded control projects. Onboard memory supports offline operation after command sequences are downloaded to the controller.
Key Features
- Controls up to 16 PWM servos simultaneously
- USB and UART TTL/USART command input
- 1 us PWM signal accuracy and 1 us servo resolution
- Automatic baud-rate recognition
- Offline command-sequence operation with onboard memory
- USB reverse-polarity protection
- Compatible with Futaba, Hitec, and other PWM-controlled servo motors
Specifications
| Control channels | 16 |
| Communication input | USB; UART TTL/USART |
| Signal output | PWM |
| PWM accuracy | 1 us |
| Servo resolution | 1 us / 0.09 degrees |
| Supported baud rates | 9,600; 19,200; 28,400; 57,600; 115,200; 128,000 |
| Memory | Onboard 512K ROM |
| Stored commands | More than 500 commands when each command controls 16 motors simultaneously |
| Dimensions | 51 mm x 43.5 mm x 1.6 mm |
What's Included
- 16 Channel Servo Controller Board
- USB data cable
- English PC control software
Applications
Suitable for PC-controlled servo setups and MCU projects using 51-series, AVR, ARM, FPGA, PIC, or other controllers with UART TTL communication. For product assistance, contact RobotDoo customer service.
