Key Features
• High-speed 12 V DC coreless motor with ironless rotor for fast response and low inertia
• Rare-earth magnets for high power density and stable high RPM performance
• Smooth, low-noise operation ideal for precision applications
• Compact, lightweight design perfect for robotics, automation, and micro systems
• Excellent speed stability and efficient energy conversion for extended running life
Specifications
| Parameter | Value |
|---|---|
| Model | 2225CL 12 |
| Motor Type | Coreless Brushed DC Motor |
| Rated Voltage | 12 V DC |
| No-load Speed | 11500 RPM |
| Rated Speed | 9940 RPM |
| No-load Current | 0.07 A (Max) |
| Rated Current | 0.42 A (Max) |
| Stall Current | < 3.2 A |
| Rated Torque | 45 g·cm |
| Stall Torque | > 320 g·cm |
| Rated Power | 3.2 W |
| Starting Voltage | 0.2 V DC |
| Motor Diameter | 22 mm |
| Motor Length | 25 mm |
| Shaft Diameter | 2 mm |
| Shaft Length | 9 mm |
Description

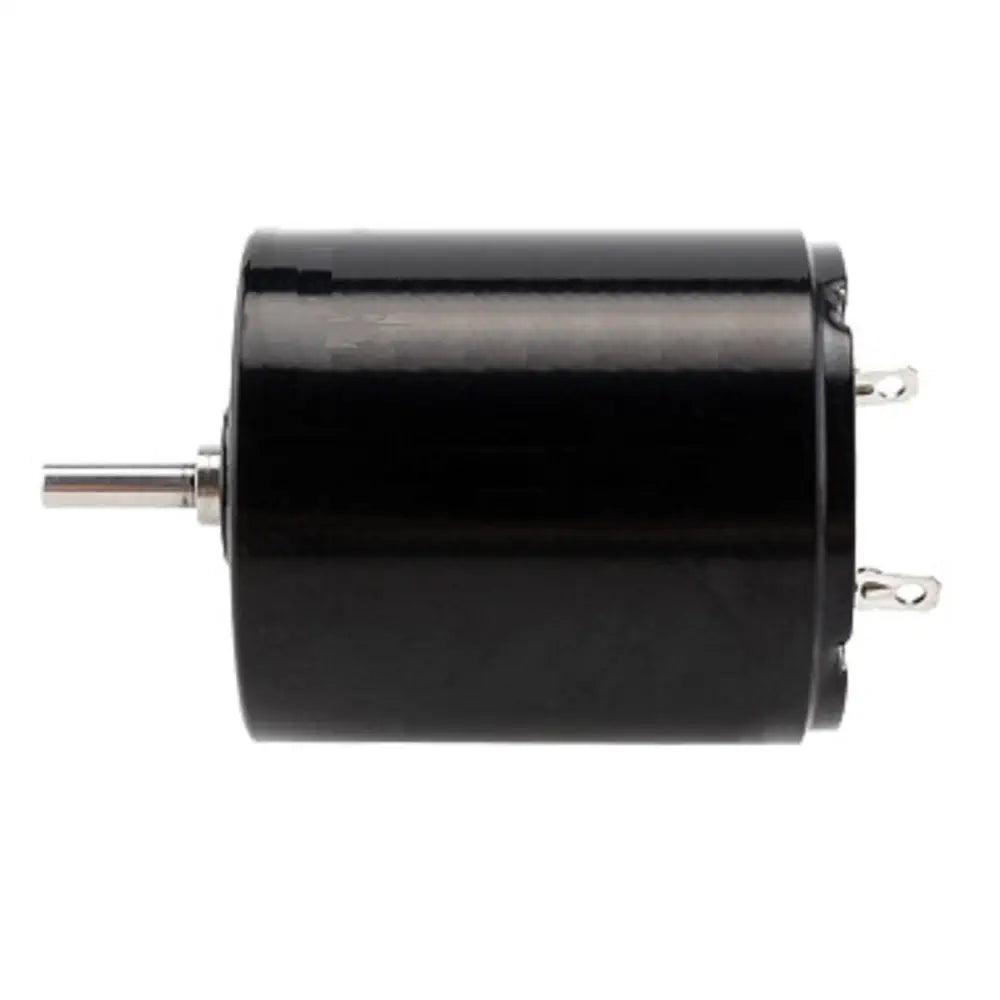

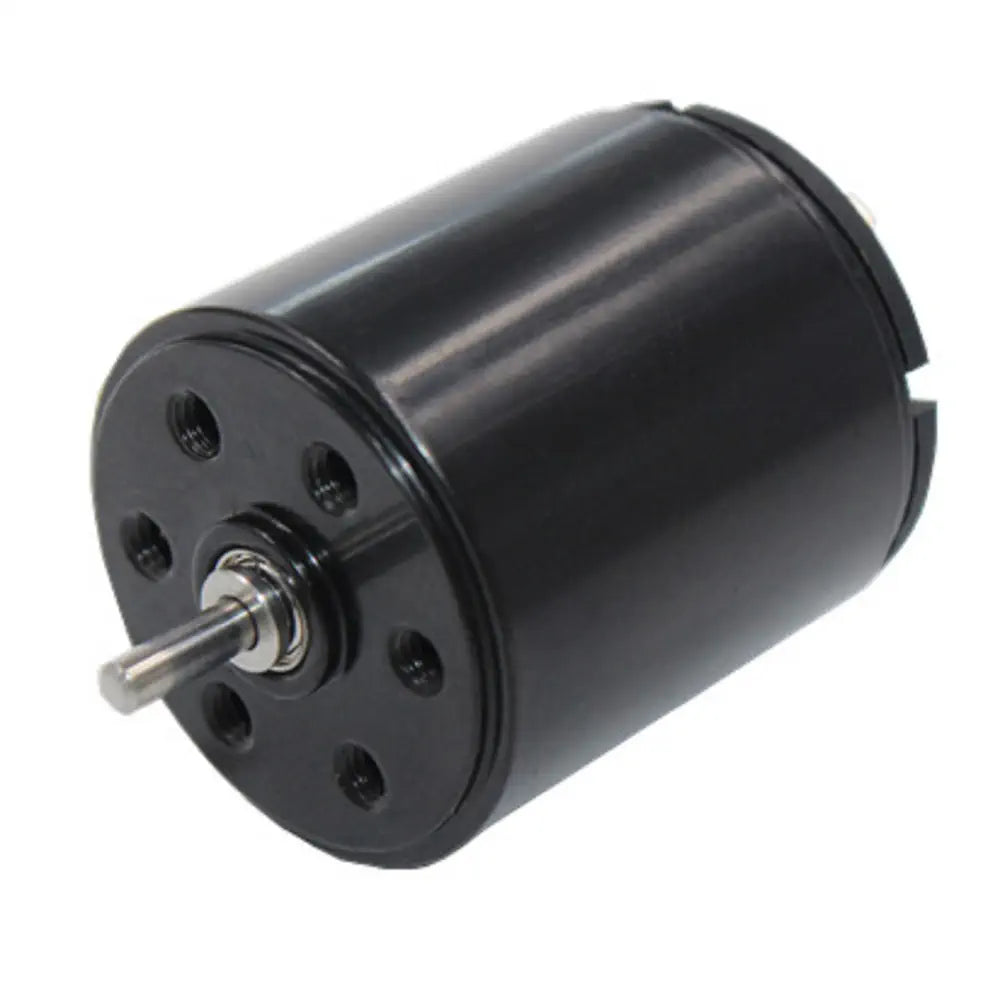

The 22 mm Coreless DC Motor 12 V (11500 RPM) delivers high performance in a lightweight, compact form factor. Its advanced coreless (ironless) winding provides very low inertia and fast dynamic response compared to conventional iron-core DC motors. This results in efficient energy conversion, smooth motion control, and minimal speed fluctuation under load.
Built with precision components and rare-earth magnets, this motor provides reliable high-speed operation with low noise and stable running characteristics, making it suited for precision robotics, automation systems, intelligent devices, and small electromechanical applications.
Typical Applications
• Robotics and robotic actuators
• Precision automation equipment
• Laboratory and medical devices
• Handheld instrumentation and control systems
• Aerospace and R&D prototyping projects
Package Includes
• 1 × 22 mm 12 V Coreless DC Motor (2225CL 12)
