Product Description

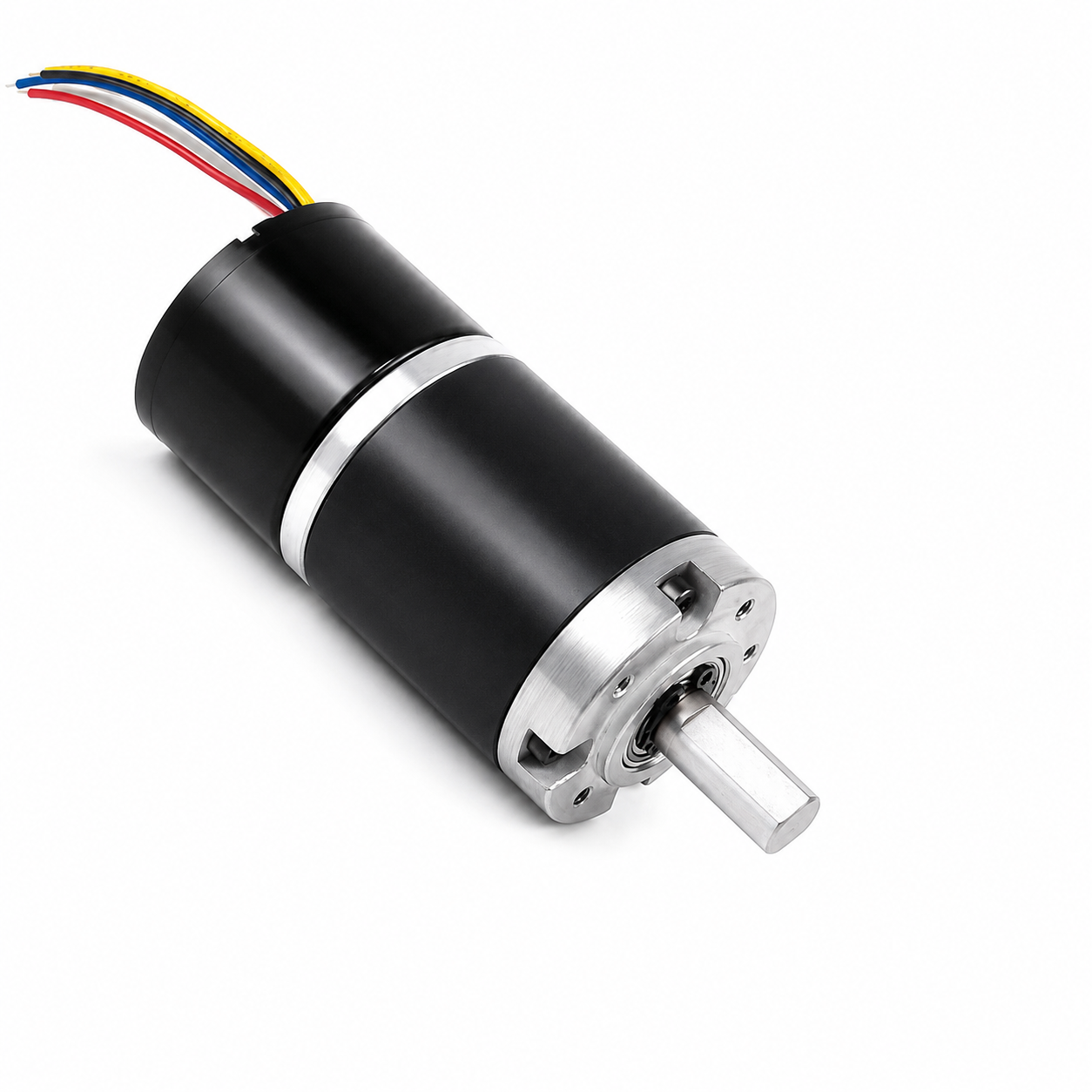

The 36GP-3626 Brushless DC Planetary Gear Motor is a compact high-efficiency BLDC gearbox motor designed for AGV robots, automation systems, conveyor equipment, smart machinery, robotic drive systems, and industrial motion control applications.
Featuring a durable all-metal planetary gearbox combined with a brushless DC motor structure, this motor delivers improved efficiency, lower operating noise, longer service life, and reduced maintenance requirements compared to traditional brushed DC motors.
The 73RPM–222RPM speed range provides an excellent balance between torque output and drive speed, making this motor suitable for mobile robots, AGV platforms, robot wheel systems, automation equipment, and embedded robotics projects.
This motor supports PWM speed control, reversible CW/CCW operation, and is available with both 6mm and 8mm D-shaped output shaft configurations for compatibility with couplers, wheels, pulleys, and transmission systems.
The compact 36mm gearbox structure allows easy integration into robotics platforms and industrial automation systems while maintaining stable continuous-duty performance.
Key Features
- Brushless DC planetary gear motor
- 24V high-efficiency BLDC motor
- 73RPM–222RPM speed range
- High torque planetary gearbox transmission
- Available in 6mm and 8mm D shaft versions
- Lower noise than brushed DC motors
- Longer service life and reduced maintenance
- PWM speed control compatible
- Reversible CW / CCW operation
- Compact industrial 36mm structure
- Stable continuous-duty operation
- Suitable for AGV and robotics systems
- Five-wire motor configuration
- Durable all-metal gearbox design
Specifications
| Parameter | Specification |
|---|---|
| Model | 36GP-3626 |
| Motor Type | Brushless DC Planetary Gear Motor |
| Rated Voltage | DC 24V |
| Speed Range | 73RPM–222RPM |
| Gear Ratio Options | 1:27 / 1:50 / 1:84 |
| Rated Power | 9.6W |

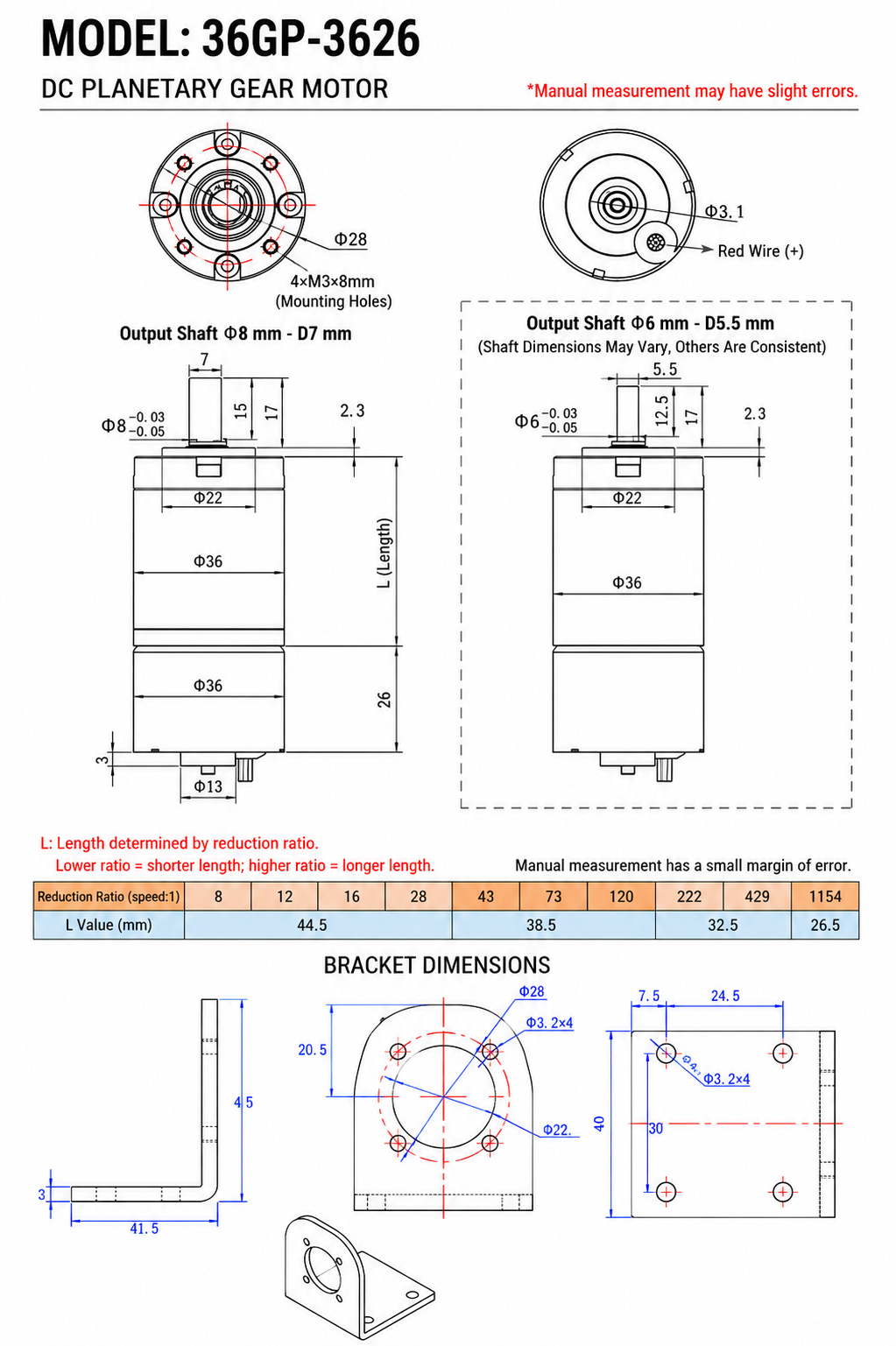

| Gearbox Diameter | 36mm |
| Motor Length | 26mm + Gearbox Length |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Output Shaft Length | 17mm |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | PWM Supported |
| Wiring | Five-Wire Configuration |
| Mounting Hole | 4 × M3 |
| Continuous Operation | Supported |
Variant Structure
Variant 1 — Shaft Diameter
- 6mm D Shaft
- 8mm D Shaft
Variant 2 — Speed
- 73RPM
- 120RPM
- 222RPM
Applications
- AGV drive systems
- AMR robots
- Robot wheel drive systems
- Conveyor systems
- Smart automation equipment
- Industrial robotics
- Motion control systems
- Embedded robotic projects
- Automated transport equipment
- DIY robotics engineering
Package Includes
- 1 × Brushless DC Planetary Gear Motor
Optional accessories sold separately:
- PWM speed controller
- Motor mounting bracket
- Power supply module
- Shaft coupler
- Robot wheel
FAQ
What are the advantages of a brushless DC gear motor?
Brushless DC motors provide higher efficiency, longer lifespan, lower maintenance, reduced noise, and more stable operation compared to brushed motors.
Is this motor suitable for AGV robots?
Yes. The 73RPM–222RPM speed range is widely used in AGV robots, mobile robots, and automation systems.
Does this motor support PWM speed control?
Yes. The motor supports PWM speed regulation using a compatible BLDC motor controller.
What is the difference between the 6mm and 8mm shaft versions?
The shaft diameter affects compatibility with wheels, couplers, pulleys, and mechanical transmission systems.
Can this motor run continuously?
Yes. The motor supports continuous-duty operation under proper load conditions.
