Product Description

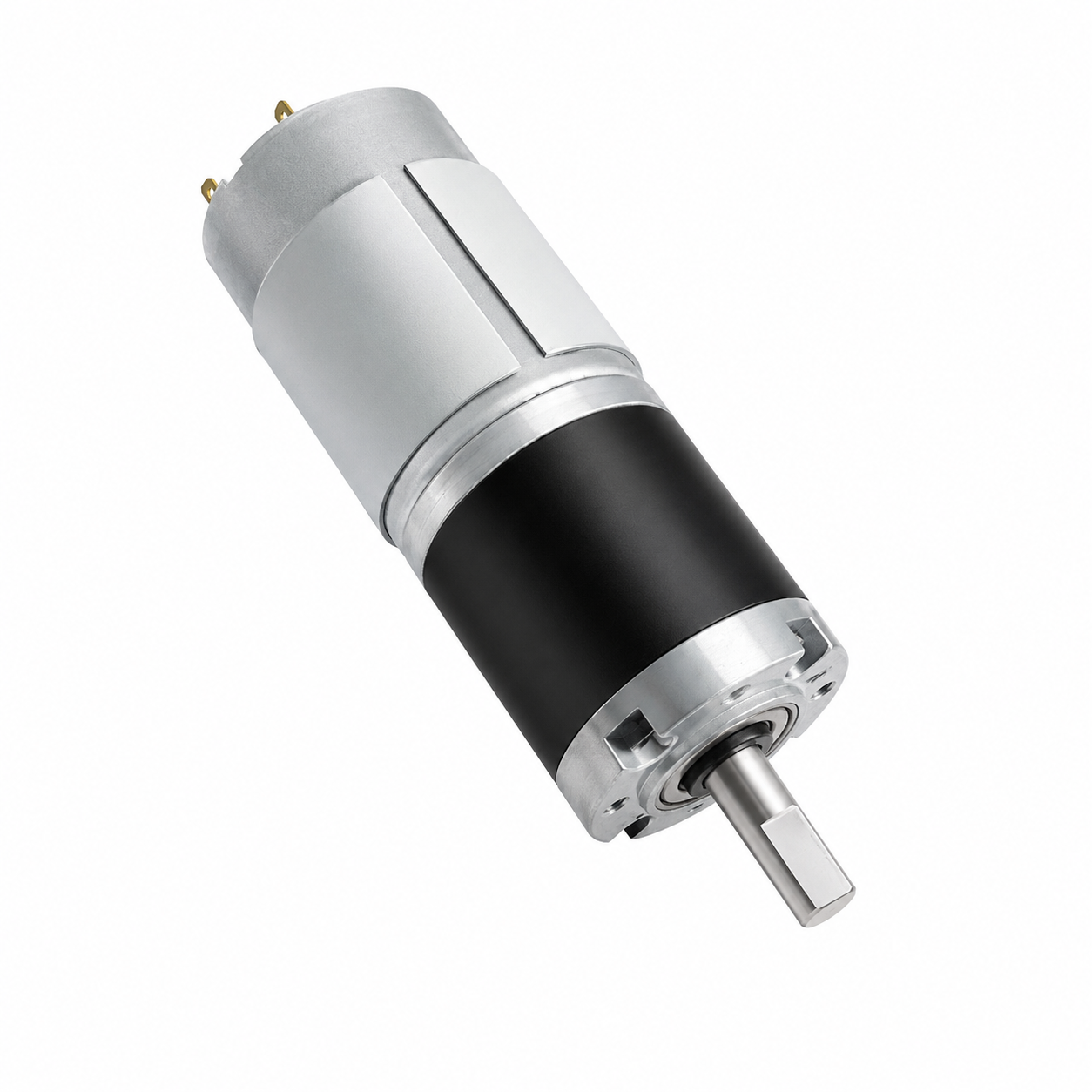

The 24V 160RPM DC Gearbox Motor is a compact high-performance planetary gear motor designed for AGV robots, industrial automation equipment, conveyor systems, and robotic motion control applications.
With a durable planetary gearbox structure and stable 160RPM output speed, this motor delivers reliable torque transmission and smooth operation for industrial and robotic systems.
The motor is available with both 6mm and 8mm D shaft output configurations for compatibility with robot wheels, couplers, pulleys, and automation drive mechanisms.
The compact structure makes it suitable for embedded robotics, mobile platforms, and automated machinery requiring stable drive performance.
Key Features
- 24V DC planetary gear motor
- 160RPM output speed
- Available in 6mm and 8mm shaft versions
- High torque gearbox transmission
- Compact industrial motor structure
- Reversible forward and reverse operation
- PWM speed control compatible
- Durable metal gearbox construction
- Suitable for AGV and automation systems

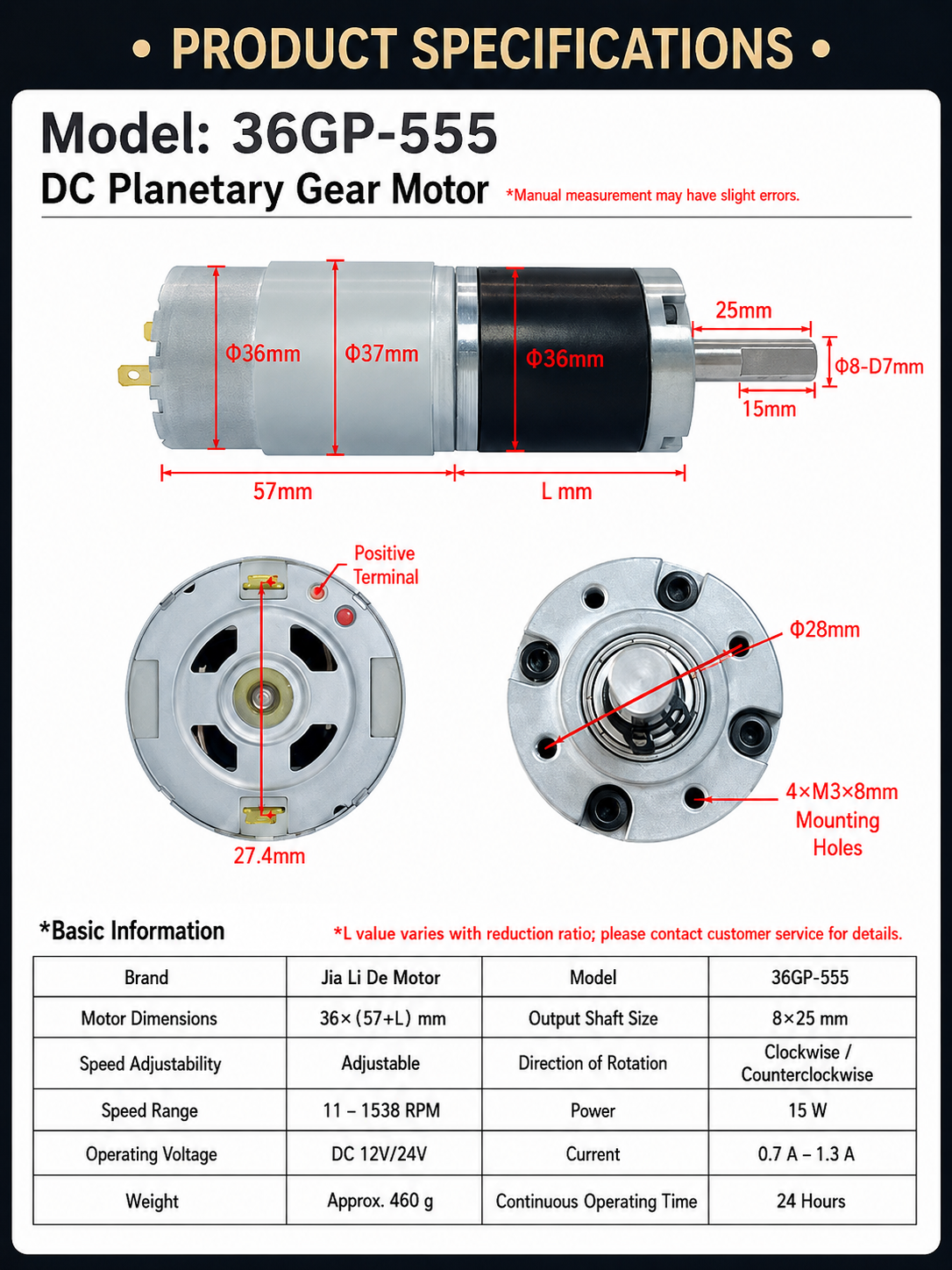

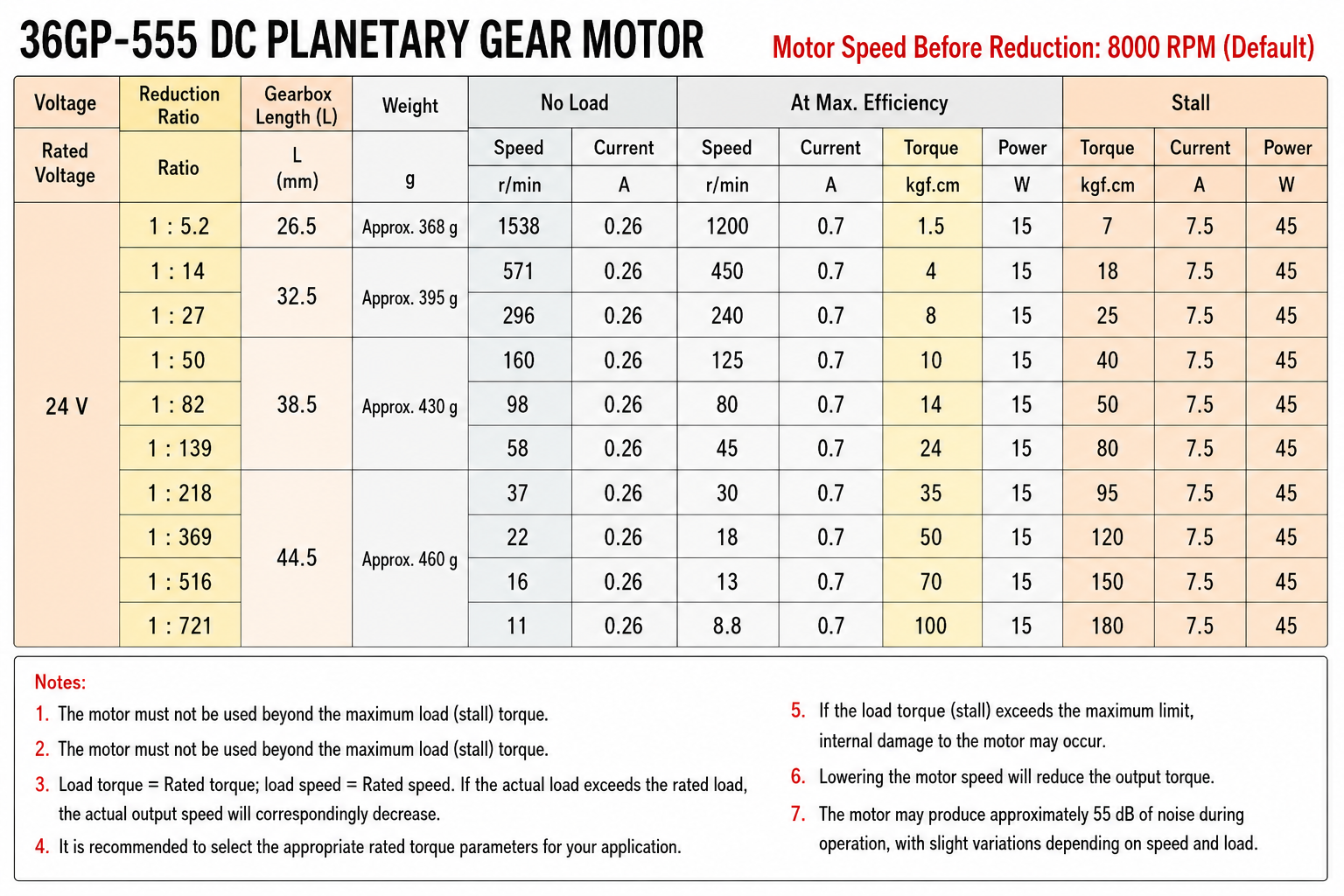

Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | DC 24V |
| Rated Speed | 160RPM |
| Gear Ratio | 1:50 |
| Rated Torque | 10kgf.cm |
| Stall Torque | 40kgf.cm |
| Rated Power | 15W |
| Gearbox Diameter | 36mm |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
Applications
- AGV drive motors
- Robot wheel systems
- Industrial automation
- Conveyor systems
- Motion control systems
- Smart robotics equipment
FAQ
Is this motor suitable for AGV robots?
Yes. The 160RPM speed range is commonly used in AGV and mobile robotics systems.
Which shaft size should I choose?
Choose the shaft diameter based on your wheel hub, coupler, pulley, or mechanical transmission requirements.
