Product Description

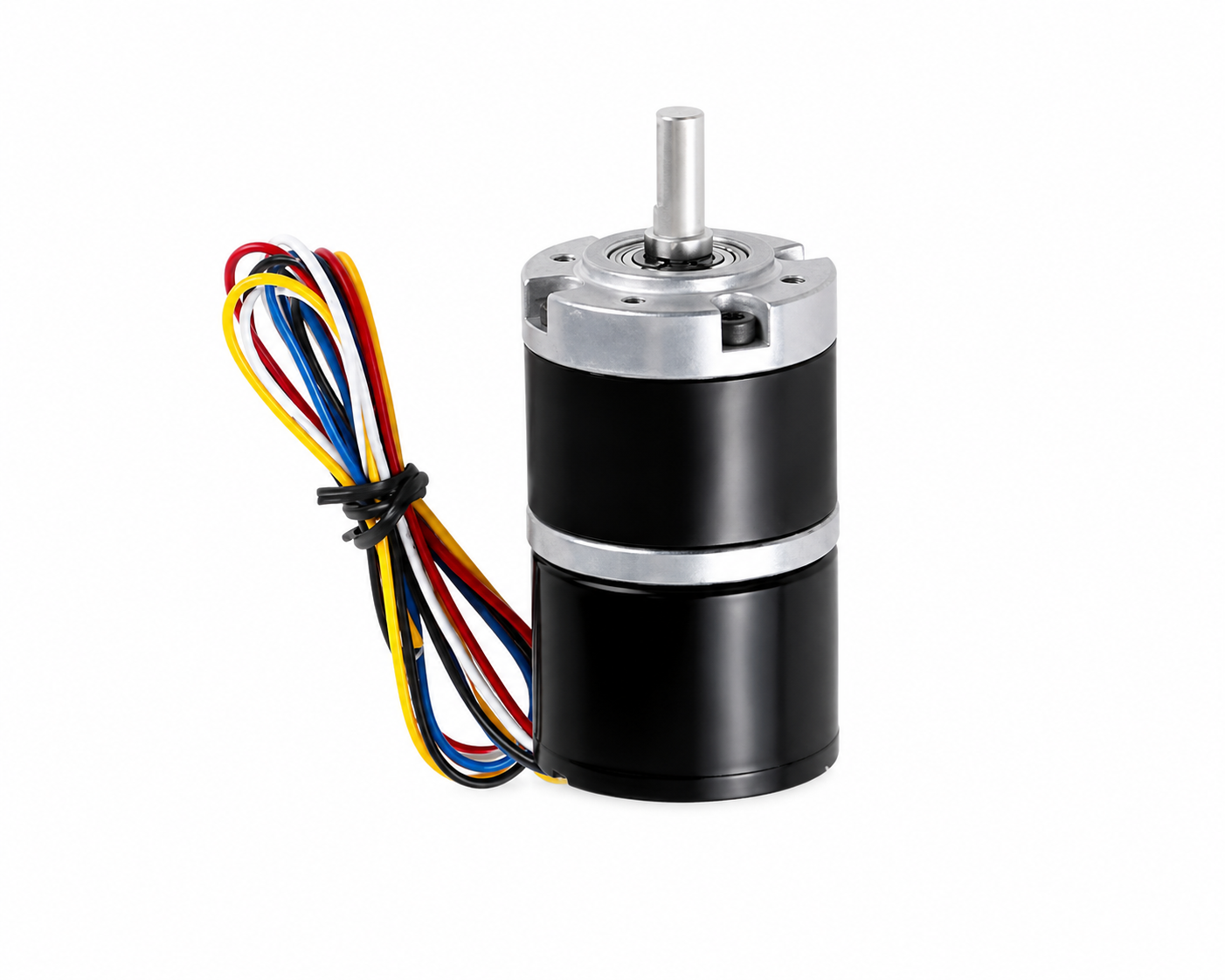

The 36GP-3626 Brushless DC Planetary Gear Motor is a compact high-speed BLDC gearbox motor designed for AGV robots, conveyor systems, mobile robotics, automation equipment, and intelligent machinery applications.
Featuring a high-efficiency brushless DC motor combined with a precision planetary gearbox structure, this motor delivers smooth high-speed operation, stable torque transmission, low operating noise, and extended service life.
The 120RPM–429RPM speed range is suitable for applications requiring faster movement speed while maintaining reliable torque output and stable drive performance.
This motor supports PWM speed control, reversible CW / CCW operation, and is available with both 6mm and 8mm D shaft configurations for compatibility with robot wheels, couplers, pulleys, and conveyor systems.
The compact 36mm structure makes it suitable for embedded robotics projects, AGV wheel systems, and industrial automation platforms.
Key Features
- 24V brushless DC planetary gear motor
- 120RPM–429RPM high-speed range
- Available in 6mm and 8mm shaft versions
- Durable all-metal planetary gearbox
- High-efficiency BLDC motor structure
- Low noise operation
- PWM speed control compatible
- Reversible CW / CCW rotation
- Suitable for AGV robots and conveyor systems
- Compact industrial motor design
- Stable continuous-duty performance

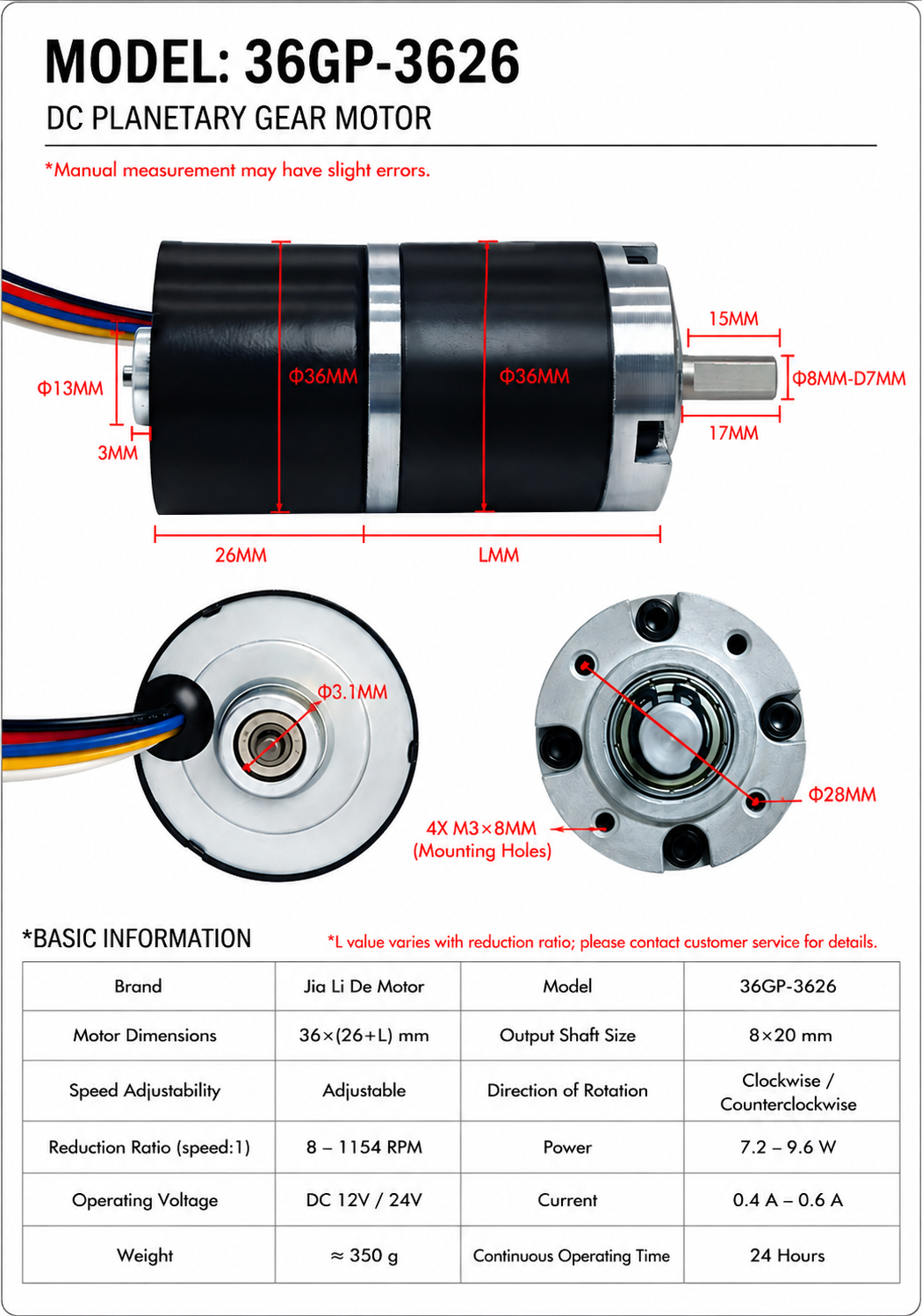

Specifications
| Parameter | Specification |
|---|---|
| Model | 36GP-3626 |
| Motor Type | Brushless DC Planetary Gear Motor |
| Rated Voltage | DC 24V |

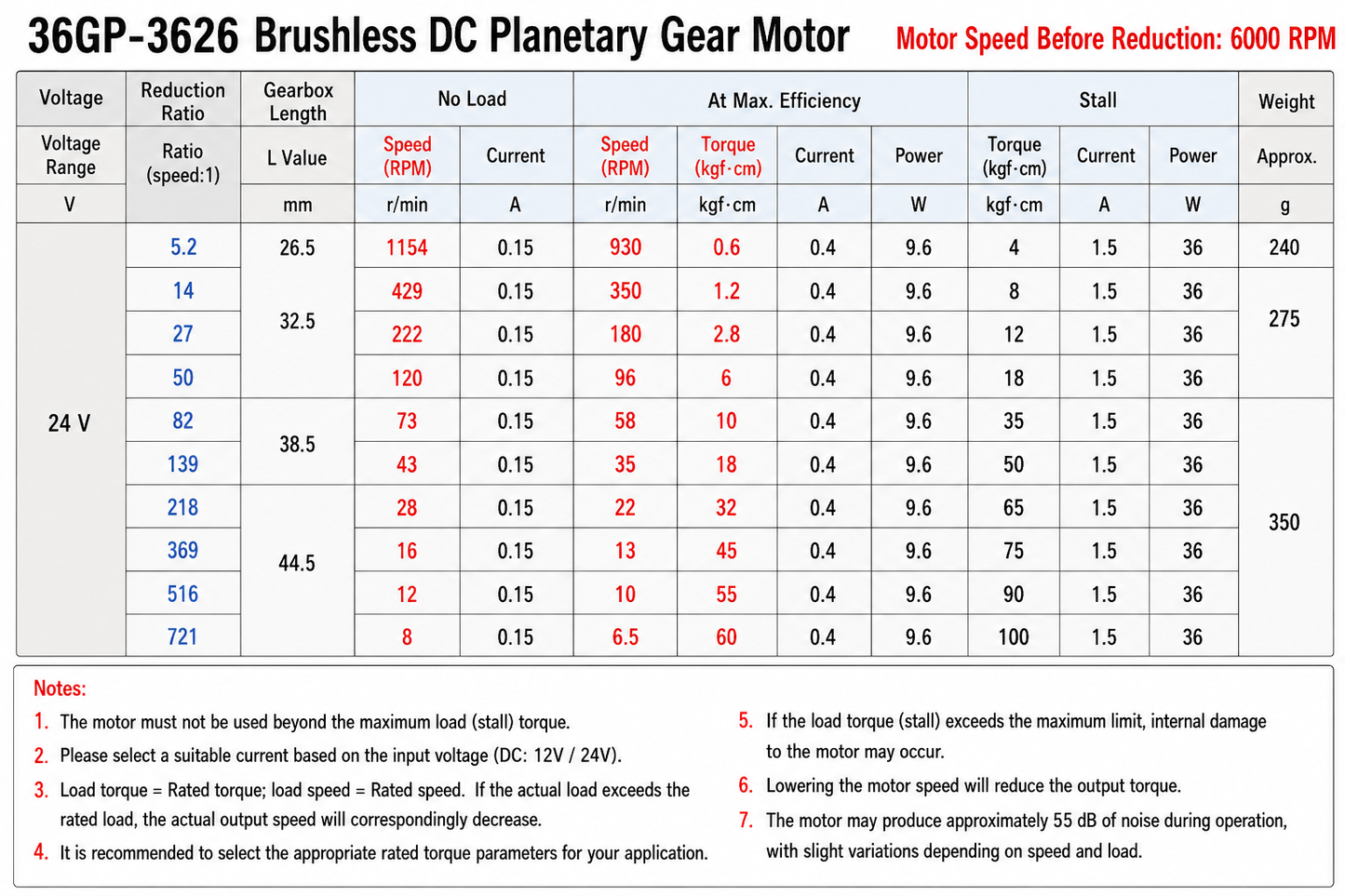

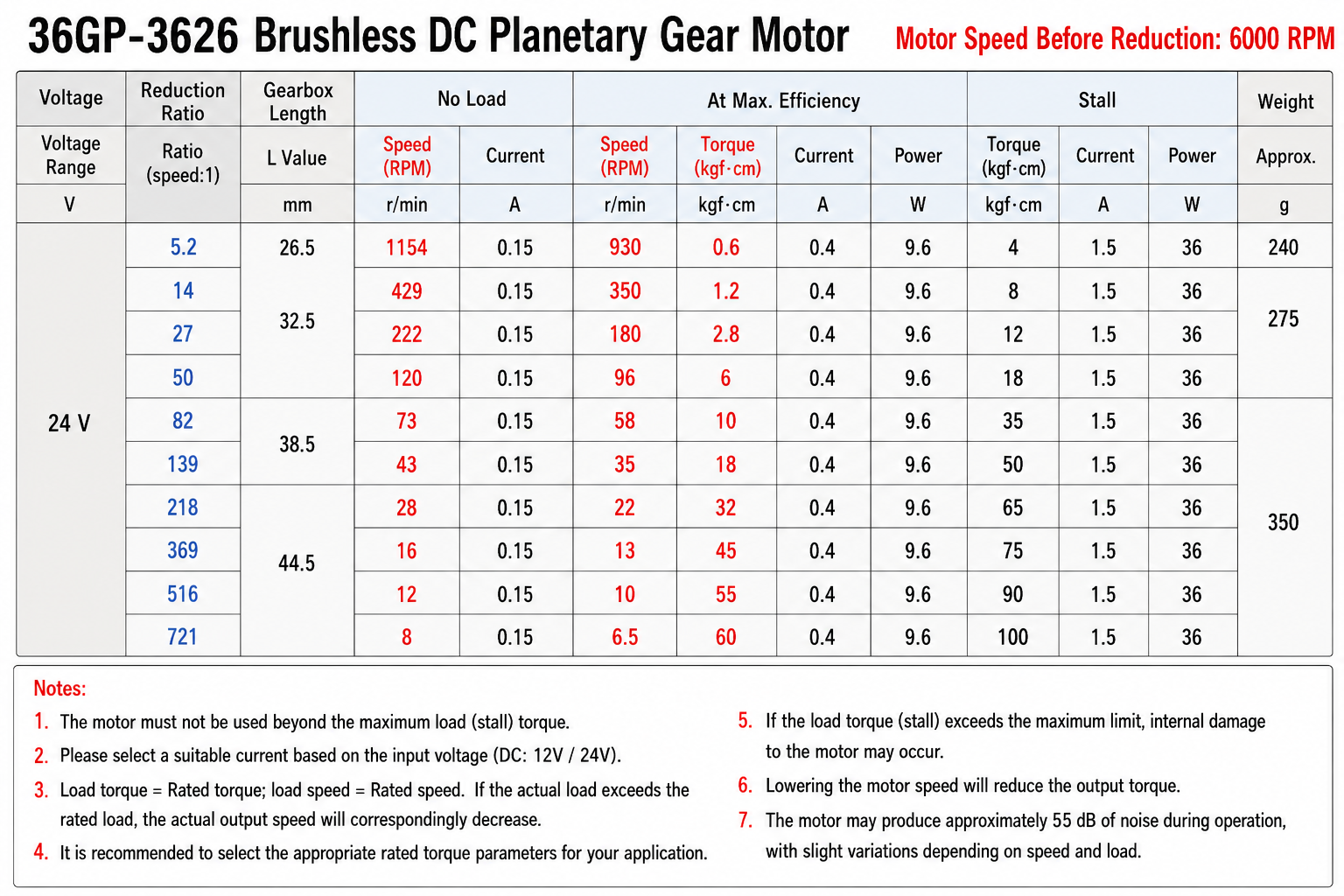

| Speed Range | 120RPM–429RPM |
| Gear Ratio Options | 1:14 / 1:27 / 1:50 |
| Rated Power | 9.6W |

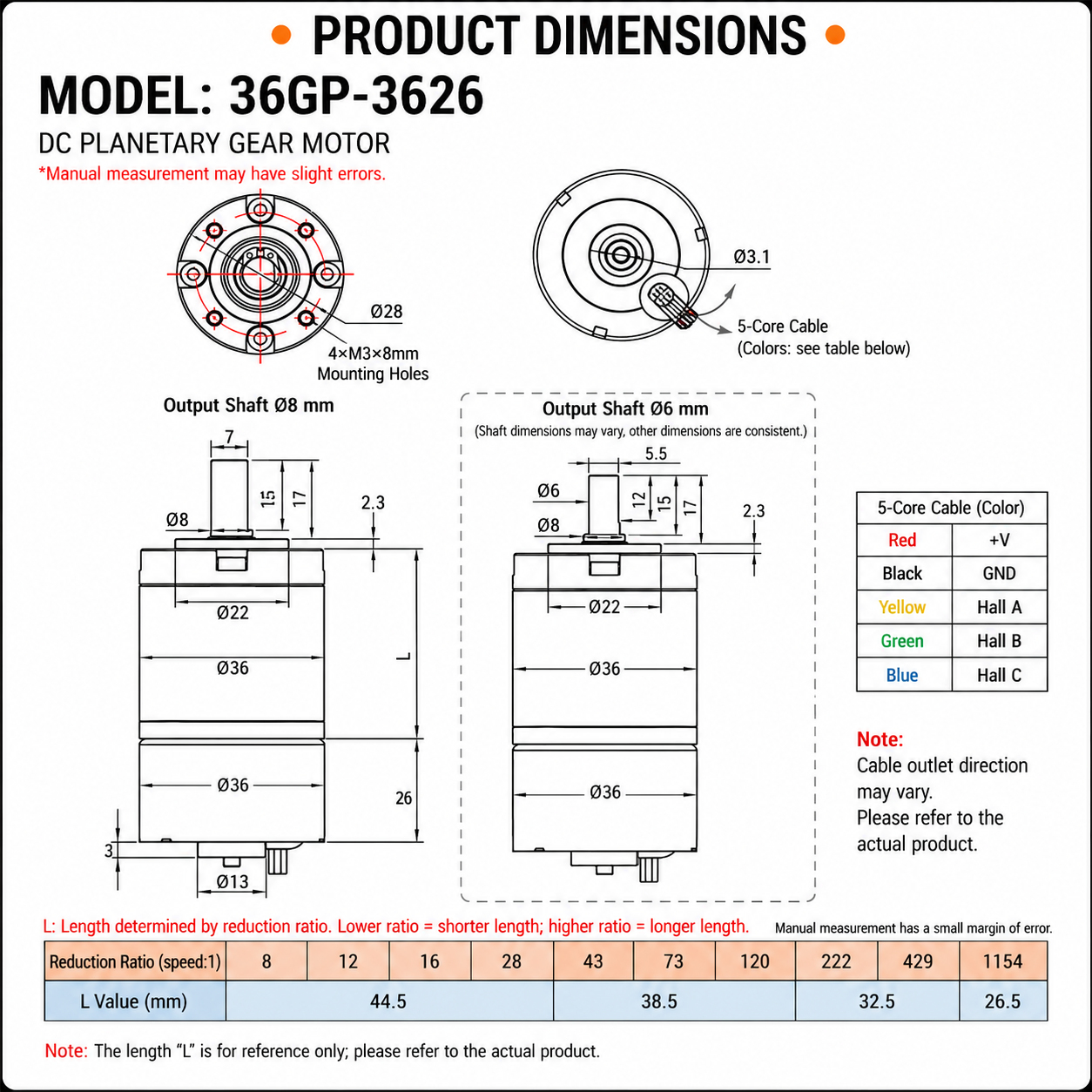

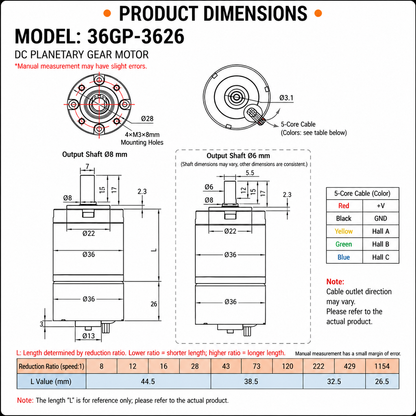

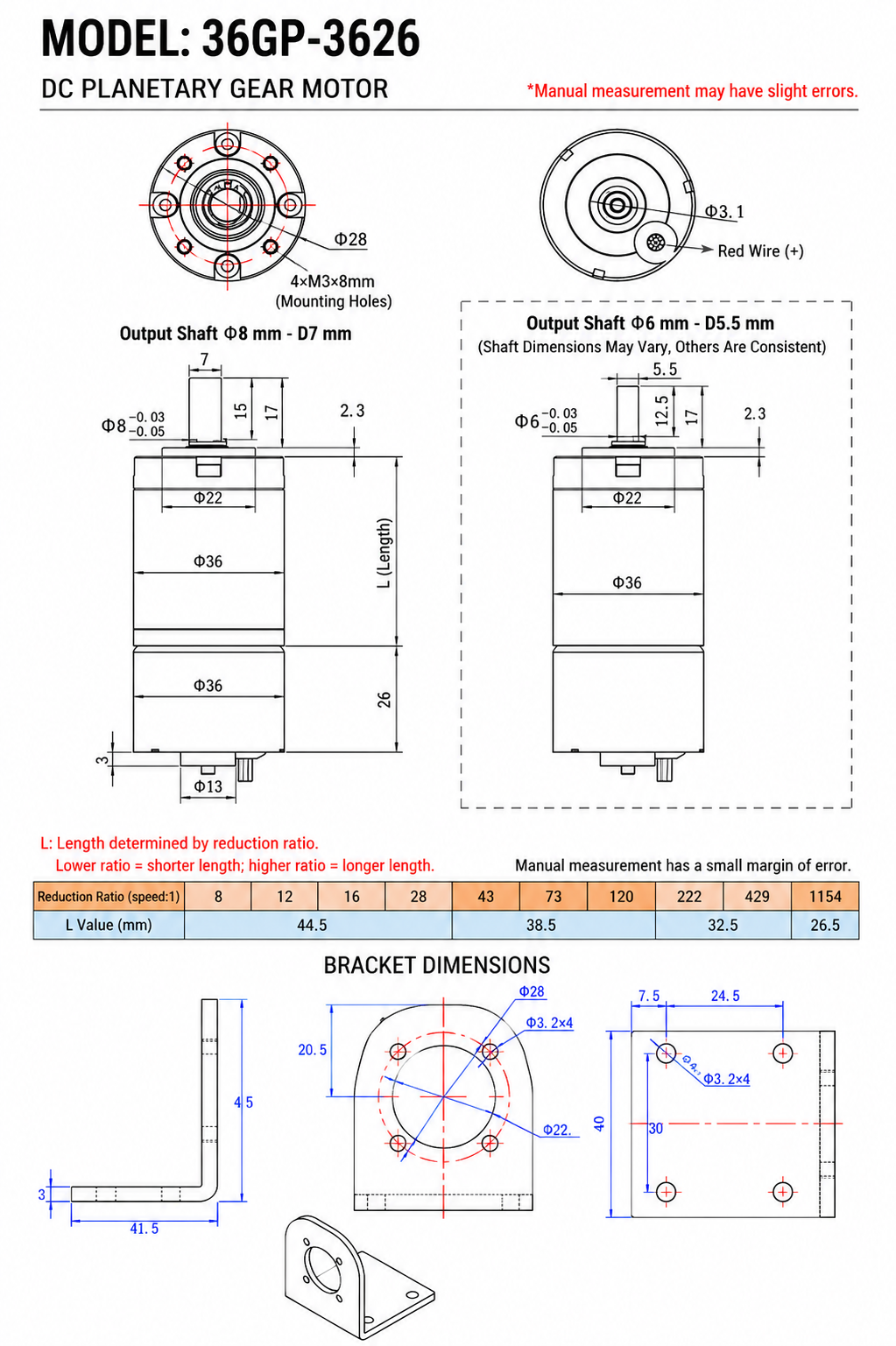

| Gearbox Diameter | 36mm |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Shaft Length | 17mm |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | PWM Supported |
Variant Structure
Variant 1 — Shaft Diameter
- 6mm D Shaft
- 8mm D Shaft
Variant 2 — Speed
- 120RPM
- 222RPM
- 429RPM
Applications
- AGV drive systems
- Conveyor systems
- Mobile robots
- Smart automation equipment
- Motion control systems
- Industrial robotics
- Robot wheel drive systems
- Embedded robotics projects
Package Includes
- 1 × Brushless DC Planetary Gear Motor
Optional accessories sold separately:
- PWM BLDC motor controller
- Motor mounting bracket
- Power supply module
- Shaft coupler
- Robot wheel
FAQ
What are the advantages of a brushless planetary gear motor?
Brushless motors provide longer lifespan, higher efficiency, lower maintenance, and quieter operation compared to brushed DC motors.
Is this motor suitable for AGV robots?
Yes. The 120RPM–429RPM range is suitable for AGV robots, mobile platforms, and conveyor systems requiring higher movement speed.
Does this motor support PWM speed control?
Yes. The motor supports PWM speed regulation using a compatible BLDC motor controller.
What is the difference between the 6mm and 8mm shaft versions?
The shaft diameter affects compatibility with wheels, couplers, pulleys, and mechanical transmission systems.
