Product Description

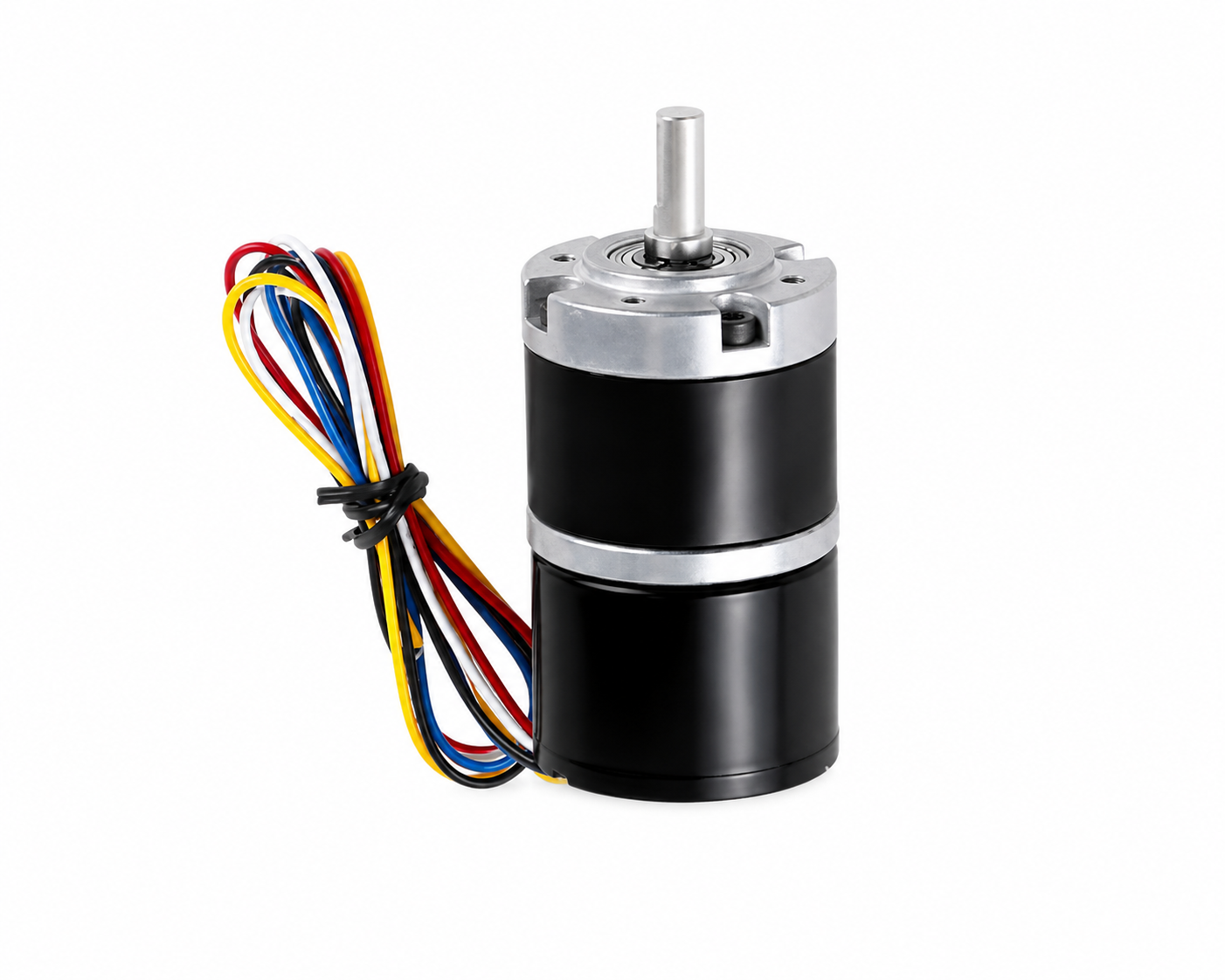

The 36GP-3626 Brushless DC Planetary Gear Motor is a compact high-torque BLDC gearbox motor designed for AGV robots, industrial automation systems, conveyor equipment, robotic drive systems, and smart machinery applications.
Featuring a durable all-metal planetary gearbox combined with a high-efficiency brushless DC motor structure, this motor provides stable low-speed torque output, longer lifespan, lower maintenance requirements, and quieter operation compared to traditional brushed motors.
The 28RPM–73RPM speed range is optimized for low-speed high-torque applications requiring stable motion control and reliable transmission performance. This motor is suitable for AGV platforms, conveyor systems, automated transport equipment, mobile robots, and industrial robotics projects.
The motor supports PWM speed control, reversible CW / CCW operation, and is available with both 6mm and 8mm D-shaped output shaft configurations for compatibility with robot wheels, couplers, pulleys, and transmission systems.
Key Features
- Brushless DC planetary gear motor
- 24V high-efficiency BLDC motor
- 28RPM–73RPM low-speed torque range
- High torque planetary gearbox transmission
- Available in 6mm and 8mm D shaft versions
- Lower noise and reduced maintenance
- Durable all-metal gearbox construction
- PWM speed control compatible
- Reversible CW / CCW operation
- Compact industrial 36mm structure
- Suitable for AGV and automation systems
- Stable continuous-duty performance
- Five-wire motor configuration

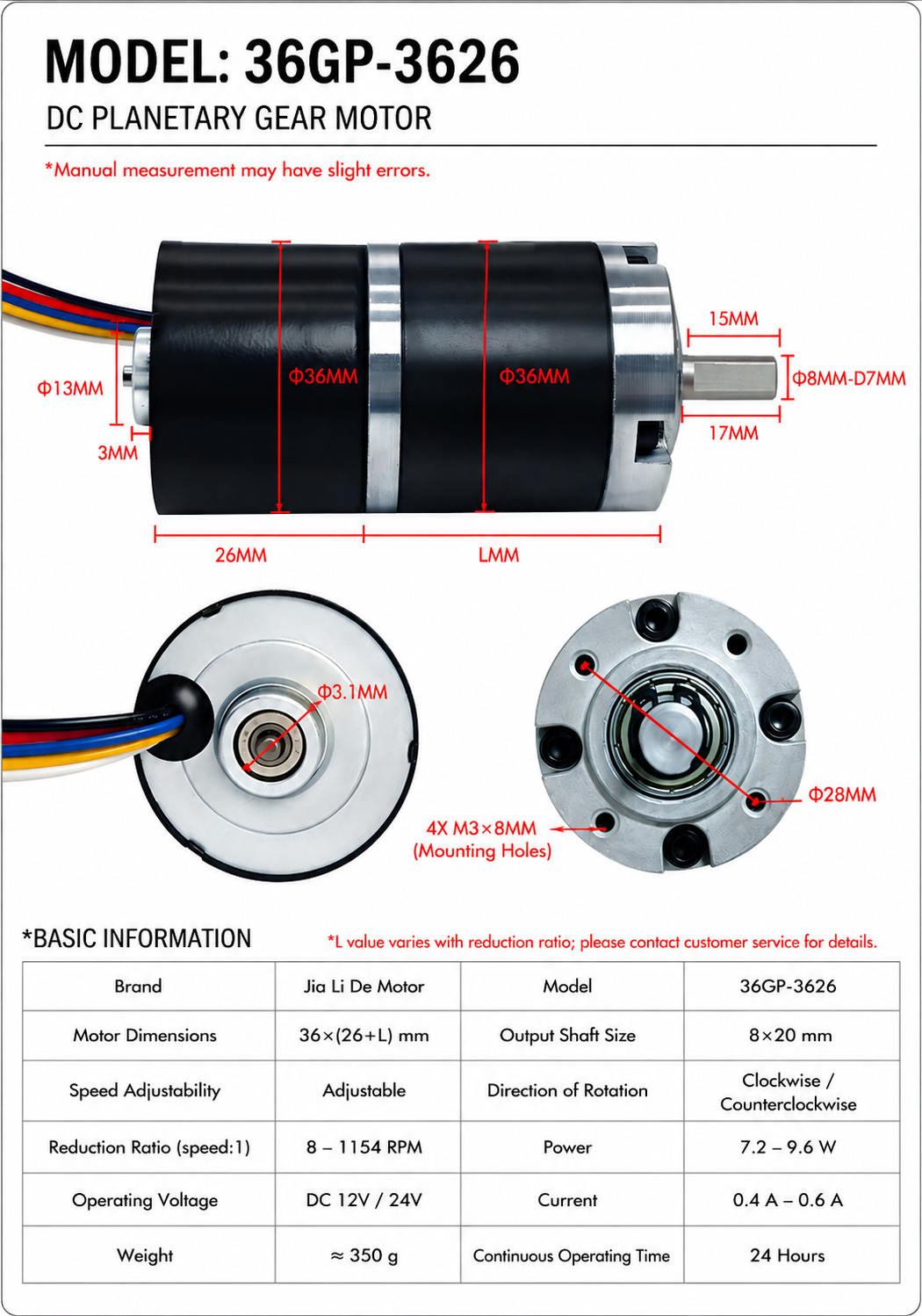

Specifications
| Parameter | Specification |
|---|---|
| Model | 36GP-3626 |
| Motor Type | Brushless DC Planetary Gear Motor |
| Rated Voltage | DC 24V |
| Speed Range | 28RPM–73RPM |

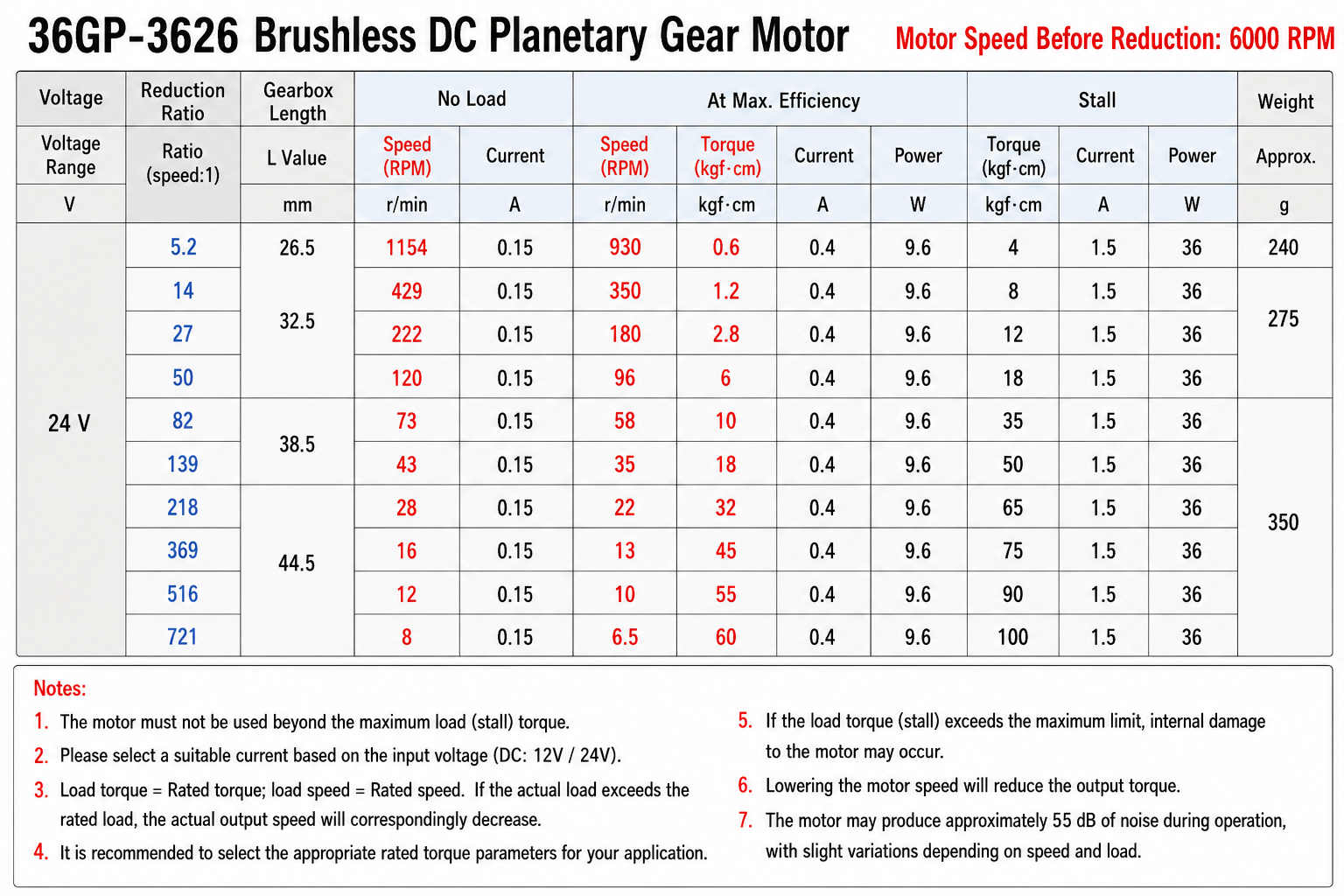

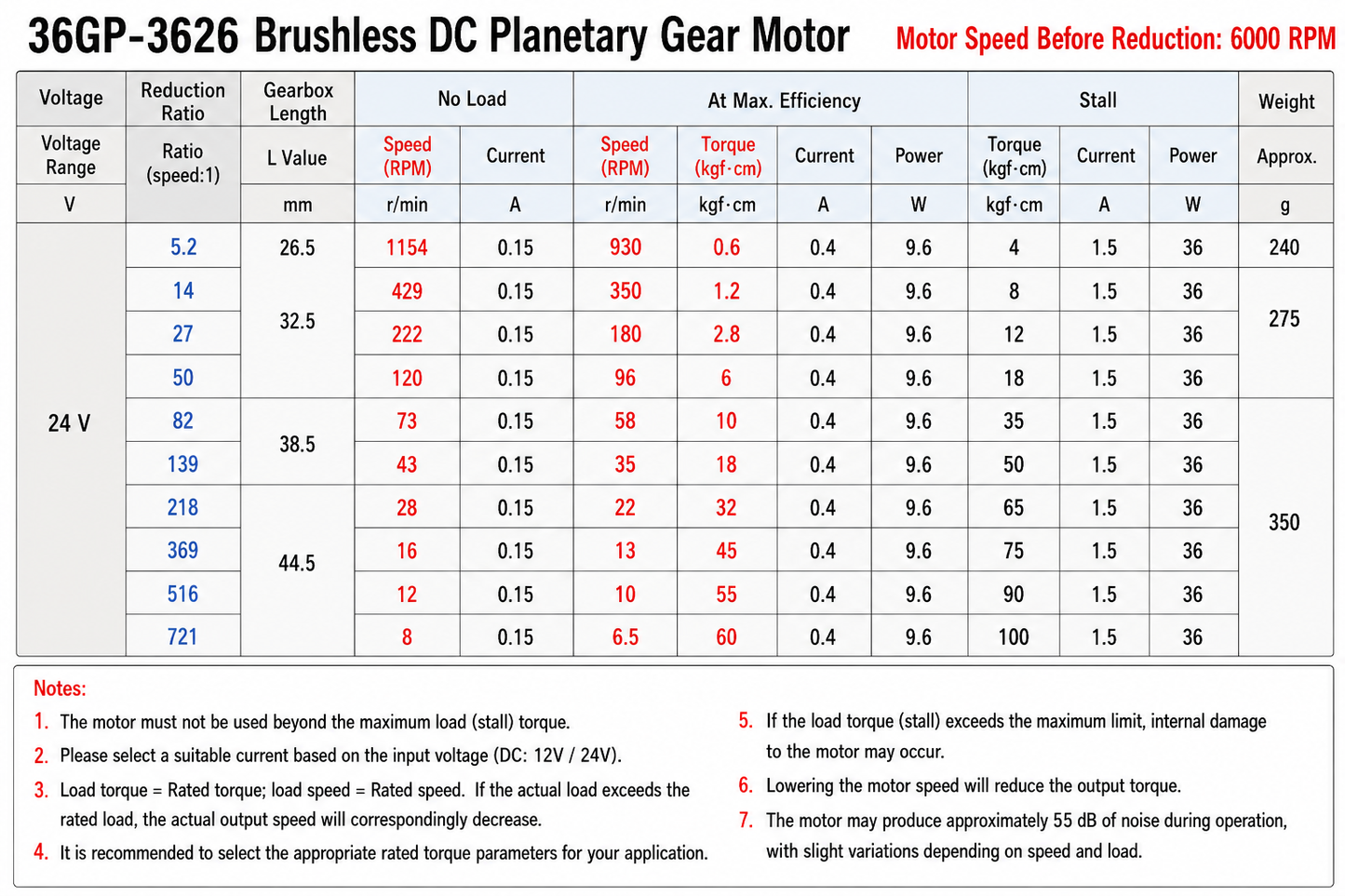

| Gear Ratio Options | 1:84 / 1:139 / 1:216 |
| Rated Power | 9.6W |

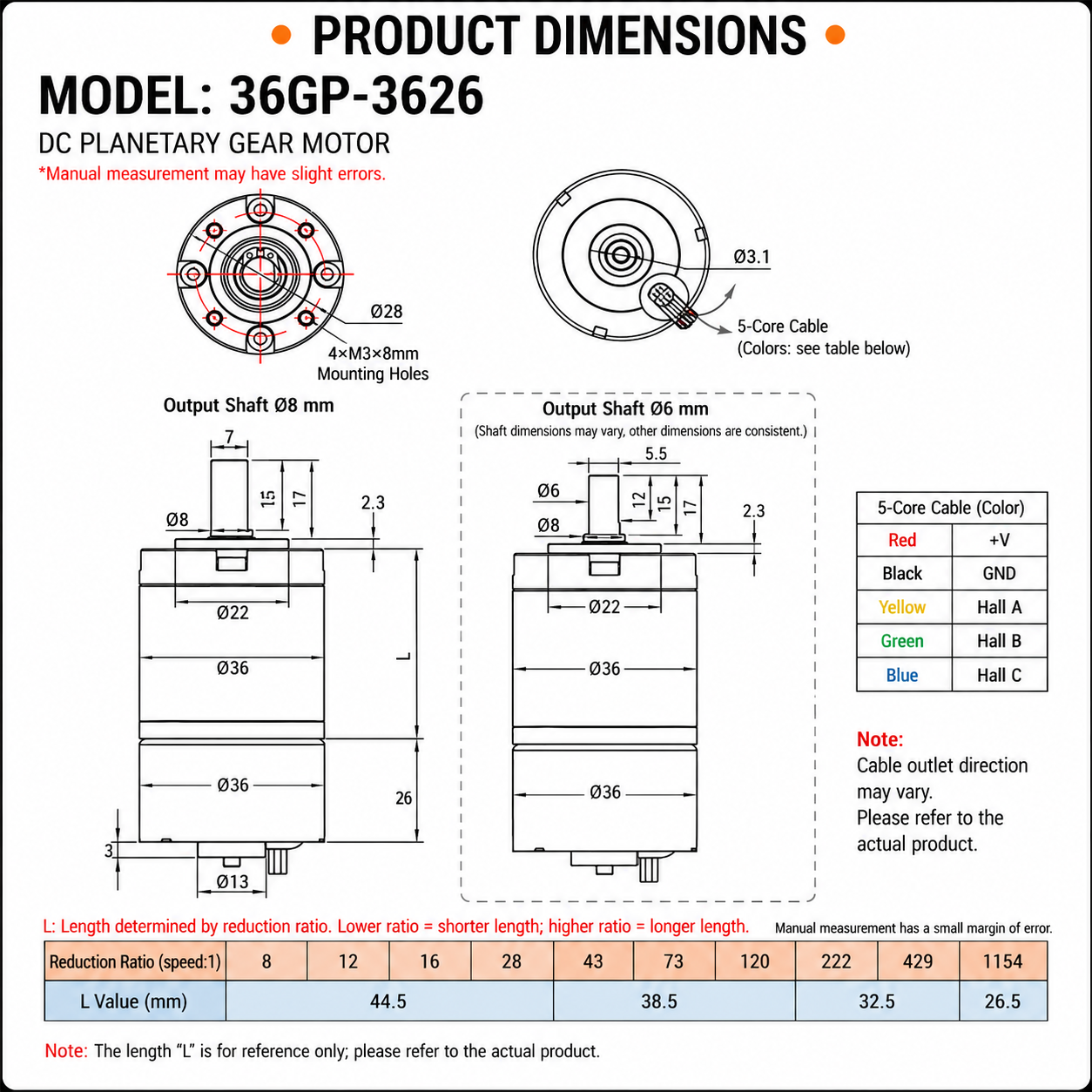

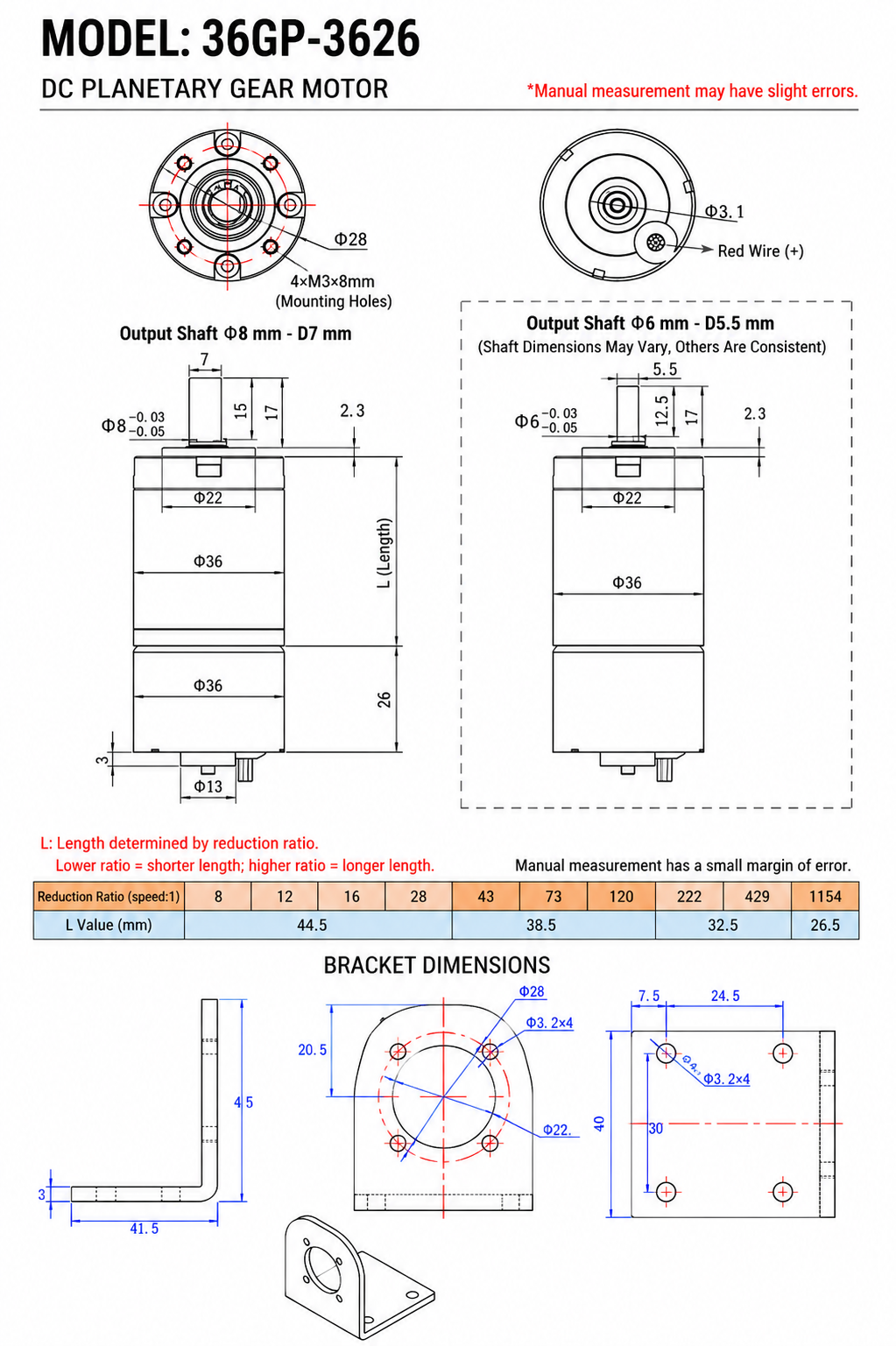

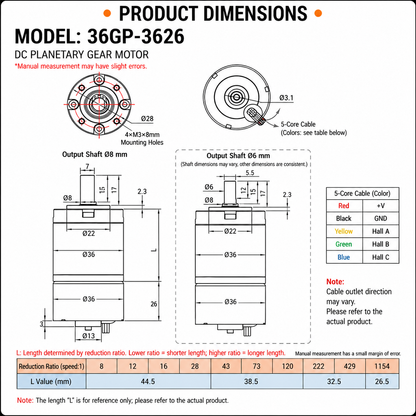

| Gearbox Diameter | 36mm |
| Motor Length | 26mm + Gearbox Length |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Output Shaft Length | 17mm |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | PWM Supported |
| Wiring | Five-Wire Configuration |
| Mounting Hole | 4 × M3 |
| Continuous Operation | Supported |
Applications
- AGV drive systems
- Conveyor equipment
- Industrial automation
- Robot wheel drive systems
- Smart machinery
- Motion control platforms
- Automated transport systems
- Embedded robotics projects
Package Includes
- 1 × Brushless DC Planetary Gear Motor
Optional accessories sold separately:
- PWM BLDC motor controller
- Motor mounting bracket
- Power supply module
- Shaft coupler
- Robot wheel
FAQ
What are the advantages of a brushless gear motor?
Brushless motors provide higher efficiency, lower maintenance, reduced operating noise, and longer service life than brushed motors.
Is this motor suitable for AGV robots?
Yes. The 28RPM–73RPM speed range is ideal for low-speed high torque AGV and mobile robotics systems.
Does this motor support PWM speed control?
Yes. The motor supports PWM speed regulation using a compatible BLDC motor controller.
What is the difference between the 6mm and 8mm shaft versions?
The shaft diameter affects compatibility with wheels, pulleys, couplers, and transmission systems.
