Product Description

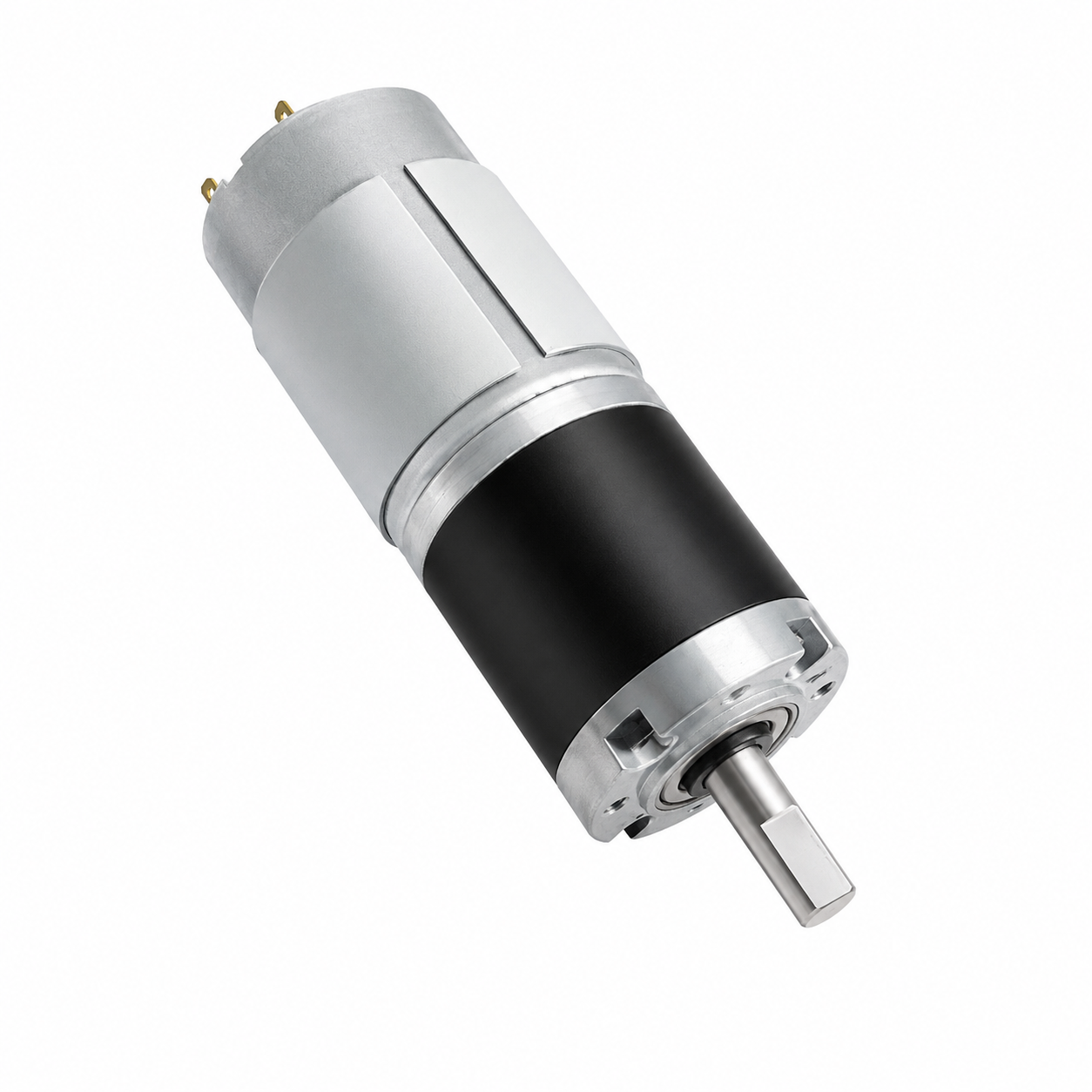

The 24V 58RPM DC Planetary Gear Motor is a compact industrial-grade brushed DC gearbox motor designed for robotics, AGV platforms, industrial automation systems, conveyor equipment, and intelligent machinery applications.
Featuring a high-efficiency planetary gearbox transmission system, this motor delivers stable low-speed high-torque output while maintaining compact dimensions and reliable continuous-duty operation.
The motor is available with both 6mm and 8mm D-shaped output shaft configurations for compatibility with different robotic wheels, couplers, pulleys, and mechanical drive systems.
The 58RPM speed configuration is ideal for controlled movement applications requiring stable drive performance and high torque transmission.
Key Features
- 24V DC planetary gear motor
- 58RPM high torque output
- Available in 6mm and 8mm shaft versions
- Compact 36mm gearbox design
- Durable metal planetary gearbox
- Reversible CW/CCW rotation
- PWM speed controller compatible
- Continuous-duty operation support
- Suitable for AGV and robotics systems

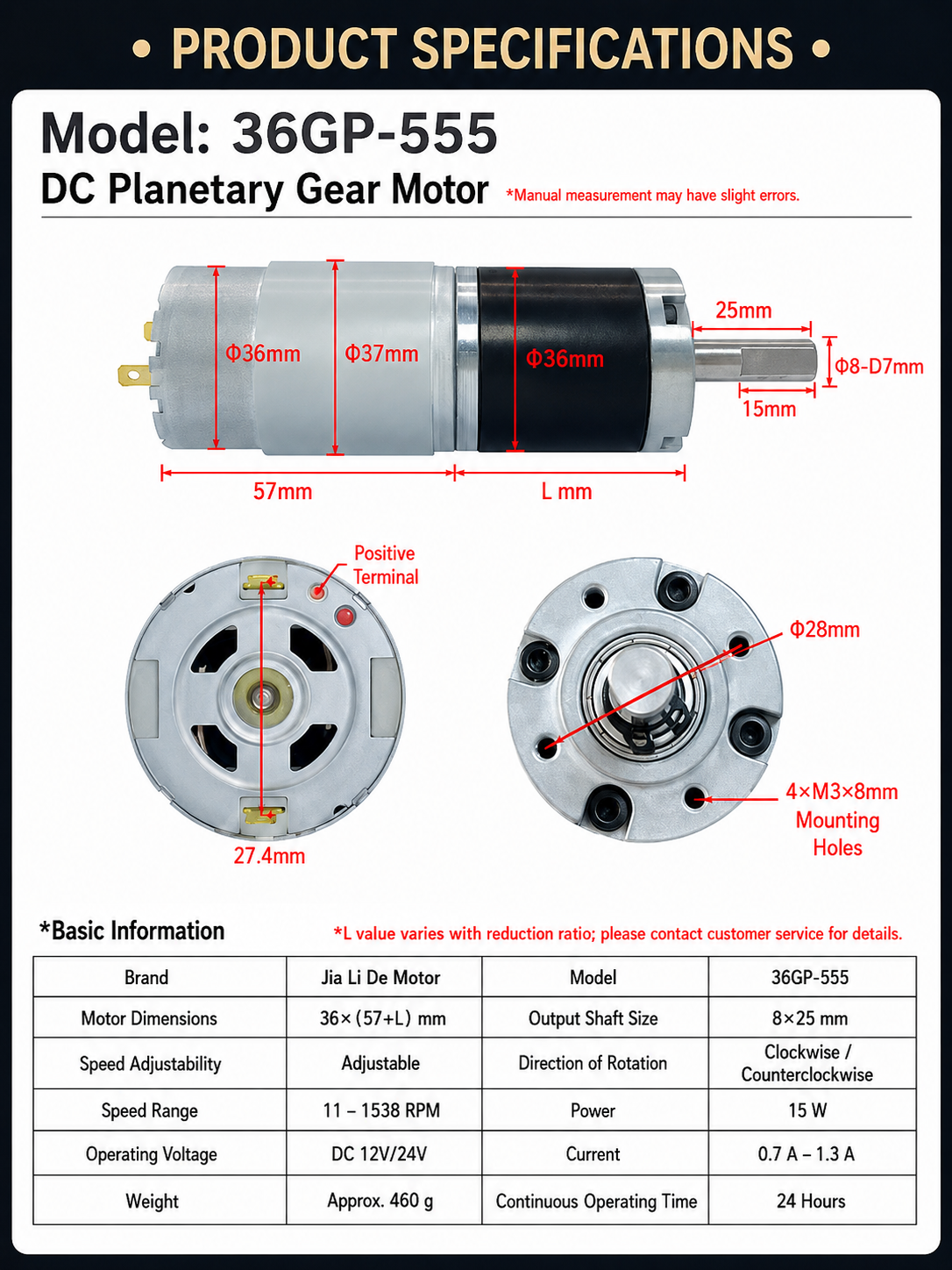

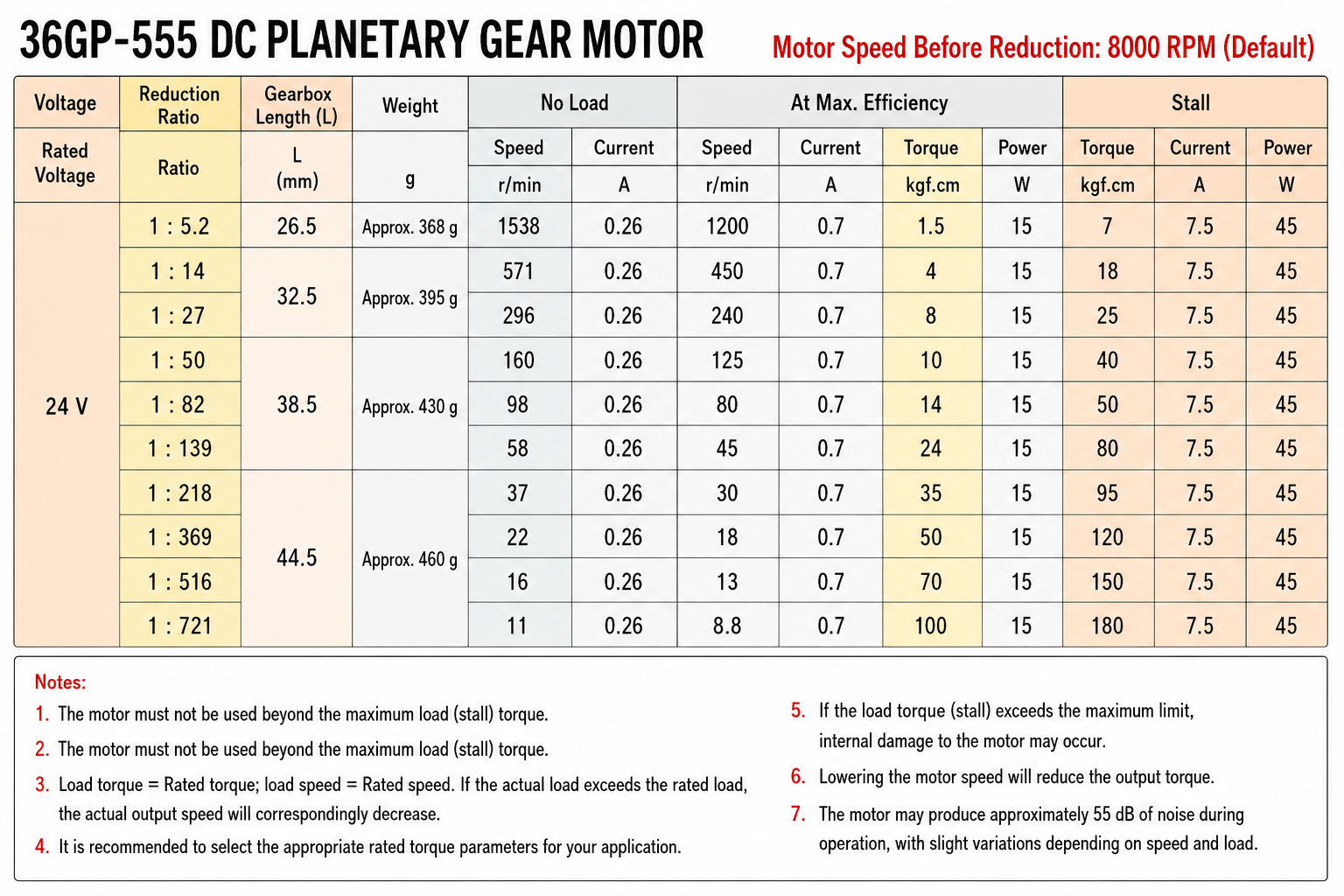

Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | DC 24V |
| Rated Speed | 58RPM |
| Gear Ratio | 1:139 |
| Rated Torque | 24kgf.cm |
| Stall Torque | 80kgf.cm |
| Power | 15W |

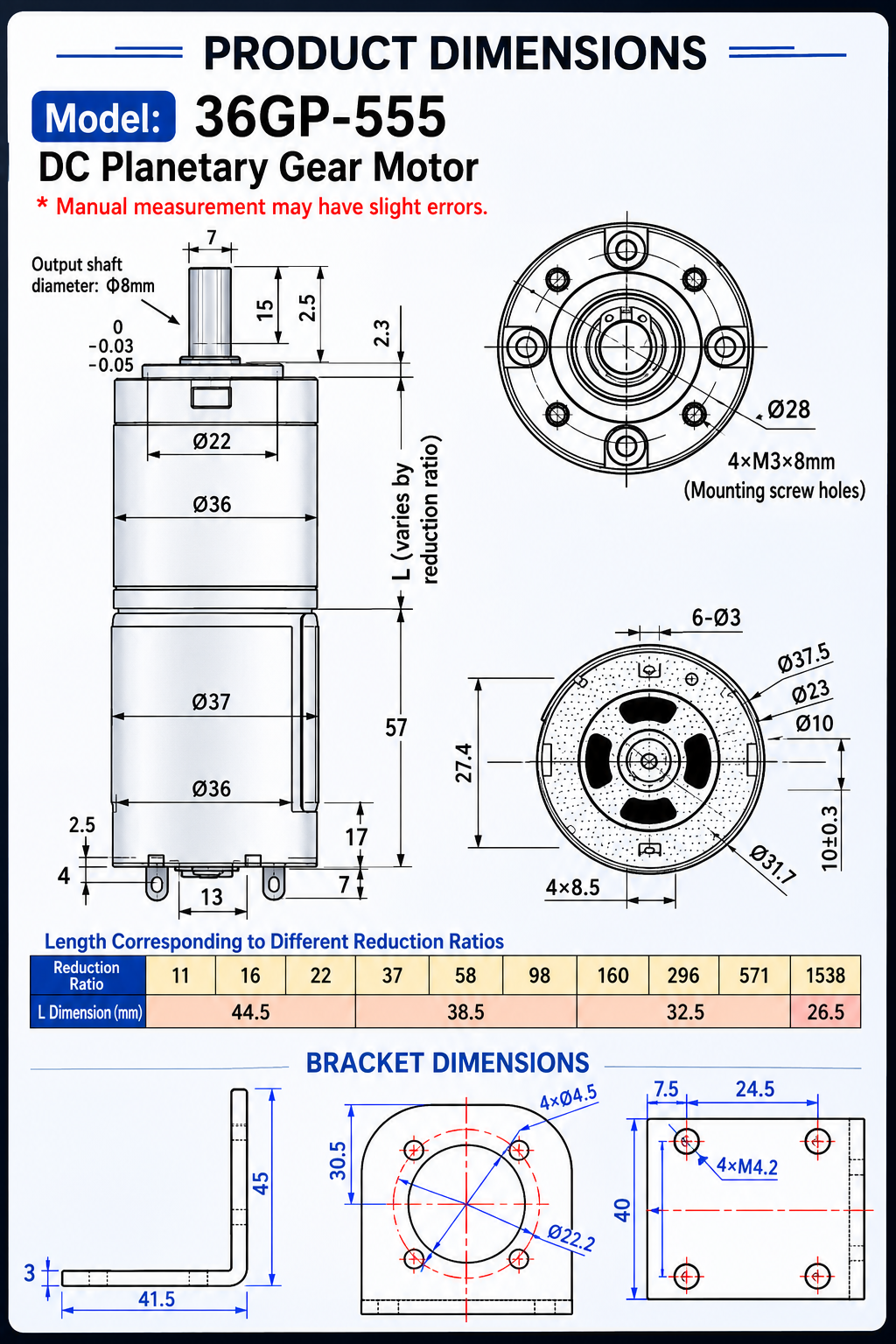

| Gearbox Diameter | 36mm |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Shaft Length | 25mm |
| Rotation | Reversible |
| Speed Control | PWM Supported |
Applications
- AGV drive systems
- AMR robots
- Industrial automation
- Conveyor equipment
- Robotics projects
- Motion control systems
- Smart machinery
FAQ
Which shaft size should I choose?
Choose the shaft diameter based on your wheel hub, coupling system, or transmission mechanism compatibility.
Is 24V suitable for industrial robotics?
Yes. 24V systems are widely used in industrial robotics and automation because of improved efficiency and lower operating current.
Can this motor run continuously?
Yes. The motor supports continuous-duty operation under proper load conditions.
