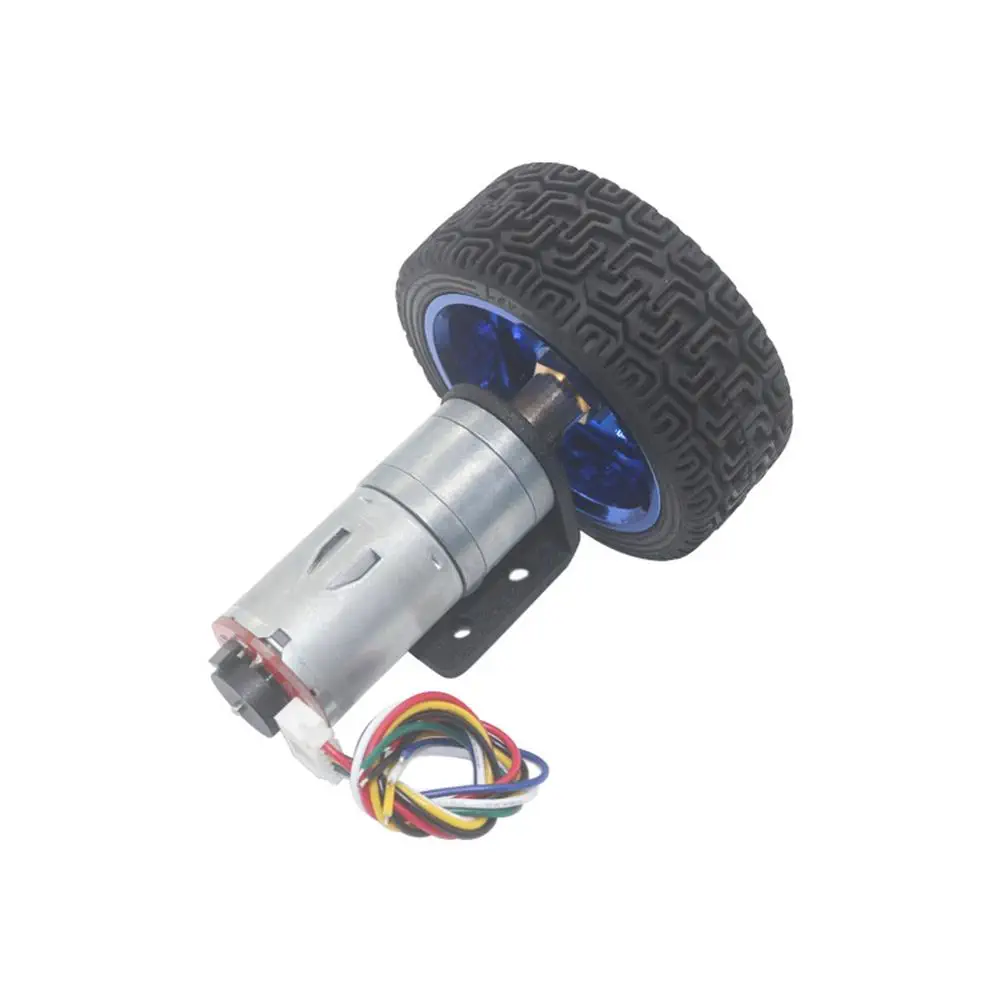

This 25D brushed DC encoder gear motor is designed for low-speed, torque-focused motion with a 35RPM output at 12V. It features a metal gearbox and integrated encoder feedback, and comes with a mounting bracket and a 65mm wheel for easy integration into robotics or mobile platforms requiring position sensing and steady push or drive force.
Product Description
General Description
The 25D 12V 35RPM brushed encoder gear motor integrates a DC motor with a metal gear reduction and an onboard encoder in a compact assembly. The gear reduction increases torque output while reducing speed, making the system suitable for slow, controlled motion tasks. The integrated encoder provides rotational feedback for position or speed monitoring, enhancing control in feedback-based systems.
This assembly includes a mounting bracket and a 65 mm diameter wheel, facilitating installation into mobile platforms, robotics chassis, or prototype motion systems.
Mechanical / Electrical Characteristics
-
Rated Voltage: 12V DC
-
Gear Reduction: Multi-stage metal gearbox for enhanced torque
-
Output Speed: approx. 35 RPM under no-load
-
Integrated Encoder: Provides feedback signals for shaft rotation
-
Includes: Mounting bracket and 65 mm wheel
-
Compact design suitable for integration in space-limited projects
This motor is intended for applications needing high torque at low speed with encoder feedback. It is not designed for high-speed motion or heavy industrial loads.
Typical Use Cases
-
Mobile robotics drive systems
-
Encoder-based motion control projects
-
Slow motion automation mechanisms
-
Educational robotics platforms
-
Prototype motion assemblies requiring torque and position feedback
Basic Specifications
-
Input Voltage: 12V DC
-
No-Load Speed: approx. 35 RPM
-
Gearbox: Metal gear reduction
-
Encoder: Integrated position/speed feedback
-
Wheel Included: 65 mm diameter
-
Mounting Hardware: bracket, screws, shaft coupling
Actual speed and torque vary with load conditions and supply voltage.
Notes Before Installation
-
Use a regulated 12V DC power supply for consistent operation
-
Ensure proper wiring for encoder signals and motor leads
-
Avoid prolonged stall or overload conditions to maximize gearbox life
-
Confirm secure mounting for the wheel and bracket before operation
Package Includes
-
1 × 25D brushed encoder gear motor (12V, 35RPM)
-
1 × Mounting bracket
-
1 × 65 mm wheel
-
Screws, nuts, and shaft coupling
