DESCRIPTION

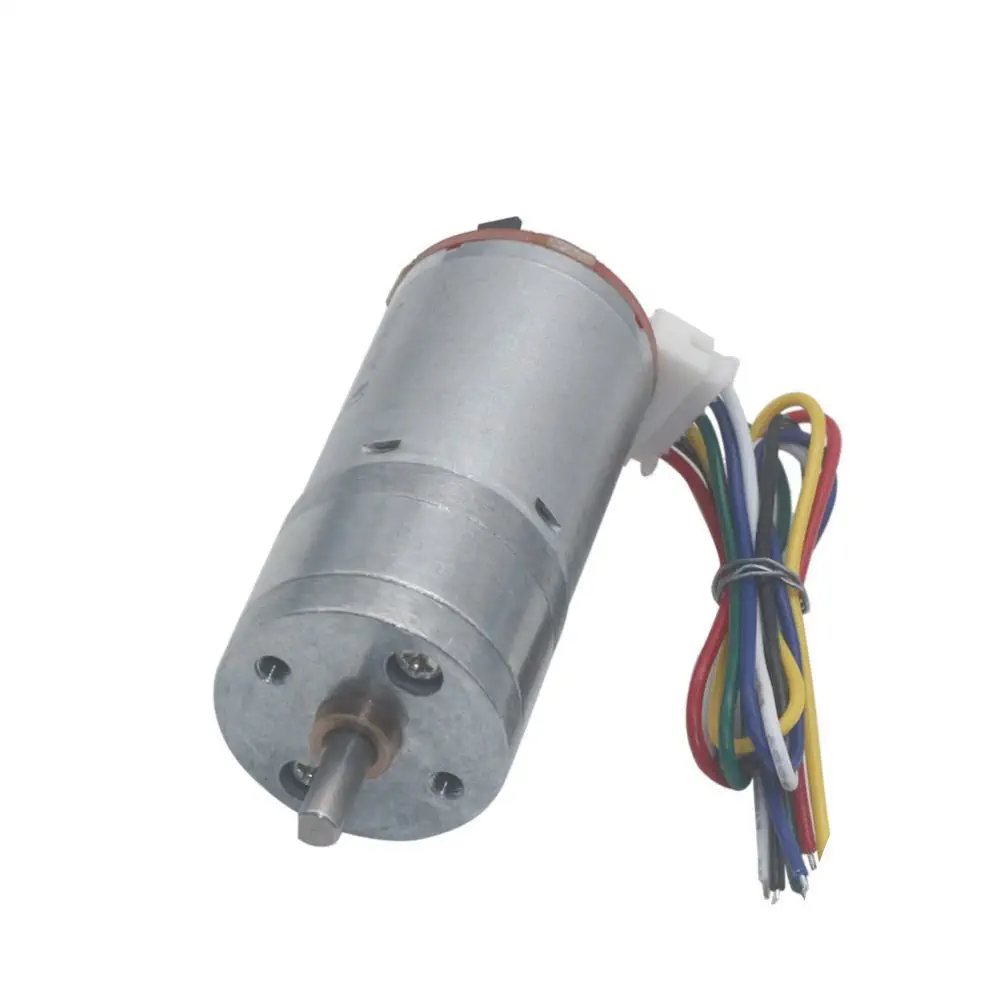

The 25D 12V DC Gear Motor with Encoder is a compact brushed DC gear motor designed for robotics and automation applications that require reliable speed and position feedback. Equipped with an integrated quadrature encoder, this motor supports closed-loop control, improving motion accuracy, repeatability, and system stability.
Operating at 12V with a no-load speed of approximately 620 RPM, the motor delivers a balanced combination of speed and torque suitable for mobile robots and precision motion mechanisms. The standard 25 mm diameter (25D form factor) allows easy integration with common motor mounts, brackets, and robotic platforms. Its metal gearbox ensures durability and consistent performance during continuous operation.
This motor is widely used in educational robotics, DIY projects, and professional automation systems where compact size and precise feedback control are essential.

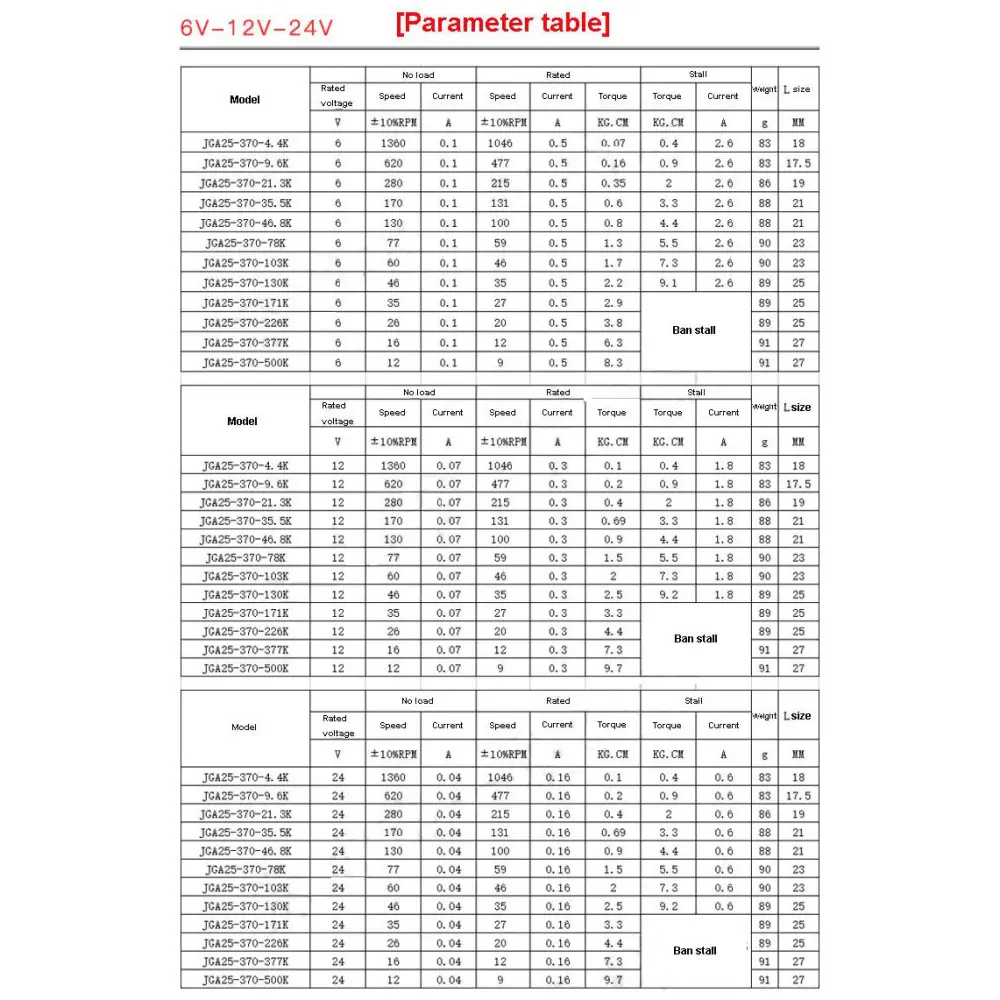

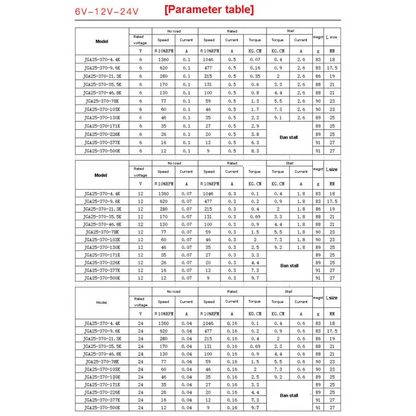

SPECIFICATIONS
-
Motor Type: Brushed DC Gear Motor with Encoder
-
Rated Voltage: 12V DC
-
No-load Speed: Approx. 620 RPM
-
Rated Torque: Approx. 0.22 kg·cm
-

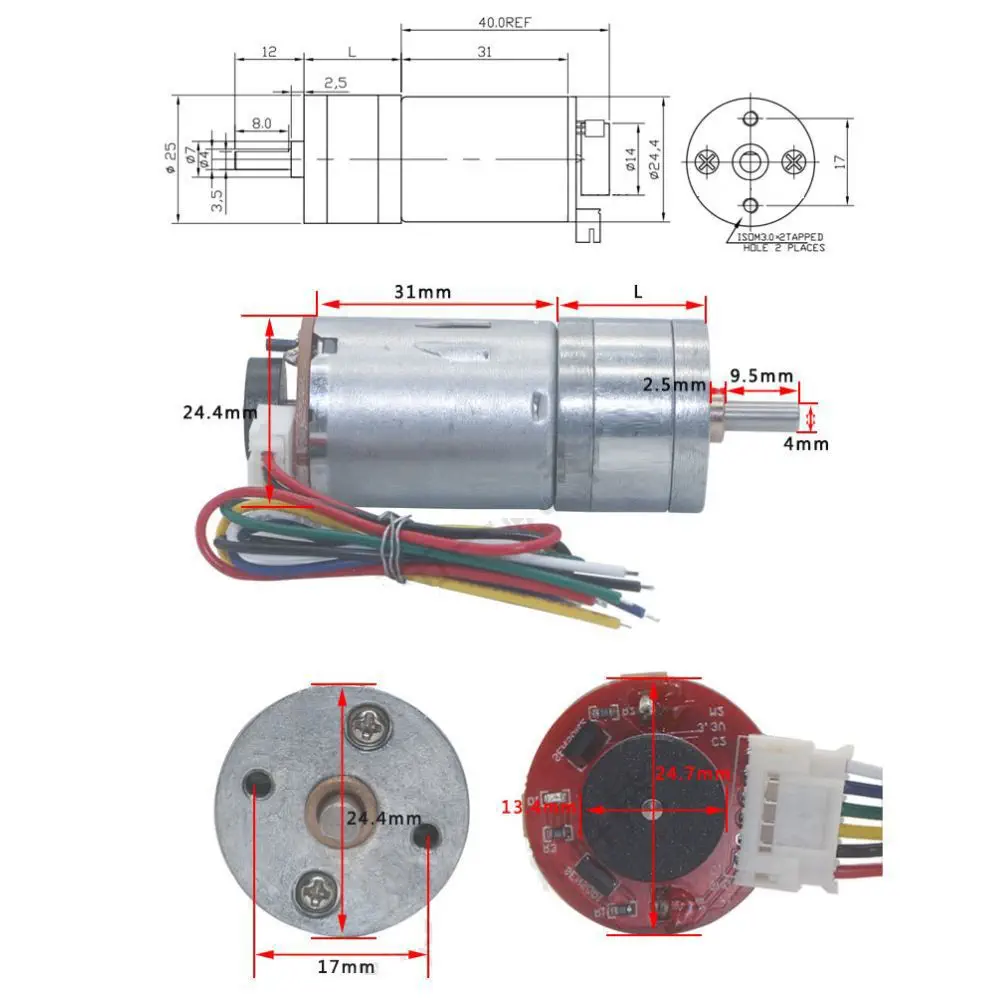

Motor Diameter: 25 mm (25D form factor)
-
Shaft Type: D-shaft
-
Gearbox Type: Spur gear reduction
-
Encoder Type: Incremental quadrature encoder
-
Encoder Output: A/B channels
-
Duty Cycle: Continuous
-
Construction: Brushed DC motor with metal gearbox
APPLICATIONS
-
Mobile robot drive systems
-
Differential drive robots
-
Educational and DIY robotics projects
-
Precision motion control mechanisms
-
Line-following and navigation robots
-
Closed-loop motor control systems
PACKAGE INCLUDES
-
1 × 25D 12V DC Gear Motor with Encoder
