DESCRIPTION

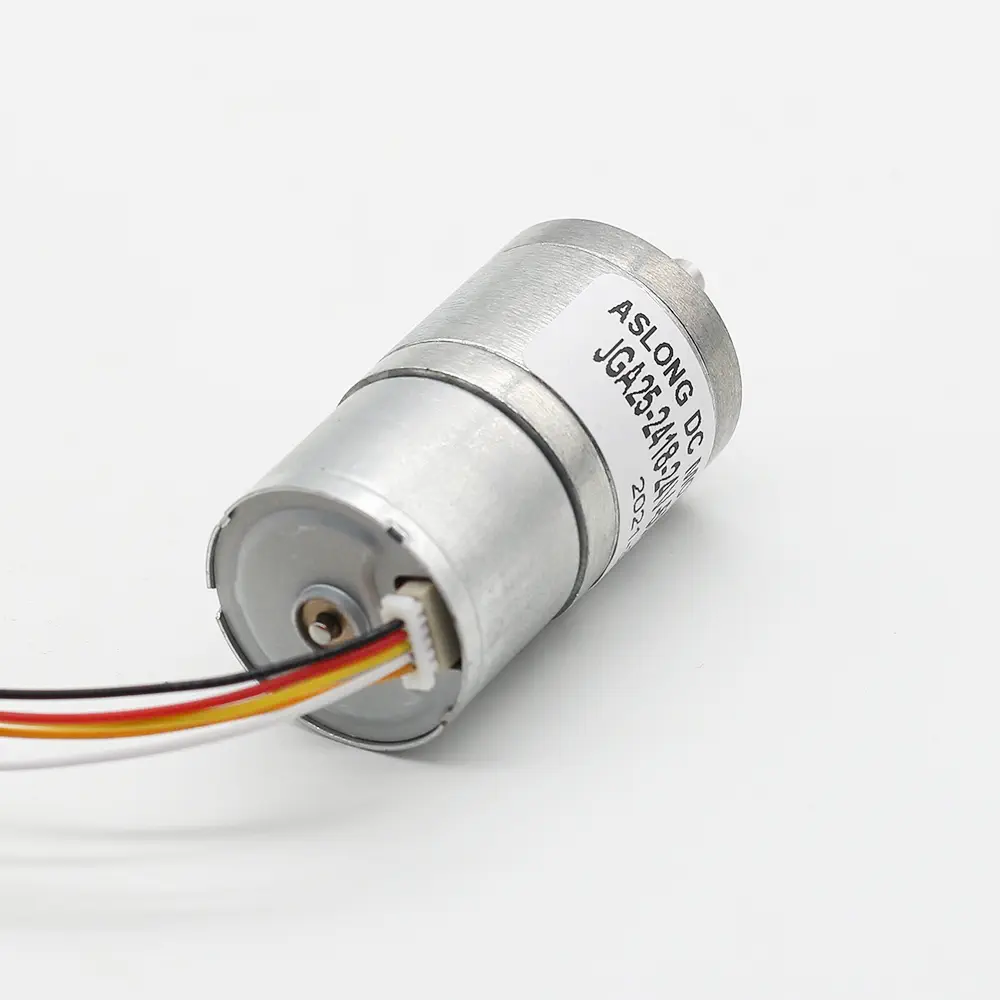

This 25mm 12V 20RPM Brushless DC Gear Motor is designed for applications that require precise low-speed motion, high efficiency, and long-term reliability. The brushless motor structure eliminates mechanical brushes, significantly reducing wear, noise, and maintenance requirements while extending operational lifespan.
The motor features a metal gear reduction system that provides strong torque output and smooth power transmission, making it ideal for slow-moving mechanisms that must operate continuously and accurately. Its compact size allows easy integration into robotics, automation equipment, and compact electromechanical systems.
With support for PWM speed regulation and reversible rotation, this gear motor offers flexible control options for advanced motion applications. It is well-suited for both professional engineering use and DIY projects where precision and reliability are critical.
SPECIFICATIONS
-
Motor Type: Brushless DC Gear Motor
-
Rated Voltage: 12V DC
-
No-Load Speed: 20 RPM
-
Motor Diameter: 25 mm
-
Gearbox Material: Metal
-
Output Shaft Type: D-shaft
-
Output Shaft Diameter: 4 mm
-
Output Shaft Length: Approx. 9.5 mm
-
Rotation Direction: Reversible (CW / CCW)
-
Control Method: PWM speed control
-
Operating Noise: Low
-
Efficiency: High efficiency, low power loss
Speed and torque may vary depending on load and operating conditions.
APPLICATIONS
-
Robotics and mobile robot mechanisms
-
Electric actuators and linear motion systems
-
Smart devices and automation modules
-
Conveyor and positioning systems
-
Educational robotics and STEM projects
-
DIY electronics and prototype development
PACKAGE INCLUDES
-
1 × 25mm 12V 20RPM Brushless DC Gear Motor
