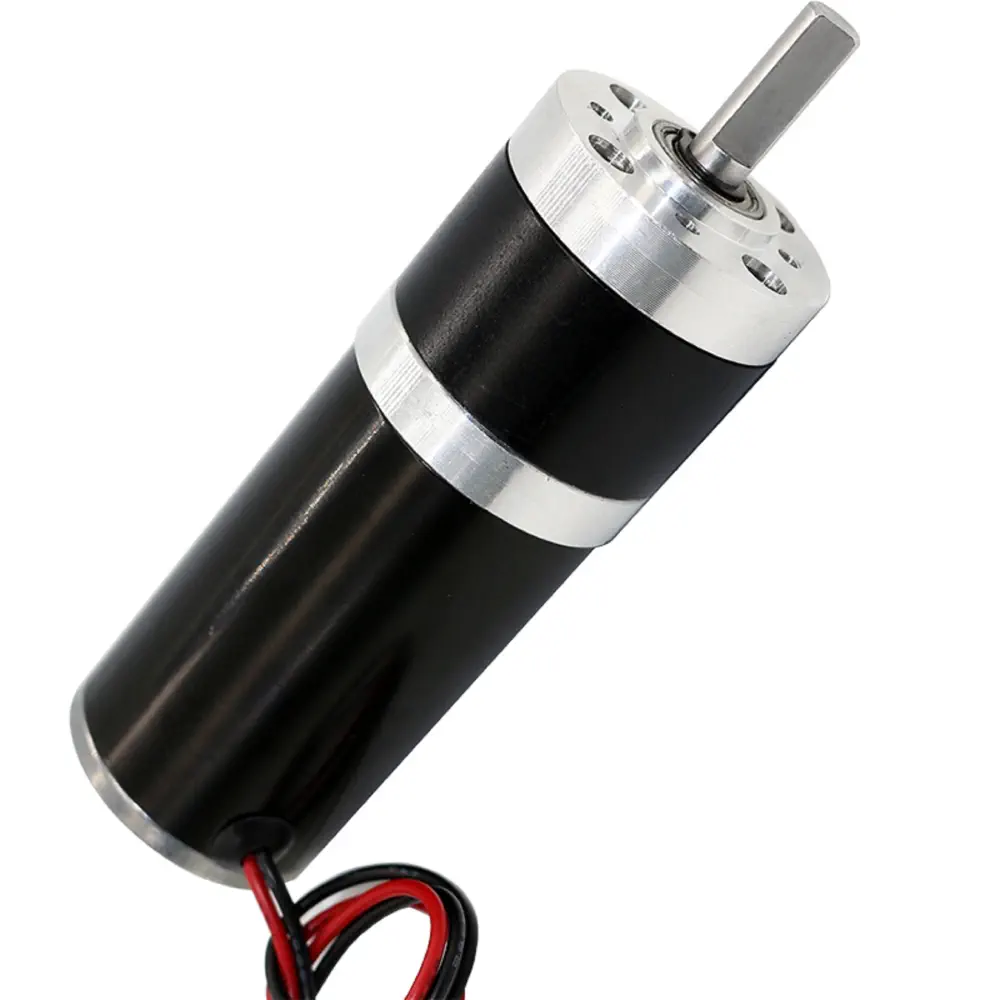

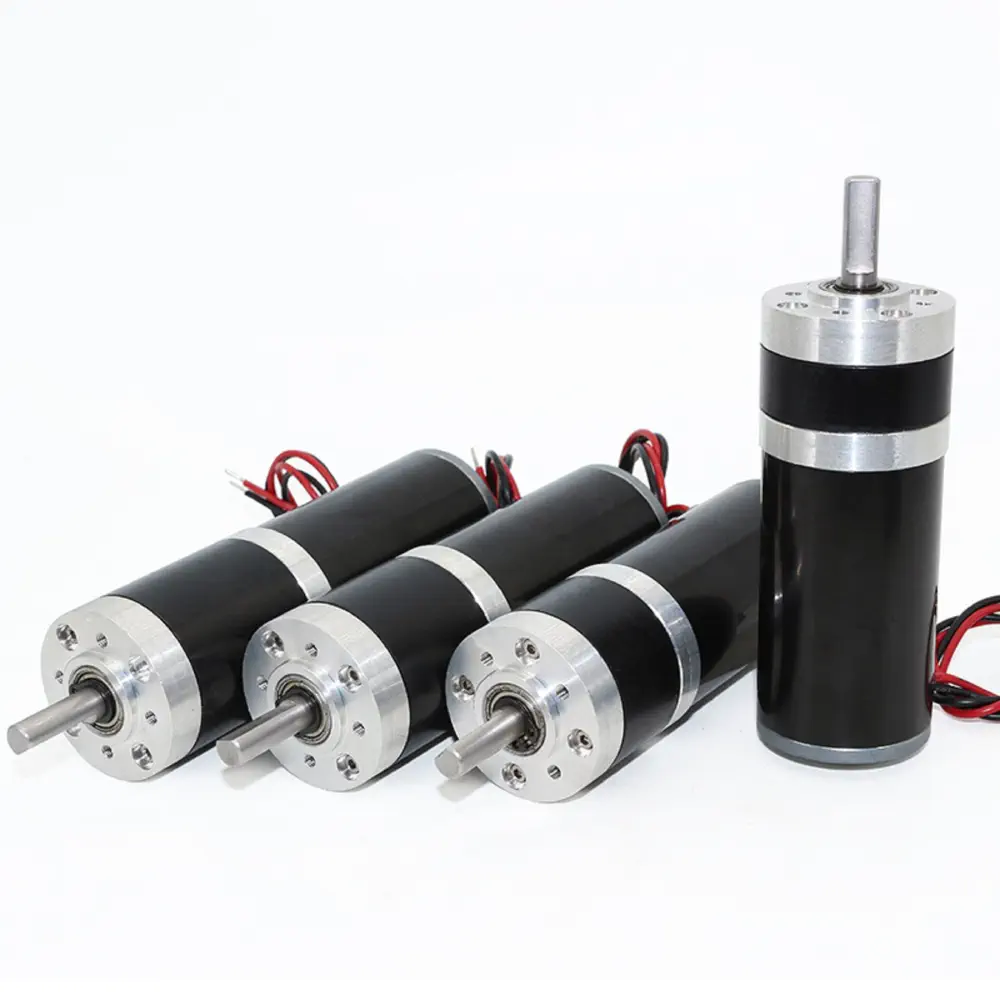

32D Planetary Gearmotor – 24V 2386RPM High Speed Drive

Product Description

This 32D planetary gearmotor delivers a high-speed output of approximately 2386RPM when powered at 24V DC, making it suitable for applications that require rapid motion with moderate torque. The planetary geartrain uses steel gears in the final stages to improve strength and durability while maintaining efficient power transmission.

Designed for reversible rotation and variable speed, this motor drive can be integrated into a wide range of systems including robotics, automation mechanisms, and custom motion assemblies requiring both speed and control. Its compact form factor and D-shaped output shaft allow for convenient mechanical coupling in constrained spaces.

Specifications

• Rated Voltage: 24V DC

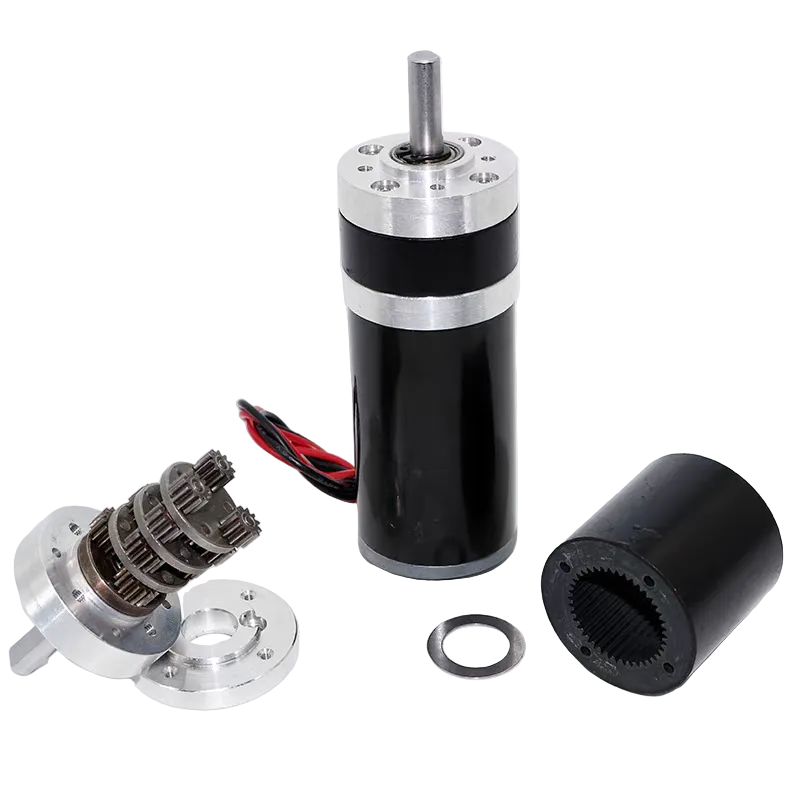

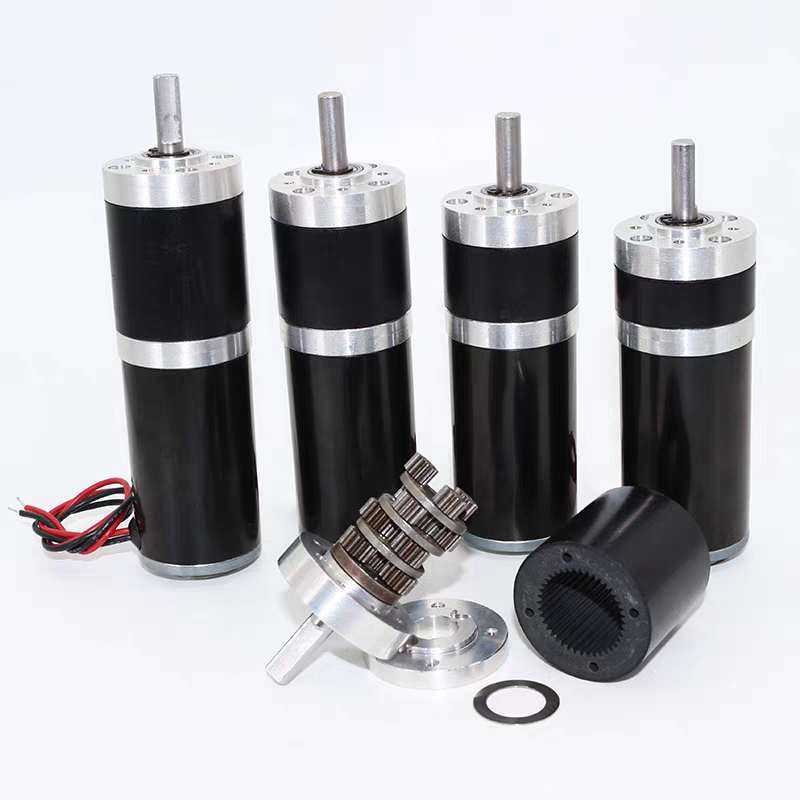

• Gearbox Type: Planetary geartrain with steel final gears

• Reduction Ratio: 1/3.35

• No-Load Speed: 2386RPM

• No-Load Current: ~0.2A

• Rated Speed: ~1948RPM

• Rated Torque: ~0.8kg·cm

• Rated Current: ~0.72A

• Power Output: ~9.7W

• Stall Torque: ~3kg·cm

• Stall Current: ~3.4A

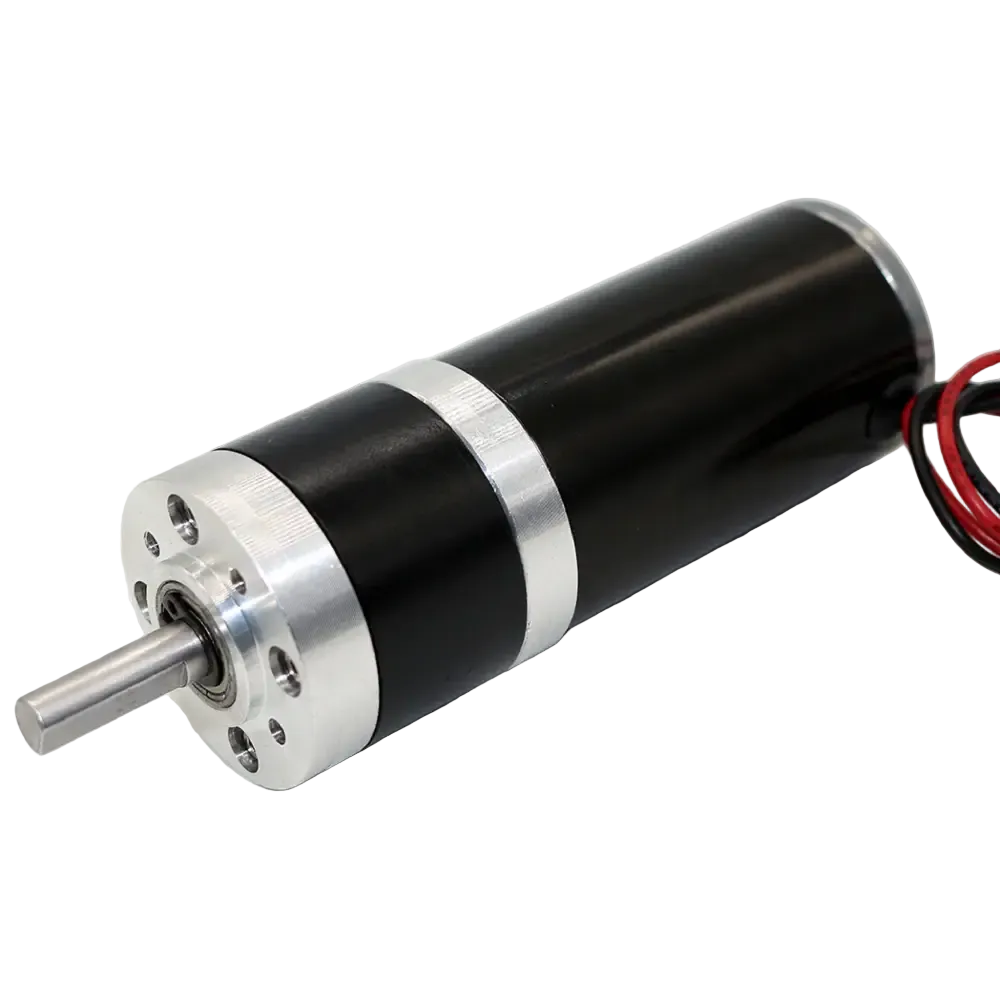

• Output shaft: 6mm D-shaped

Physical Dimensions

• Gearbox Diameter: 32mm

• Motor Body Diameter: 31mm

• Motor Length: 58.5mm

• Gearbox Length: ~23.2mm

• Output Shaft Diameter: 6mm (D-shaped)

• Output Shaft Length: ~20mm

Applications

• Robotics mobility and actuator systems

• High-speed conveyor and positioning mechanisms

• Automation equipment drives

• Embedded motion control modules

• Prototype and DIY engineering projects

What’s Included

• 1 × 32D Planetary Gearmotor (24V, 2386RPM)
