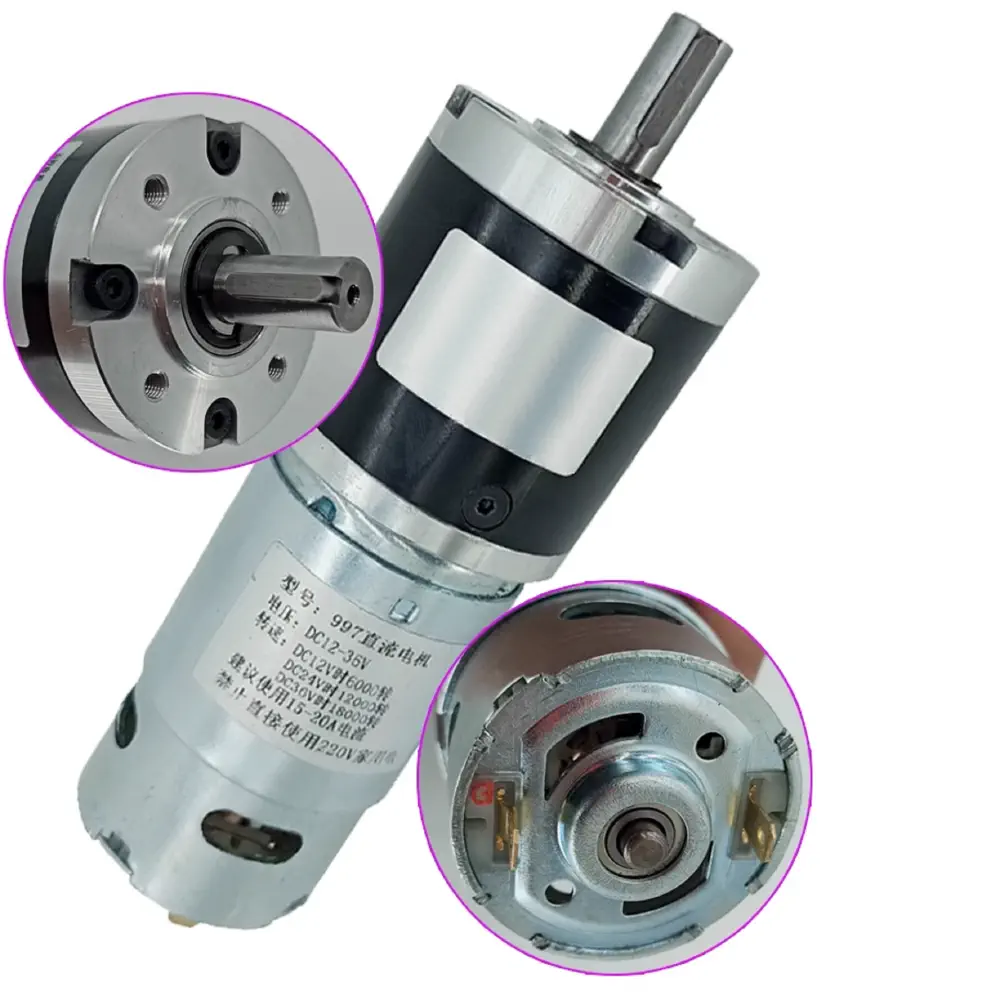

Product Description
This brushed planetary gear motor series features a robust design with high torque output and a wide range of speed options. Available in both 12V and 24V configurations, and offered with or without encoder feedback, this motor series suits a variety of motion control and automation applications.
Designed with a planetary gear train, these motors deliver smooth rotational torque and long service life. Variants with encoder provide precise speed and position feedback, enabling advanced closed-loop control when paired with compatible controllers.
Whether used in robotics, automated mechanisms, or precision drive systems, this series offers flexible performance across a wide RPM range, from slow, high-torque configurations to higher speed options for rapid motion requirements.
Voltage Options
-
12V DC — suitable for low voltage systems, robotics and small mechanisms
-
24V DC — suitable for higher power systems and industrial applications
Speed (RPM) Options
The available output speeds cover a wide range of performance needs:
-
200–500 RPM: Balanced speed with strong torque
-
750–1000 RPM: Mid-range speed for general motion systems
-
1500–2000 RPM: Higher speed for fast motion applications

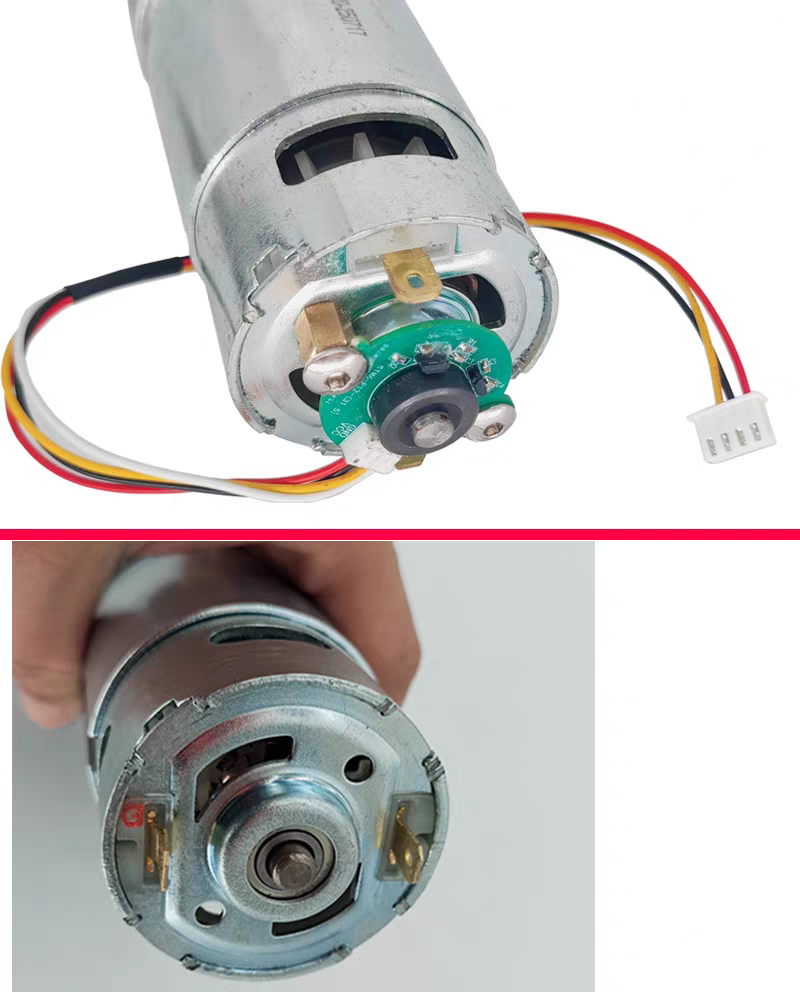

Encoder Support
-
No Encoder: Standard motor operation
-
With Encoder: Provides positional and speed feedback for precise control systems

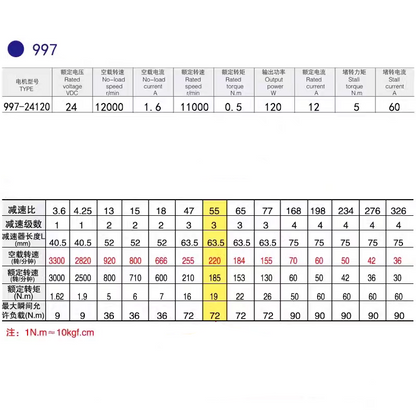

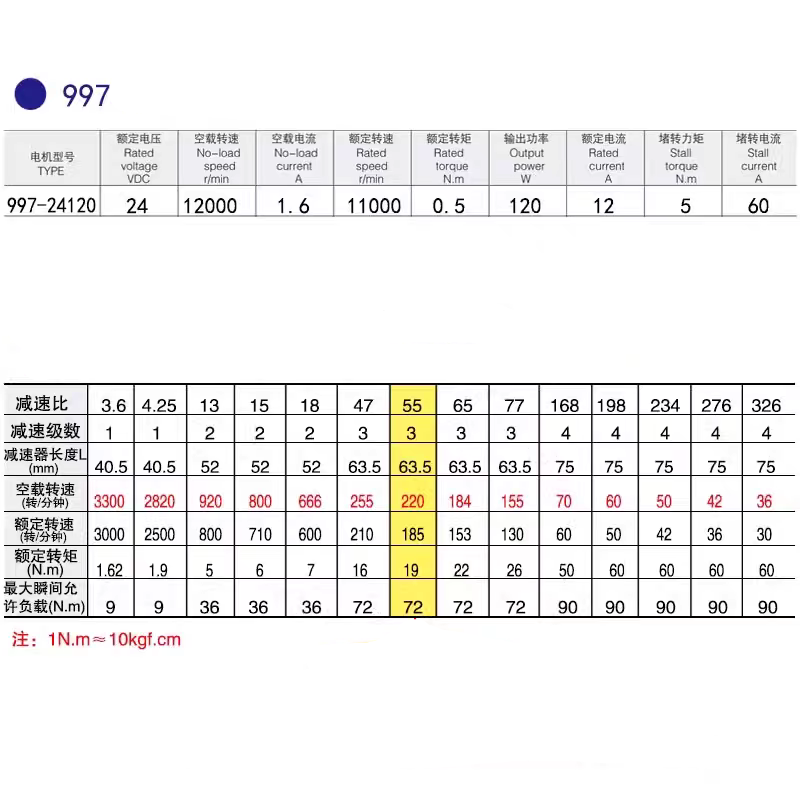

Specifications
-
Brushed DC planetary gear motor series
-
Planetary gearbox for high torque and smooth transmission
-
Available voltage options: 12V DC and 24V DC
-
Wide output speed range from low to high RPM (variant dependent)
-
Optional incremental encoder for speed and position feedback
-
Supports forward and reverse rotation via polarity control
-
Metal gearbox construction for durability and long service life
Applications
Use cases include:
-
Robotics drive systems and joint actuators
-
High torque automation mechanisms
-
Conveyor and positioning drives
-
Closed-loop speed & position control systems
-
DIY robotics and precision motion builds
-
Embedded control platforms
What’s Included
- 1 × Brushed planetary gear motor (selected voltage & RPM)
