Product Description

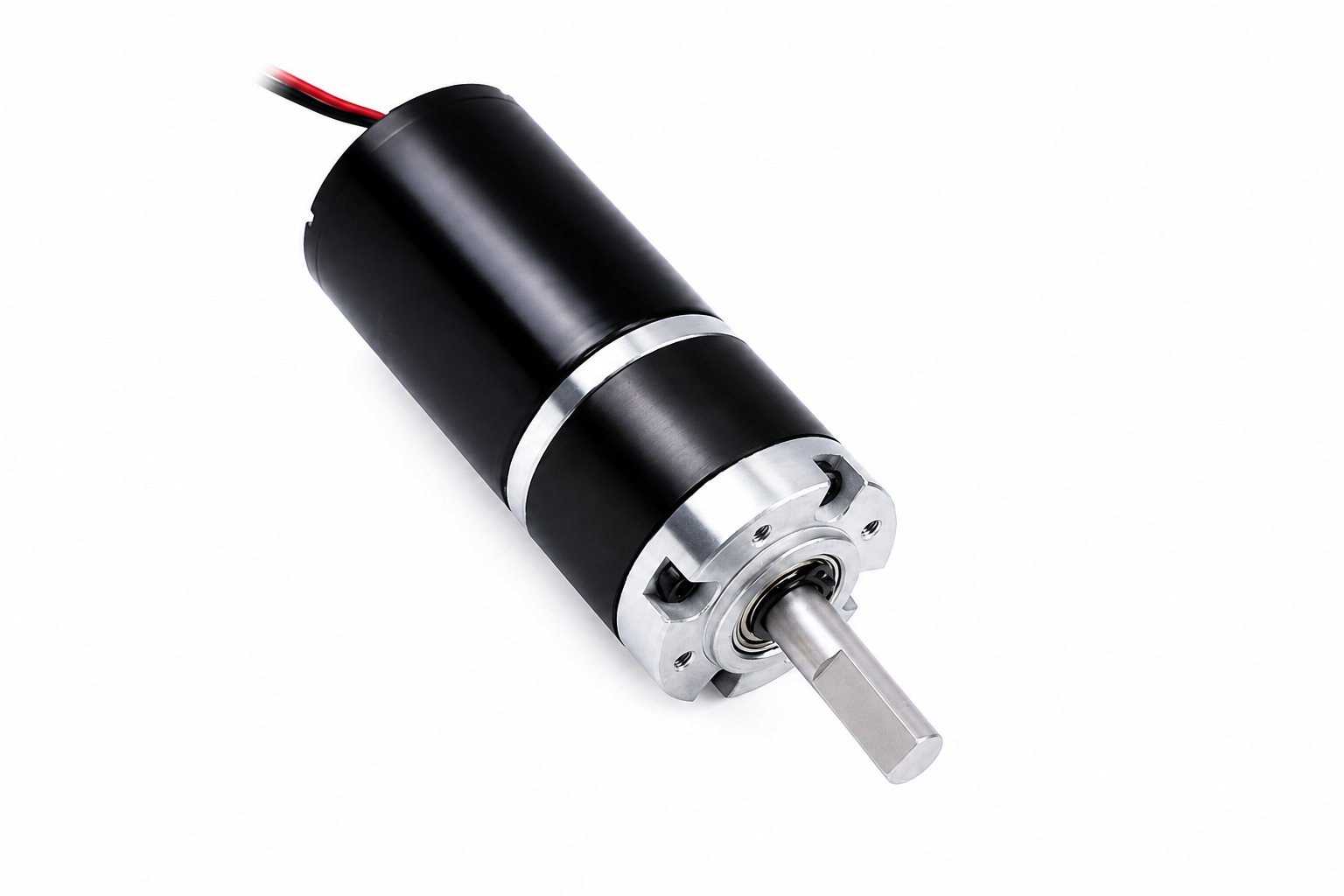

High-Speed Brushless Gear Motor for Automation and Industrial Equipment
The 36GP-3650 High-Speed Brushless Planetary Gear Motor is designed for applications requiring compact size, stable high-speed operation, long service life, and reliable continuous-duty performance.
Combining a high-efficiency brushless DC motor, precision metal planetary gearbox, and integrated motor driver, this motor provides smooth power delivery, reduced maintenance requirements, and simplified system integration.
Unlike low-speed high-torque gear motors commonly used for positioning and robotic drive wheels, the 571RPM and 1538RPM configurations are optimized for high-speed mechanical systems where faster rotational output is required.
This motor is suitable for automation equipment, packaging machinery, conveyor drives, smart manufacturing systems, laboratory equipment, testing machinery, and OEM industrial applications.
Why Choose a High-Speed Planetary Gear Motor?
Many automation systems require compact motors capable of maintaining speed stability while operating continuously.
The 36GP-3650 high-speed series offers:
-
High rotational speed
-
Stable operation
-
Compact dimensions
-
Long service life
-
Low maintenance
-
Reliable continuous-duty performance
These characteristics make it ideal for automation equipment where efficiency and uptime are critical.
Brushless Motor Technology Benefits
Longer Service Life
Brushless motors eliminate brush wear and significantly extend operational lifespan.
Higher Efficiency
More electrical energy is converted into mechanical output, reducing energy loss and heat generation.
Lower Maintenance Requirements
Without brushes to replace, maintenance costs and downtime are minimized.
Stable Speed Performance
Electronic commutation provides consistent speed output under varying load conditions.
Improved Reliability
Brushless technology is widely used in industrial automation systems due to its reliability and durability.
Planetary Gearbox Advantages
The integrated metal planetary gearbox provides:
-
High transmission efficiency
-
Compact construction
-
Improved load distribution
-
Reduced backlash
-
Smooth power transmission
-
Long service life
Planetary gear systems are commonly used in industrial machinery where reliability and precision are important.
Built-In Driver Design
The integrated brushless driver simplifies installation and system integration.
Benefits include:
-
Reduced wiring complexity
-
Faster deployment
-
Lower controller requirements
-
Improved reliability
-
Compact overall system architecture
This design is particularly valuable for OEM equipment manufacturers and automation integrators.
PWM Speed Control
The motor supports PWM and VSP speed regulation.
Compatible platforms include:
-
PLC Controllers
-
Arduino
-
STM32
-
ESP32
-
Raspberry Pi
-
Industrial Control Systems
PWM speed control enables precise adjustment of motor speed to meet application requirements.
FG Feedback Output
The integrated FG feedback output provides real-time speed monitoring.
FG Specifications
-
NPN Open Collector Output
-
6 Pulses Per Revolution
Applications include:
-
Speed monitoring
-
Closed-loop control
-
Production equipment monitoring
-
Automation diagnostics
-
Motion verification
FG feedback is particularly useful in automation systems where speed consistency must be monitored.

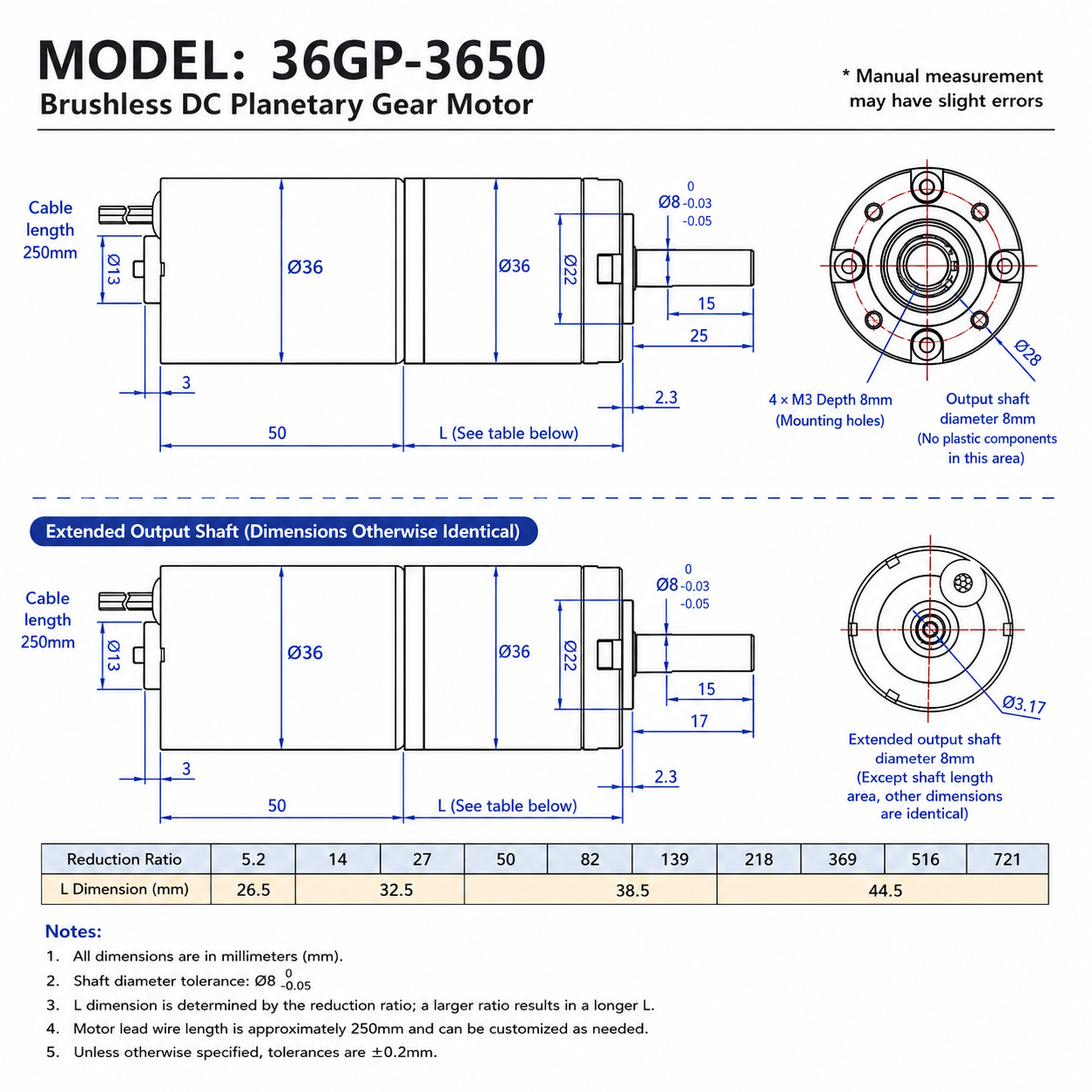

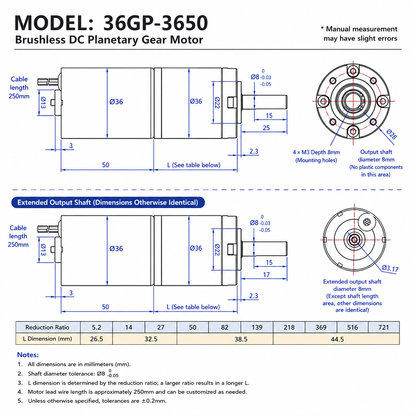

Output Shaft Options
6mm D Shaft
-
Diameter: 6mm
-
Shaft Length: 17mm
Suitable for compact mechanisms and lightweight transmission systems.
8mm D Shaft
-
Diameter: 8mm
-
Shaft Length: 25mm
Recommended for higher load applications and larger couplings.
Industrial Automation Applications
Packaging Machinery
Suitable for automated packaging systems requiring reliable high-speed motion.
Conveyor Systems
Provides efficient drive power for material handling equipment.
Smart Manufacturing Equipment
Widely used in automated production lines and intelligent manufacturing systems.
Laboratory Equipment
Suitable for testing systems, analytical instruments, and research equipment.
OEM Machinery
An excellent choice for machine builders integrating compact motion systems.
Automated Inspection Systems
Provides consistent speed control for automated inspection and monitoring equipment.
Industrial Motion Control
Suitable for a wide range of industrial drive applications requiring reliable continuous operation.

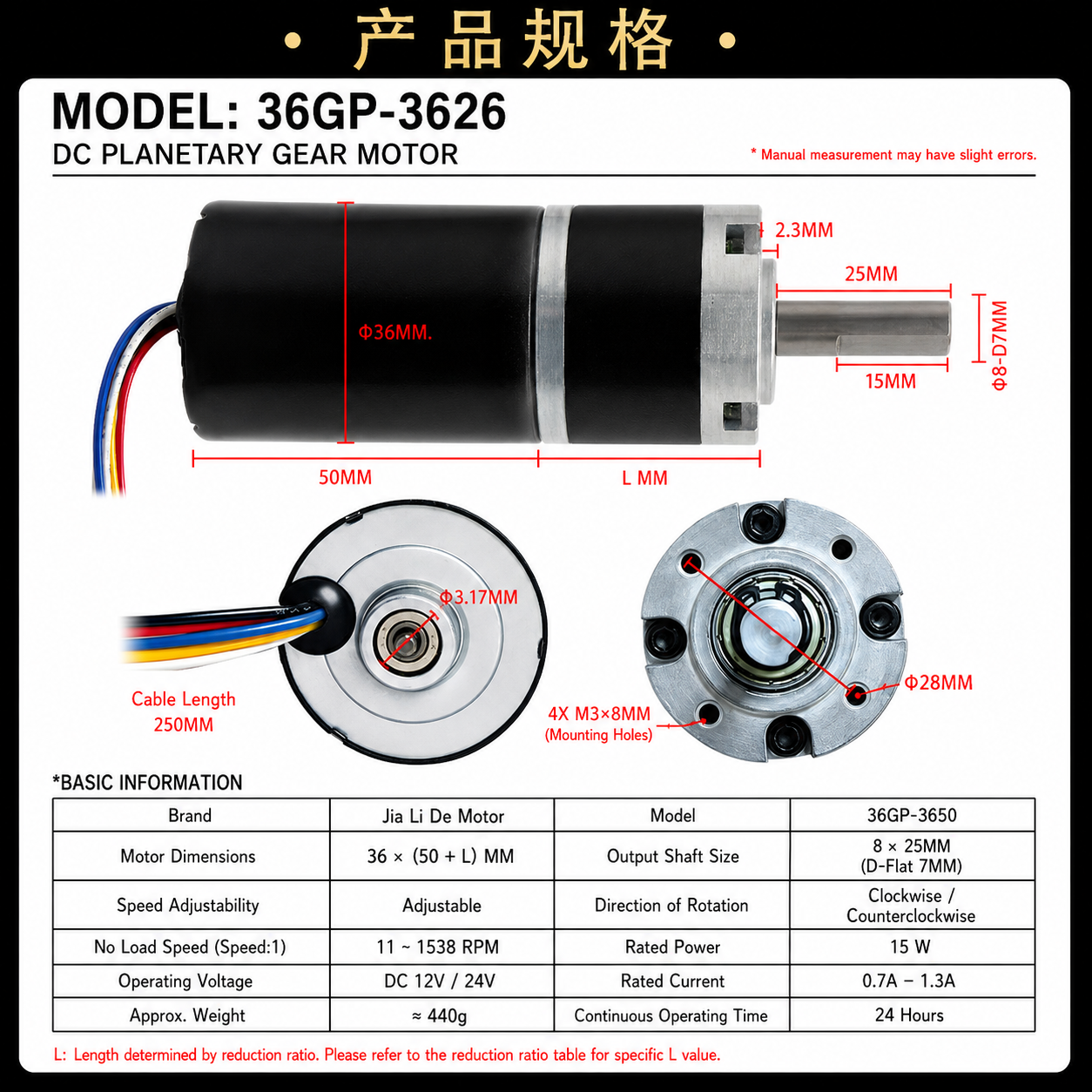

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 36GP-3650 |
| Motor Type | Brushless DC Planetary Gear Motor |
| Driver | Built-In Driver |
| Rated Voltage | 12V DC / 24V DC |
| Rated Power | 15W |
| Motor Diameter | 36mm |
| Gearbox Type | Planetary Gearbox |
| Gear Material | Metal |

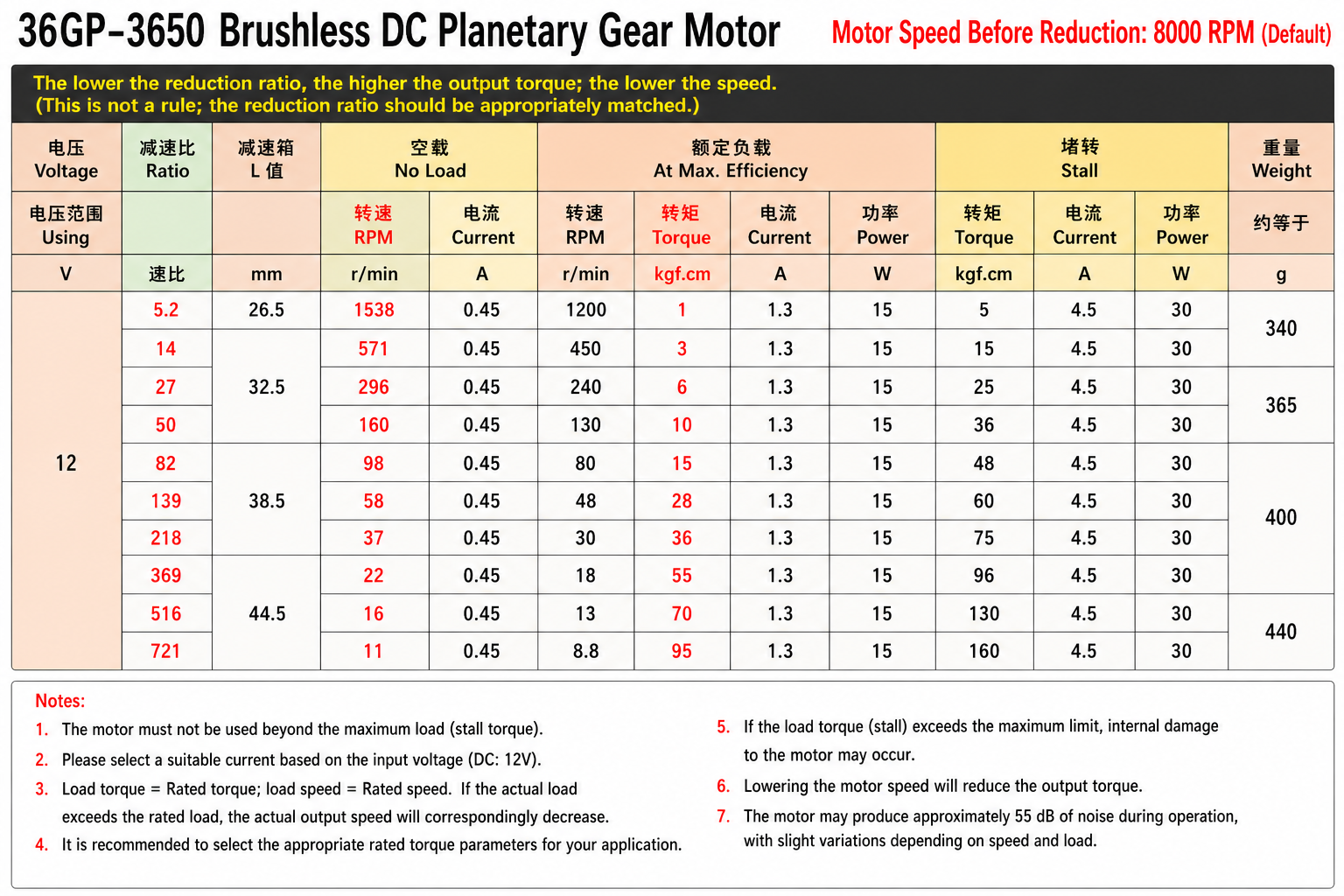

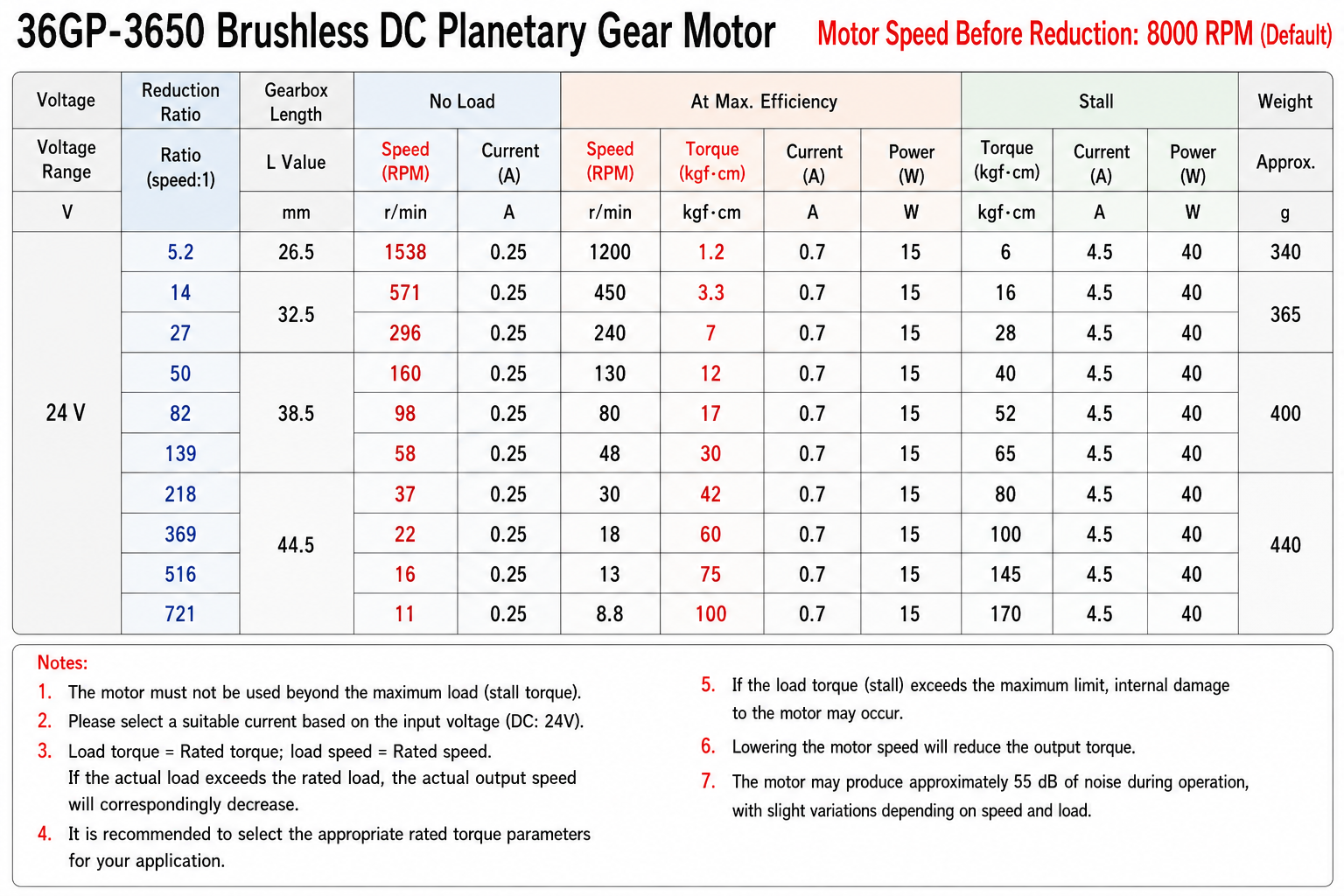

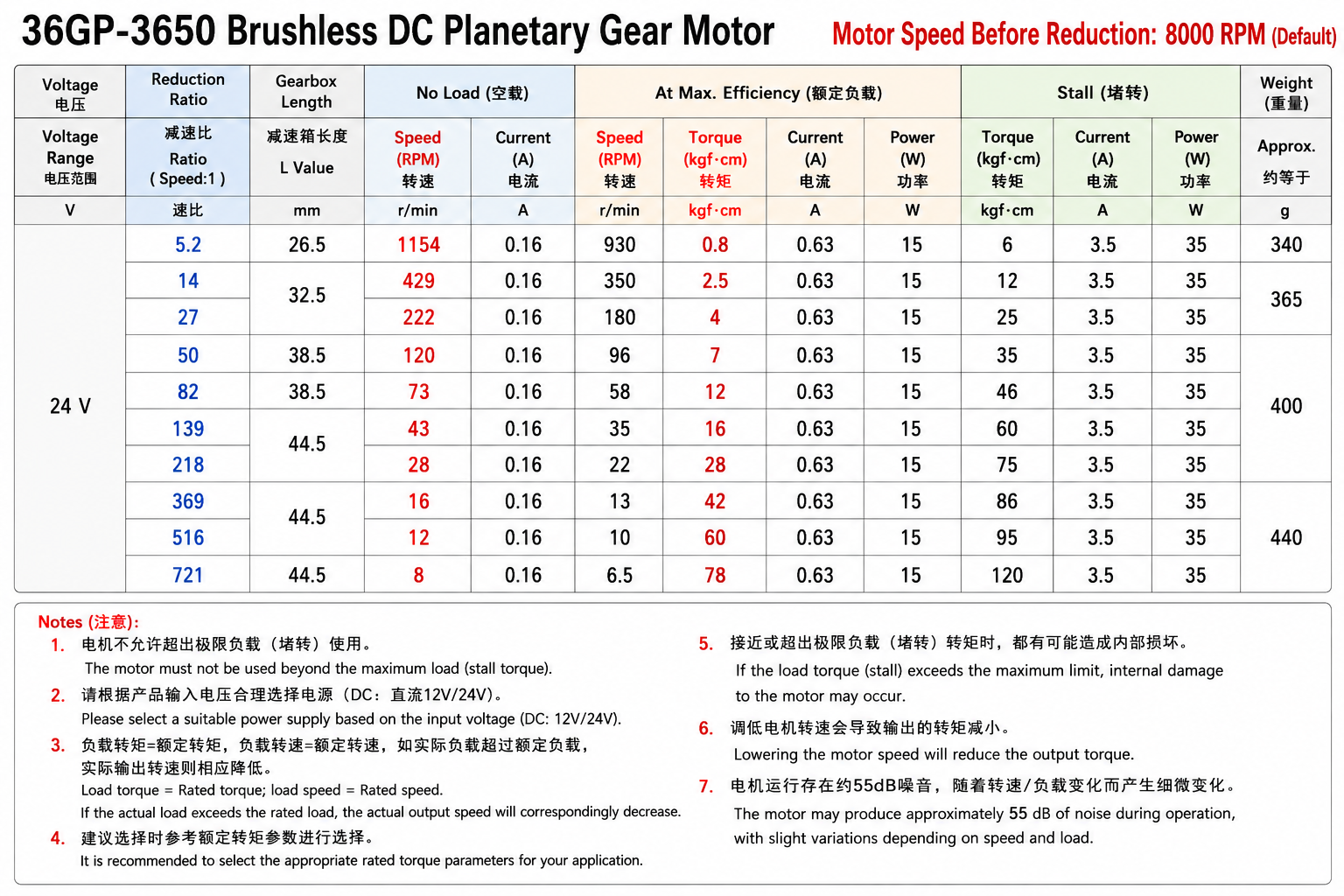

| Speed Options | 571RPM / 1538RPM |
| Output Shaft Options | 6mm D Shaft / 8mm D Shaft |
| Shaft Length | 17mm (6mm Shaft) / 25mm (8mm Shaft) |
| Direction Control | CW / CCW |
| Speed Control | PWM / VSP |
| FG Feedback Output | Supported |
| FG Output Type | NPN Open Collector |
| FG Pulses | 6 Pulses / Revolution |

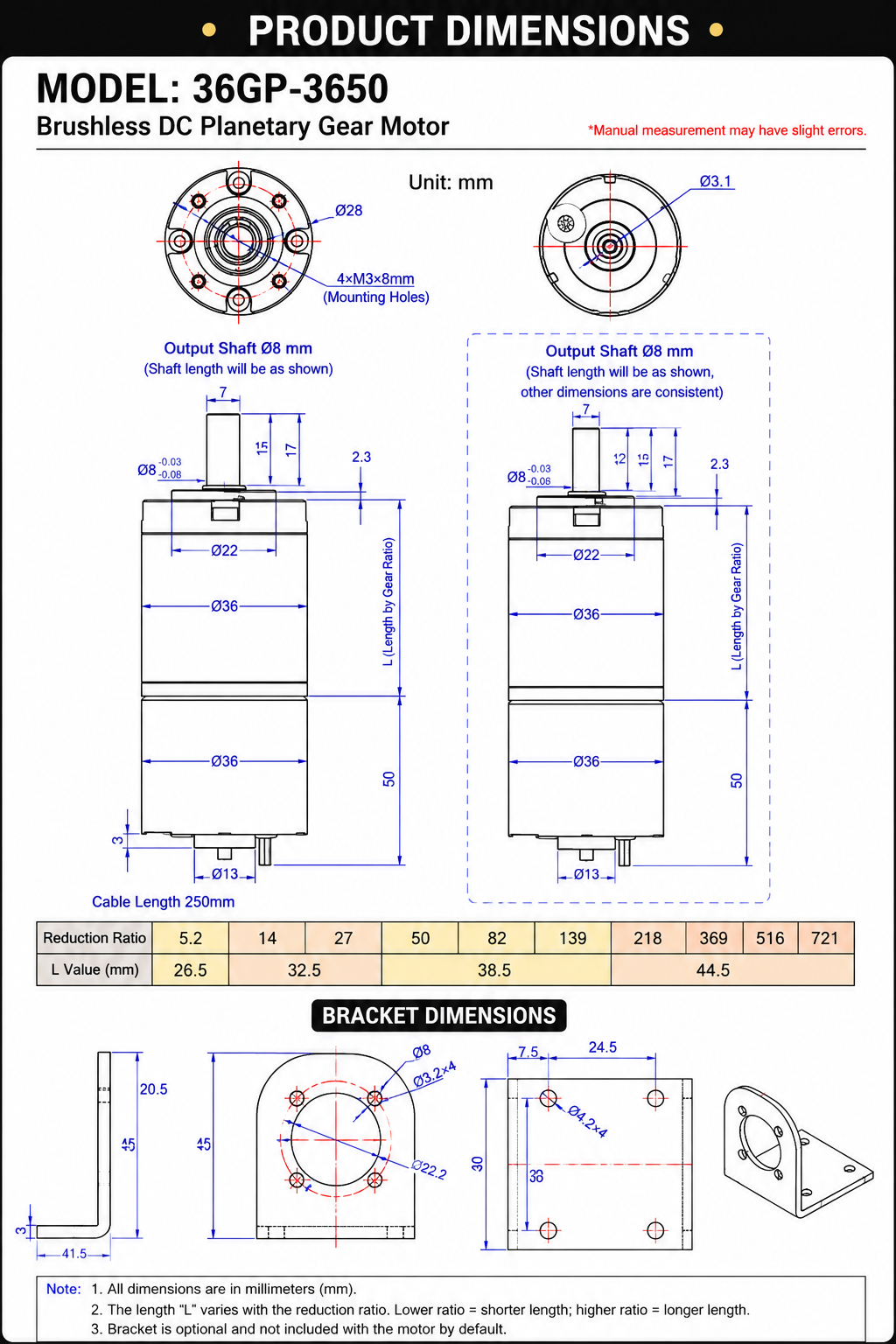

| Mounting Holes | 4 × M3 |
| Mounting Depth | 8mm |
| Bolt Circle Diameter | 28mm |
| Cable Length | 250mm |
| Duty Type | Continuous Duty |
| Continuous Operation | 24 Hours |
Package Includes
-
1 × 36GP-3650 Brushless Planetary Gear Motor
Frequently Asked Questions
Which version is best for high-speed applications?
The 1538RPM version provides the highest output speed and is suitable for applications prioritizing speed over torque.
Is this motor suitable for conveyor systems?
Yes. The high-speed configurations are well suited for compact conveyor and transport systems.
Does the motor include a built-in driver?
Yes. The motor includes an integrated brushless motor driver.
Does it support PWM speed control?
Yes. PWM and VSP speed regulation are supported.
What is the FG output used for?
FG output provides speed feedback for monitoring and control applications.
Can this motor rotate in both directions?
Yes. CW and CCW operation are supported.
Is the gearbox metal?
Yes. The motor uses a precision metal planetary gearbox.
Can the motor run continuously?
Yes. It is designed for 24-hour continuous-duty operation.
Can I use this motor with PLC systems?
Yes. It can be integrated into PLC-based automation systems.
What shaft options are available?
6mm D Shaft (17mm length) and 8mm D Shaft (25mm length).
Is a brake version available?
Yes. A 6-wire brake version is available upon request.
