Product Description

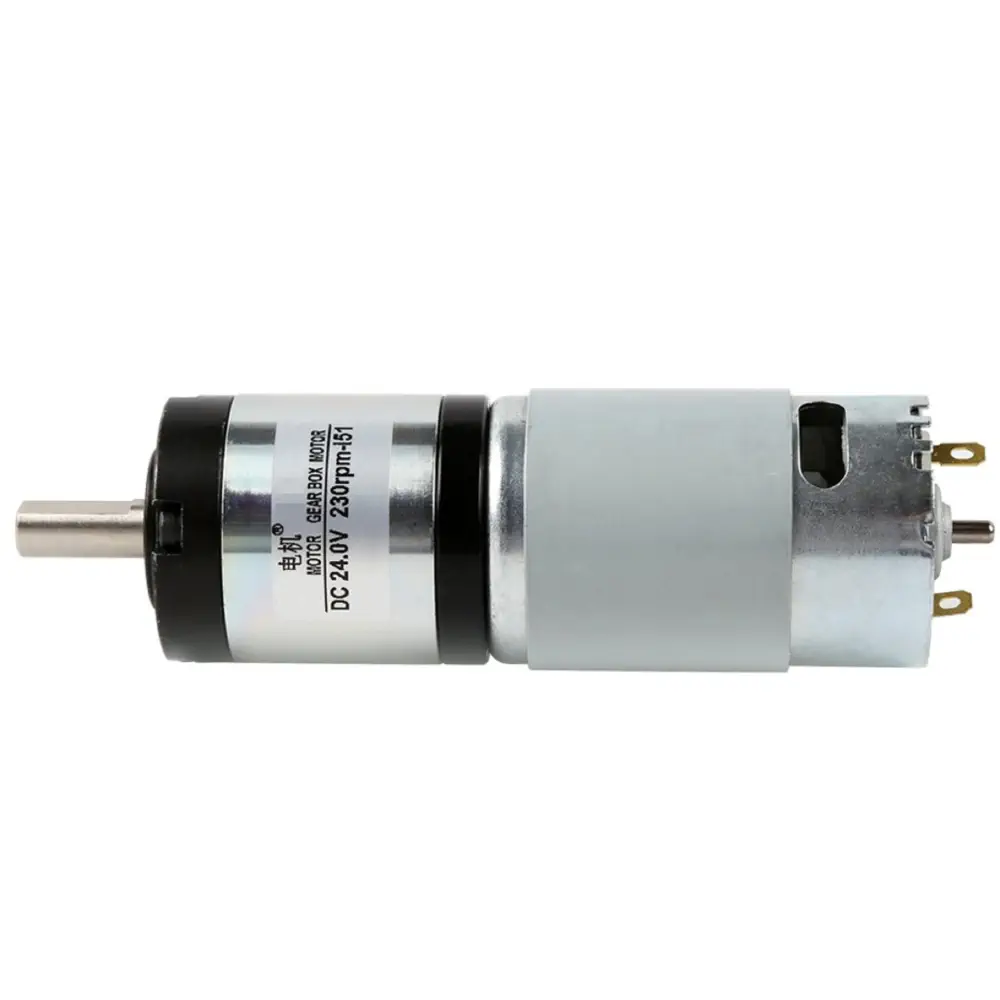

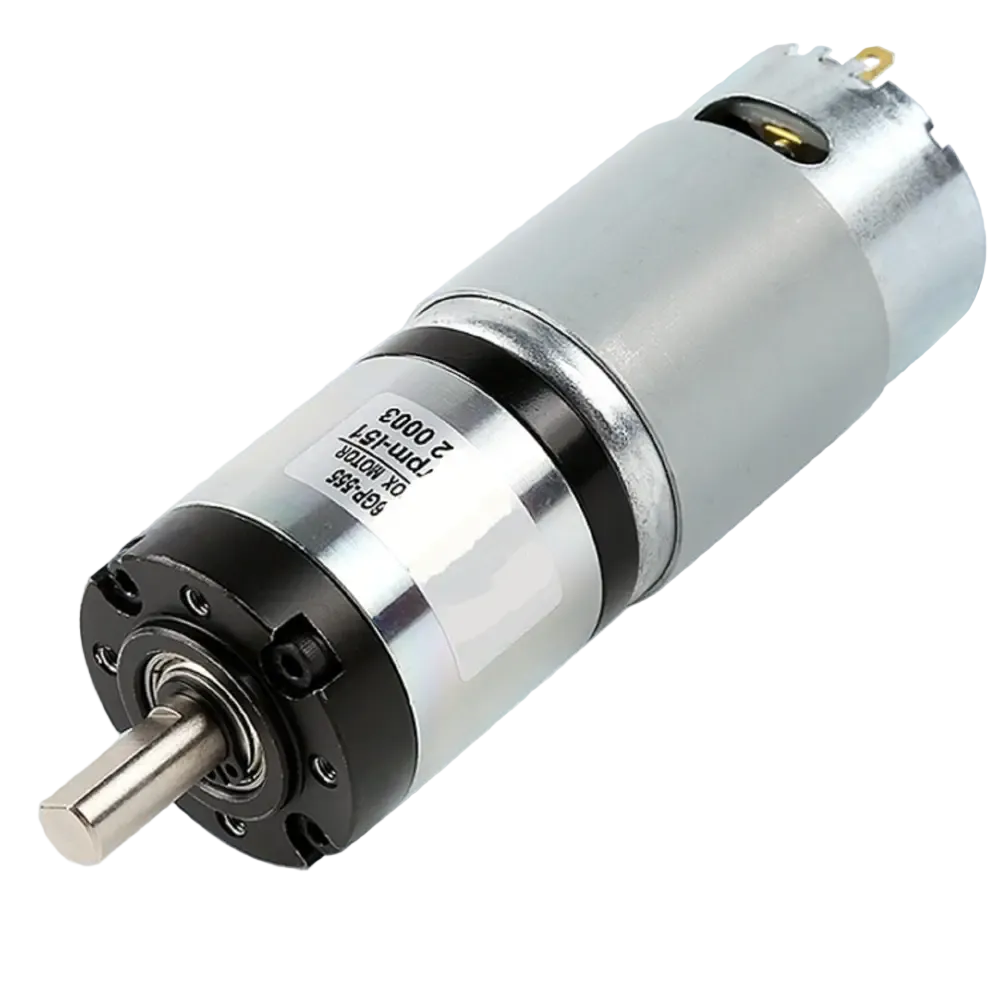

This 36mm high torque planetary gear motor is designed for applications that require low speed and high torque output. Operating at 24V DC, it delivers a no-load speed of 23RPM, making it suitable for precision motion control and load-driven systems.

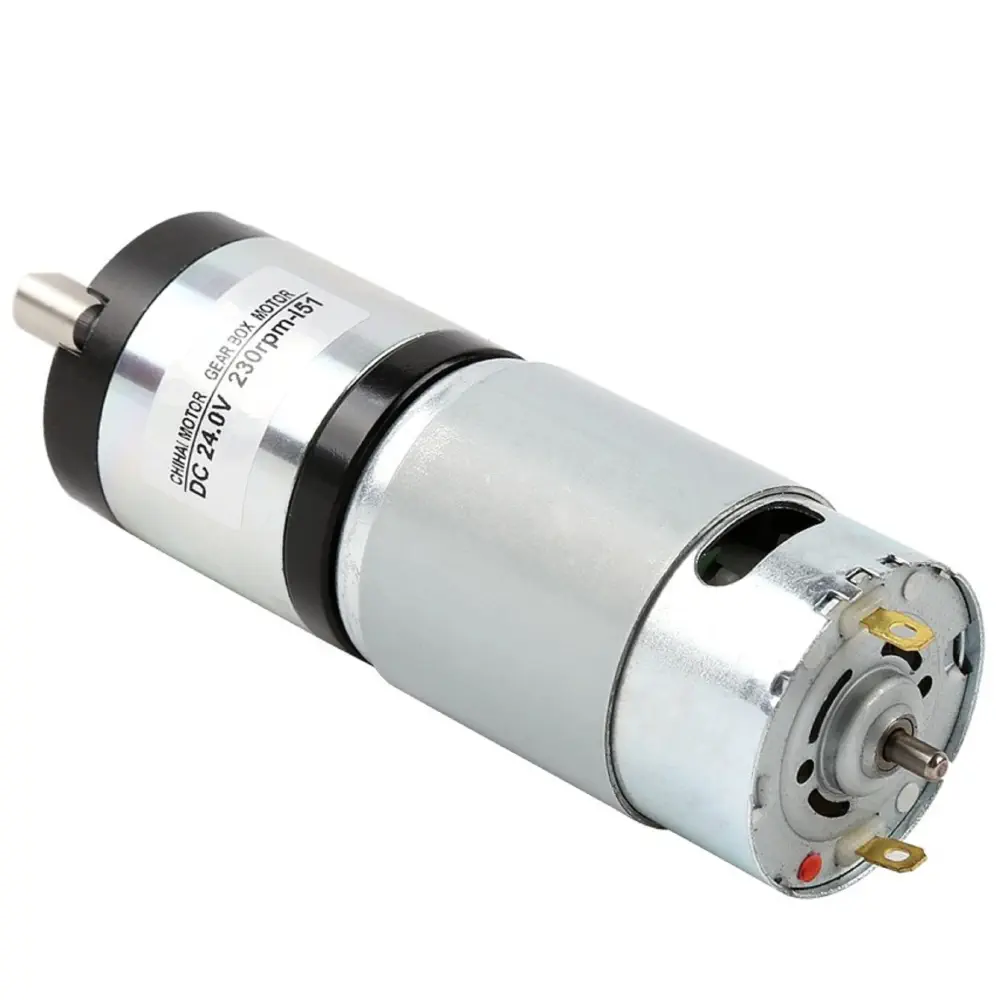

The planetary gearbox provides efficient torque multiplication, reduced backlash, and smooth operation under load. Its compact cylindrical form factor allows easy integration into space-constrained designs. The extended 8mm D-shaped output shaft enables secure mounting of wheels, pulleys, couplings, or custom mechanical components.
This motor is well suited for continuous duty operation in automation equipment, robotic platforms, and industrial motion assemblies.
Specifications
(Same bullet format as Applications)
-
Rated Voltage: 24V DC
-
Gearbox Type: Planetary gearbox
-
Gear Ratio: 1:515
-
No-Load Speed: 23RPM
-
Rated Speed: 18RPM
-
No-Load Current: <500mA
-
Rated Current: <2.6A
-
Rated Torque: 50kg·cm
-
Stall Torque: 60kg·cm
-
Stall Current: <21A
-
Output Shaft Type: D-shaped shaft
-
Output Shaft Diameter: 8mm
Physical Dimensions
-
Gearbox Diameter: 36mm
-
Gearbox Length: 50.5mm
-
Motor Diameter: 35.8mm
-
Motor Length: 57mm
-
Output Shaft Length: 20mm
Applications
(Bullet format consistent with Specifications)
-
Mobile robots and robotic drive systems
-
High torque actuators
-
Conveyor and material handling mechanisms
-
Automation equipment
-
Motion control assemblies
-
DIY robotics and engineering projects
Package Includes
-
1 × 36mm High Torque Planetary Gear Motor (24V, 23RPM)
