Product Description

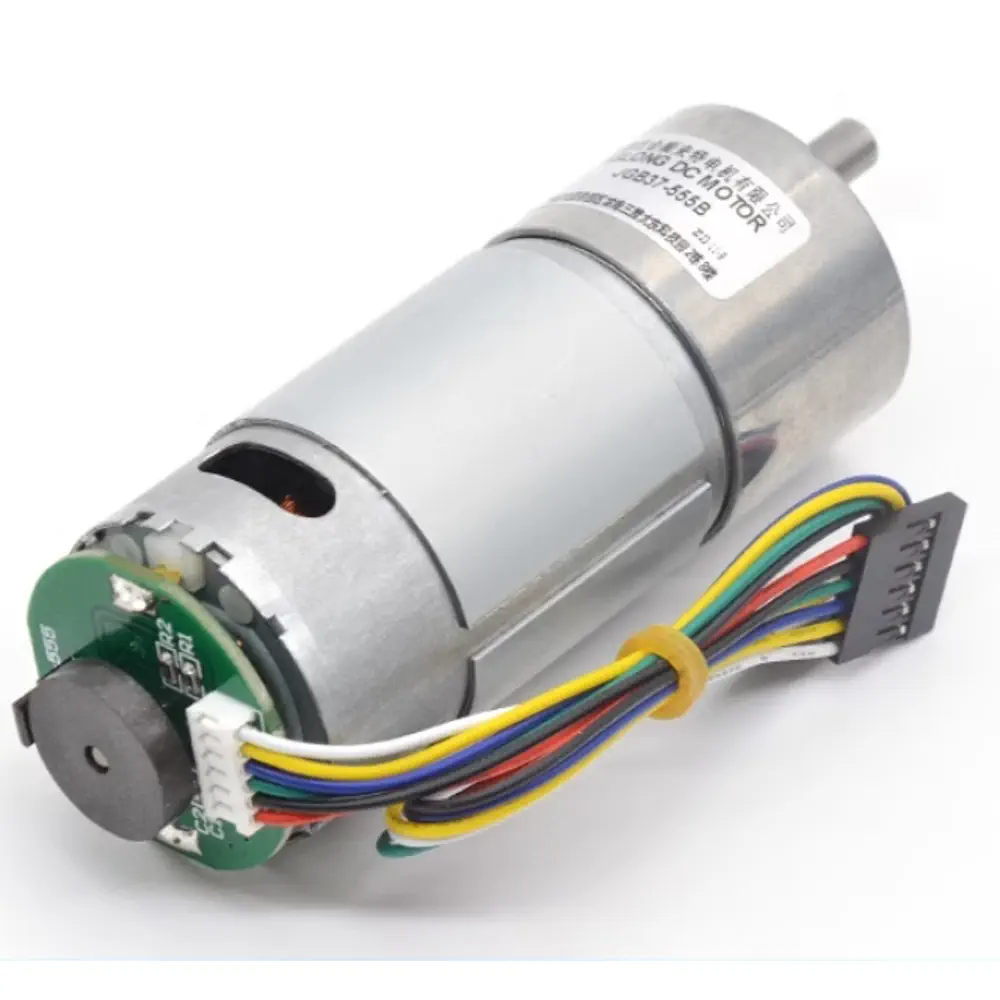

This 37 mm 24V 22RPM brushed geared motor with encoder delivers reliable low-speed, high-torque output with integrated feedback for advanced control systems. Designed to operate on 24V DC, the motor achieves a nominal 22 RPM no-load speed, providing strong torque for load-bearing mechanisms and precision motion applications.
The planetary gearbox ensures smooth power transmission and long service life, while the integrated rotary encoder captures real-time speed and position data, enabling closed-loop control when paired with a compatible controller or microcontroller.
This motor is suitable for a wide range of applications including robotics drives, automated actuators, positioning systems, and other mechanical systems requiring accurate motion control and high torque.
Specifications
-
Rated Voltage: 24V DC
-
No-Load Speed: 22RPM
-
Gear Type: Planetary gearbox
-
Encoder: Integrated rotary encoder
-
Encoder Output: Real-time speed and position feedback
-
Motor Type: Brushed DC
-
Rotation Direction: Reversible (polarity controlled)
-
Duty Type: Continuous operation
-
Construction: Durable metal gearbox and motor housing
Physical Dimensions
-
Gearbox Diameter: 37 mm
-
Output Shaft Diameter: Standard precision shaft
-
Compact and space-efficient form factor suitable for embedded systems
(Exact detailed dimensions should be referenced from mounting and product drawings as needed.)
Applications
-
Robotics drive systems and articulated mechanisms
-
Automated positioning and motion control
-
Mobile robotic platforms and actuator assemblies
-
Encoder-based feedback control systems
-
DIY robotics and engineering prototypes
Package Includes
-
1 × 37 mm 24V Brushed Geared Motor with Integrated Encoder (22RPM)
Usage Tips
-
Use a stable 24V DC power supply capable of providing sufficient current
-
Pair with an encoder-capable motor controller or microcontroller for closed-loop control
-
Reversible rotation can be achieved by reversing DC polarity
-
Secure motor mounting to reduce vibration and improve positional accuracy
