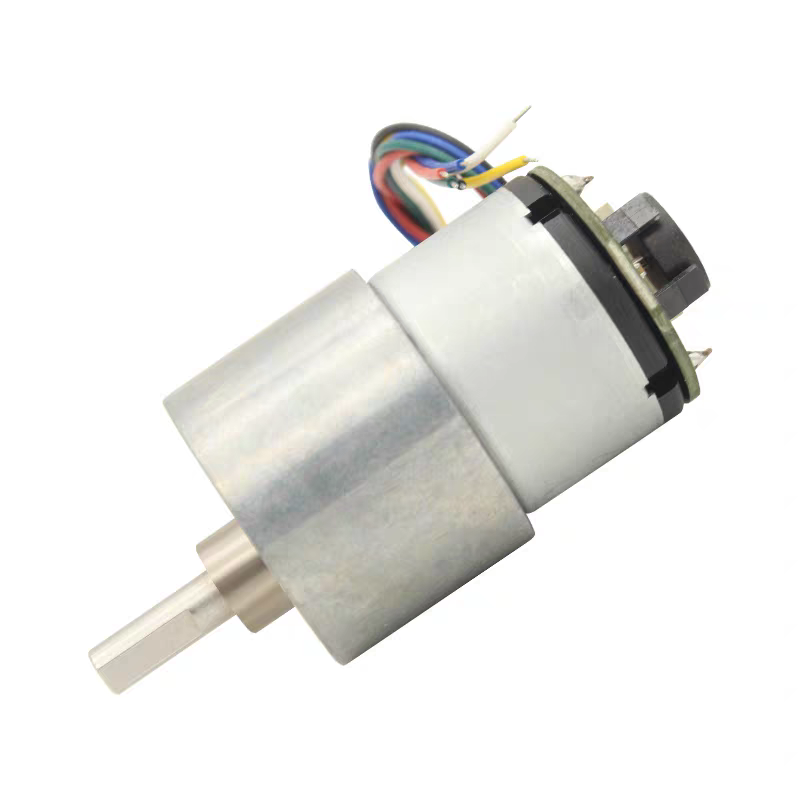

37mm DC Gear Motor with Encoder – 12V / 24V High Torque Motor, 7.4–1000 RPM Options

Product Description

This 37mm DC gear motor with integrated encoder is designed for applications that require precise speed feedback, stable torque output, and flexible configuration options.

The motor is available in both 12V and 24V versions and supports a wide range of gear ratios, offering output speeds from 7.4 RPM up to 1000 RPM. This allows users to select the optimal speed and torque combination based on their specific application requirements.

Lower-speed variants provide significantly higher torque and are ideal for heavy-load, lifting, and precision positioning systems. Medium-speed variants offer a balanced combination of speed and torque, making them suitable for mobile robots and automation mechanisms. Higher-speed variants are optimized for fast motion applications where lower torque is acceptable.

The built-in encoder provides real-time rotational feedback, enabling accurate speed and position monitoring for closed-loop control systems. Combined with a durable metal gearbox and reliable brushed DC motor core, this motor delivers consistent performance and long service life in demanding environments.

Customers can easily select the desired voltage and output speed using the product variants.

Speed Selection Guide

To help you choose the correct motor variant:

• 7.4 – 25 RPM:
  Very high torque, low speed
  Suitable for heavy loads, lifting mechanisms, and precision positioning

• 33 – 107 RPM:
  Balanced speed and torque
  Suitable for mobile robots, wheels, and general automation systems

• 200 – 1000 RPM:
  High speed, lower torque
  Suitable for fast-moving mechanisms and light-load applications

Key Features

• Brushed DC gear motor with integrated encoder

• 37mm metal gearbox for high durability

• Available in 12V and 24V configurations

• Wide speed range: 7.4–1000 RPM (variant dependent)

• Encoder feedback for speed and position control

• Reversible rotation direction

• Supports PWM speed control

• Stable performance under continuous operation

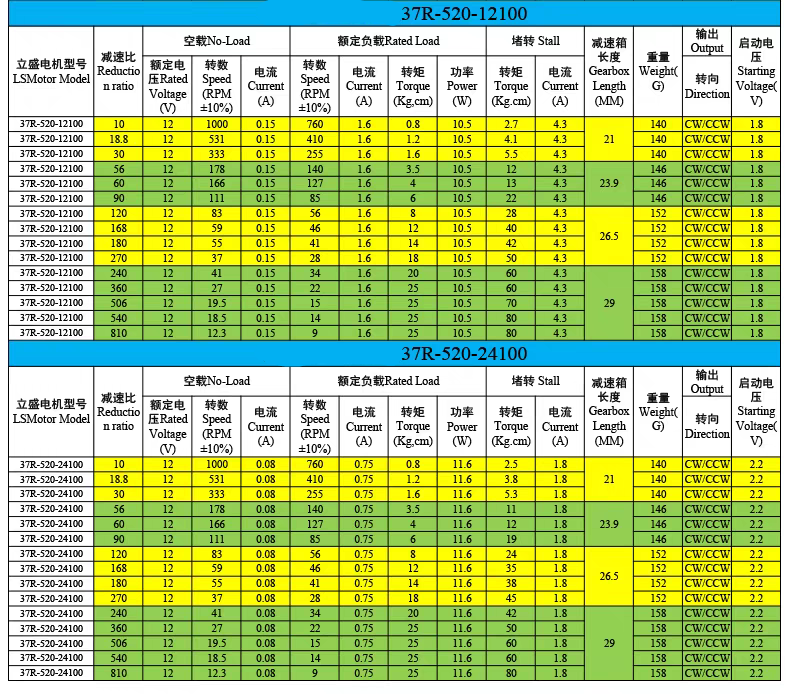

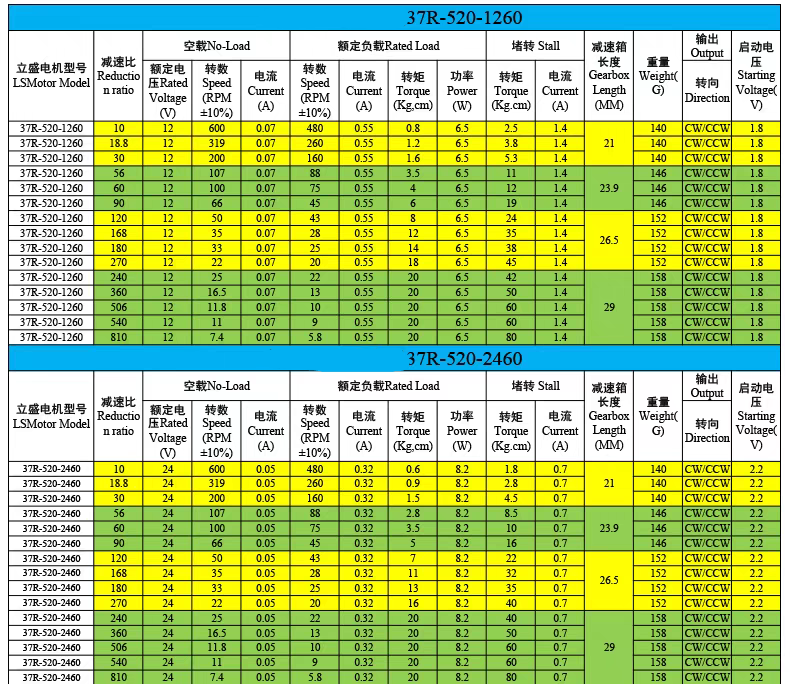

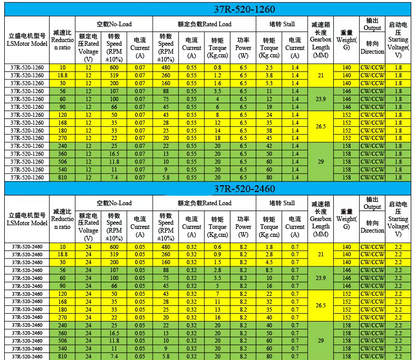

Technical Specifications

• Motor Type: Brushed DC gear motor with encoder

• Gearbox Diameter: 37 mm

• Voltage Options: 12V DC / 24V DC

• Speed Range: 7.4 – 1000 RPM (depending on selected variant)

• Encoder: Integrated rotary encoder

• Gear Material: Metal

• Rotation Direction: Reversible

• Control Method: PWM compatible

• Noise Level: Low to moderate

Typical Applications

• Robotics and autonomous vehicles

• Encoder-based speed and position control systems

• Mobile robot drive systems

• Robotic arms and joints

• Automation equipment

• DIY electronics and engineering projects

• Precision motion control mechanisms

Package Includes

• 1 × 37mm DC gear motor with integrated encoder

Important Notes

• Output speed and torque vary depending on the selected gear ratio.

• Actual performance may vary slightly based on load and supply voltage.

• Please select the correct voltage and RPM variant before ordering.
