Product Description

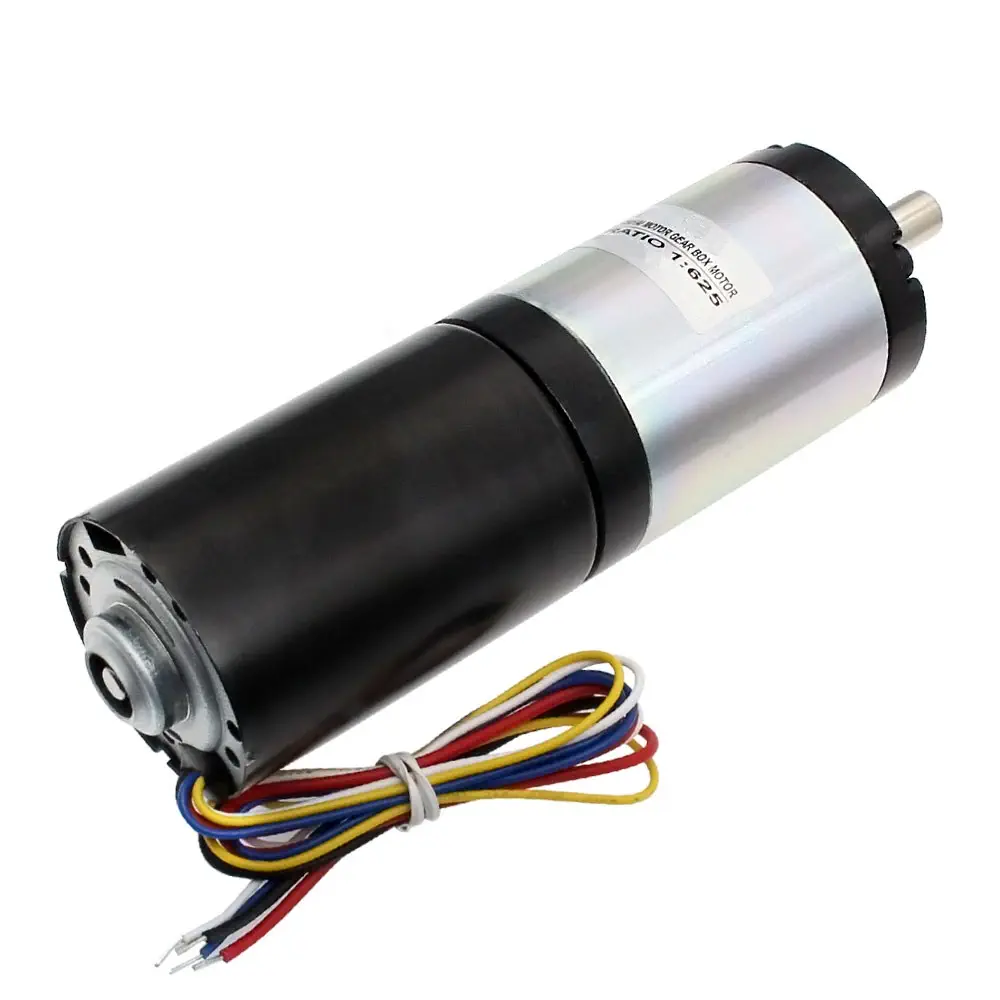

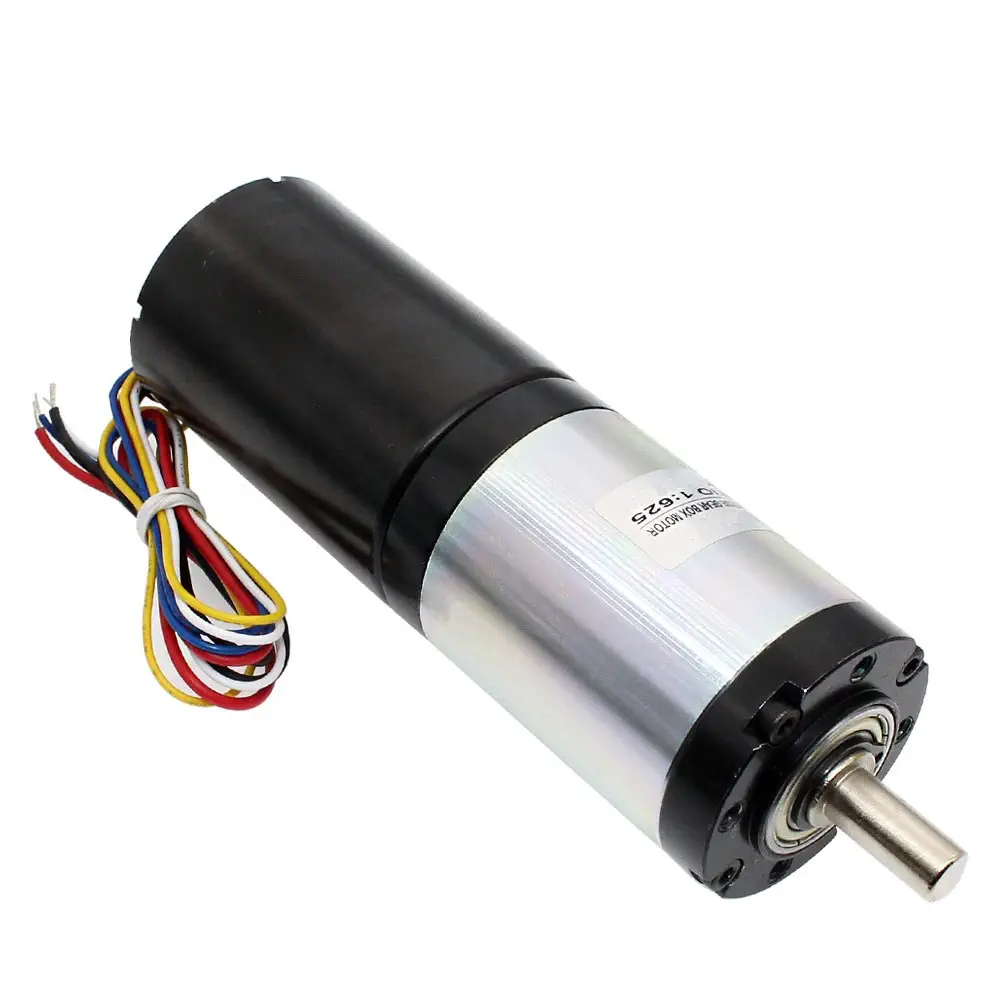

This 42D brushless DC planetary gear motor is engineered to deliver reliable low-speed, high-torque performance with a compact form factor. The brushless motor design offers reduced maintenance, lower electrical noise, and longer service life compared to brushed alternatives. Combined with a precision planetary gearbox, this motor produces smooth, stable motion at approximately 12 RPM when powered by 24 V DC.
The planetary gear system enhances torque density while minimizing backlash, making this motor ideal for applications that require controlled, heavy-load rotation. Its robust construction and reliable performance make it suitable for robotics joints, actuators, automation equipment, and other precision motion systems.
Specifications
-
Brushless DC planetary gear motor
-
Designed for 24 V DC power supply
-
Nominal output speed: ~12 RPM
-
Precision planetary gearbox for torque multiplication
-
Low noise brushless operation
-
Compact 42 mm diameter housing
-
Balanced performance for continuous use
-
Reversible rotation via polarity change
Applications
-
Robotics lift and joint mechanisms
-
Slow-speed actuation systems
-
High-torque automation assemblies
-
Positioning and indexing drives
-
Heavy-load motion control
-
Mobile robotics and autonomous platforms
-
Precision engineering and embedded mechatronics
What’s Included
-
1 × 42D Brushless DC Planetary Gear Motor (24 V, ~12 RPM)
