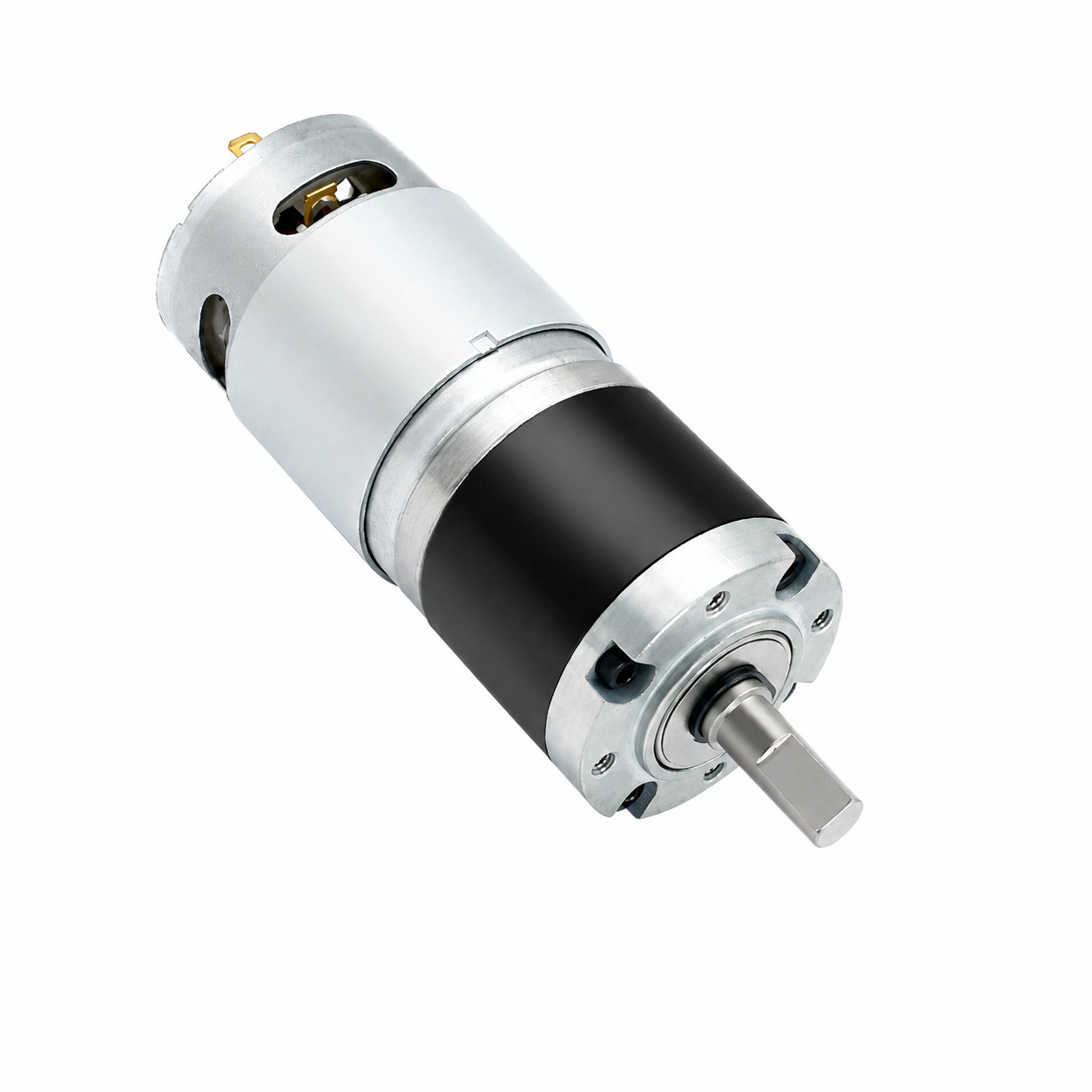

42GP-775 120RPM DC Planetary Gear Motor
The 42GP-775 DC planetary gear motor is designed for robotics, automation systems, AGV platforms, smart machinery, conveyor equipment, and DIY robotics projects. This version is optimized for 120RPM output speed and supports both 12V and 24V configurations.
Key Features
- High torque planetary gearbox structure
- 12V and 24V versions available
- Forward and reverse rotation support
- PWM speed control compatible
- 8mm / 10mm D-shaft output options
- Suitable for robotics and industrial automation
- Supports multiple package combinations
Applications
- Mobile robots
- AGV systems
- Automation equipment
- Robot drive systems
- DIY robotics projects
- Smart machinery

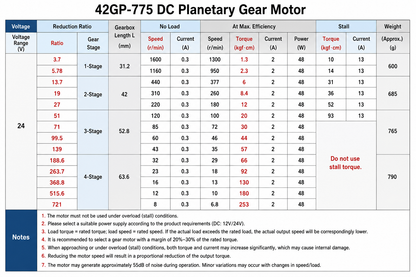

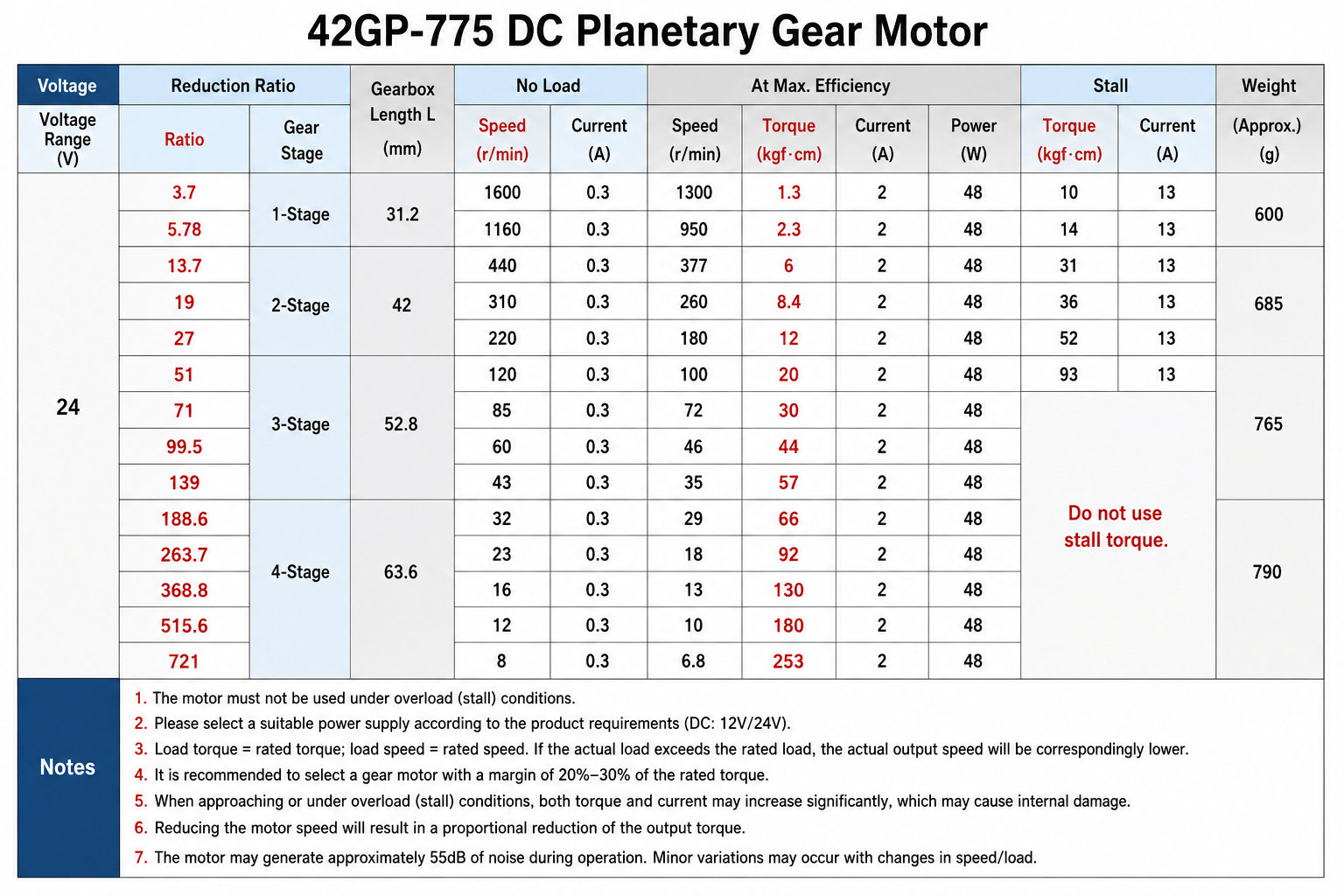

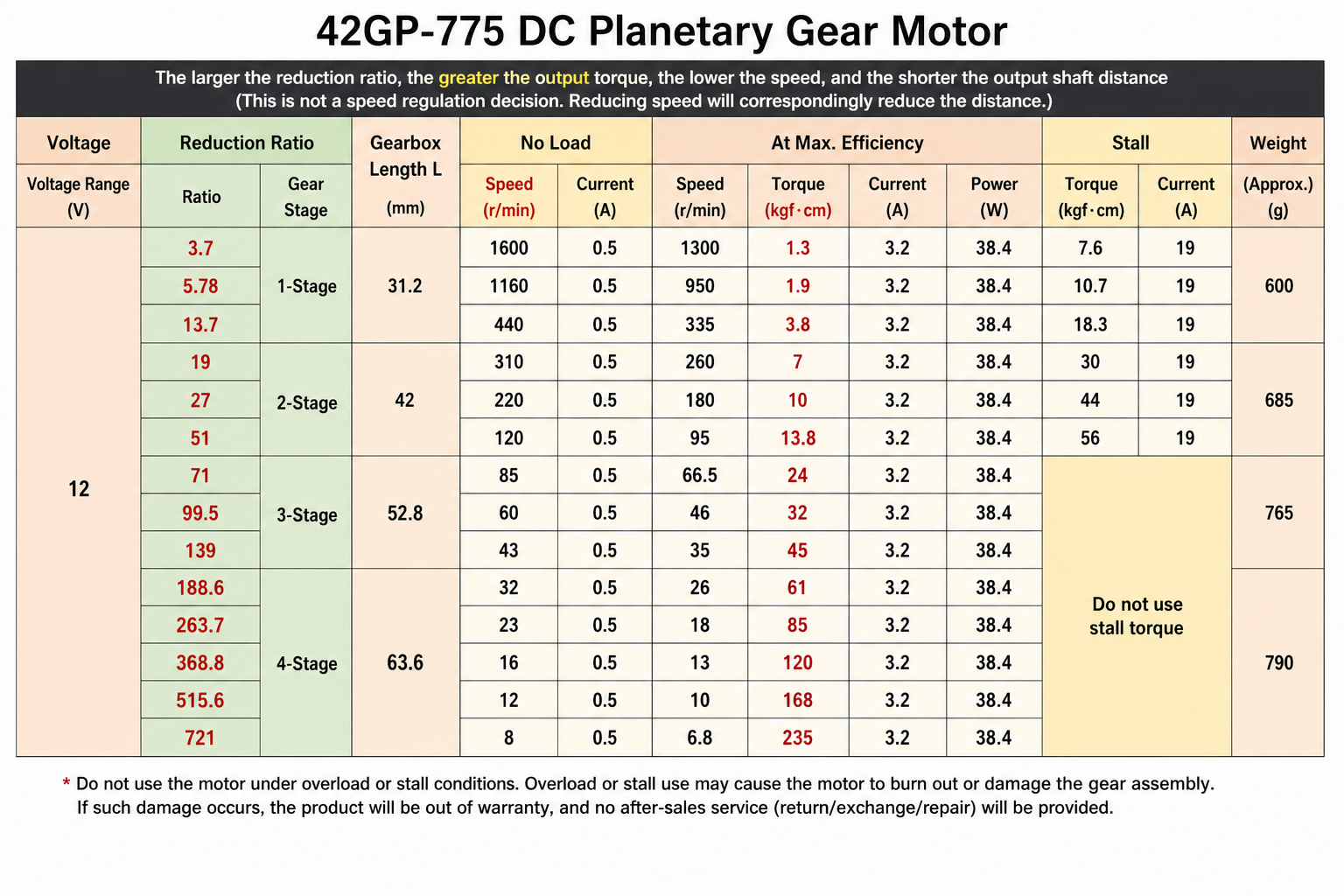

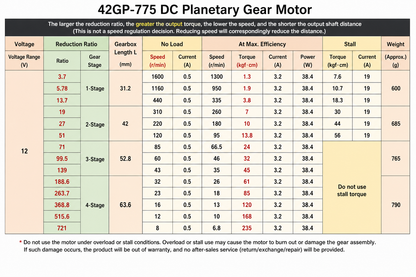

Specifications
- Motor Type: DC Planetary Gear Motor
- Rated Voltage: 12V / 24V DC
- Rated Speed: 120RPM
- Rotation Direction: CW / CCW Reversible

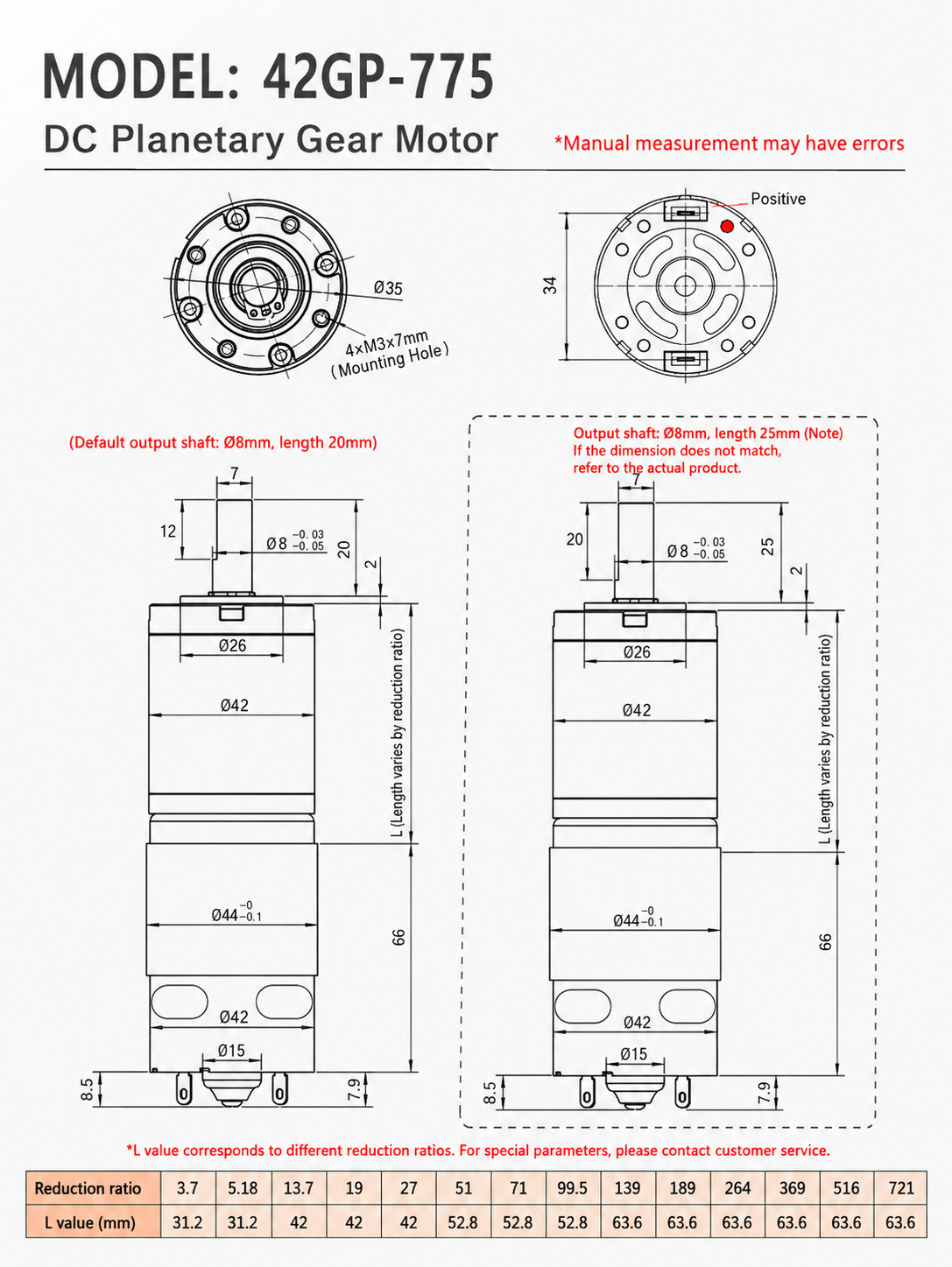

- Output Shaft: 8mm / 10mm D-Shaft
- Speed Control: PWM Compatible
FAQ
Can this motor rotate in both directions?
Yes. The motor supports forward and reverse rotation by reversing polarity.
Does this motor support speed control?
Yes. A compatible PWM speed controller can be used.
What applications is this motor suitable for?
This motor is suitable for robotics, AGV systems, smart automation, conveyors, and industrial machinery.
