Product Overview

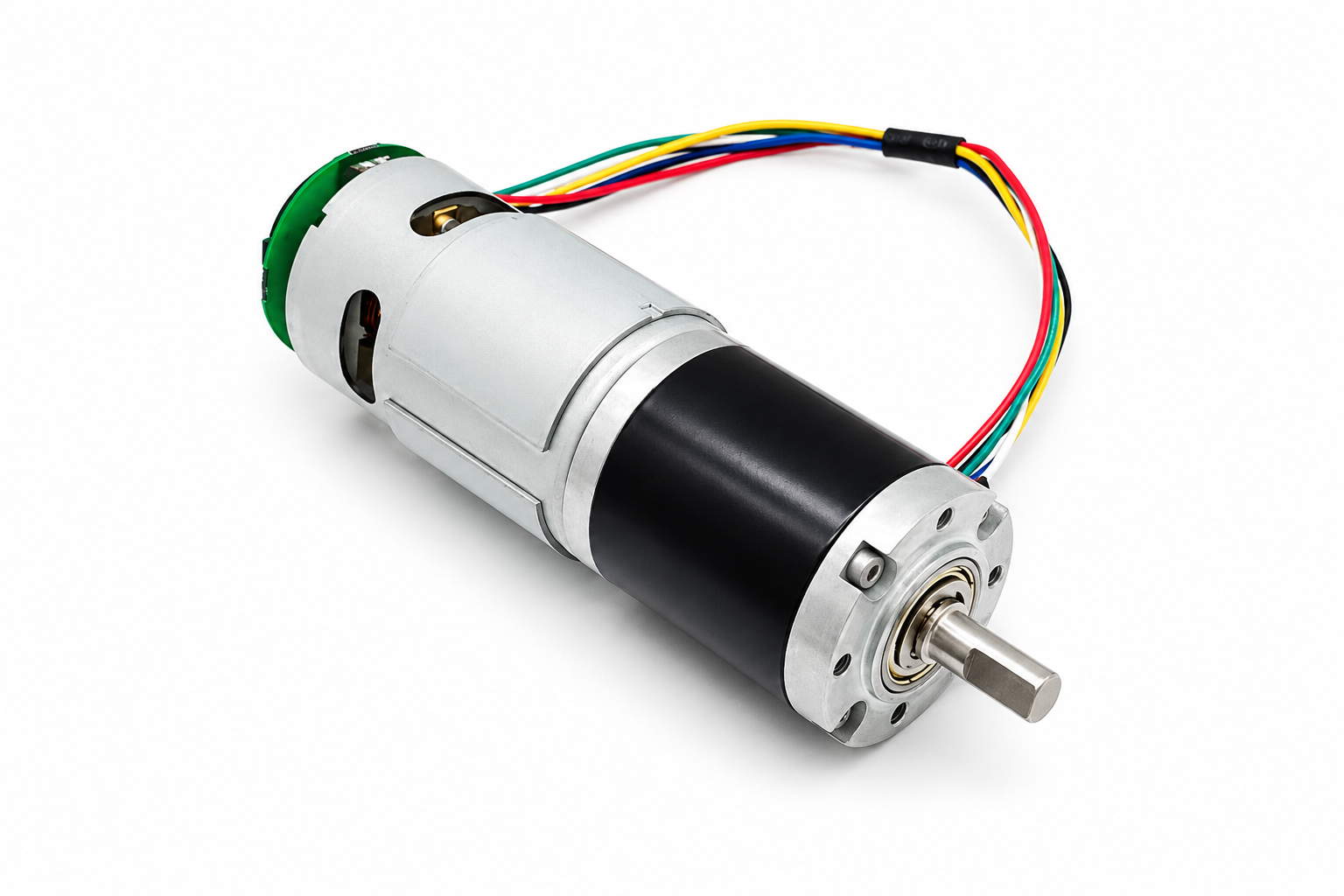

The 42GP-775 Encoder Planetary Gear Motor is a high-performance DC gear motor designed for mobile robots, AGV systems, autonomous mobile robots (AMR), differential drive platforms, and industrial automation equipment.

Combining a powerful 775 DC motor, precision all-metal planetary gearbox, and integrated AB-phase magnetic encoder, this motor provides excellent torque output, accurate speed feedback, and reliable long-term operation.

Unlike ordinary DC gear motors, the built-in quadrature encoder allows real-time speed measurement, direction detection, odometry calculation, and closed-loop motion control, making it an ideal solution for intelligent robotics and automation systems.

With multiple speed options ranging from 8RPM to 1600RPM, support for PWM speed control, forward and reverse rotation, and optional 8mm or 10mm D-shaft outputs, the 42GP-775 is widely used in AGV platforms, ROS robots, service robots, conveyor systems, automated machinery, and research projects.

Key Features

• Integrated AB Quadrature Magnetic Encoder

• Dual Channel Incremental Encoder Output

• 20 Pulses Per Revolution Per Channel

• 90° Phase Shift for Direction Detection

• High Torque Full Metal Planetary Gearbox

• Powerful 775 DC Motor Platform

• Supports Closed-Loop Motion Control

• Supports PWM Speed Regulation

• Forward and Reverse Rotation

• Available in 12V and 24V Versions

• Available with 8mm or 10mm D Shaft

• Suitable for AGV and AMR Platforms

• Compatible with ROS Robotics Development

• Long Service Life

• Continuous Duty Operation

• Industrial Grade Construction

Why Choose the 42GP-775 Encoder Gear Motor?

For robotic applications, simply spinning a motor is not enough. Modern mobile robots require precise speed feedback, accurate distance measurement, and stable motion control.

The integrated encoder provides:

• Wheel speed monitoring

• Motion feedback

• Direction detection

• Position tracking

• Odometry calculation

• Closed-loop speed control

This allows AGV and AMR systems to achieve more accurate navigation and improved driving performance.

The all-metal planetary gearbox delivers excellent torque density while maintaining compact dimensions, making the motor suitable for robots with heavy payload requirements.

Encoder Features

The built-in encoder is a dual-channel incremental magnetic encoder designed for harsh operating environments.

Encoder Specifications

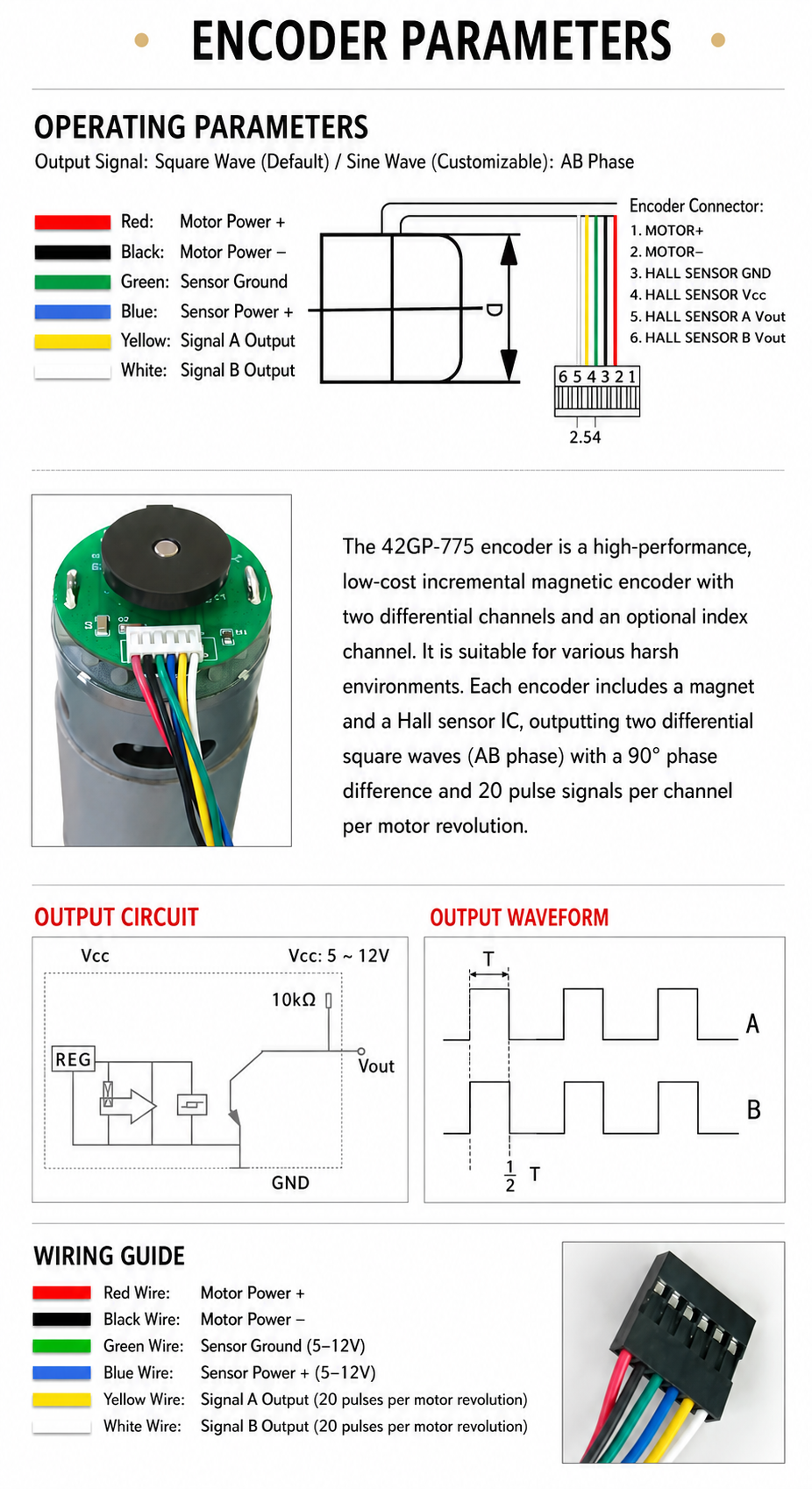

• Encoder Type: Magnetic Incremental Encoder

• Channels: A / B

• Output Signal: Quadrature Signal

• Phase Difference: 90°

• Pulses Per Revolution:

  • Channel A: 20 PPR

  • Channel B: 20 PPR

• Encoder Supply Voltage: 5V–12V

• Speed Feedback: Supported

• Direction Detection: Supported

The encoder outputs two square-wave signals with a 90° phase offset, allowing controllers to determine both motor speed and rotation direction.

Planetary Gearbox Advantages

The precision planetary gearbox offers:

• Higher torque output

• Compact structure

• Lower backlash

• Better load distribution

• Higher efficiency

• Longer service life

• Reduced vibration

• Smoother operation

Compared with conventional spur gear systems, planetary gearboxes provide superior durability and performance in robotic applications.

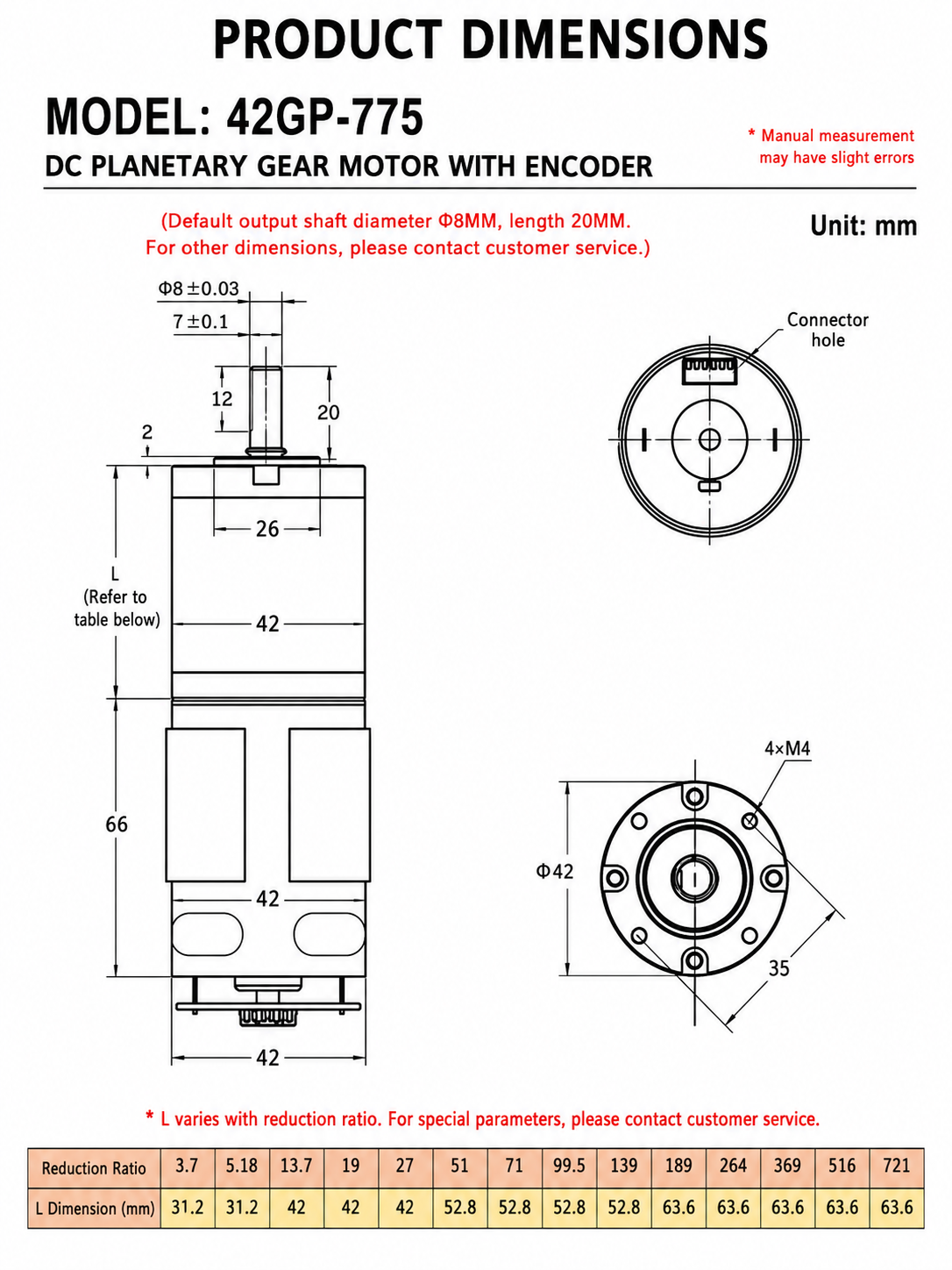

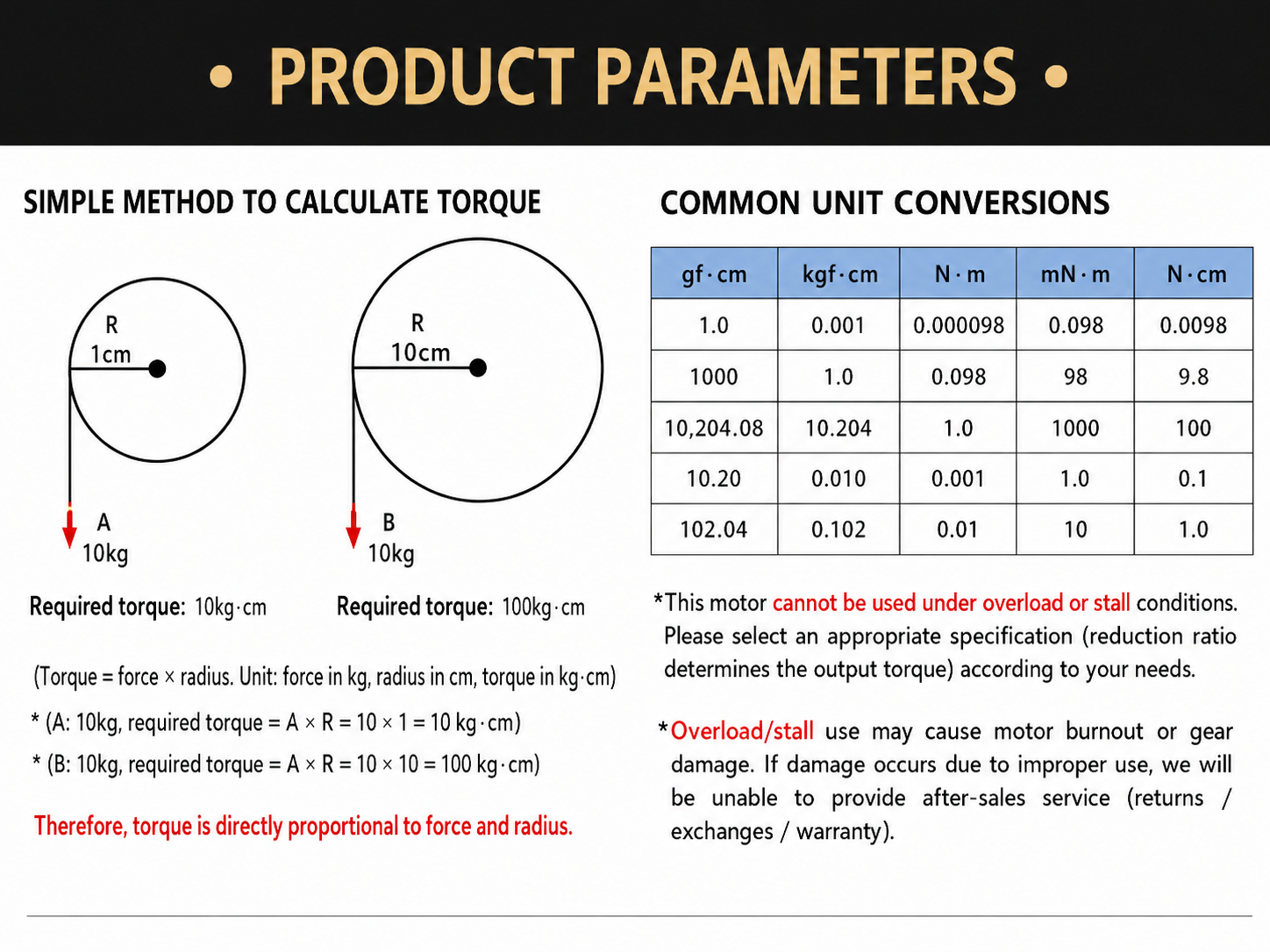

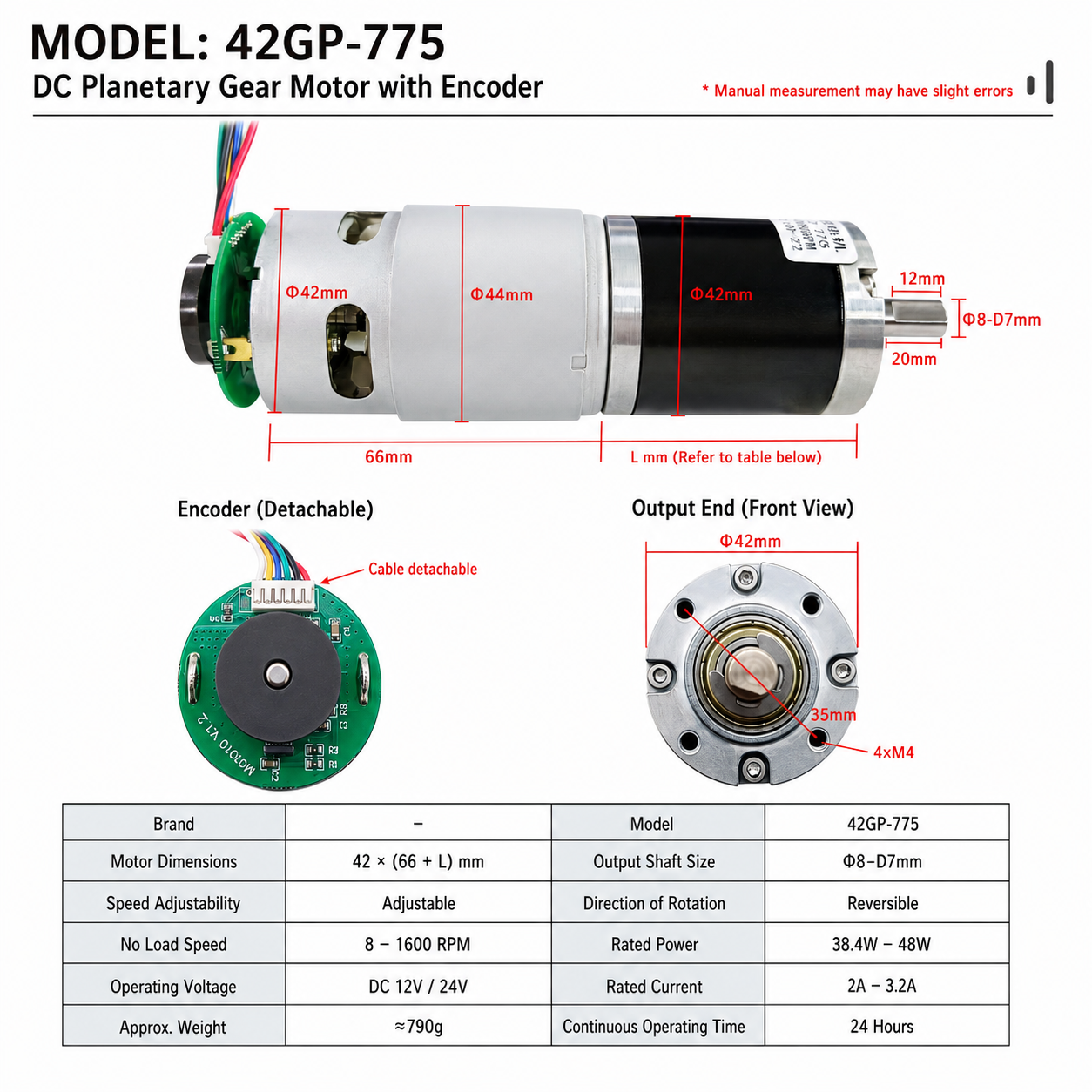

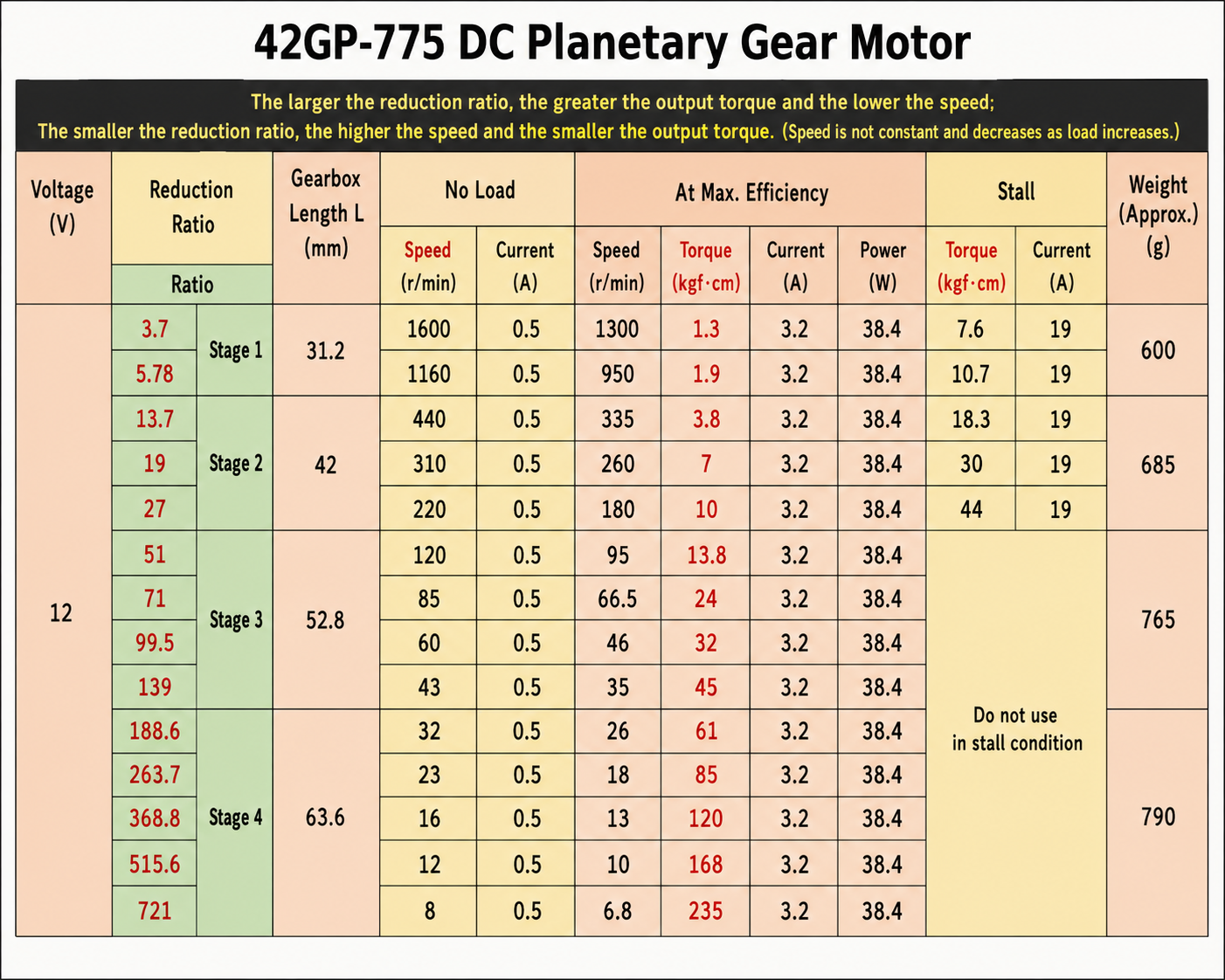

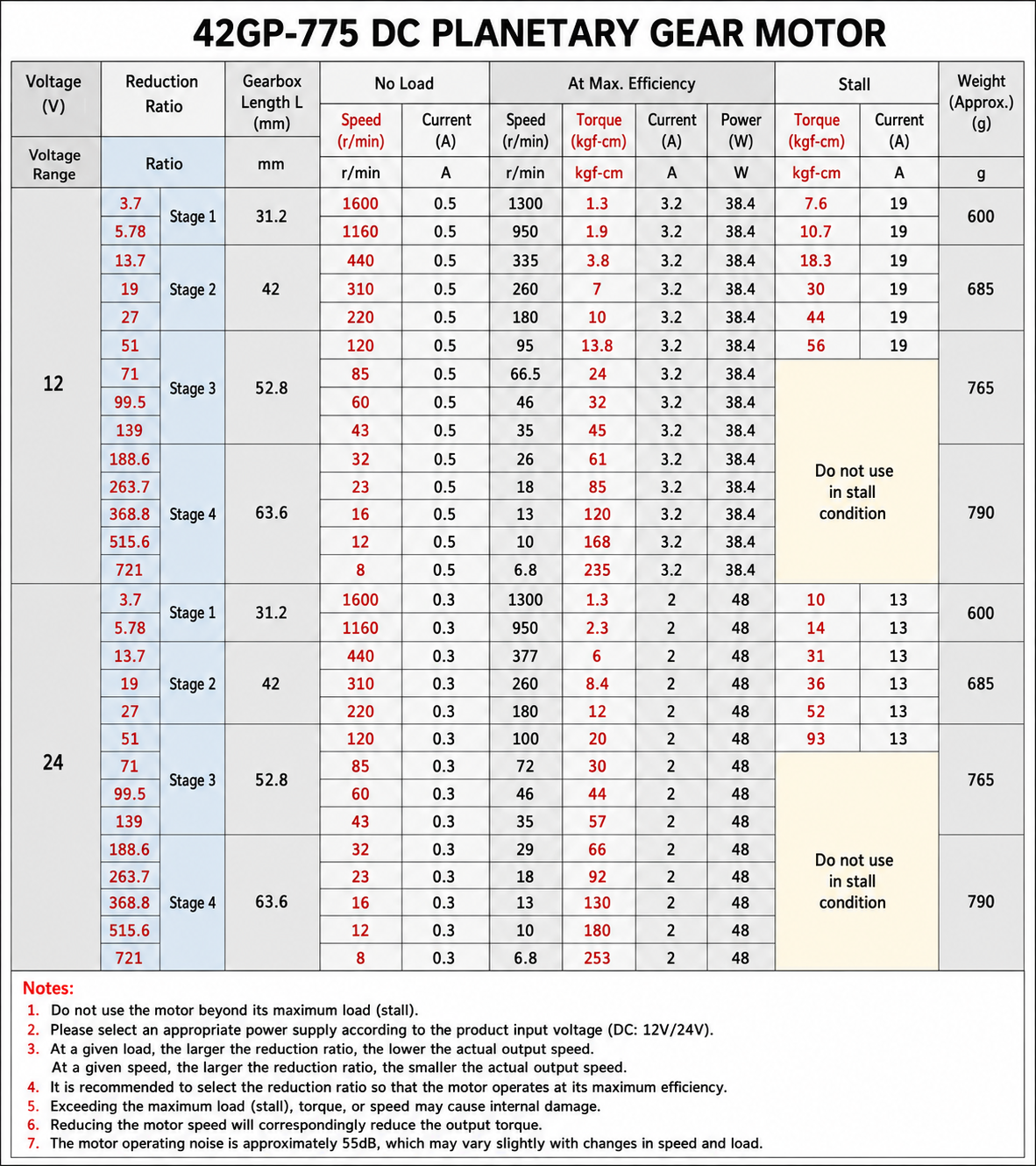

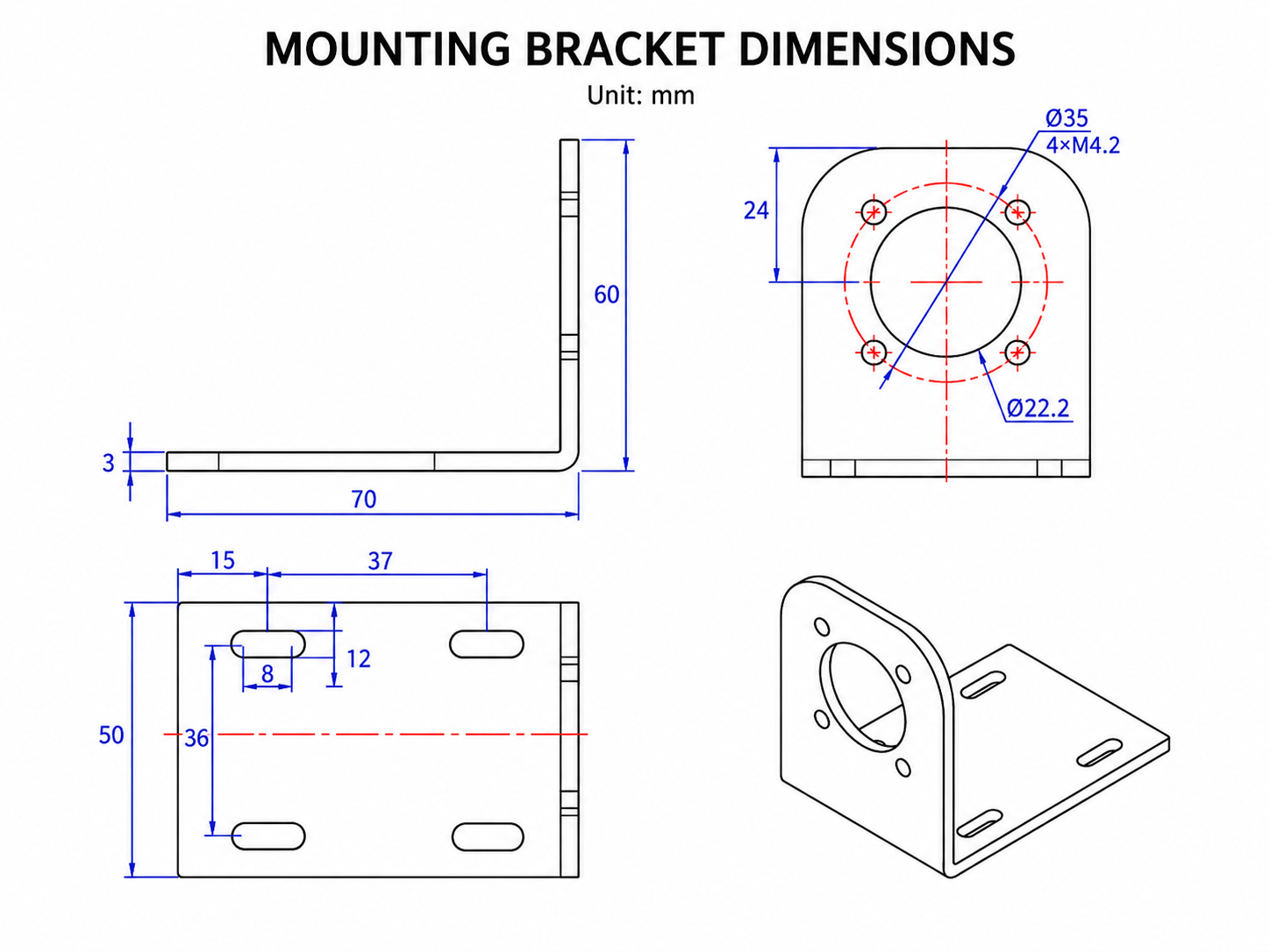

Technical Specifications

Wiring Definition

Motor Wiring

Encoder Wiring

Encoder Connector Pinout

Applications

Robotics

• AGV Systems

• Autonomous Mobile Robots (AMR)

• Differential Drive Robots

• ROS Robot Platforms

• Service Robots

• Delivery Robots

• Inspection Robots

• Research Robots

Industrial Automation

• Conveyor Systems

• Packaging Equipment

• Automated Production Lines

• Material Handling Equipment

• Smart Manufacturing Systems

Education and Research

• Robotics Laboratories

• Engineering Education

• Autonomous Vehicle Research

• Motion Control Development

Package Includes

• 1 × 42GP-775 Encoder Planetary Gear Motor

Frequently Asked Questions

Does this motor include an encoder?

Yes. Every 42GP-775 Encoder Gear Motor includes a built-in AB-phase magnetic quadrature encoder.

How many pulses does the encoder provide?

The encoder outputs 20 pulses per revolution on Channel A and 20 pulses per revolution on Channel B.

Can the encoder detect rotation direction?

Yes. The A/B quadrature signals have a 90° phase difference, allowing direction detection.

Is this motor suitable for AGV applications?

Yes. The 60RPM–310RPM versions are particularly suitable for AGV and AMR systems.

Is this motor compatible with ROS?

Yes. The encoder feedback makes it suitable for ROS and ROS2 mobile robot platforms.

Can I use this motor with Arduino?

Yes. The encoder signals can be read by Arduino, ESP32, STM32, Raspberry Pi, Jetson, and PLC systems.

Does the motor support PWM speed control?

Yes. Speed can be controlled using compatible PWM motor drivers.

Can the motor rotate in both directions?

Yes. CW and CCW operation are supported.

What shaft sizes are available?

Two shaft options are available:

• 8mm D Shaft

• 10mm D Shaft

Which shaft size should I choose?

8mm D Shaft is commonly used for AGV and mobile robot wheel systems.

10mm D Shaft is recommended for larger wheels, higher loads, and industrial equipment.

Can this motor run continuously?

Yes. The motor is designed for long-duration continuous operation.

Is the gearbox metal?

Yes. The motor uses a full metal planetary gearbox for high durability and torque transmission. Robots
