Description
This mounting bracket is designed for compatible 42mm planetary DC gear motors, providing a simple and secure way to mount the motor to robot frames, equipment panels, test platforms, and DIY automation systems.

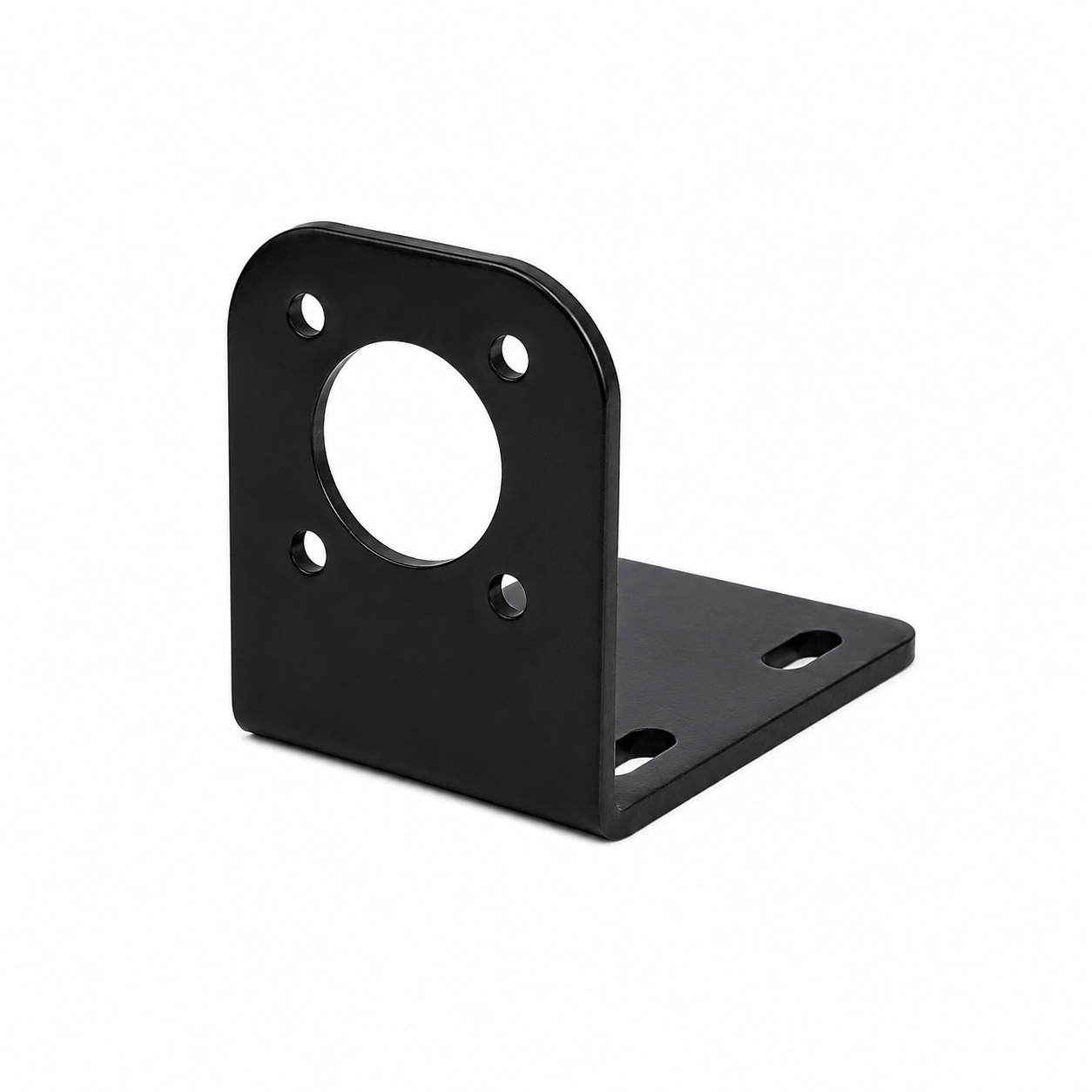

The L-shaped design provides a stable mounting surface while keeping the motor shaft accessible for connection to wheels, couplings, pulleys, gears, and other mechanical components.
The bracket features a Ø26.2 mm center opening, four motor mounting holes, and slotted base mounting holes for convenient positioning and installation.

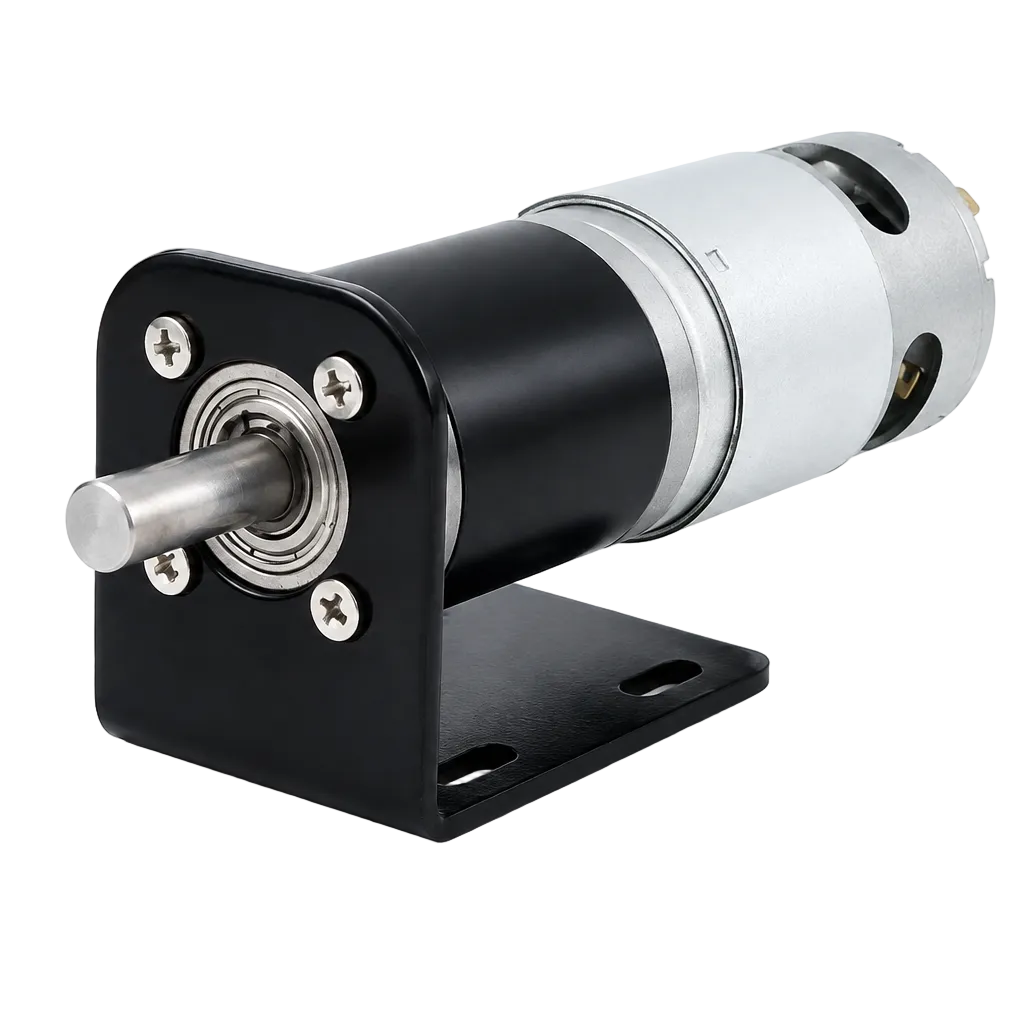

Suitable for use with compatible 42mm Encoder Planetary Gear Motors, 12V / 24V DC High Torque Gear Motors.

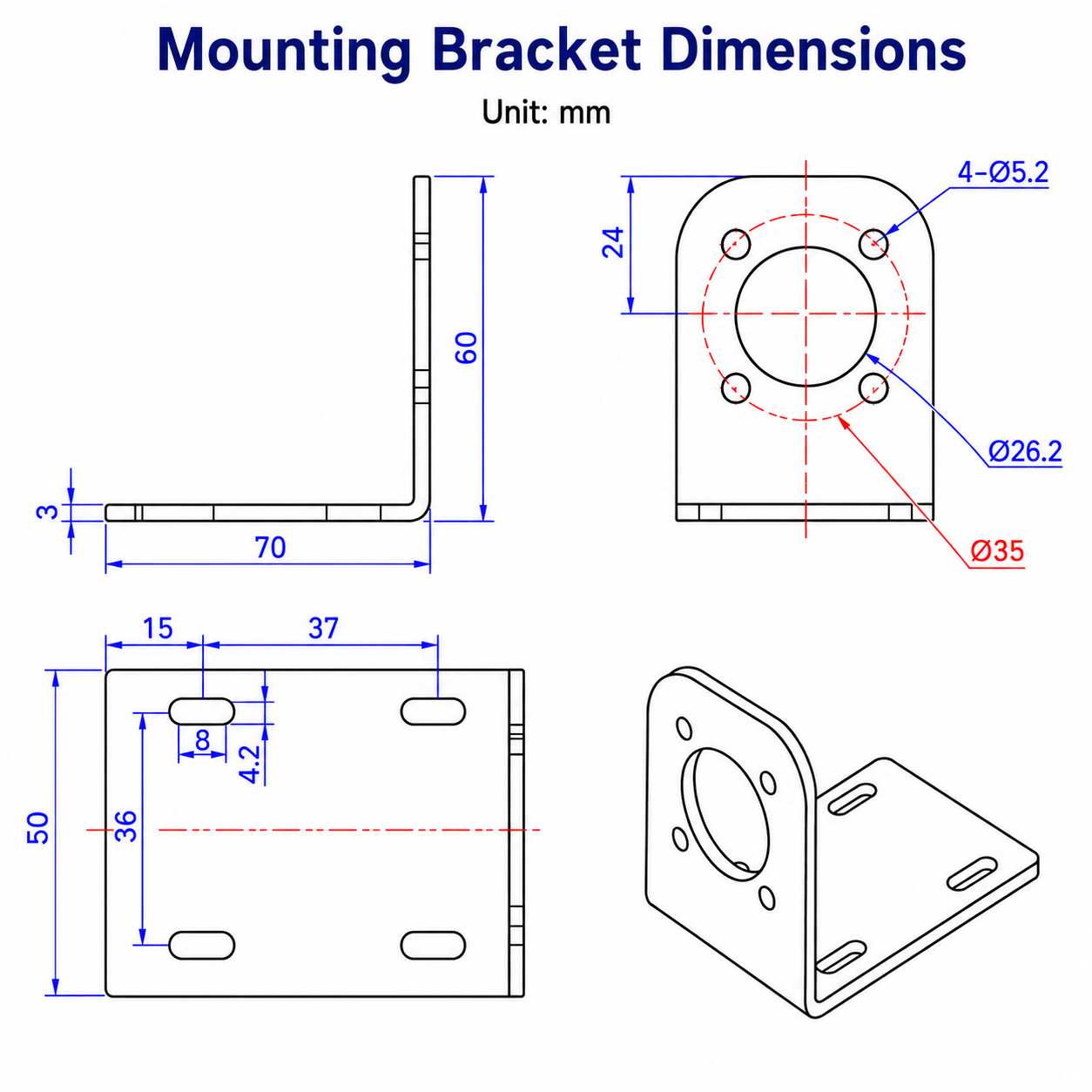

Specifications
| Parameter | Specification |
|---|---|
| Product Type | Motor Mounting Bracket |
| Compatible Motor Type | 42mm Planetary DC Gear Motor |
| Compatible Motor Diameter | 42mm Class |
| Bracket Type | L-Shaped |
| Overall Base Length | 70 mm |
| Vertical Height | 60 mm |
| Base Width | 50 mm |
| Bracket Thickness | 3 mm |
| Center Opening Diameter | Ø26.2 mm |
| Motor Mounting Holes | 4 × Ø5.2 mm |
| Base Mounting Type | Slotted Holes |
| Slot Length | 8 mm |
| Slot Width | 4.2 mm |
| Unit | mm |
Applications
- 42mm planetary gear motor mounting
- Robot chassis and mobile robots
- DIY robotics projects
- Automation equipment
- Motor test platforms
- Educational robotics
- Mechanical prototypes
- Wheel and drivetrain assemblies
What’s Included
- 1 × 42mm Planetary Gear Motor Mounting Bracket
Note: Motor, screws, couplings, wheels, and other accessories are not included unless otherwise specified.
FAQ
Is this bracket compatible with 42mm planetary gear motors?
Yes. It is designed for compatible 42mm-class planetary DC gear motors. Please compare the mounting dimensions with your motor before ordering.
What is the diameter of the center opening?
The center opening diameter is Ø26.2 mm.
What size are the motor mounting holes?
The front mounting plate has 4 × Ø5.2 mm mounting holes.
Can this bracket be used with 12V and 24V motors?
Yes. The bracket itself is a mechanical mounting component and can be used with compatible 12V or 24V 42mm planetary gear motors when the mechanical mounting dimensions match.
Is the motor included?
No. This listing is for the mounting bracket only unless otherwise specified.
