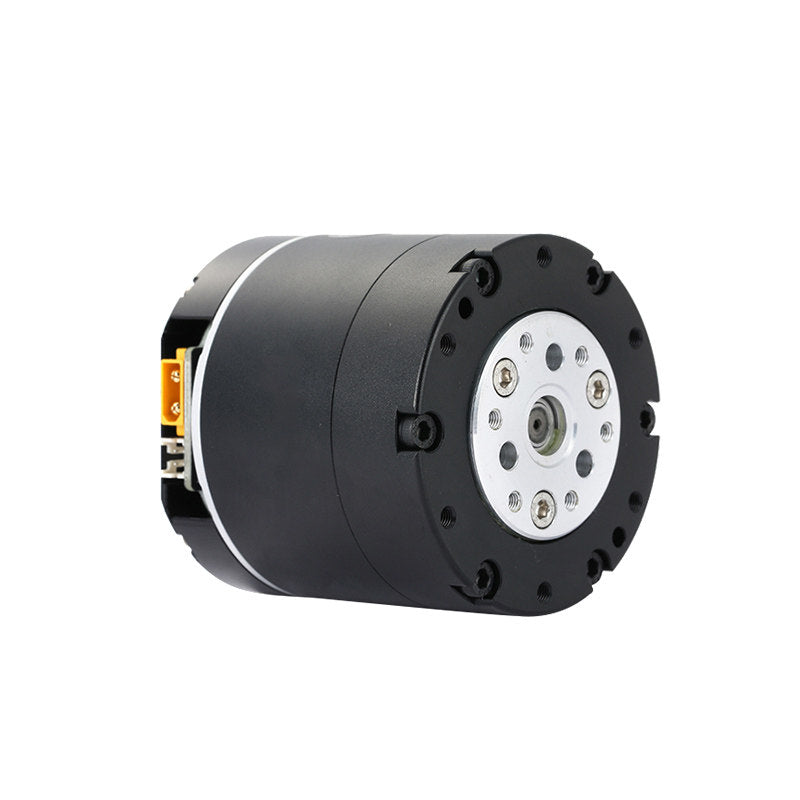

Product Description
The SP8115-9 is a compact high-torque planetary gear robot joint servo motor designed for robotic arms, exoskeleton joints, quadruped robots, articulated robots, and precision robotic motion systems.
Operating at 48V, it delivers 15.27 N·m rated torque, 54.55 N·m stall torque, and a rated output speed of 120 RPM. The integrated design combines the servo motor, planetary reduction mechanism, 14-bit encoder, and control electronics into a compact joint drive solution.
The SP8115-9 supports speed and position control together with CAN and RS485 communication, allowing integration into compatible robotic control architectures. Integrated temperature monitoring is also specified.
With a compact Ø96 × 48.5 mm body and a weight of approximately 705 g, this actuator is suitable for robotic joints requiring a combination of high torque, moderate output speed, and compact installation.
Key Features
- 48V high-torque robot joint servo motor
- Planetary gear reduction
- 15.27 N·m rated torque
- 54.55 N·m stall torque
- 120 RPM rated output speed
- 218W rated power
- Integrated 14-bit encoder
- Speed and position control
- CAN / RS485 communication
- Temperature monitoring
- Compact Ø96 × 48.5 mm body
- Suitable for exoskeleton and robotic joint systems

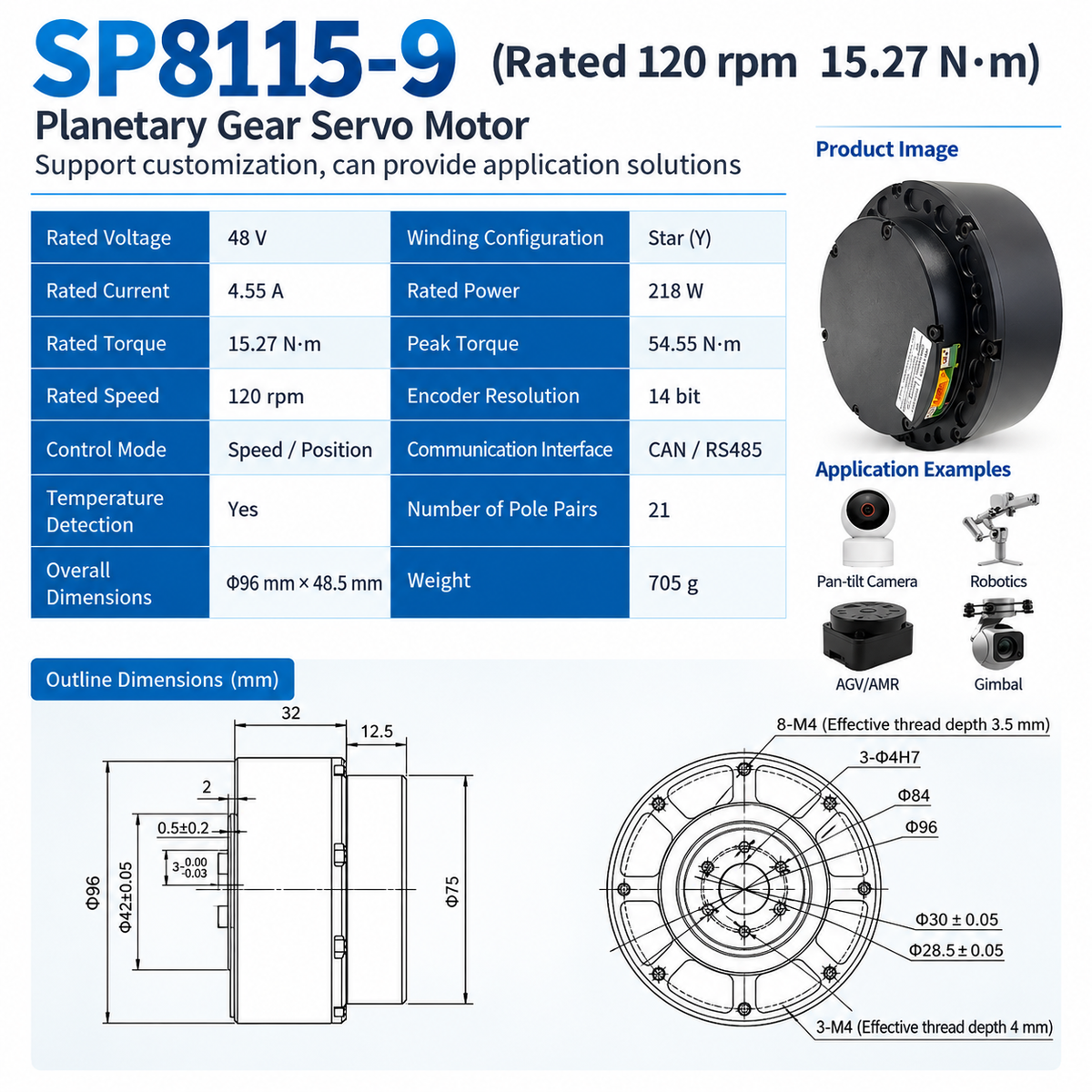

Specifications
| Specification | Details |
|---|---|
| Model | SP8115-9 |
| Product Type | Planetary Gear Robot Joint Servo Motor |
| Rated Voltage | 48V |
| Rated Current | 4.55A |
| Rated Power | 218W |
| Rated Torque | 15.27 N·m |
| Stall Torque | 54.55 N·m |
| Rated Speed | 120 RPM |
| Encoder | 14-bit |
| Control Modes | Speed / Position |
| Communication | CAN / RS485 |
| Temperature Monitoring | Yes |
| Pole Pairs | 21 |
| Overall Dimensions | Ø96 × 48.5 mm |
| Weight | 705 g |
Package Includes
- 1 × SP8115-9 Planetary Gear Robot Joint Servo Motor
Applications
- Exoskeleton joints
- Robotic arms
- Quadruped robot joints
- Legged robots
- Humanoid robot joints
- Articulated robots
- Research robotics
- Service robots
- Precision robotic motion systems
- Custom robot development
FAQ
What is the SP8115-9 designed for?
The SP8115-9 is a 48V high-torque planetary servo motor designed for compatible robotic joints, exoskeleton mechanisms, robotic arms, quadruped robots, and articulated robotic systems.
How much torque does the SP8115-9 provide?
It provides 15.27 N·m rated torque and a specified 54.55 N·m stall torque.
What is the rated speed?
The rated output speed is 120 RPM.
What voltage does this robot joint motor use?
The SP8115-9 has a rated voltage of 48V.
Does the SP8115-9 include an encoder?
Yes. It has a 14-bit encoder for feedback.
What communication interfaces does it support?
The supplied specifications list both CAN and RS485 communication.
Does it support position control?
Yes. Both speed control and position control are specified.
Is the SP8115-9 suitable for exoskeleton joints?
Its 15.27 N·m rated torque, 120 RPM output, compact integrated structure, and feedback/control capabilities make it suitable for compatible exoskeleton joint and robotic actuator designs.
