Product Description

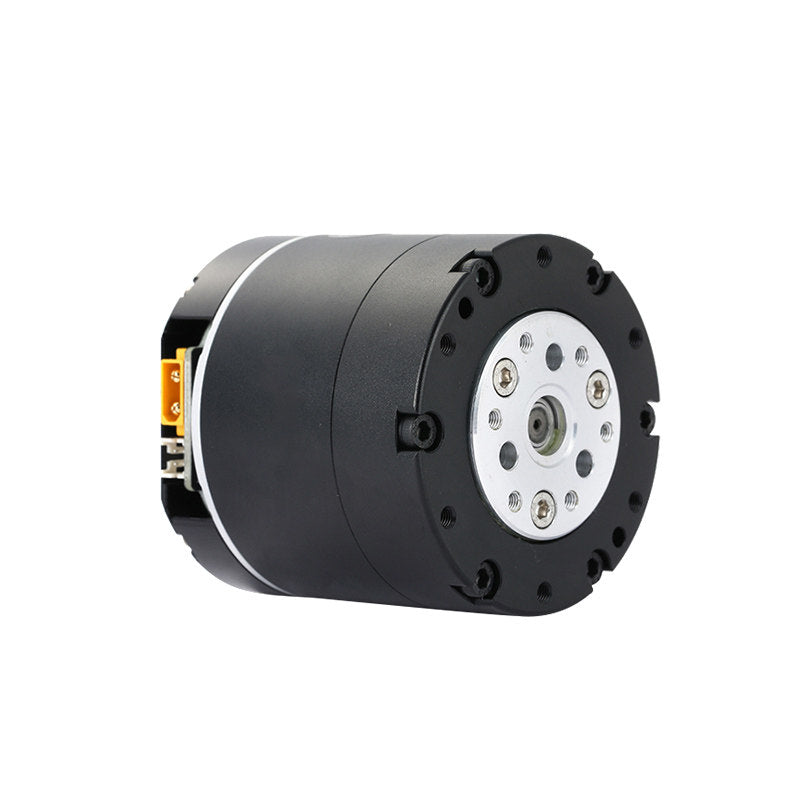

The SP8108-8 is a compact 48V planetary gear robot joint servo motor designed for robotic arms, quadruped robots, articulated joints, exoskeleton systems, and precision robotic motion applications.
It delivers 7.5 N·m rated torque, 22 N·m stall torque, and 110 RPM rated speed, with a rated power of 336W. The integrated design combines the motor, planetary reduction mechanism, 14-bit encoder, and control electronics into a compact robotic joint drive.
The SP8108-8 supports speed and position control and provides CAN / RS485 communication for integration with compatible robot controllers.
With an overall size of approximately Ø92 × 55 mm and a weight of only 396 g, this model offers a useful balance of compact size, relatively low weight, speed, and output torque for robotic joint applications where installation space is limited.
Key Features
- 48V compact robot joint servo motor
- Planetary gear reduction
- 7.5 N·m rated torque
- 22 N·m stall torque
- 110 RPM rated output speed
- 336W rated power
- Integrated 14-bit encoder
- Speed and position control
- CAN / RS485 communication
- Temperature monitoring
- Compact Ø92 × 55 mm construction
- 396 g lightweight design
- Suitable for robotic arms and articulated robot joints
Specifications
| Specification | Details |
|---|---|
| Model | SP8108-8 |
| Product Type | Planetary Gear Robot Joint Servo Motor |
| Rated Voltage | 48V |
| Rated Current | 7A |
| Rated Power | 336W |
| Rated Torque | 7.5 N·m |
| Stall Torque | 22 N·m |
| Rated Speed | 110 RPM |
| Encoder | 14-bit |
| Control Modes | Speed / Position |
| Communication | CAN / RS485 |
| Temperature Monitoring | Yes |
| Pole Pairs | 21 |

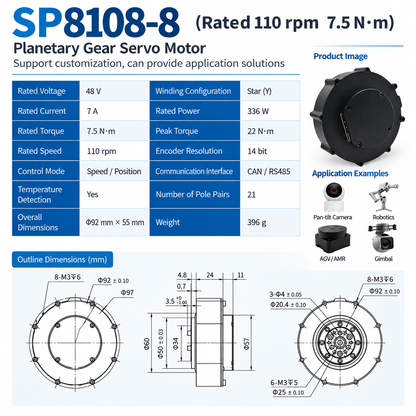

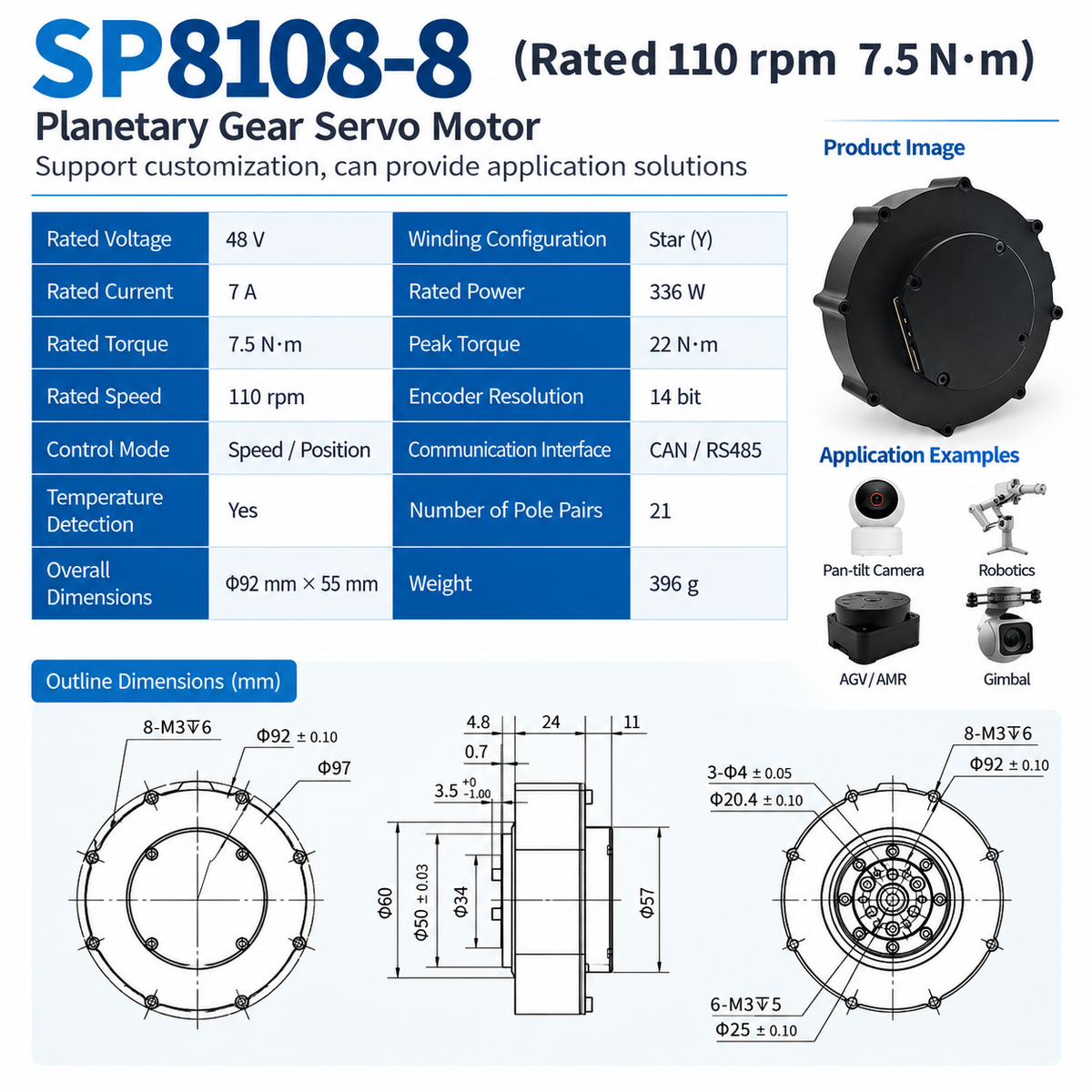

| Overall Dimensions | Ø92 × 55 mm |
| Weight | 396 g |
Package Includes
- 1 × SP8108-8 Planetary Gear Robot Joint Servo Motor
Applications
- Robotic arm joints
- Quadruped robots
- Legged robots
- Articulated robot joints
- Exoskeleton mechanisms
- Humanoid robotics
- Service robots
- Research robotics
- Precision motion systems
- Custom robot development
FAQ
What is the SP8108-8 robot joint motor?
The SP8108-8 is a compact 48V planetary gear servo motor integrating motor drive, reduction, encoder feedback, and control functions for robotic joint applications.
What is the rated torque of the SP8108-8?
The rated output torque is 7.5 N·m, with a specified stall torque of 22 N·m.
What is the rated output speed?
The SP8108-8 has a rated output speed of 110 RPM.
What is the rated power?
The rated power is 336W at a rated voltage of 48V.
Does the SP8108-8 include an encoder?
Yes. The supplied specifications specify an integrated 14-bit encoder.
Does it support CAN and RS485?
Yes. Both CAN and RS485 communication are specified.
Does this servo motor support position control?
Yes. The specified control modes include both speed and position control.
Is the SP8108-8 suitable for robotic arms?
Yes. Its compact dimensions, 396 g weight, 7.5 N·m rated torque, 110 RPM speed, and integrated feedback make it suitable for compatible robotic arm and articulated joint designs.
