Product Description

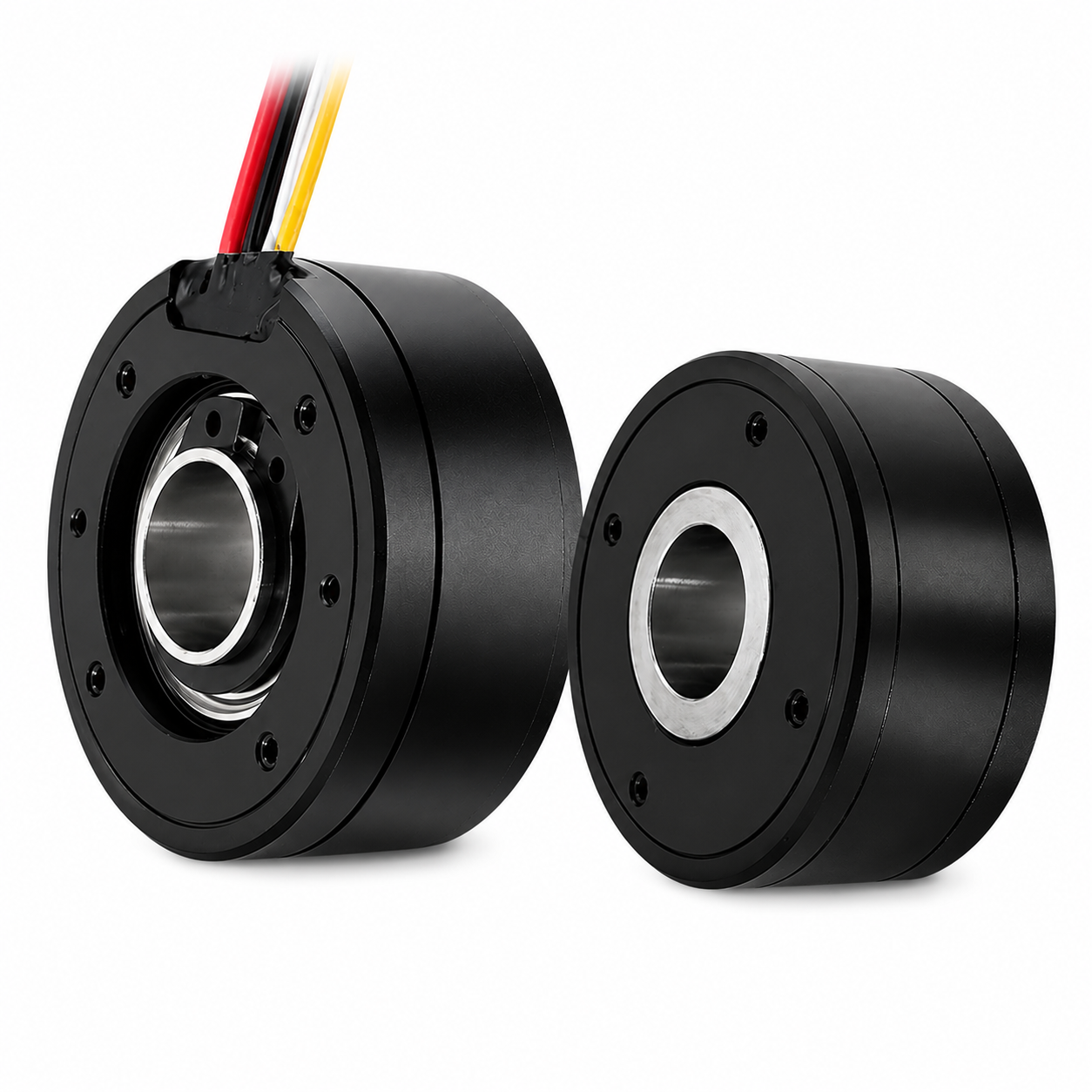

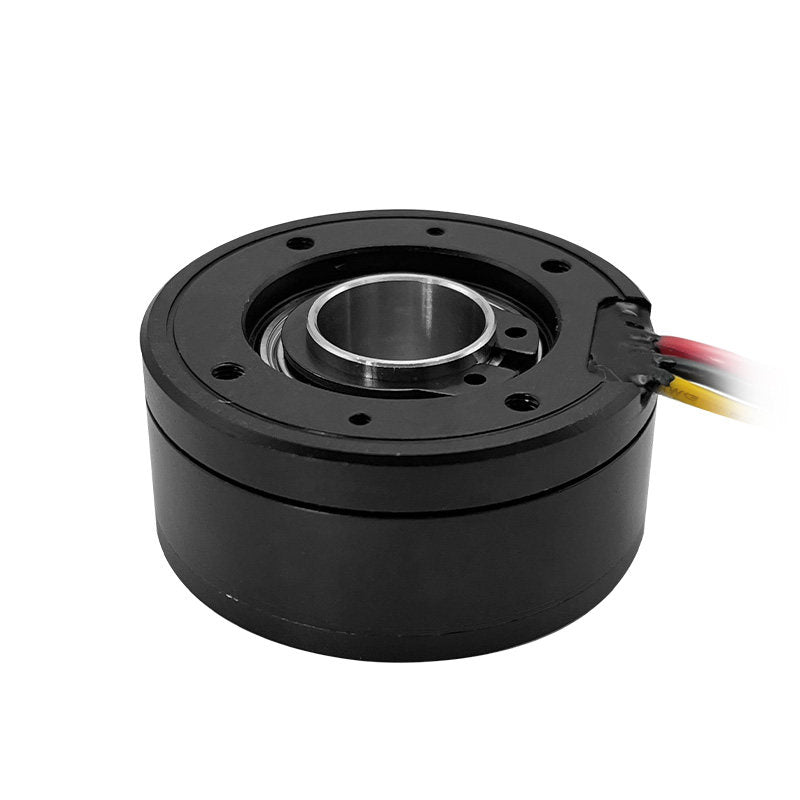

GM5824H Hollow Shaft Brushless Gimbal Motor
The GM5824H is a high-torque hollow shaft brushless gimbal motor designed for robotic joints, direct-drive motion systems, camera stabilization platforms, LiDAR equipment, UAV payloads, and industrial automation applications.
Featuring a large 58mm outer diameter and an 8.8mm hollow shaft design, the motor provides smooth low-speed operation, high torque output, and excellent mechanical integration flexibility. Its outrunner brushless structure delivers precise motion control while maintaining high efficiency and low noise.
The motor is suitable for robotics engineers, automation developers, camera stabilization manufacturers, and research institutions requiring reliable direct-drive actuation.
Key Features
- Large 58mm outrunner brushless motor
- Hollow shaft design for cable routing and compact integration
- High torque output up to 0.47N·m
- Low-speed direct-drive operation
- Three-phase brushless DC architecture
- Compatible with sine-wave and square-wave controllers
- Suitable for robotic joints and stabilization systems
- Wide operating voltage range
- Lightweight and compact structure
- Industrial-grade reliability

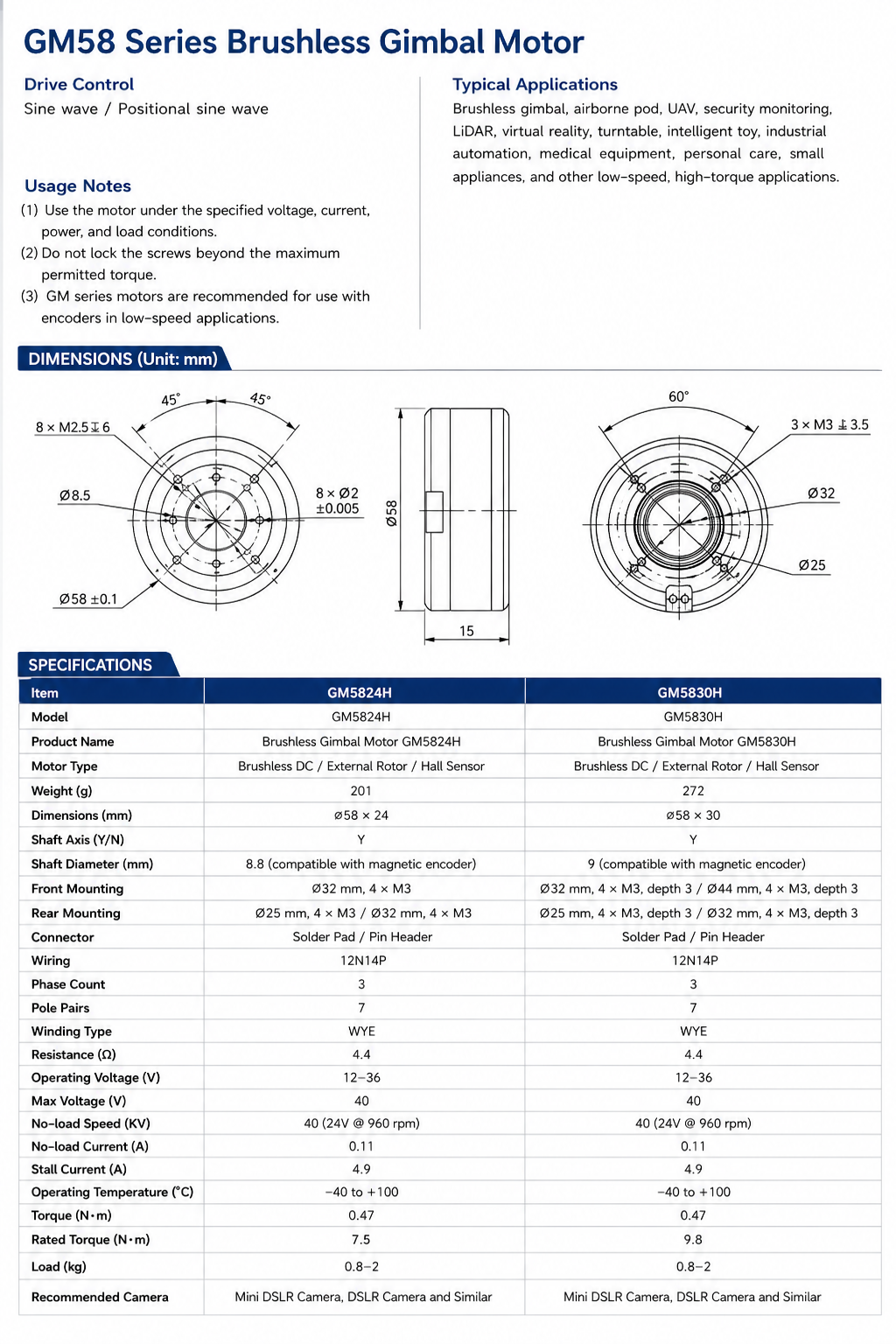

Specifications
| Parameter | Value |
|---|---|
| Model | GM5824H |
| Motor Type | Brushless DC Outrunner |
| Diameter | 58mm |
| Height | 24mm |
| Weight | 201g |
| Hollow Shaft | Yes |
| Hollow Shaft Diameter | 8.8mm |
| Phases | 3 |
| Pole Pairs | 7 |
| Winding Type | WYE |
| Resistance | 4.4Ω |
| Operating Voltage | 12–36V |
| Maximum Voltage | 40V |
| KV Rating | 40KV |
| Speed @24V | 960RPM |
| No-load Current | 0.11A |
| Stall Current | 4.9A |
| Torque | 0.47N·m |
| Inductance | 7.5mH |
| Recommended Load | 0.8–2kg |
| Drive Type | External Controller Required |
| Control Method | Sine Wave / Square Wave |
| Operating Temperature | -40°C to +100°C |
Applications
- Robotic Joint Systems
- Direct Drive Actuators
- Camera Stabilizers
- Brushless Gimbals
- UAV Payload Systems
- LiDAR Platforms
- Surveillance Equipment
- Turntables
- Industrial Automation
- Medical Devices
- Intelligent Robots
- Research Projects
Package Includes
- 1 × GM5824H Hollow Shaft Brushless Gimbal Motor
FAQ
Does this motor include a driver?
No. An external brushless motor controller is required.
Can this motor be used for robotic joints?
Yes. The high torque and hollow shaft design make it suitable for robotic joint applications.
Is the motor sensorless?
Yes. GM5824H is a sensorless brushless outrunner motor.
What control methods are supported?
The motor can operate with both sine-wave and square-wave BLDC drivers.
Can cables pass through the center?
Yes. The hollow shaft diameter is 8.8mm, allowing internal cable routing.
