Product Highlights
-
Brushed DC planetary gear motor designed for high-speed applications
-
Operates on 24V DC power
-
3300RPM no-load speed for rapid motion systems
-
Planetary geartrain for smooth torque transmission
-
Compact 60 mm diameter housing
-
Reversible rotation via polarity change
-
Suitable for robotics, automation, and high-speed mechanisms
Product Description

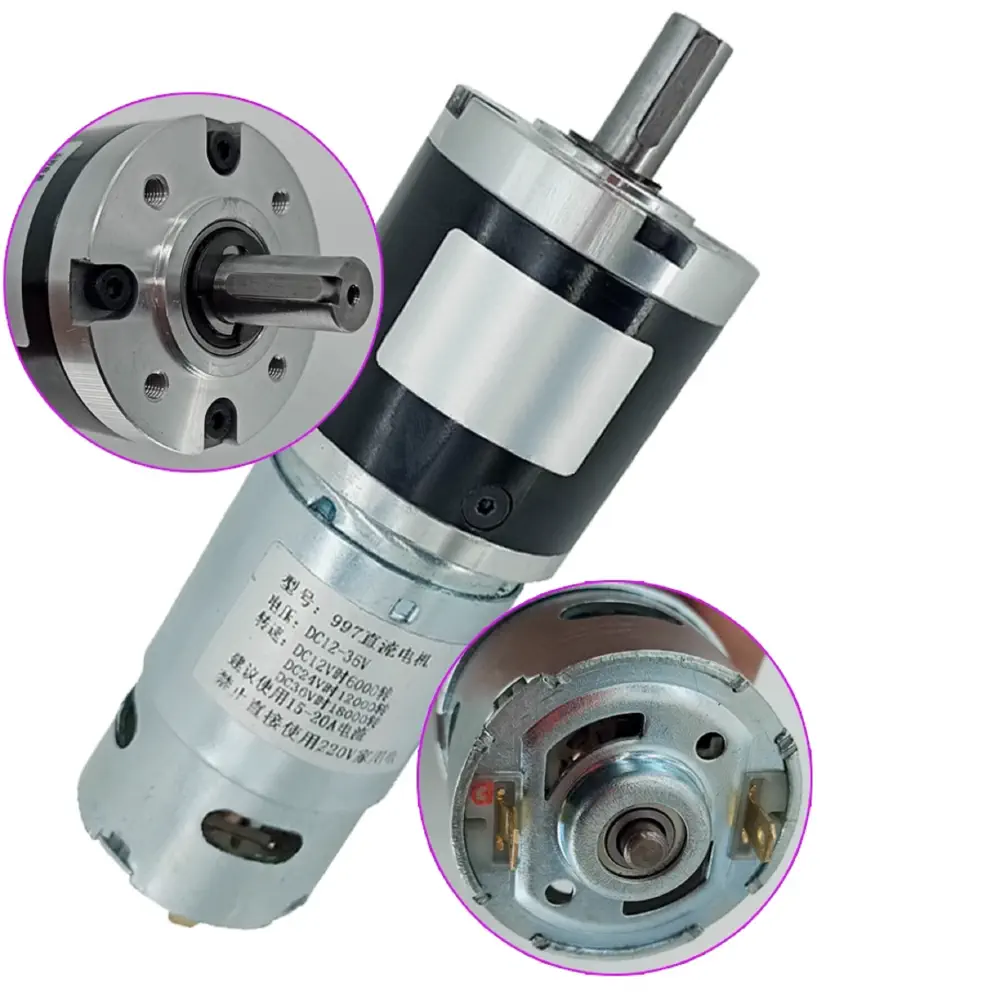

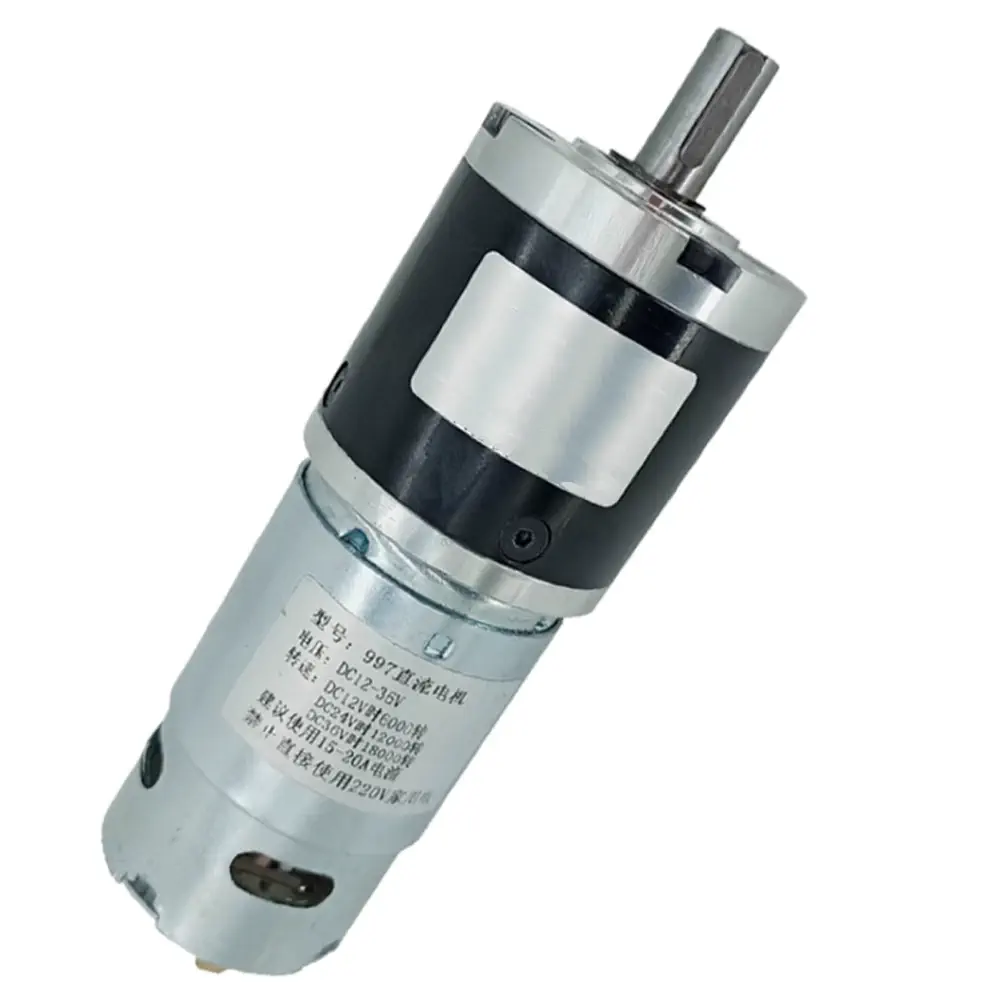

The 60D brushed planetary gear motor is engineered to deliver consistent high-speed output while maintaining reliable torque and smooth operation. With a no-load speed of 3300RPM at 24V DC, this gear motor is ideal for applications that require rapid rotation and moderate torque.
The planetary gearbox ensures efficient power transmission and reduced gear noise compared to simple gear designs. The brushed DC motor core provides dependable performance with straightforward control and a broad compatibility range across motion systems. The 60 mm diameter form factor supports mechanical strength while fitting into larger robotic and automation assemblies.
Whether for robotic drive trains, positioning mechanisms, or high-speed conveyor assemblies, this motor offers the performance needed in dynamic motion applications.
Specifications
-
Rated Voltage: 24V DC
-
Gearbox Type: Planetary gearbox
-
No-Load Speed: 3300RPM
-
Output Shaft: 10 mm (standard precision)
-
Reversible Rotation: Yes (by reversing DC polarity)
-
Construction: Metal gears with sturdy housing
-
Suitable for continuous operation within rated current limits
Physical Dimensions
-
Gearbox Diameter: 60 mm
-
Motor Diameter: ~60 mm
-
Motor Length: Approx. 80–90 mm (varies by gearbox configuration)
-
Output Shaft Diameter: 10 mm
-
Output Shaft Length: ~20–30 mm
Applications
This gear motor is well suited for:
-
High-speed robotics motion systems
-
Conveyor belt drives and rapid positioning
-
Automated mechanisms requiring fast rotation
-
Actuator systems and drive assemblies
-
Automation and industrial motion systems
-
Engineering prototyping and custom machinery builds
What’s Included
-
1 × 60D Brushed Planetary Gear Motor (24V, 3300RPM)
