Description

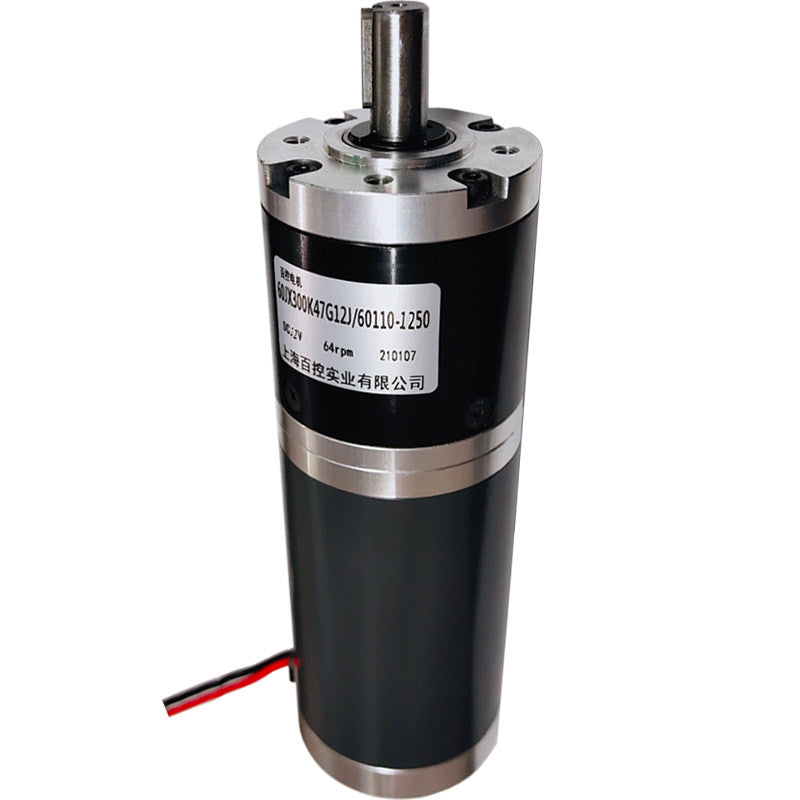

The 60JX300K Series is a high-torque brushed DC planetary gear motor designed for industrial automation, AGV systems, conveyor equipment, robotics, smart machinery, and low-speed high-load applications. Featuring an all-steel planetary gearbox, this motor delivers stable torque output, smooth operation, and reliable long-term durability.
With support for both 12VDC and 24VDC configurations, the motor offers multiple reduction ratios from 3.6:1 up to 326:1, enabling flexible speed and torque combinations for different engineering requirements.
The motor adopts a 60mm diameter metal housing, 12mm keyed shaft, and planetary gear reduction structure for improved transmission efficiency and compact installation.
Features
- 90W high-power brushed DC motor
- Full metal planetary gearbox
- High torque low speed output
- Forward and reverse rotation support
- PWM speed control compatible
- Multiple gear ratios available
- 12VDC and 24VDC versions
- 12mm keyed output shaft
- Industrial-grade metal housing
- Suitable for AGV, robotics, automation equipment
Specifications
| Item | Specification |
|---|---|
| Product Series | 60JX300K Planetary Gear Motor |
| Motor Type | Brushed DC Gear Motor |
| Rated Power | 90W |
| Rated Voltage | 12VDC / 24VDC |
| Gearbox Type | Planetary Gearbox |
| Gear Material | Full Steel Gear |
| Motor Diameter | 60mm |
| Motor Body Length | 110mm |
| Shaft Diameter | 12mm |
| Shaft Type | Keyed Shaft |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | PWM DC Speed Control |
| Installation | 4-M5 Mounting Holes |
| Application | Robotics, AGV, Conveyor, Automation |

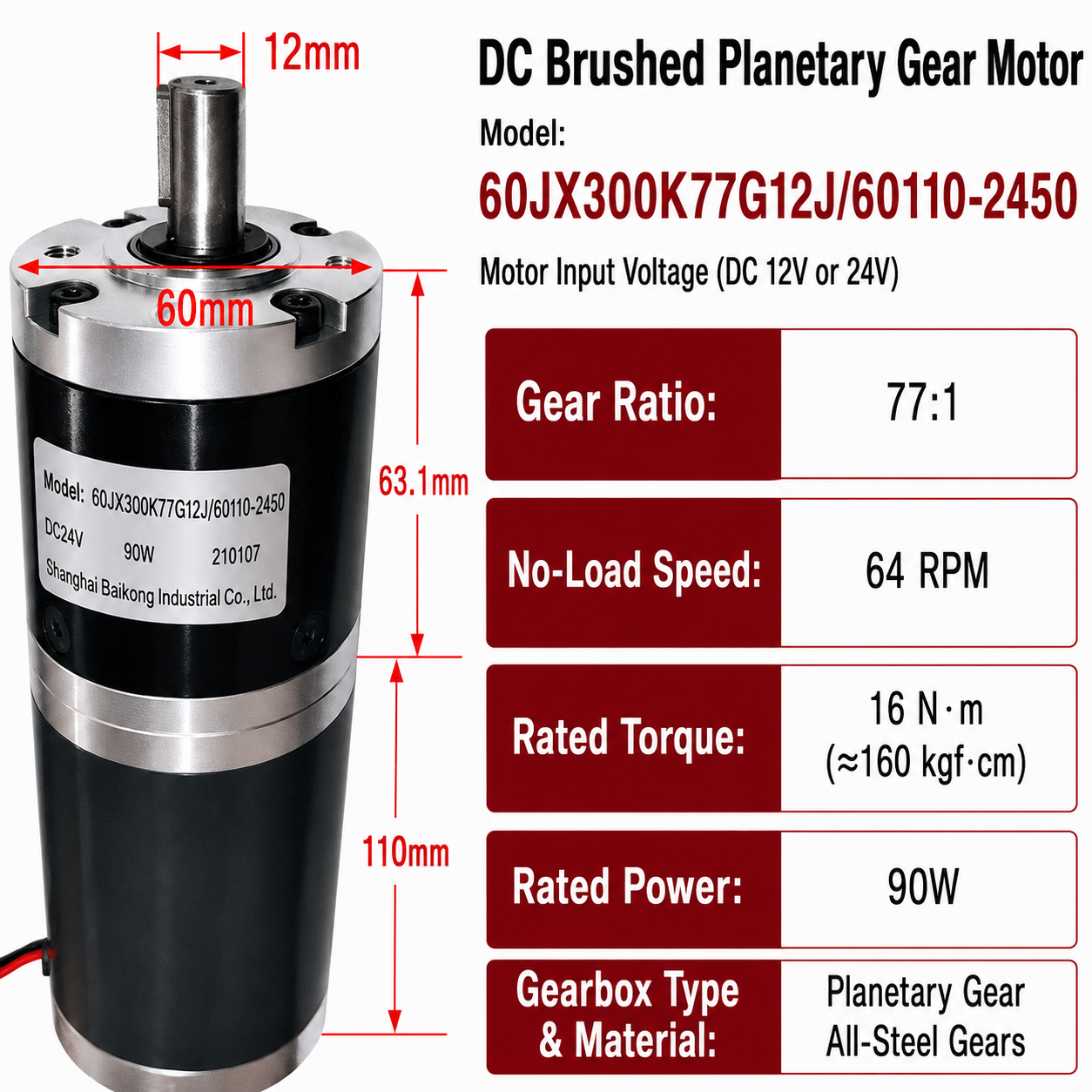

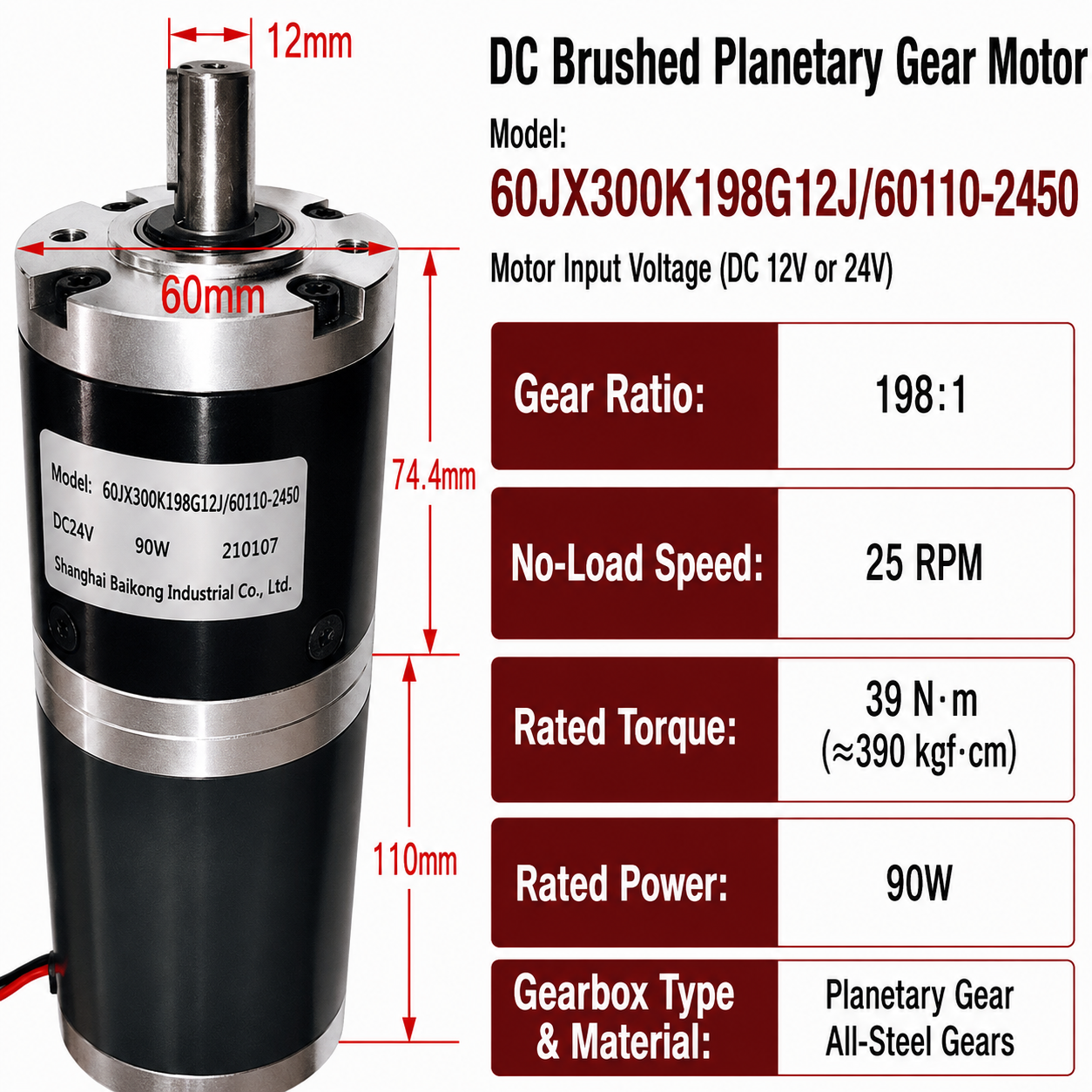

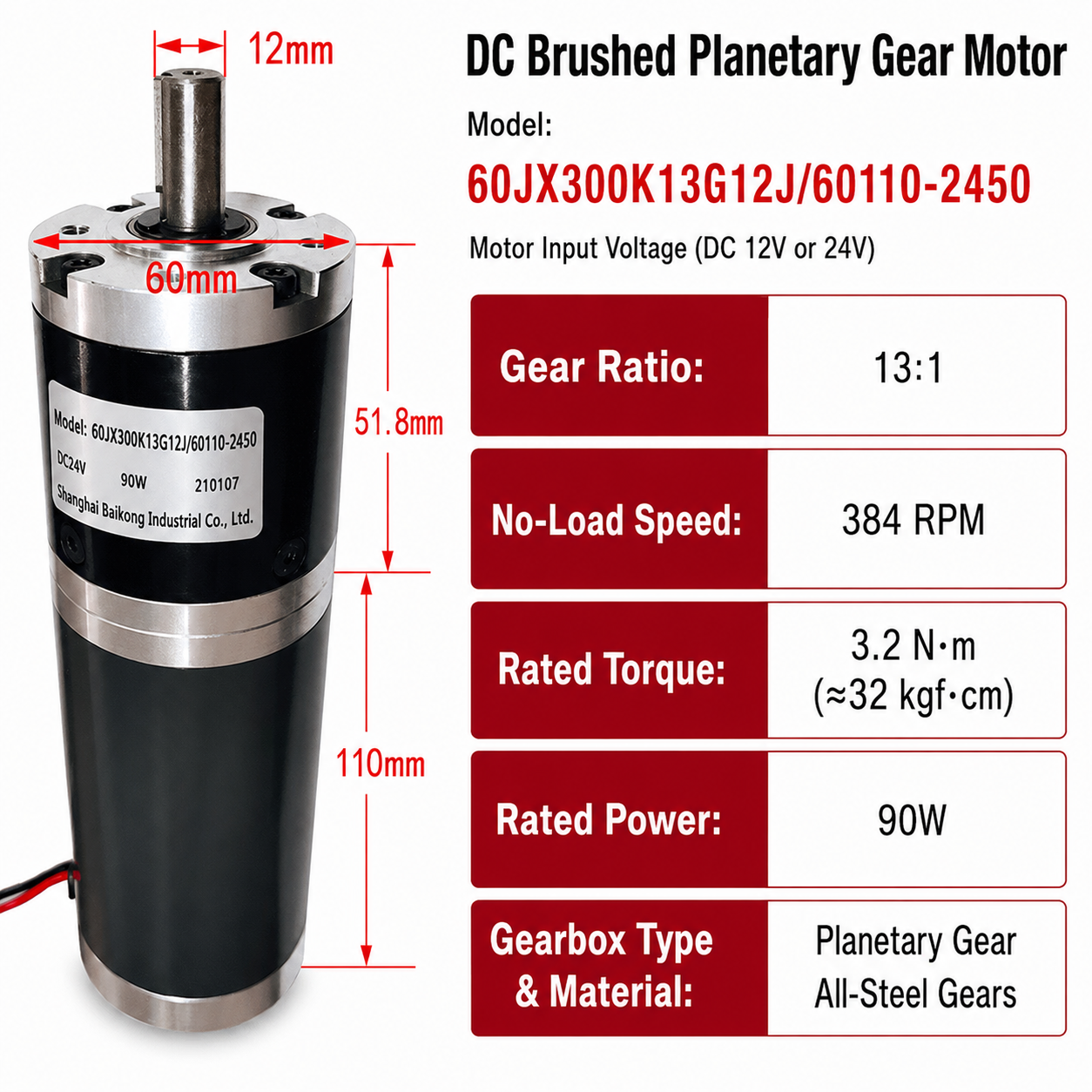

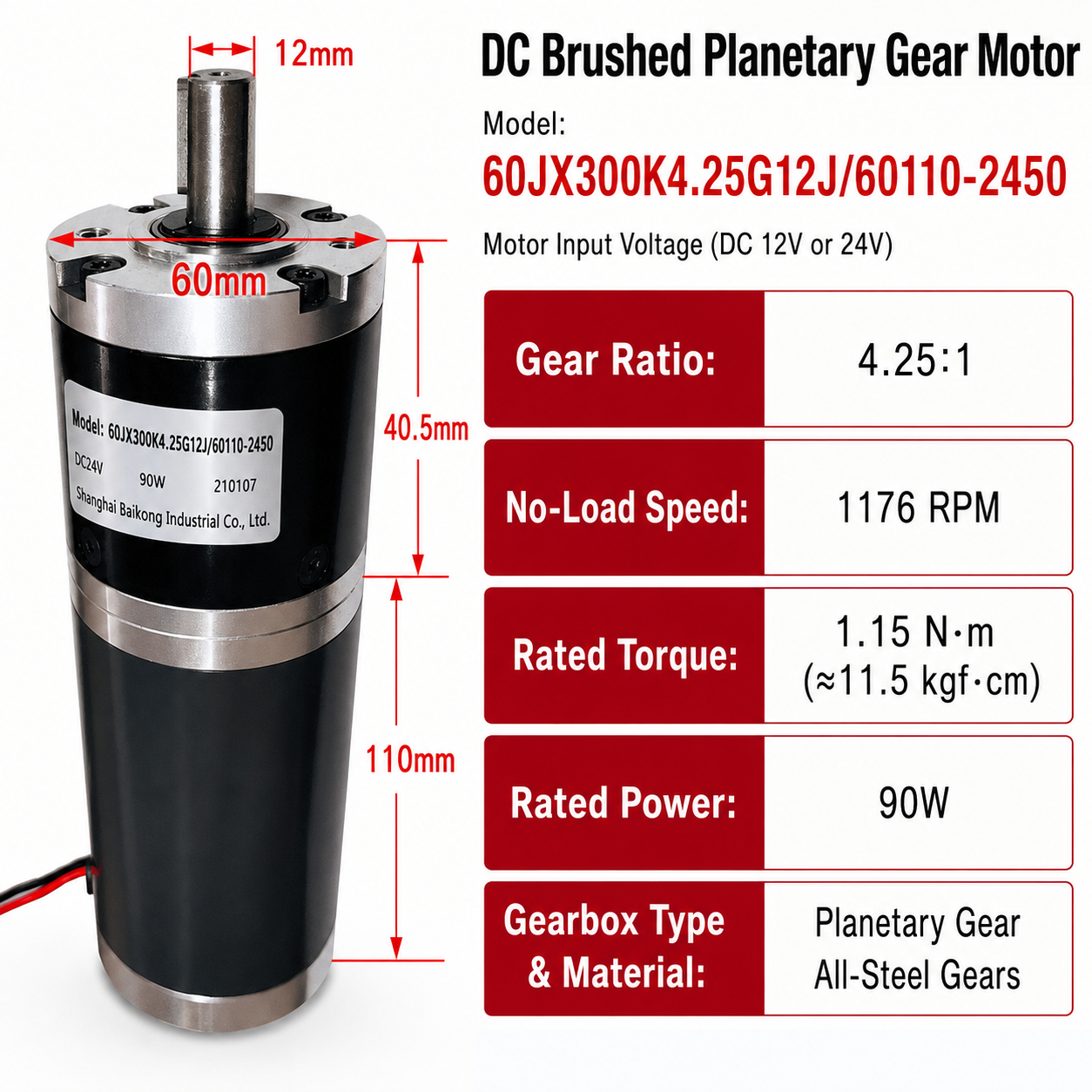

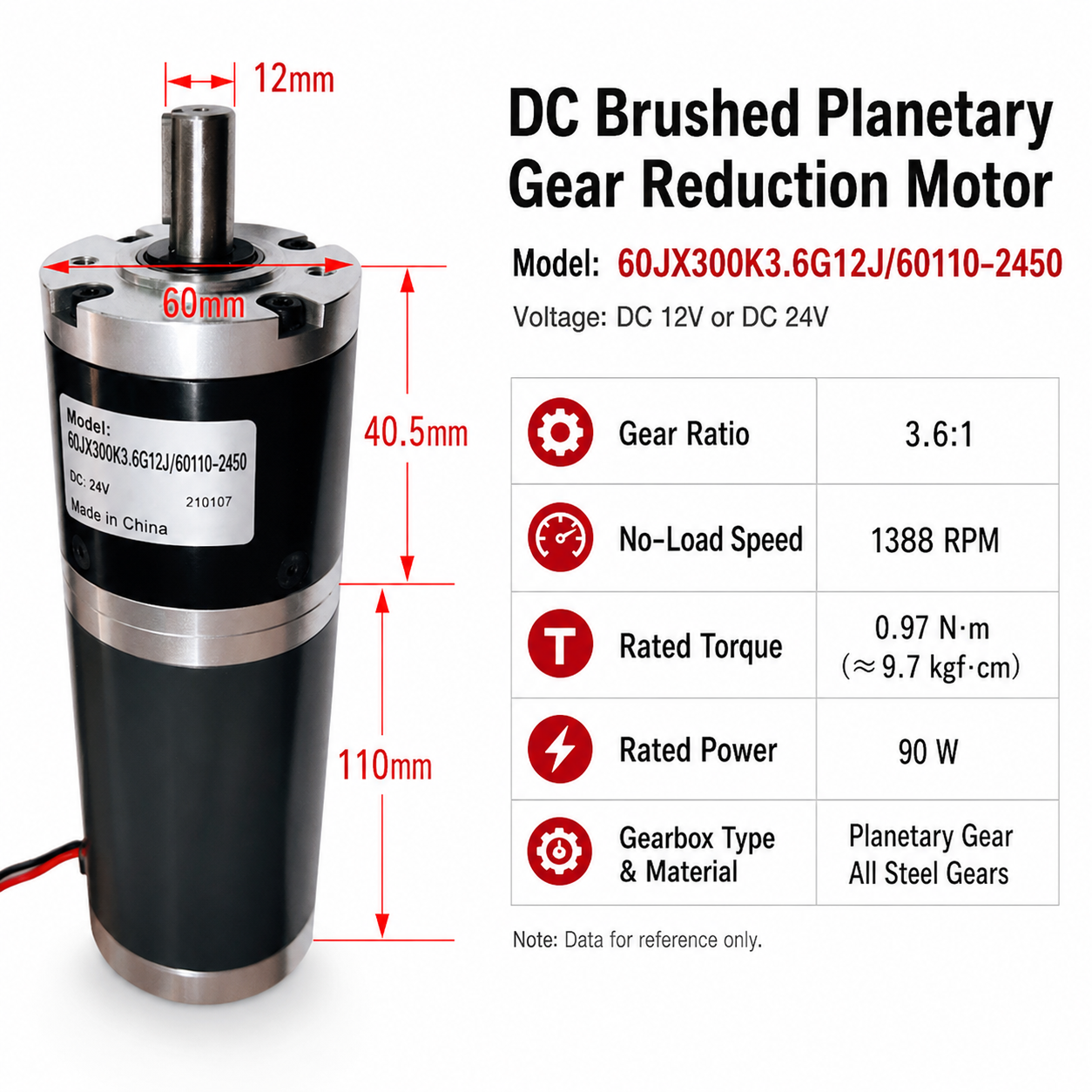

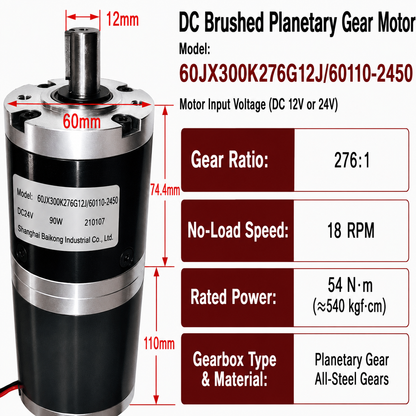

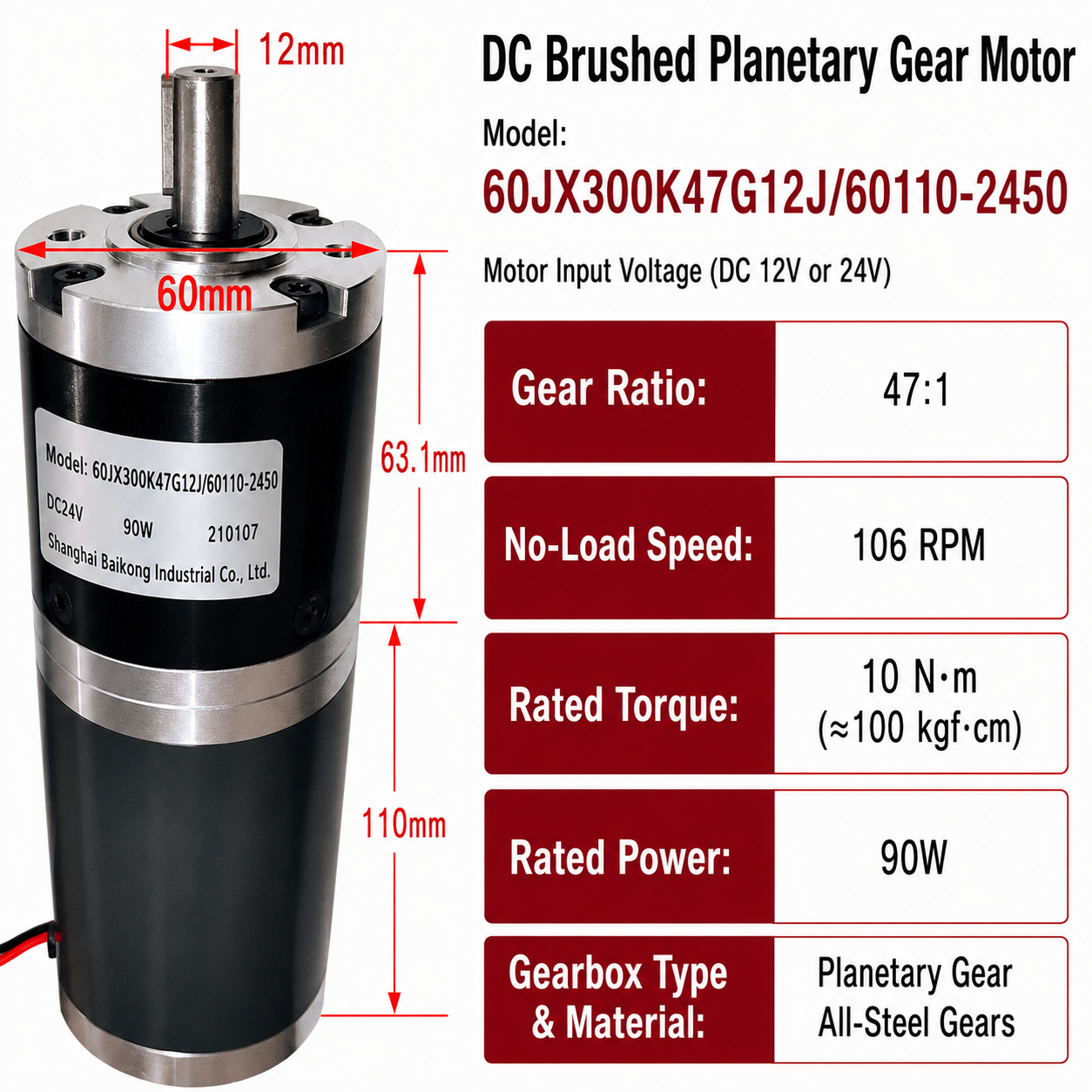

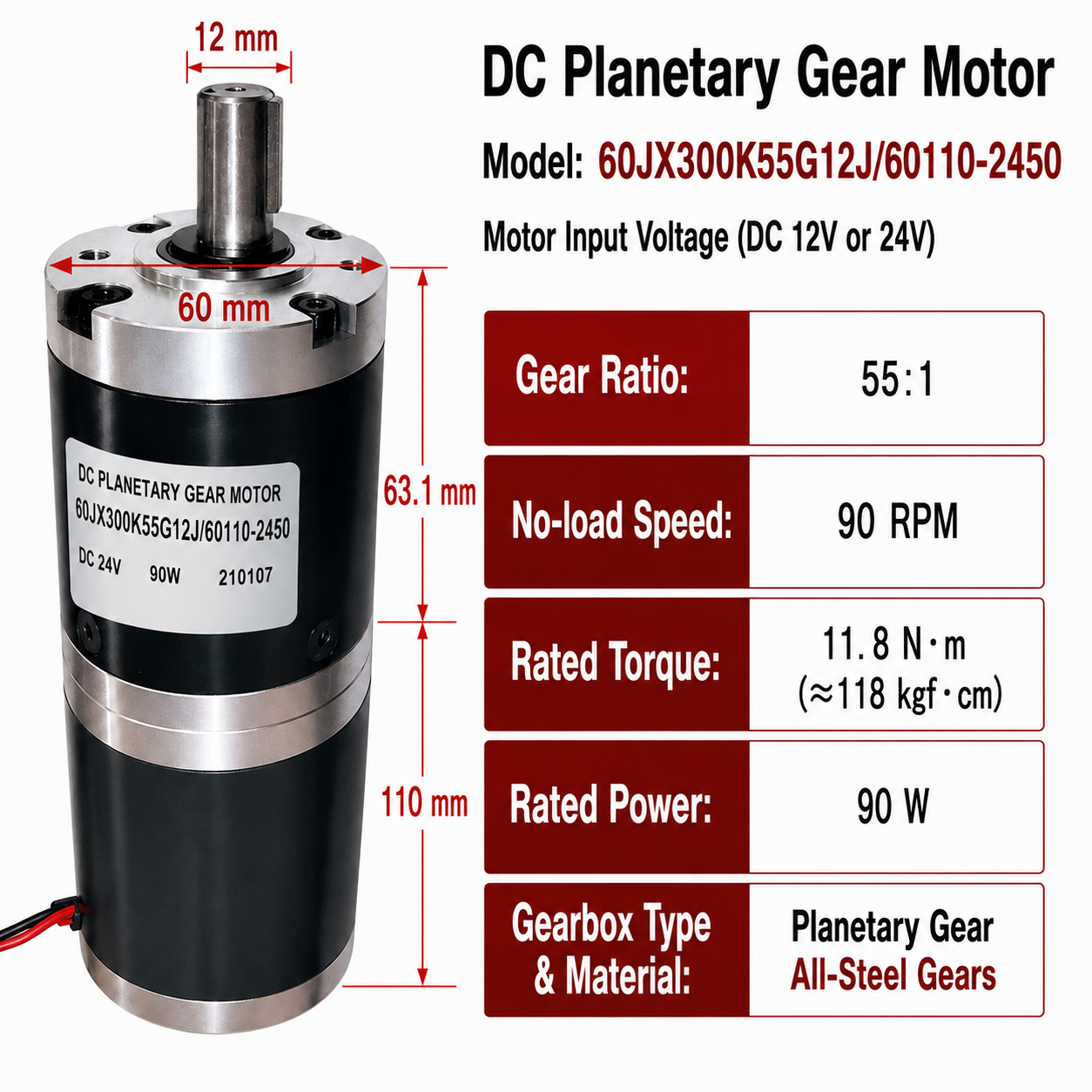

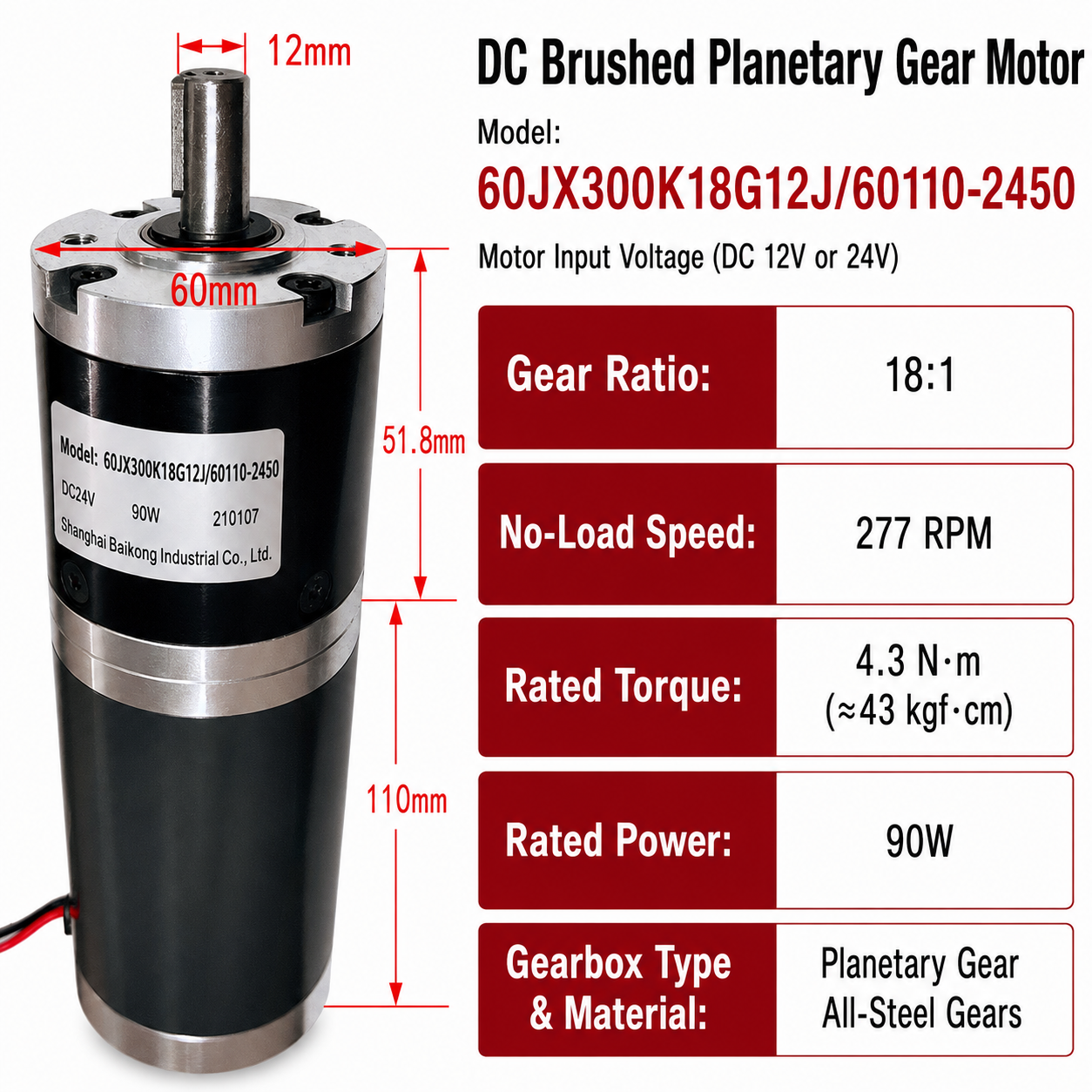

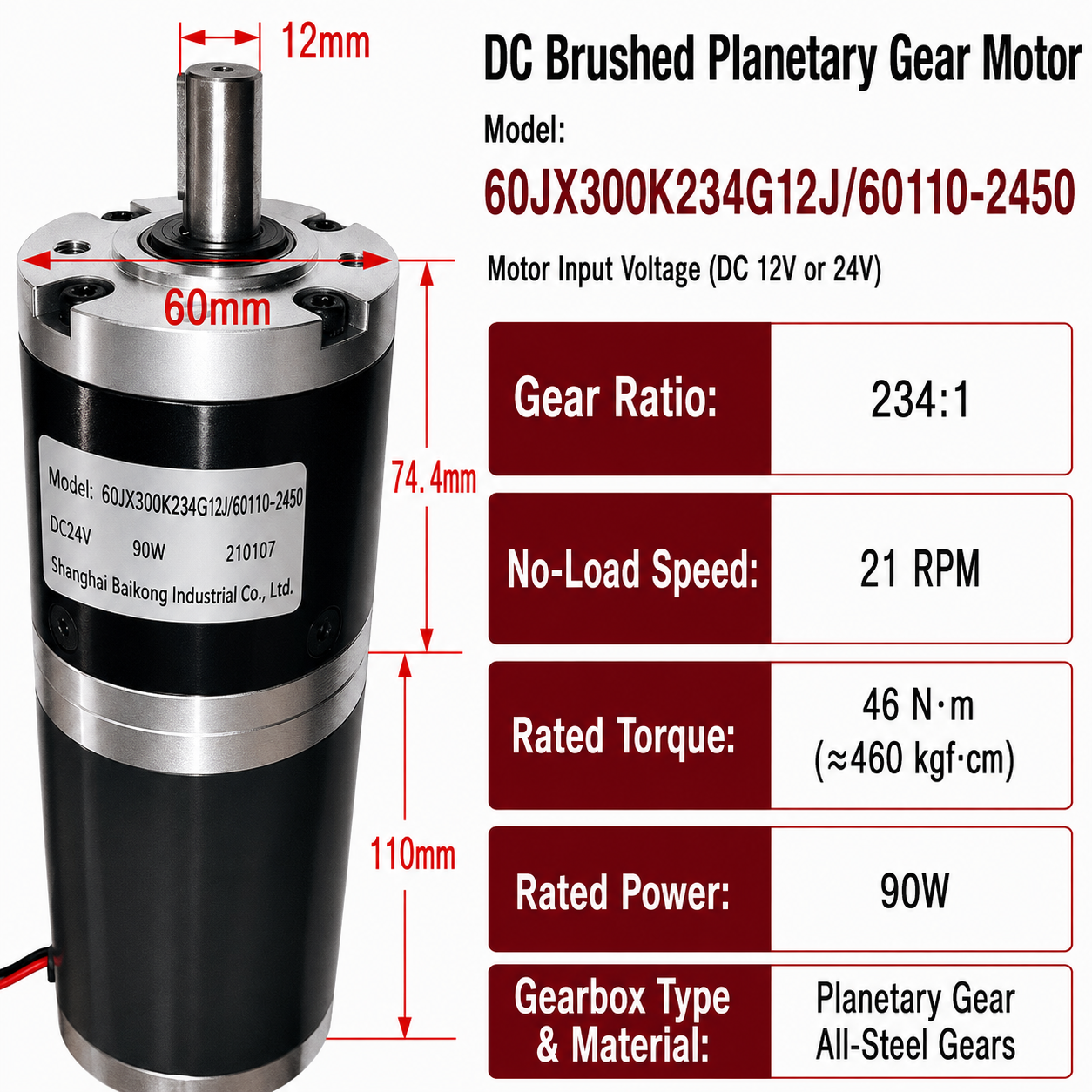

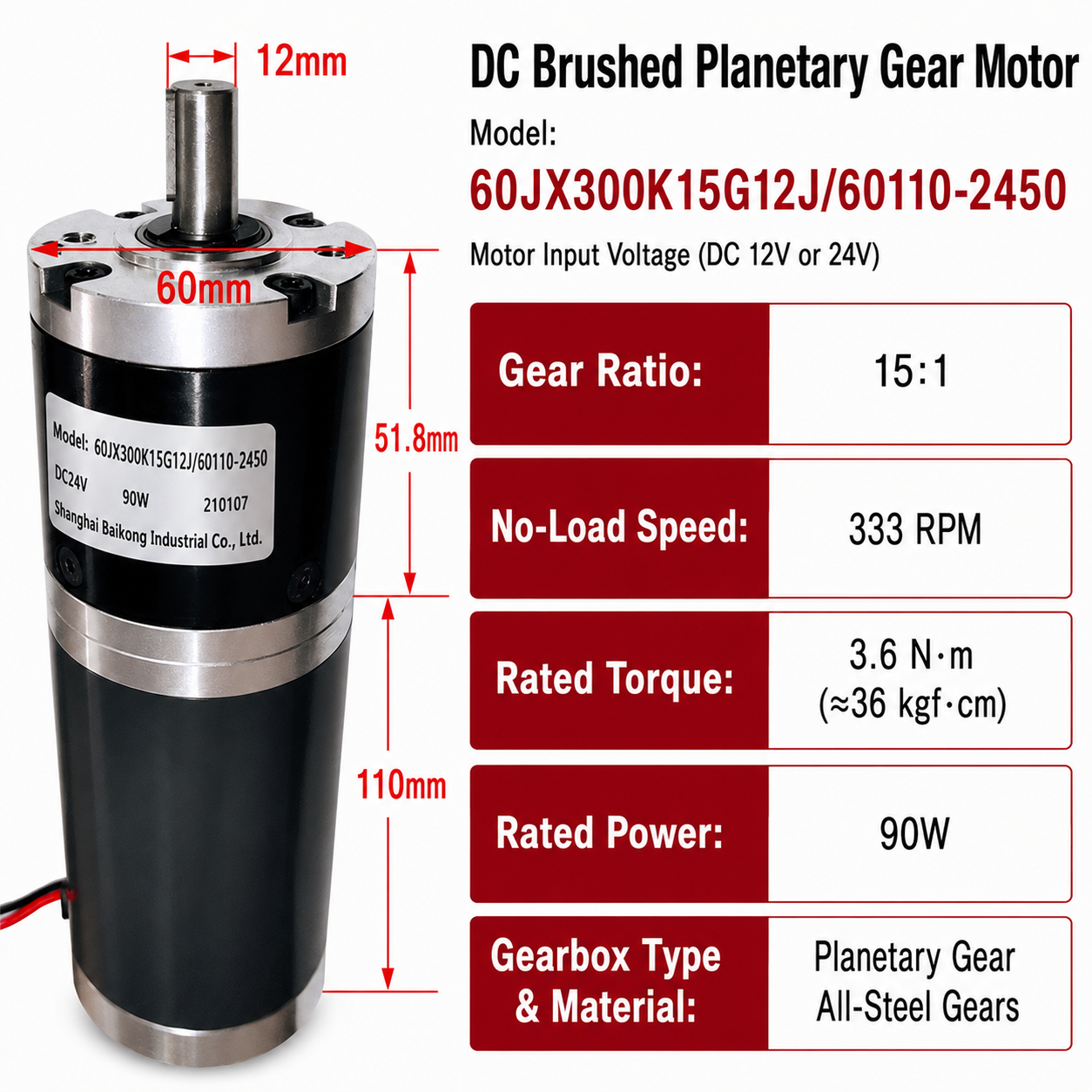

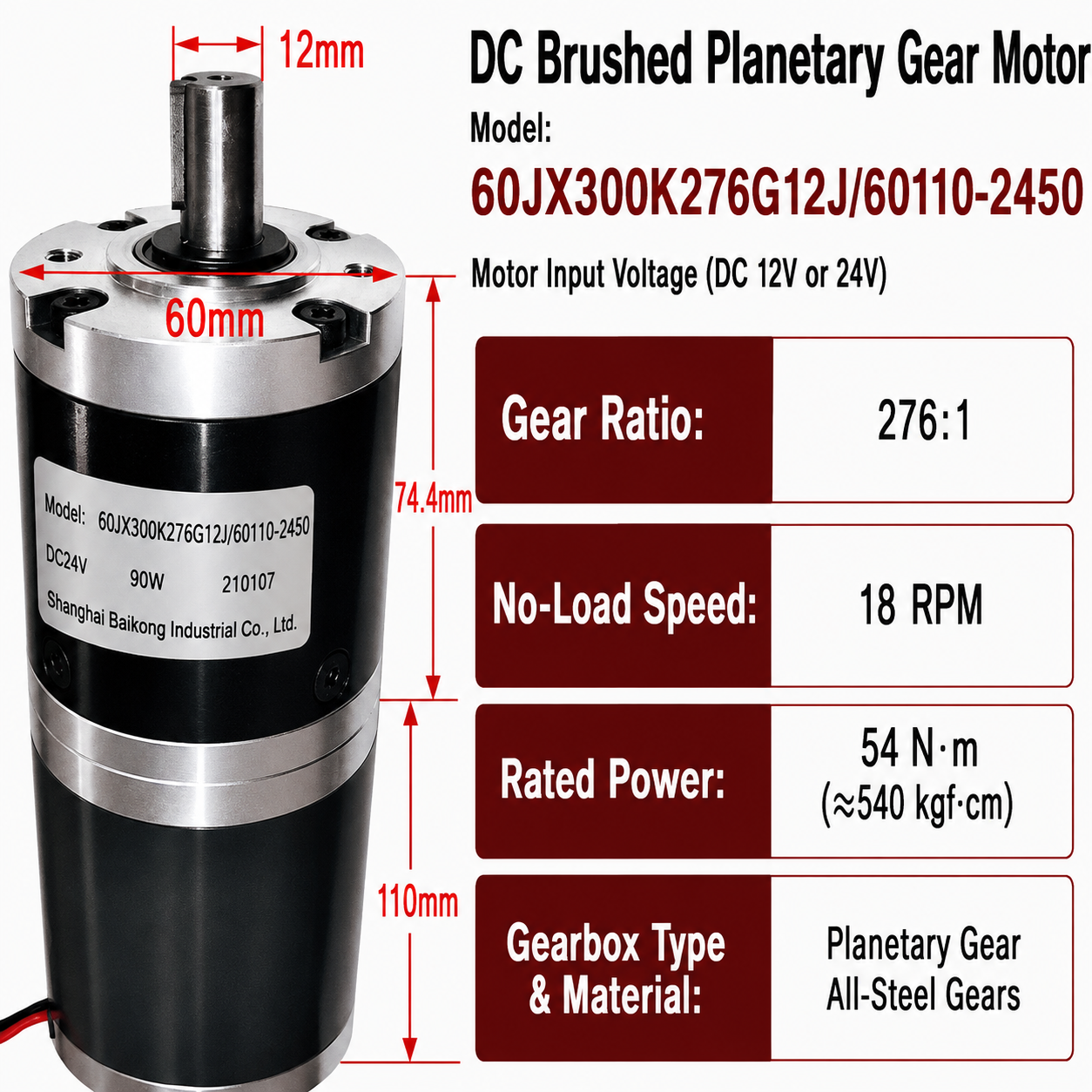

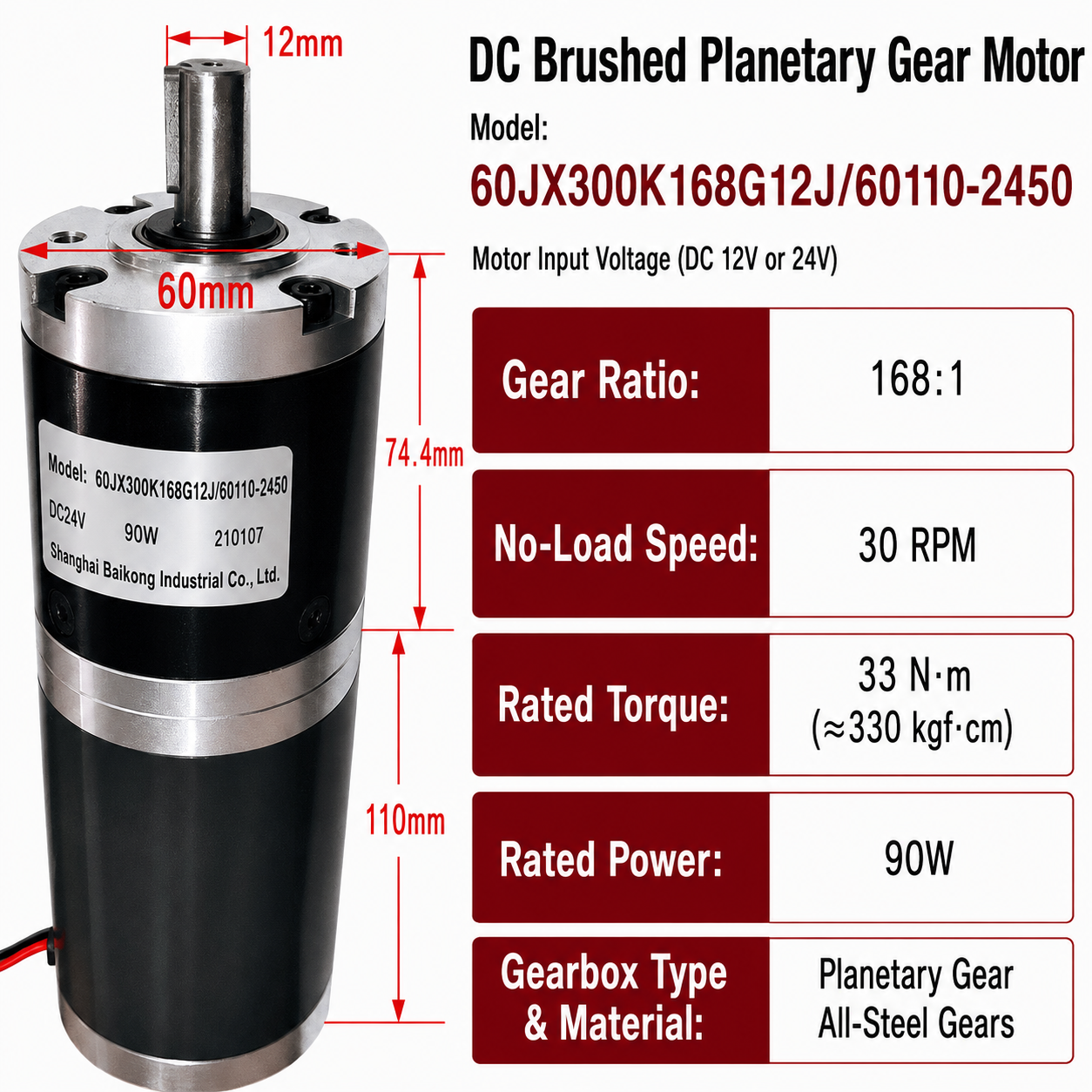

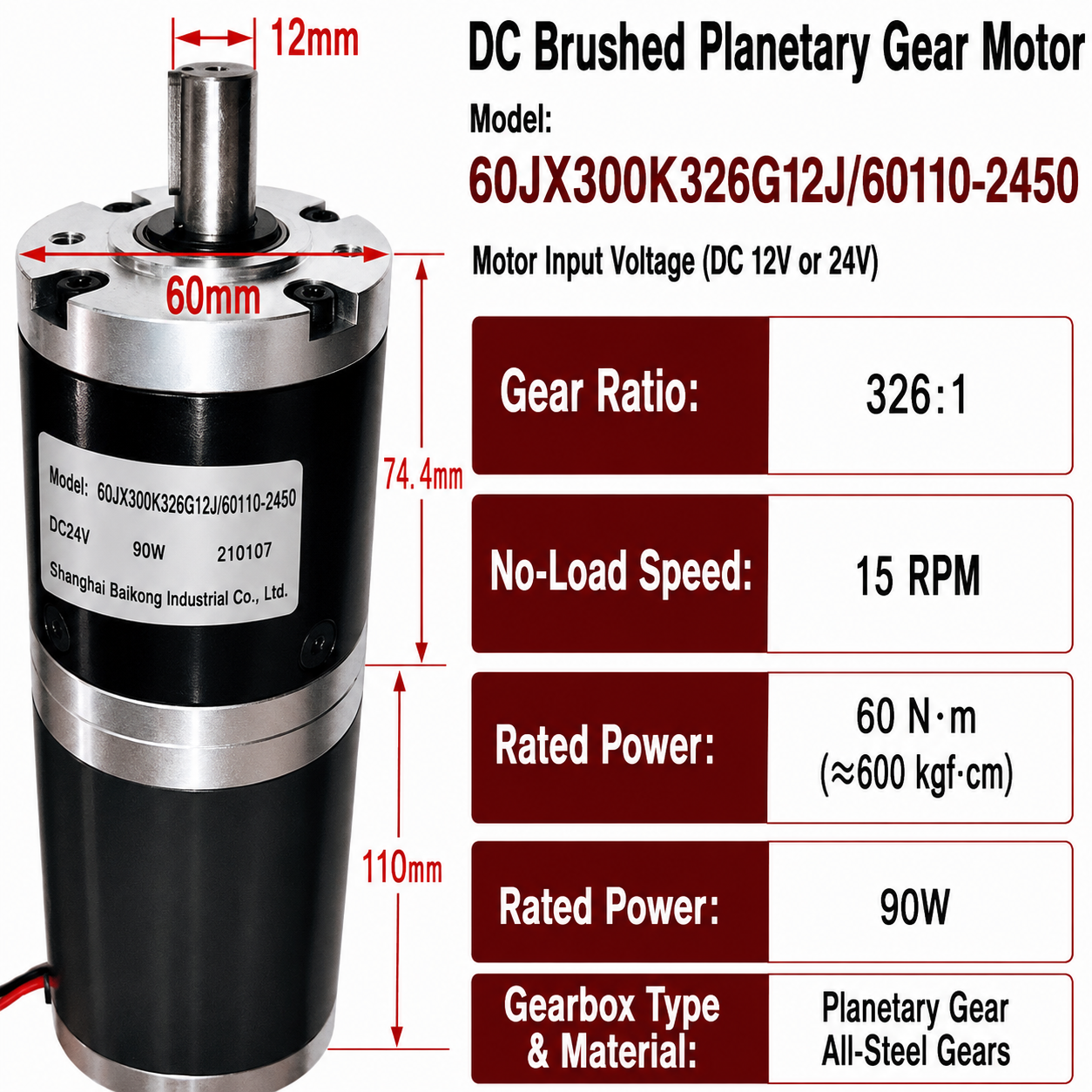

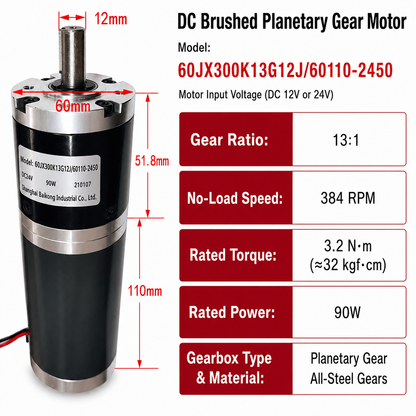

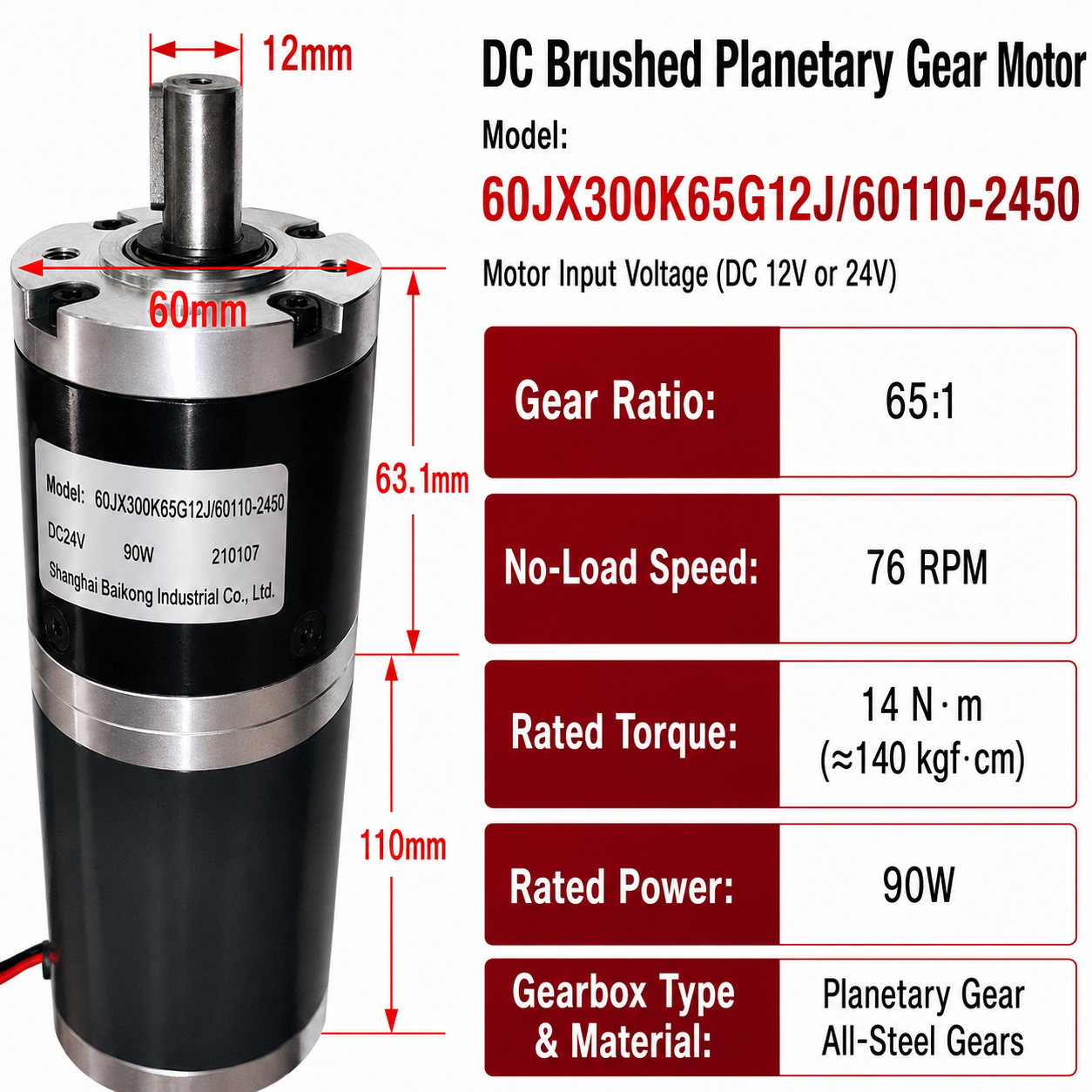

Available Variants
Motor Technical Parameters
| Parameter | Value |
|---|---|
| Motor Model | 60ZY110-2450 |
| Rated Voltage | 24VDC |
| No-Load Speed | 5000 RPM |
| Rated Speed | 4200 RPM |
| Rated Torque | 0.3 N·m |
| Rated Current | 5A |
| Stall Torque | 2 N·m |
| Stall Current | 25A |
Dimensions
Applications
- AGV drive systems
- Conveyor equipment
- Smart automation machinery
- Robotic platforms
- Electric actuators
- Industrial transmission systems
- DIY robotics projects
- Low-speed high-torque equipment
Package Includes
- 1 × 60JX300K DC Planetary Gear Motor
