Description

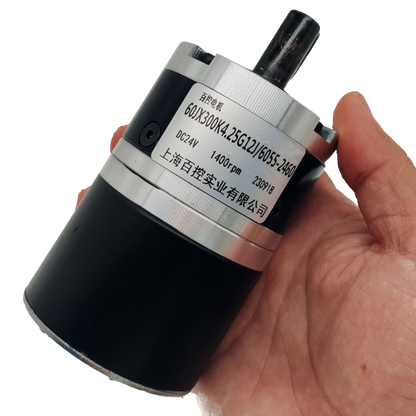

The 60JX300 Series DC Planetary Gear Motor is a compact high-torque brushed DC geared motor designed for robotics, automation systems, conveyor equipment, smart machinery, and industrial drive applications. Featuring a durable planetary gearbox structure, this motor provides stable torque output, smooth low-speed operation, and long service life.
Powered by a 24V DC input, the motor supports CW/CCW reversible rotation and external PWM/DC speed control. Multiple gear reduction ratios are available, allowing users to select different speed and torque combinations for various robotic and industrial scenarios.

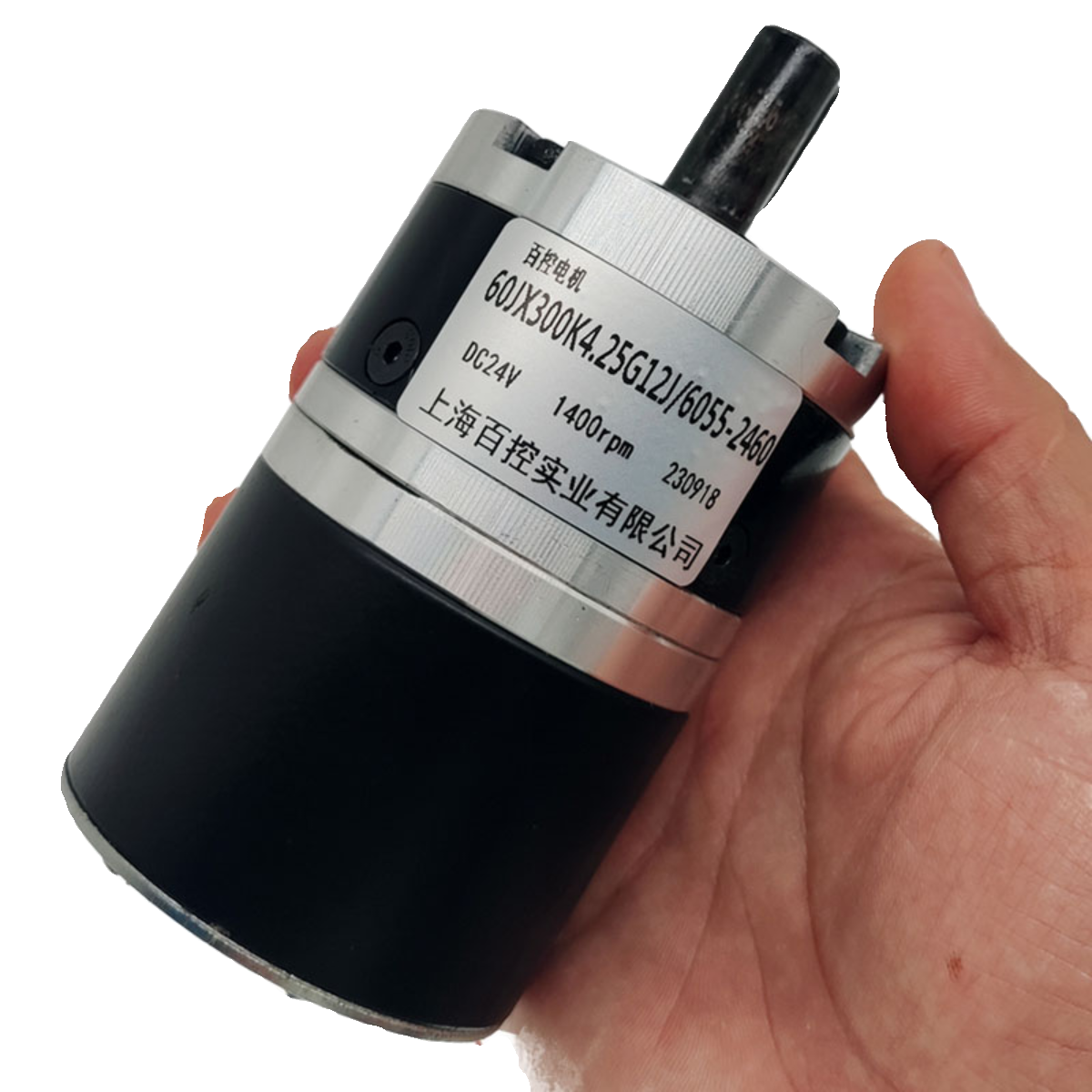

This ultra-short compact planetary gear motor adopts a 60mm diameter housing with a 12mm keyed output shaft for reliable torque transmission and mechanical stability.
Features
- High torque planetary gear reduction design
- Compact ultra-short motor structure
- 24V DC reversible operation
- Supports external speed control
- Stable low-speed performance
- Large torque output for automation equipment
- Metal gearbox construction
- 12mm keyed output shaft
- Multiple gear ratios available
- Suitable for robotics and industrial systems
Applications
- AGV / AMR robots
- Conveyor systems
- Smart automation equipment
- Robotic drive systems
- Industrial actuators
- DIY robotics projects
- Mechanical transmission equipment
- Automated doors and lifting systems
Specifications
| Item | Specification |
|---|---|
| Motor Type | Brushed DC Planetary Gear Motor |
| Series | 60JX300 / 6055-2460 |
| Rated Voltage | 24V DC |
| Rated Power | 45W |
| Rotation Direction | CW / CCW Reversible |
| Speed Control | Supported |
| Gearbox Type | Planetary Gearbox |
| Motor Diameter | 60mm |
| Output Shaft Diameter | 12mm |
| Shaft Type | Keyed Shaft |
| Shaft Length | 28mm |
| Operating Temperature | -20°C to +65°C |
| Humidity Range | 20%~85% RH |
Available Variants
| Gear Ratio | No-Load Speed | Rated Speed | Rated Torque |
|---|---|---|---|

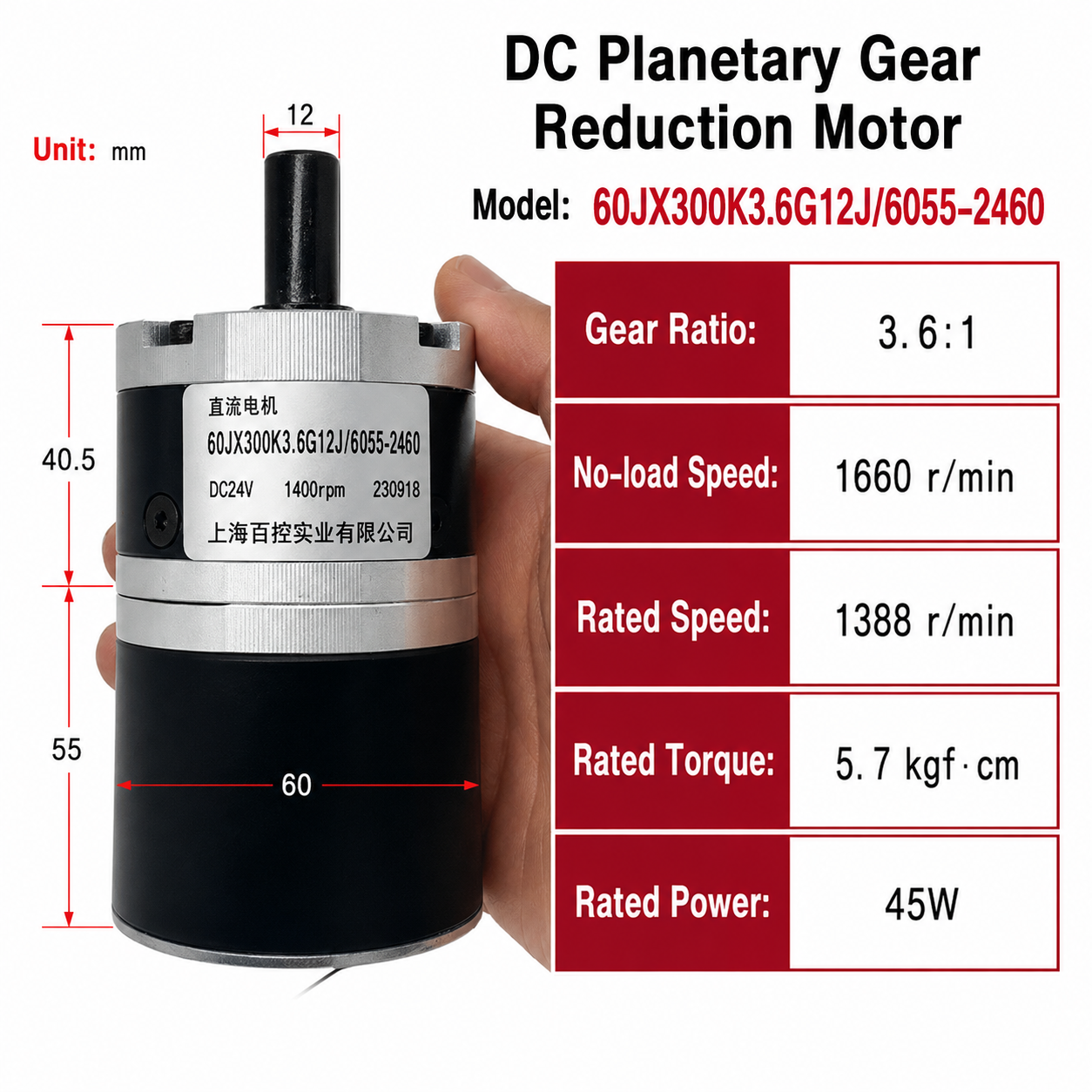

| 3.6:1 | 1660 RPM | 1388 RPM | 0.57 N·m |

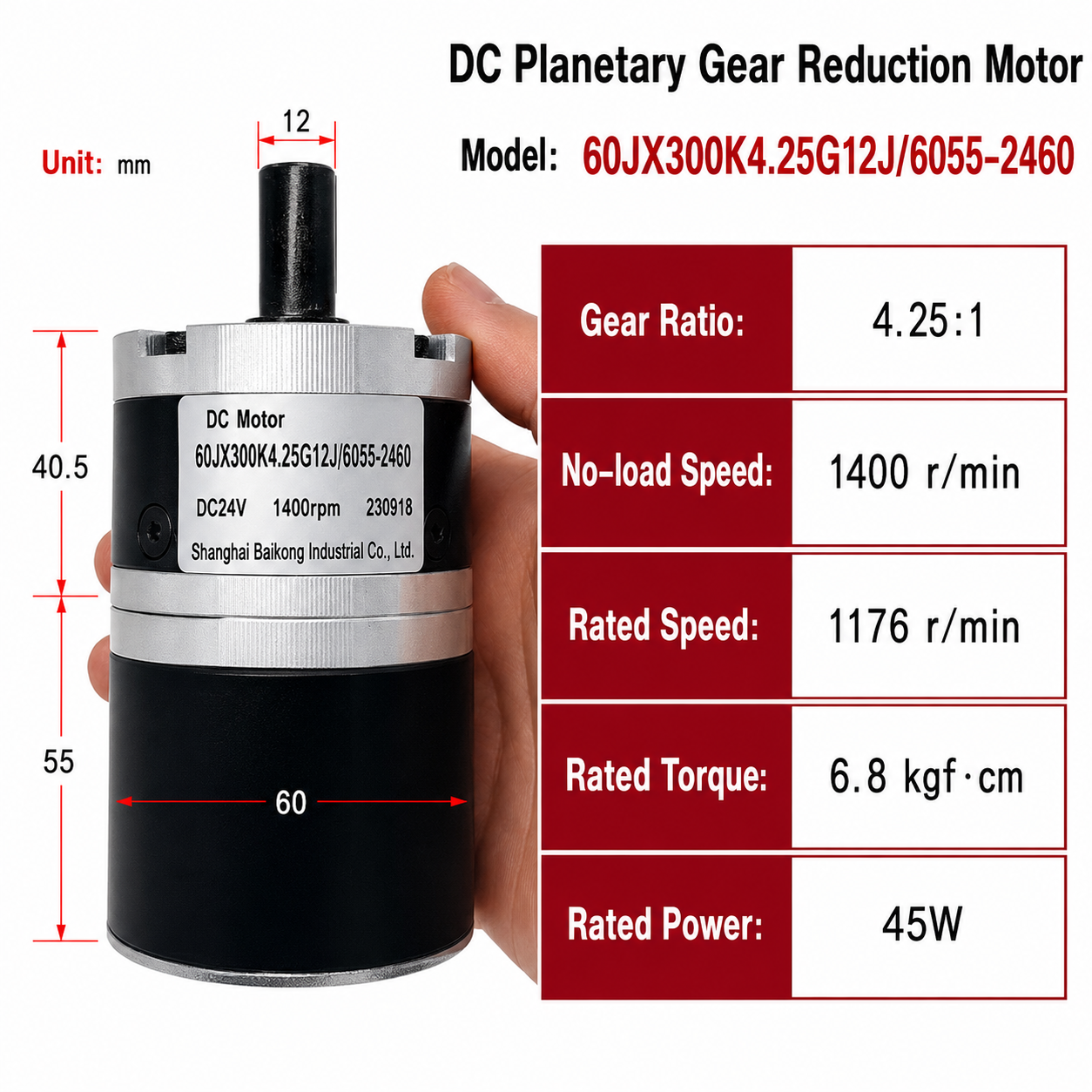

| 4.25:1 | 1400 RPM | 1176 RPM | 0.68 N·m |

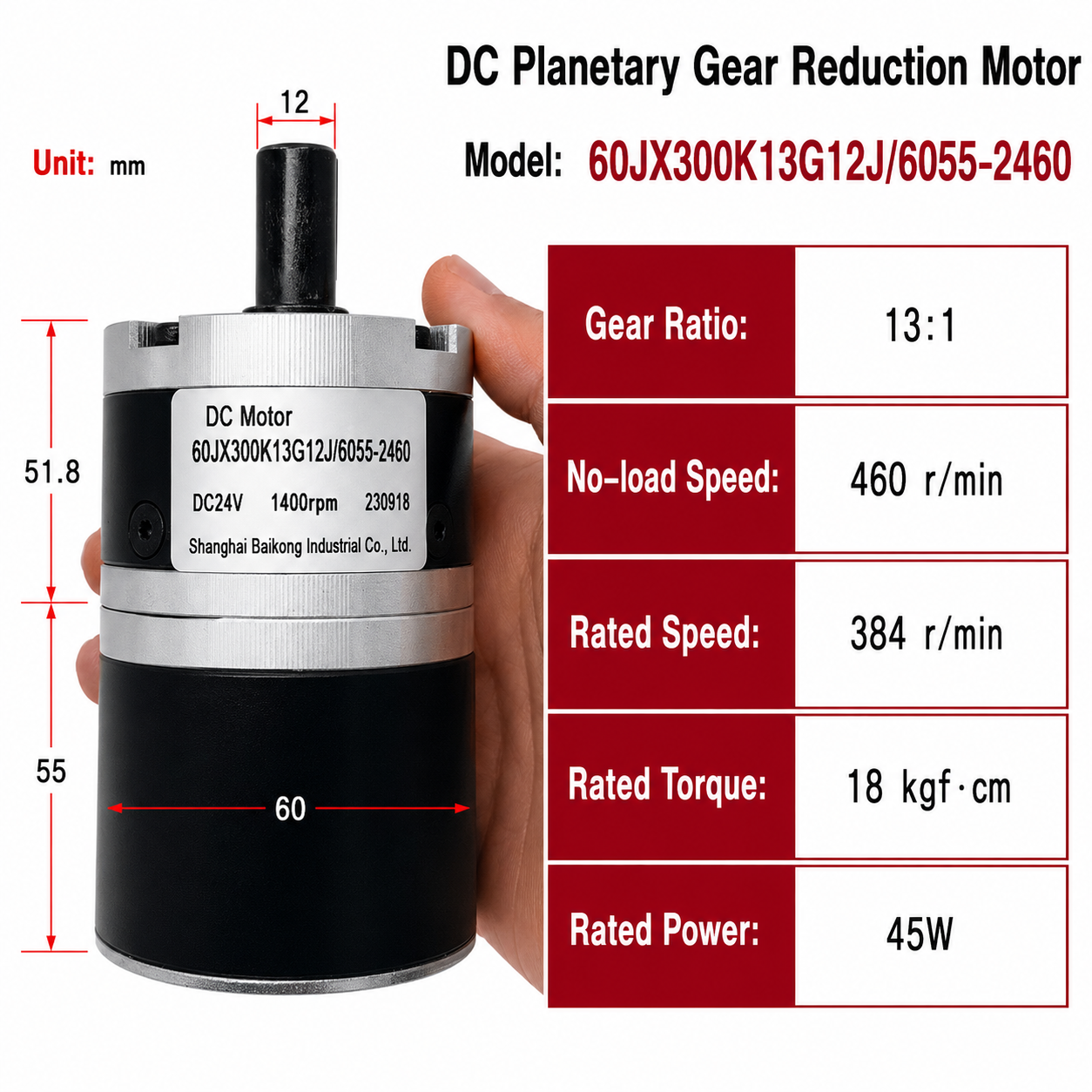

| 13:1 | 460 RPM | 384 RPM | 1.8 N·m |
| 15:1 | 400 RPM | 333 RPM | 2.1 N·m |

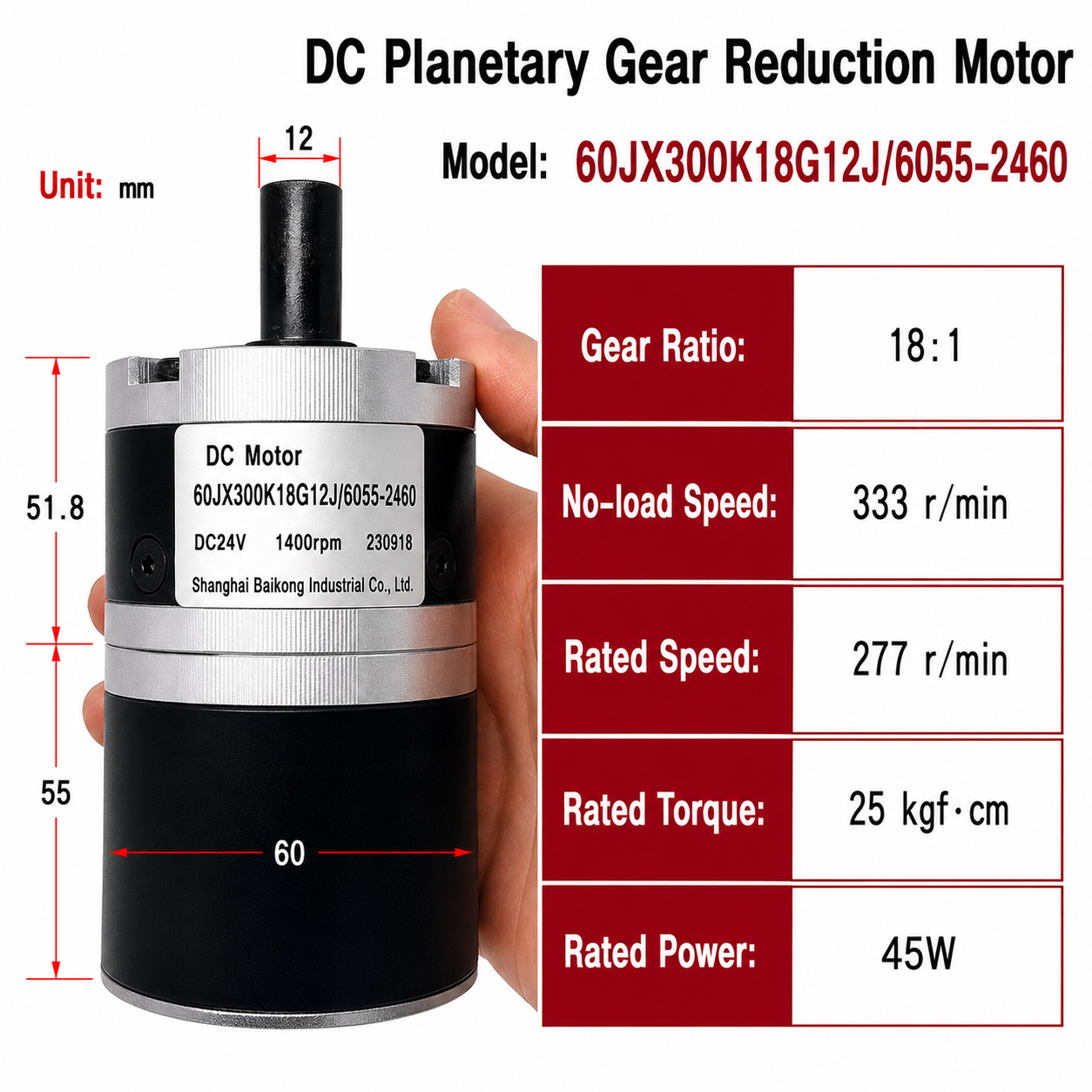

| 18:1 | 333 RPM | 277 RPM | 2.5 N·m |

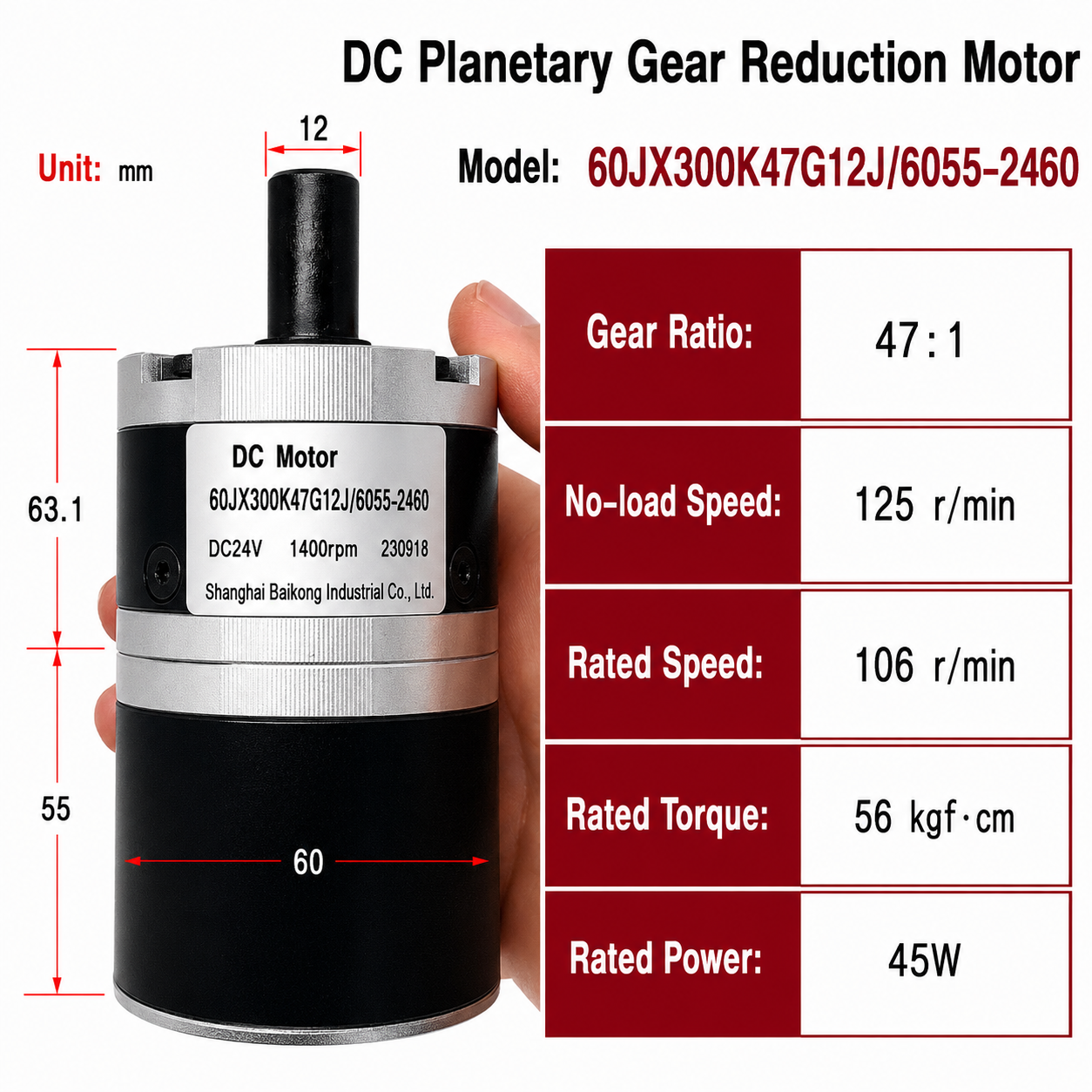

| 47:1 | 125 RPM | 106 RPM | 5.6 N·m |

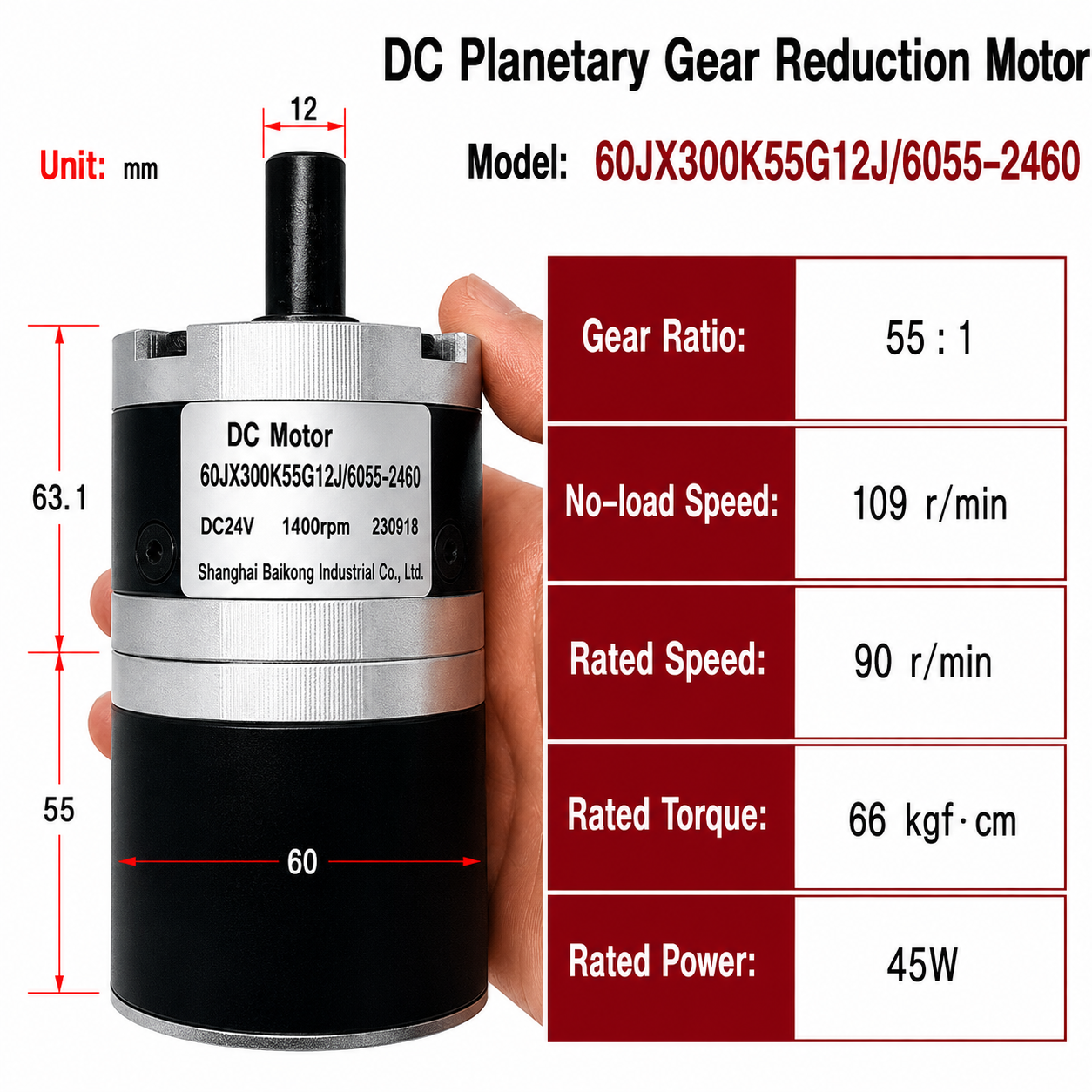

| 55:1 | 109 RPM | 90 RPM | 6.6 N·m |

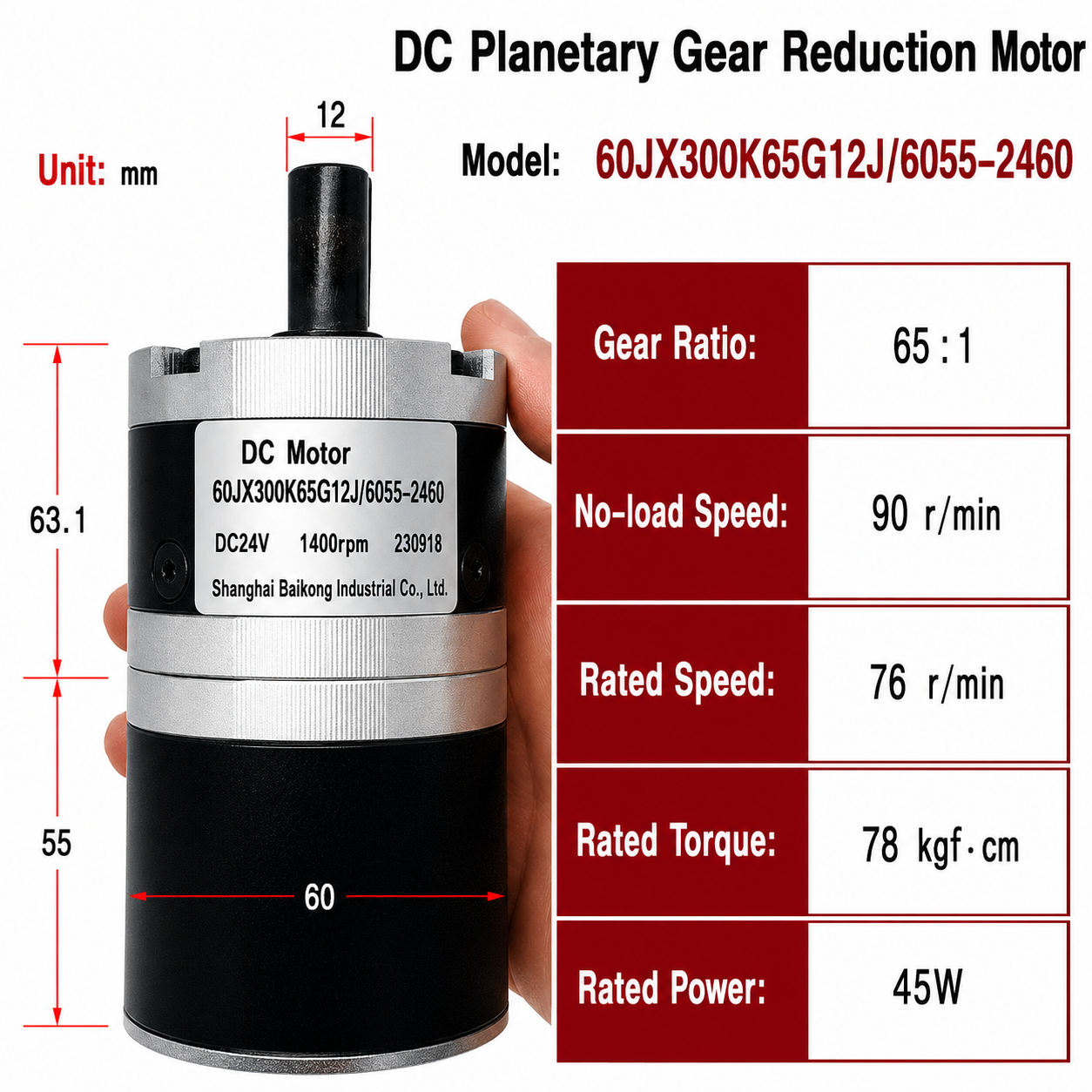

| 65:1 | 90 RPM | 76 RPM | 7.8 N·m |

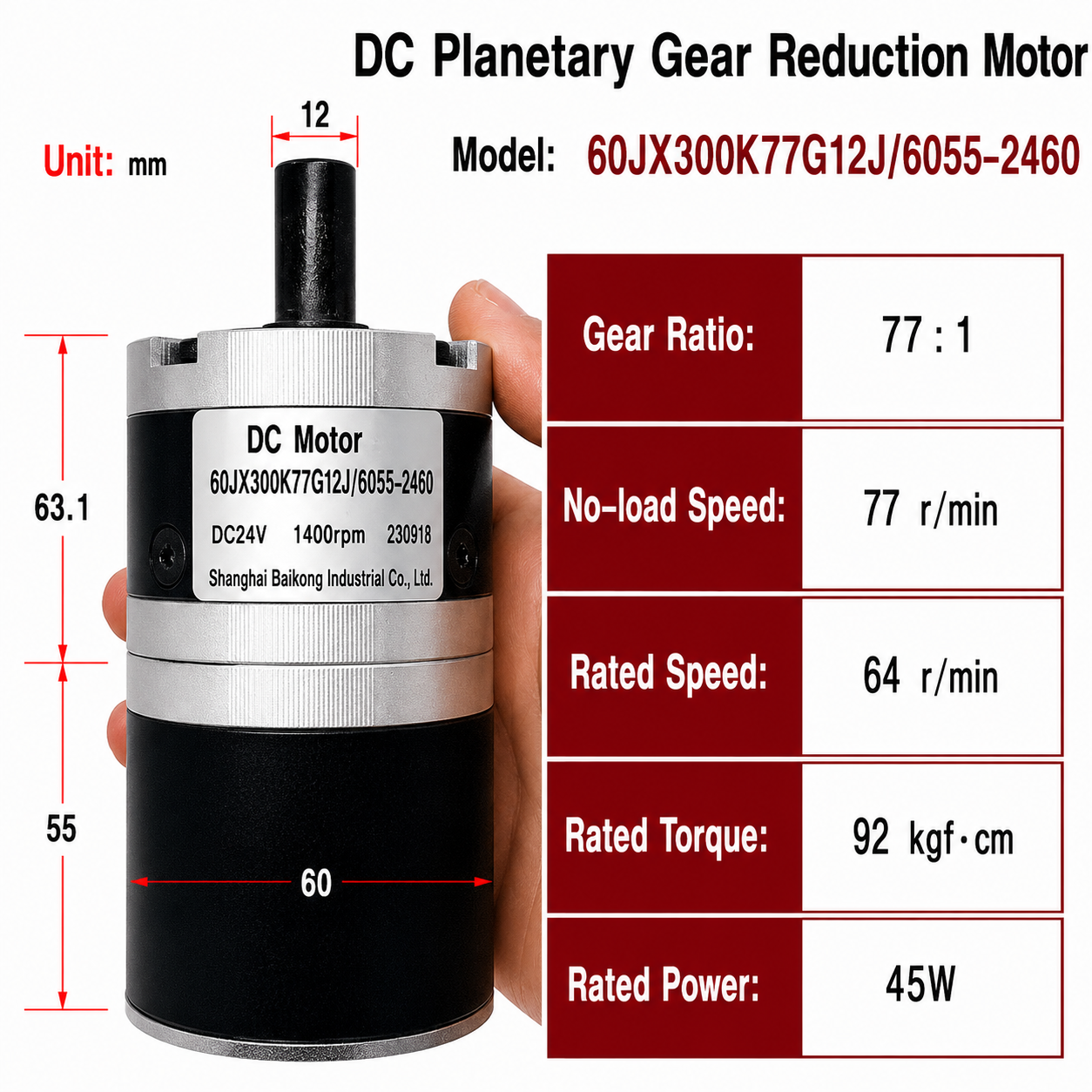

| 77:1 | 77 RPM | 64 RPM | 9.2 N·m |

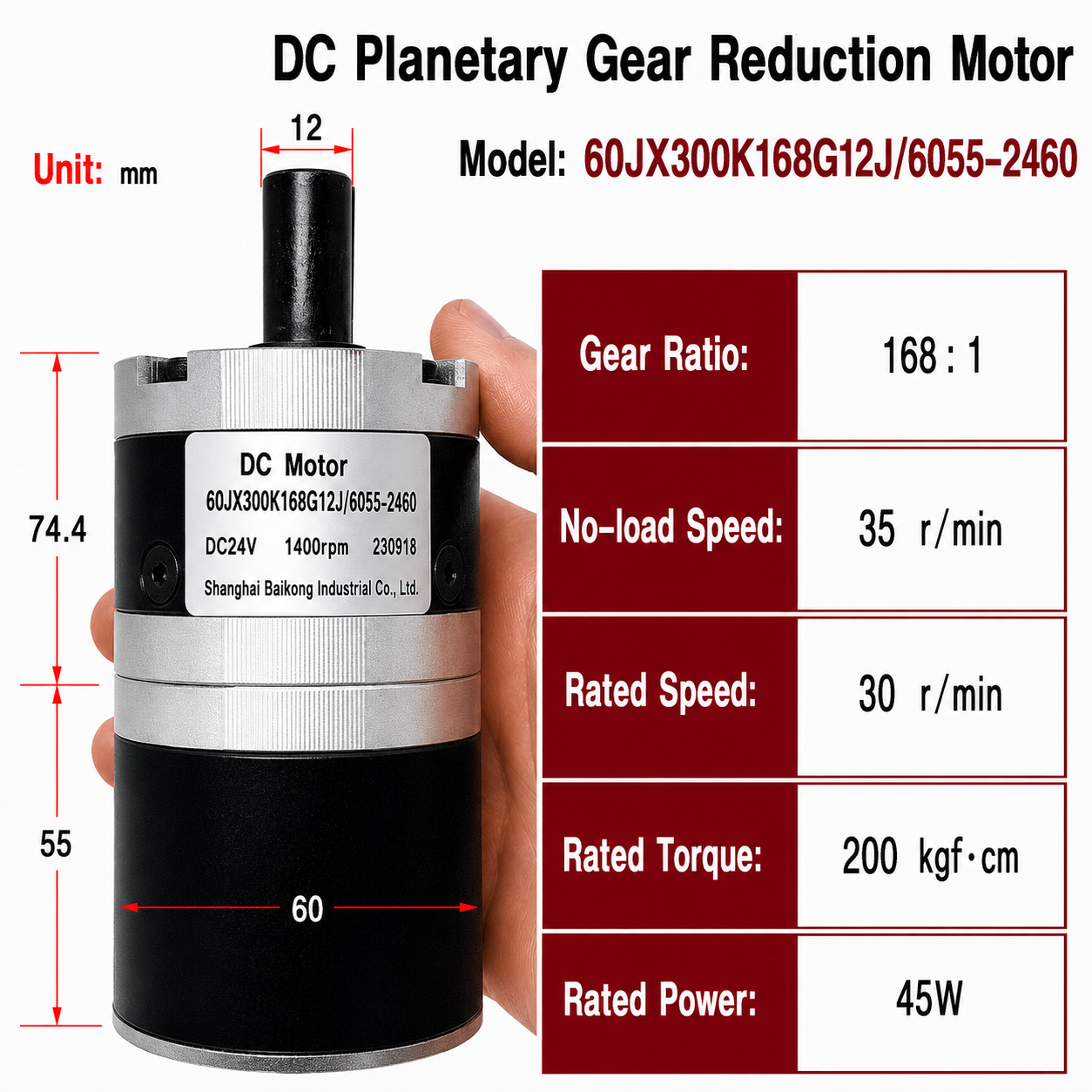

| 168:1 | 35 RPM | 30 RPM | 20 N·m |

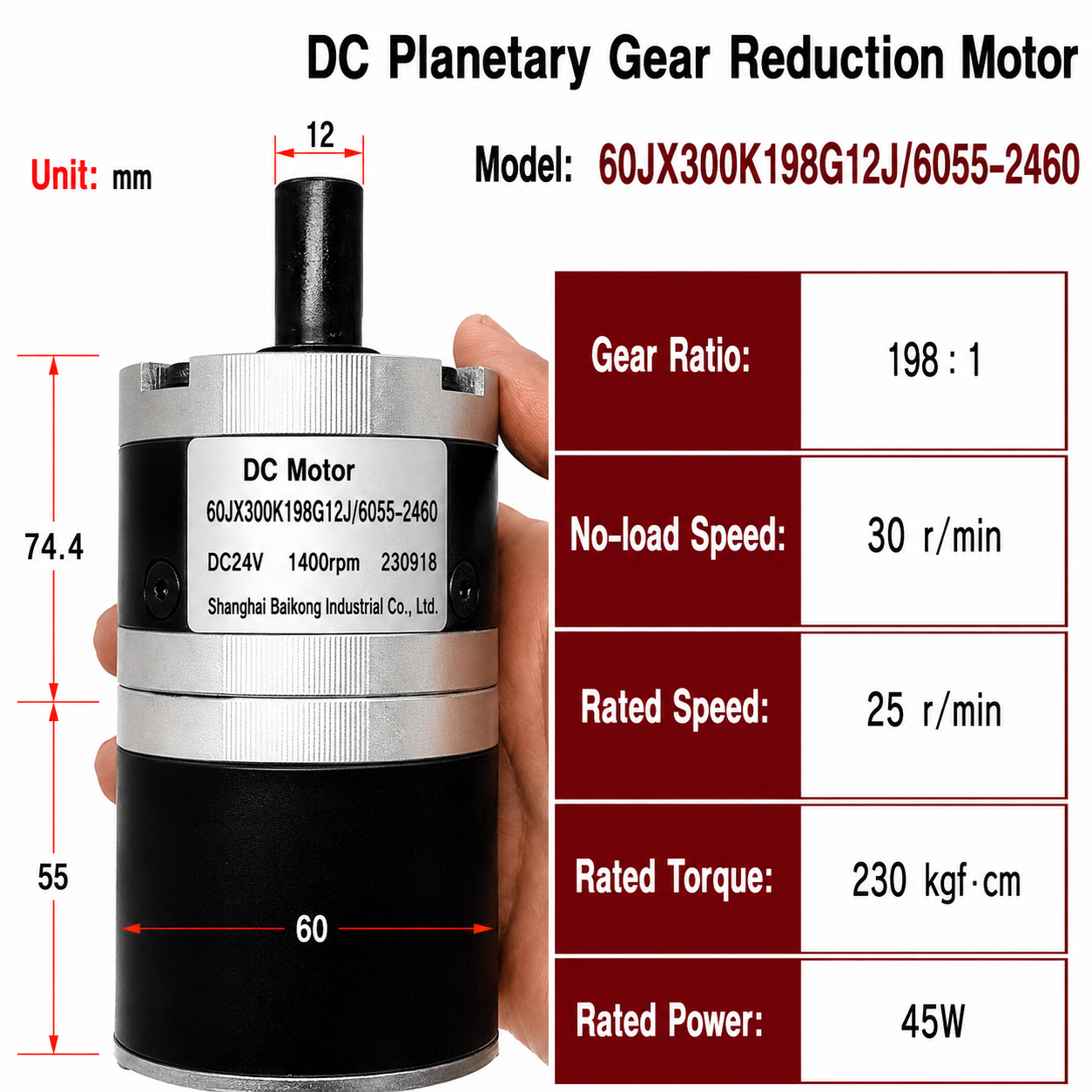

| 198:1 | 30 RPM | 25 RPM | 23 N·m |

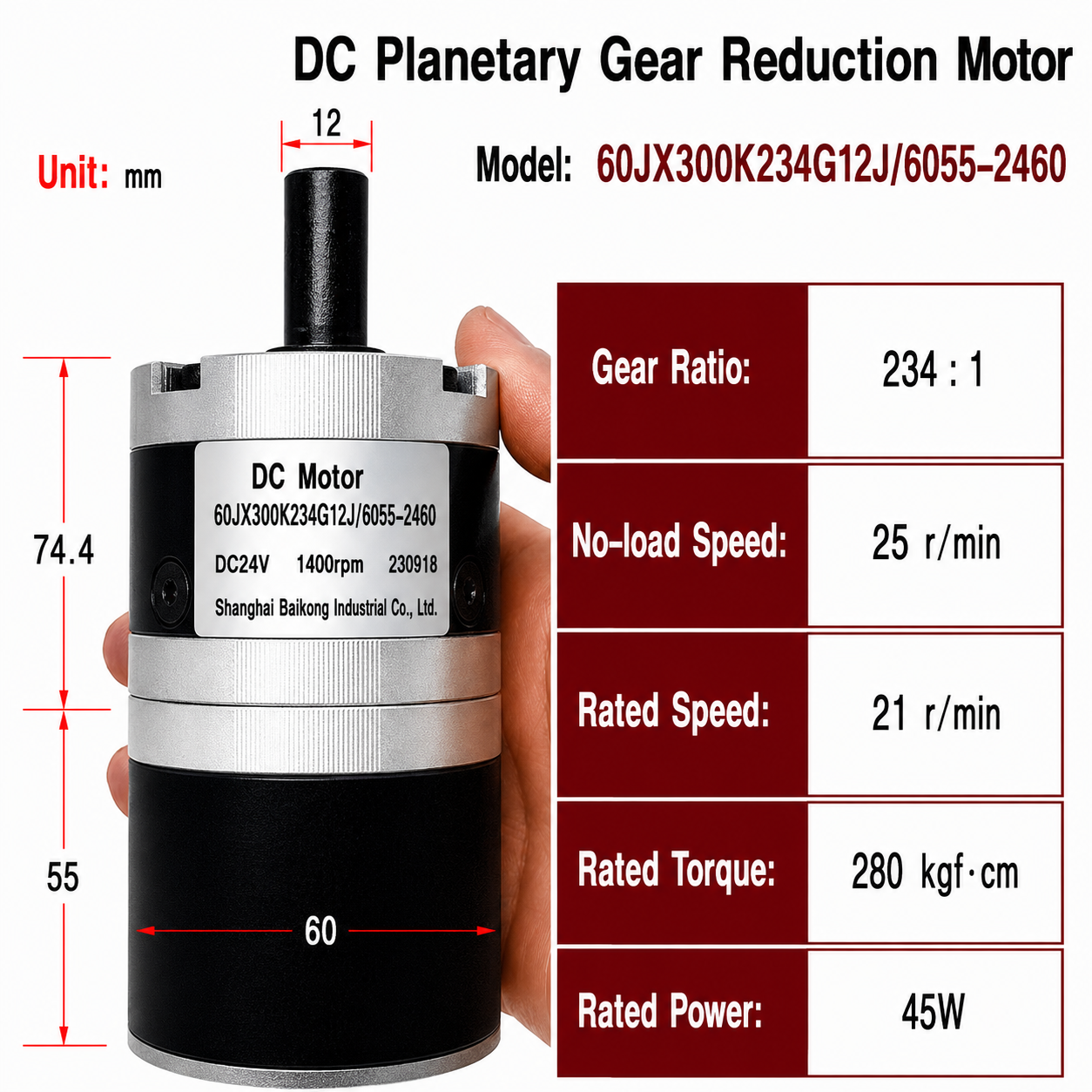

| 234:1 | 25 RPM | 21 RPM | 28 N·m |
| 276:1 | 20 RPM | 18 RPM | 33 N·m |

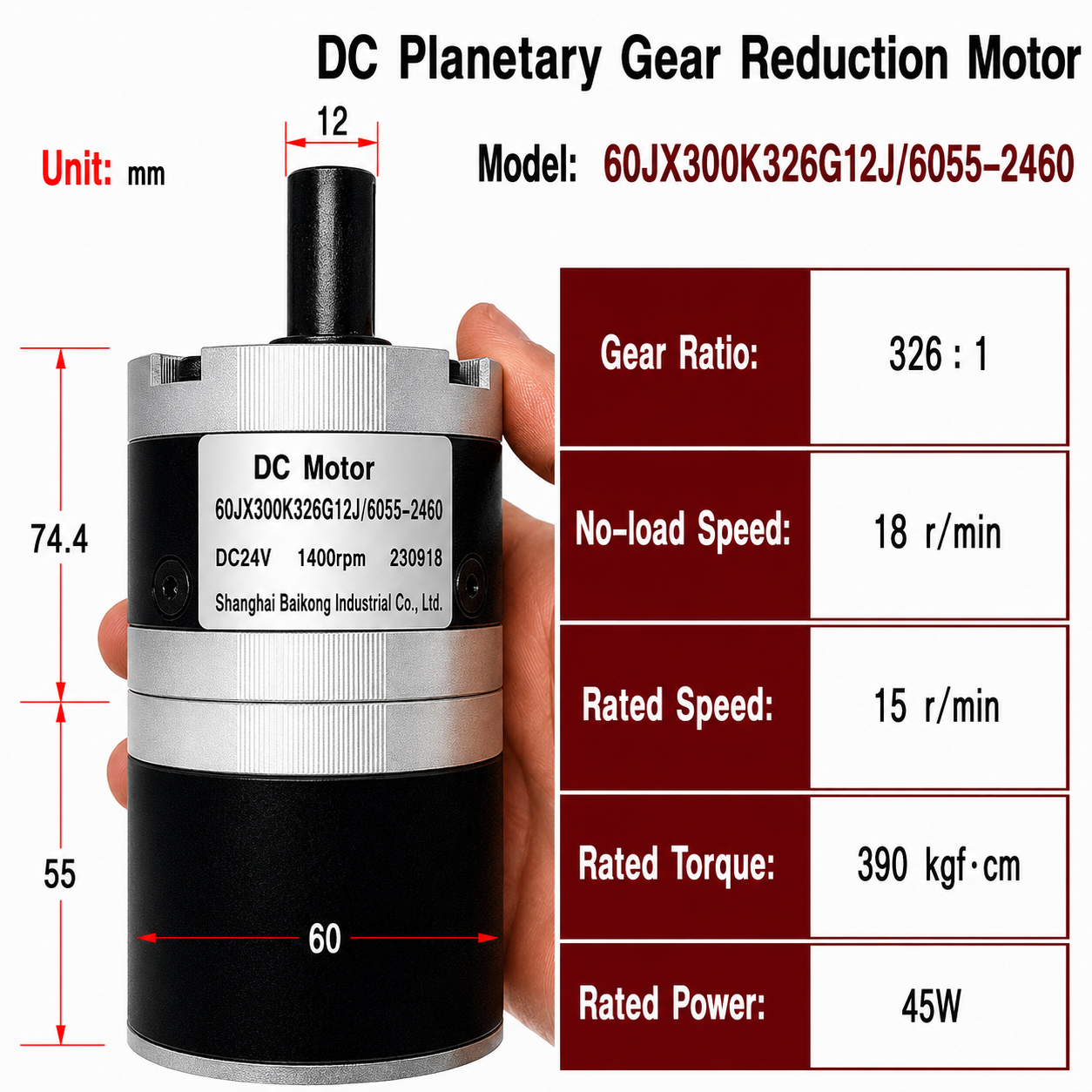

| 326:1 | 18 RPM | 15 RPM | 39 N·m |
Dimensions
Package Includes
- 1 × 60mm DC Planetary Gear Motor
