Description:

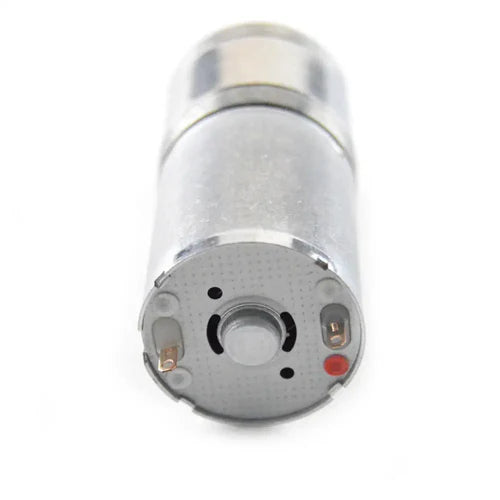

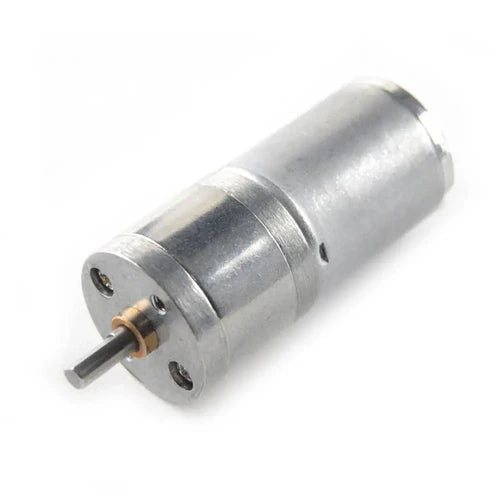

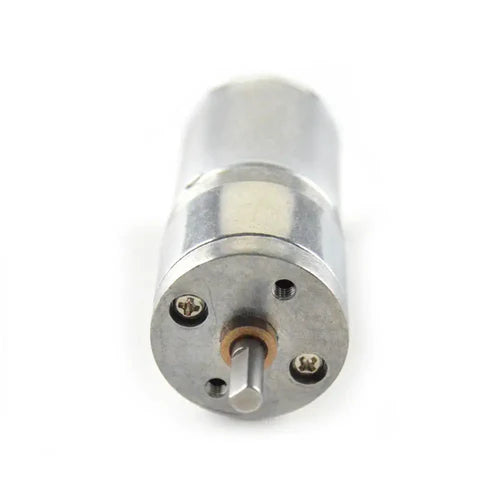

The 6V 97 RPM Metal Gearmotor is a compact yet powerful brushed DC motor engineered for high torque and reliable performance. Featuring a robust 99:1 metal gearbox and strong internal magnets, this gearmotor delivers impressive power in a small 25D x 54L mm form factor, weighing only 90 g. Its 4 mm diameter, 10 mm long D-shaped output shaft ensures secure coupling for various mechanical applications.
Designed to operate nominally at 6 V, the motor performs efficiently in a voltage range from 3 V to 9 V, with rotation possible even at voltages as low as 1 V. At nominal conditions, it provides 97 RPM no-load speed, a rated torque of 47 oz-in, and a stall torque of 210 oz-in, drawing up to 6.5 A at stall. This makes it ideal for robotics, automation, and DIY projects that require precise motion control with high torque output.
Key Features:
-
High-power brushed DC motor with 99:1 metal gearbox
-
Nominal voltage: 6V (operational range: 3–9V)
-
No-load speed: 97 RPM | Rated speed: 65 RPM
-
Stall torque: 210 oz-in | Rated torque: 47 oz-in
-
Stall current: 6.5 A | No-load current: 0.55 A
-
Compact dimensions: 25D x 54L mm | Weight: 90 g
-
D-shaped 4 mm diameter output shaft, 10 mm length
Applications:
Perfect for robotics, automated machinery, mechanical projects, and any application requiring a durable, high-torque motor in a small footprint.
