Product Description

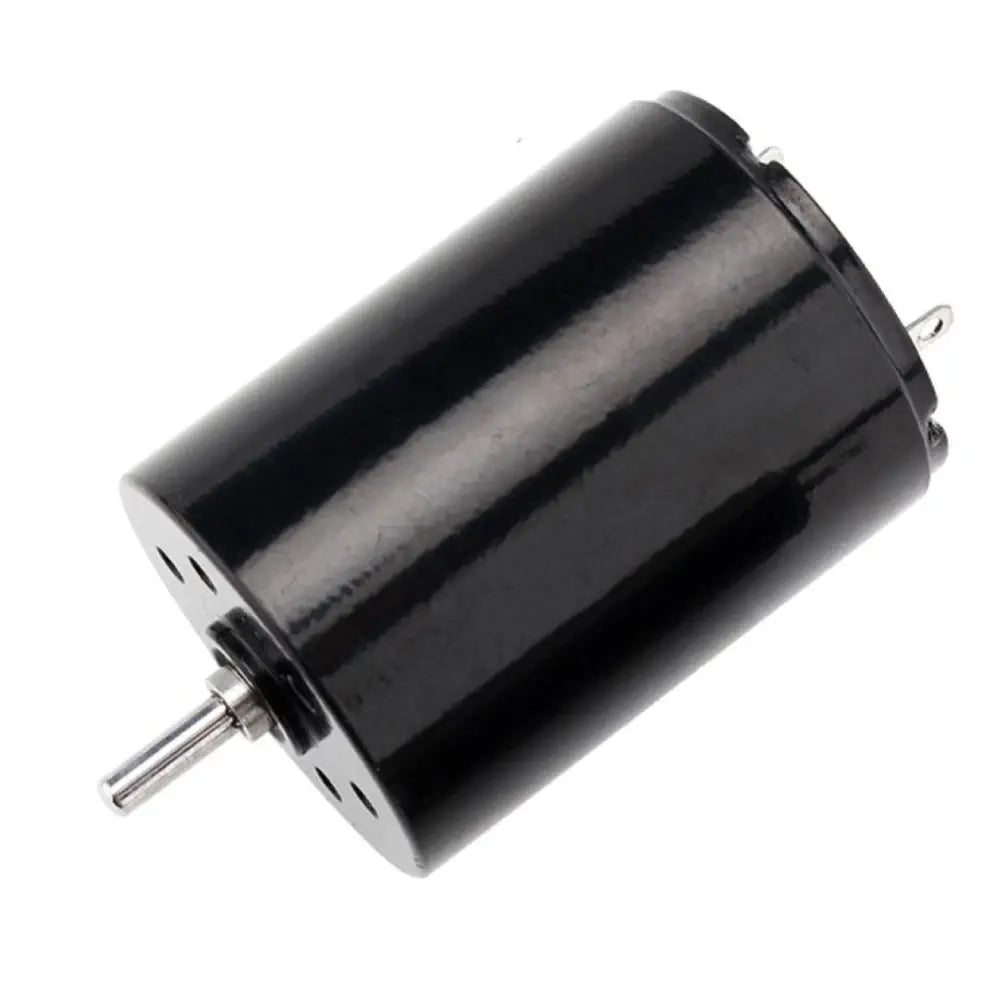

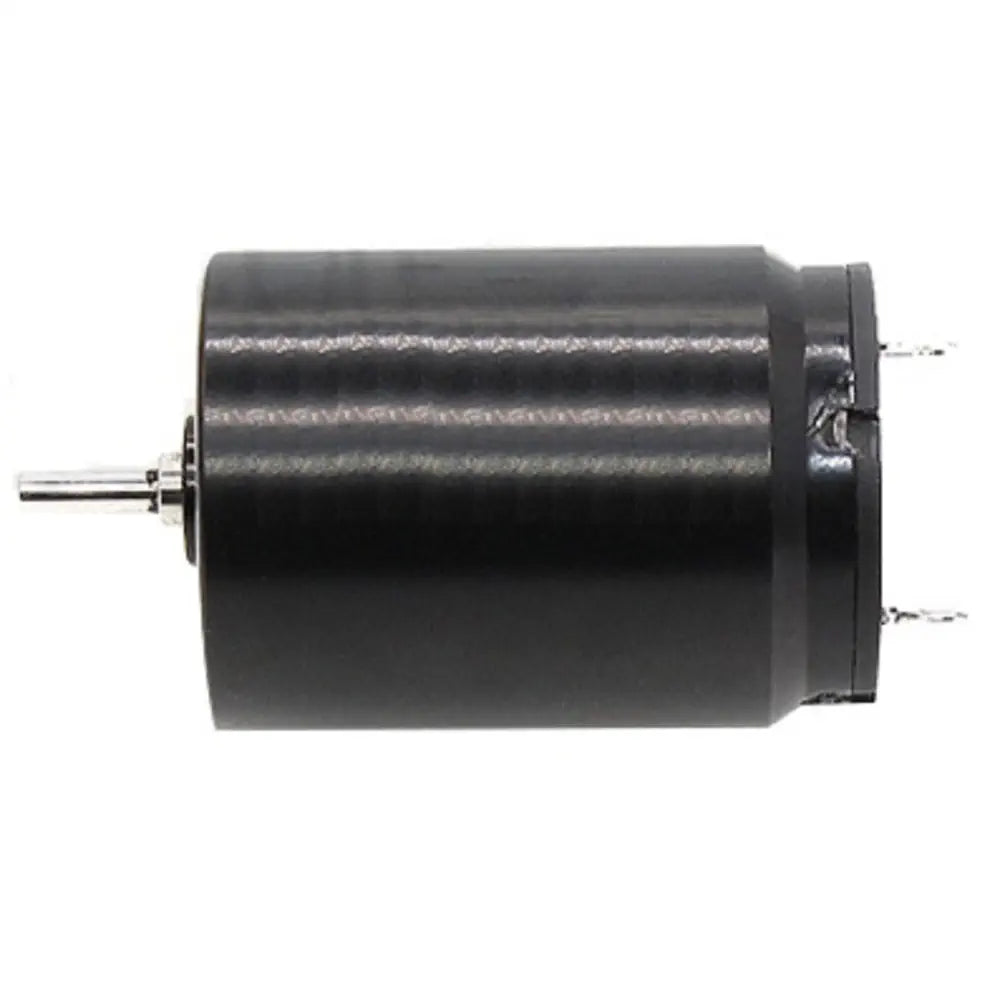

The 6V DC Coreless Motor (22mm diameter × 30mm length) is a high-efficiency brushed DC motor featuring an ironless rotor design that delivers fast dynamic response, low inertia, smooth motion and quiet operation. With a no-load speed of 5500 RPM, this motor provides stable and consistent performance for a wide range of precision motion applications.
Compared with conventional iron-core motors, the coreless design significantly reduces energy loss and heat generation while improving speed control and responsiveness. Its compact form factor and lightweight construction make it ideal for robotics, automation systems, precision instruments, and portable equipment where reliable motion control is essential.
Key Features

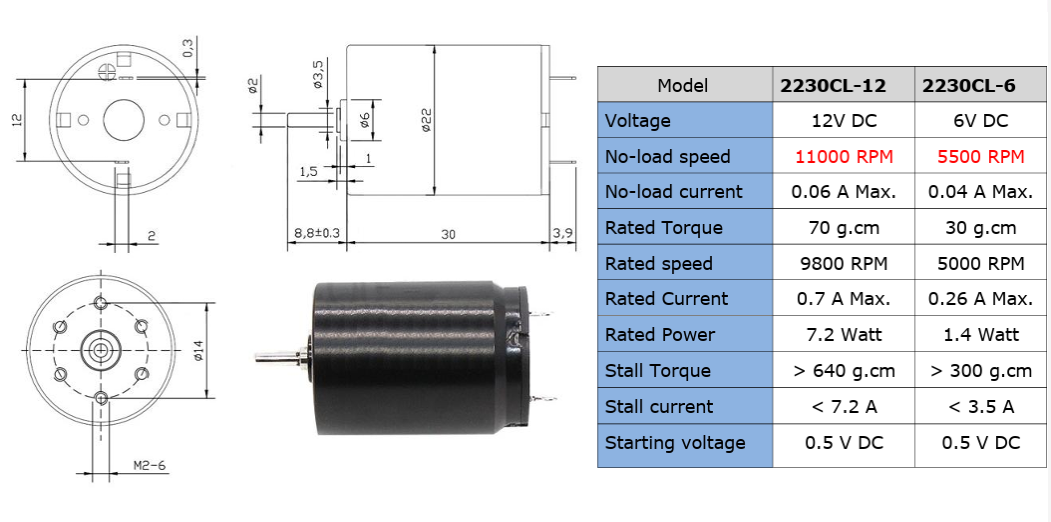

Specifications
| Parameter | Value |
|---|---|
| Model | 2230CL-6 |
| Motor Type | Brushed DC Coreless Motor |
| Rated Voltage | 6 V DC |
| No-Load Speed | 5500 RPM |
| Rated Speed | 4950 RPM |
| No-Load Current | ≤ 0.05 A |
| Rated Current | ≤ 0.27 A |
| Rated Torque | 30 g·cm |
| Stall Torque | ≥ 240 g·cm |
| Stall Current | ≤ 2.8 A |
| Rated Power | ~3.3 W |
| Starting Voltage | ≤ 0.2 V DC |
| Motor Diameter | 22 mm |
| Motor Length | 30 mm |
| Shaft Diameter | 2 mm |
| Shaft Length | 9 mm |
Applications
Coreless DC motors like this are widely used in:
-
Robotics and automated motion platforms
-
Precision control mechanisms and instrumentation
-
Medical and laboratory devices
-
Handheld and portable systems
-
Aerospace and embedded mechatronics
Package Includes
Notes
