Overview

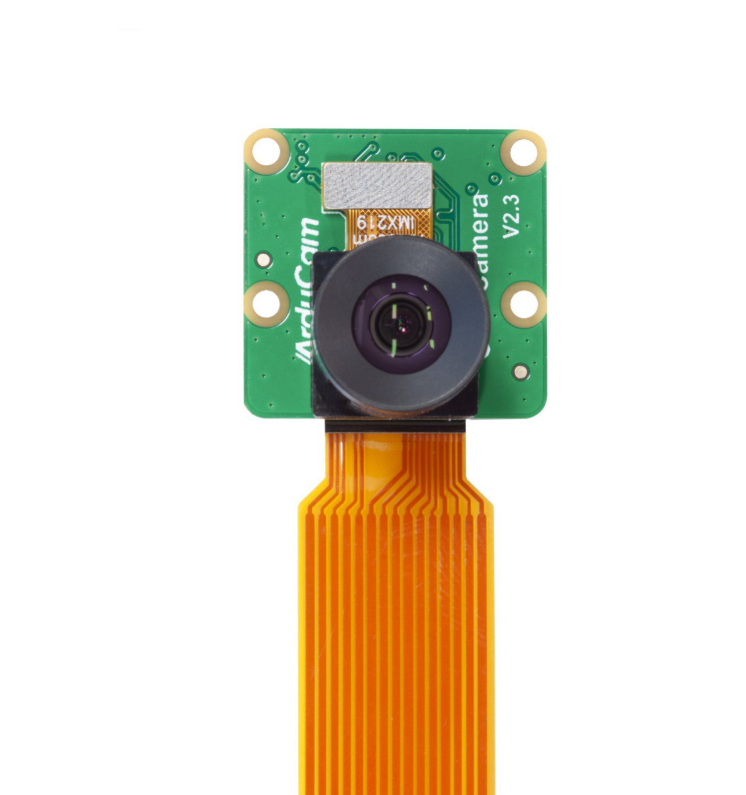

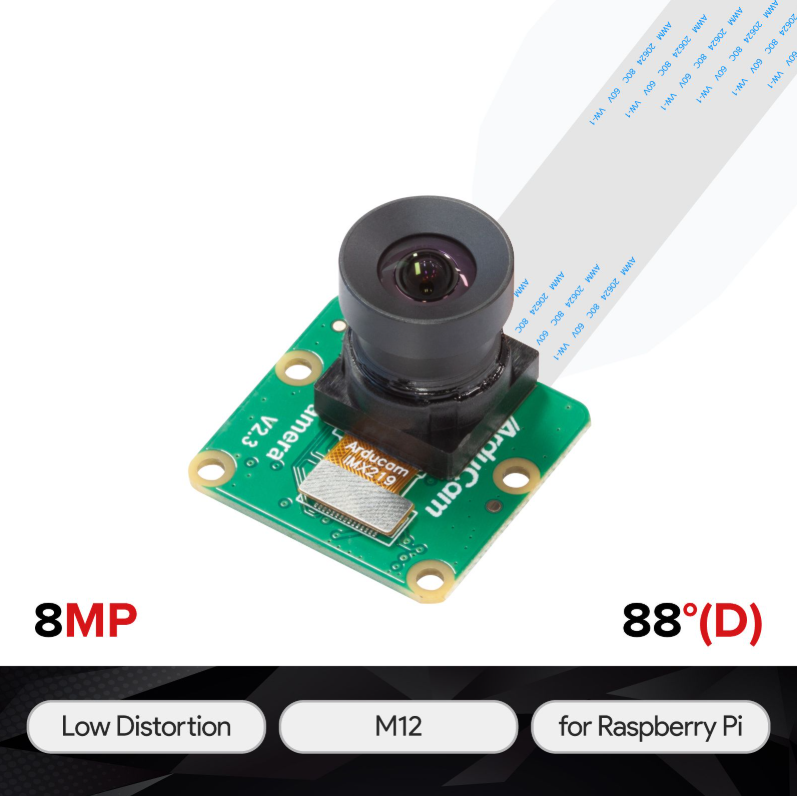

The Arducam 8MP IMX219 Raspberry Pi camera module combines an IMX219 image sensor with a manual-focus M12 lens. Its 88° diagonal field of view and low-distortion lens design support still capture and video for Raspberry Pi imaging projects.
Key Features
- 8MP IMX219 sensor with 3280 x 2464 pixel resolution.
- Manual-focus M12 lens with 2.8mm focal length, F2.8 aperture, and less than 3% distortion.
- MIPI CSI-2 interface with 2 data lanes by default; configurable to 4 lanes.
- Integrated IR-cut filter for visible-light imaging.

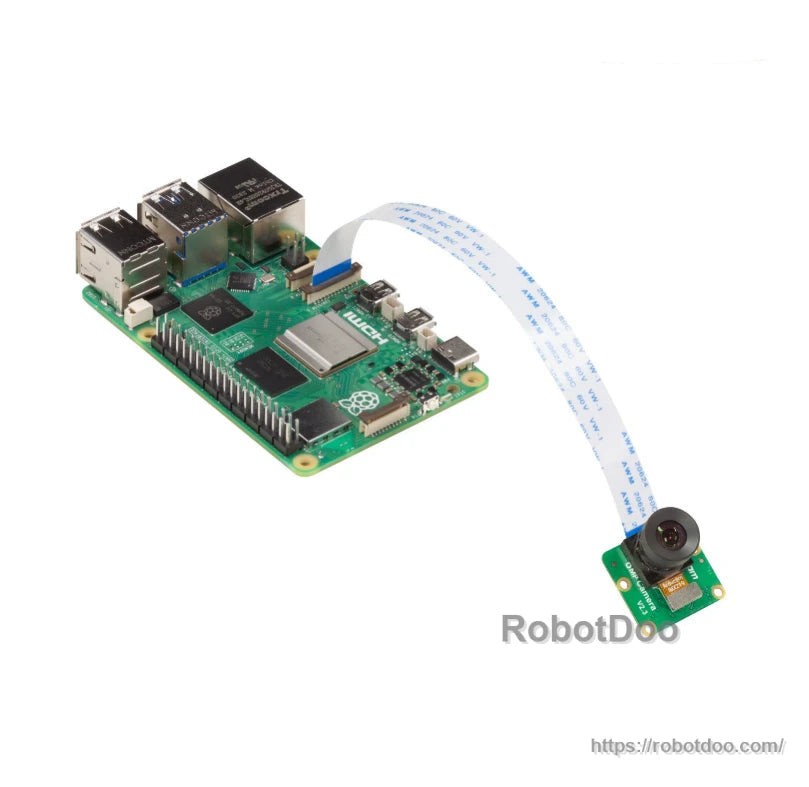

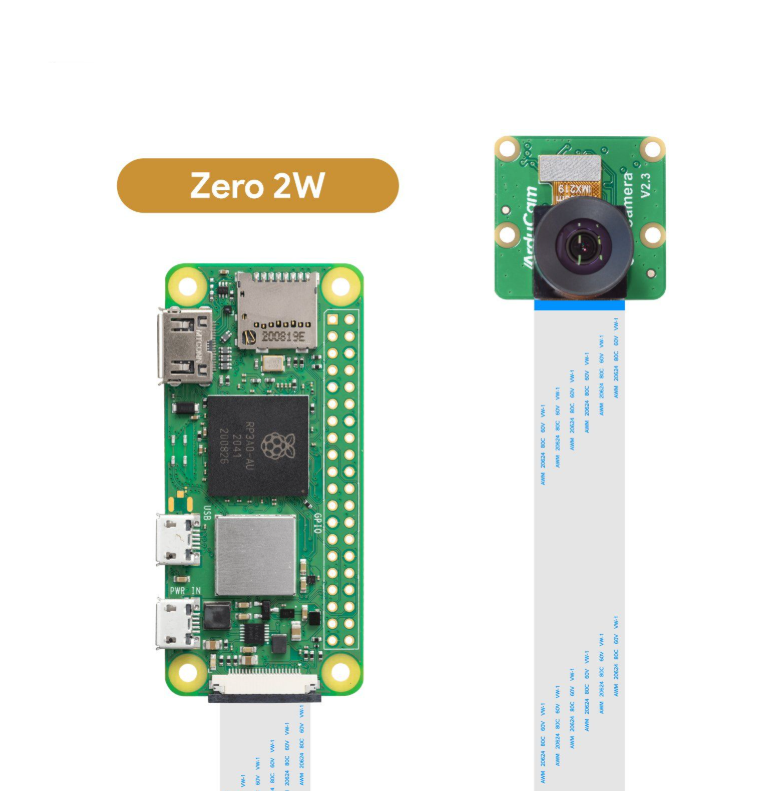

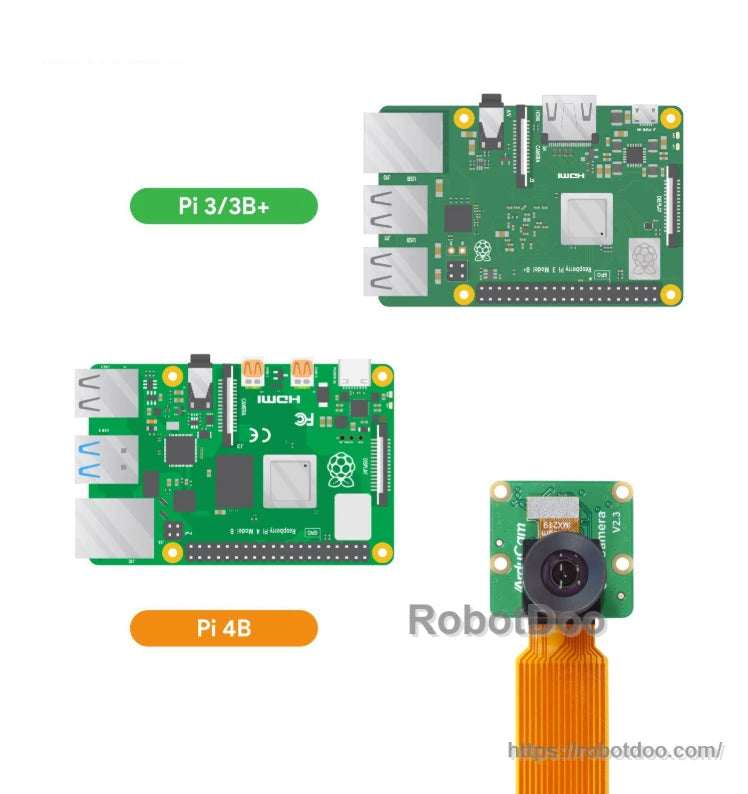

- Compatible with Raspberry Pi 1, 2, 3, and 4 models, plus Raspberry Pi Zero and Zero 2 W.
Specifications
| Image Sensor | IMX219 |
| Still Resolution | 8 Megapixels |
| Sensor Resolution | 3280 x 2464 pixels |
| Video Modes | 1080p47, 1640 x 1232p41, 640 x 480p206 |
| Sensor Image Area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 um x 1.12 um |
| Optical Format | 1/4 in |
| IR Filter | Integrated IR-cut filter, visible light only |
| Focus Type | Manual focus |
| Focal Length | 2.8mm |
| Aperture | F2.8 |
| Field of View | 88° (D) x 75° (H) x 60° (V) |
| Lens Mount | M12 |
| Distortion | <3% |
| Interface | MIPI CSI-2 |
| Data Lanes | 2-lane default, configurable to 4-lane |
| Board Size | 24mm x 25mm |
| Peak Current | 300mA |
What's Included
- 1 x IMX219 camera module with low-distortion M12 lens

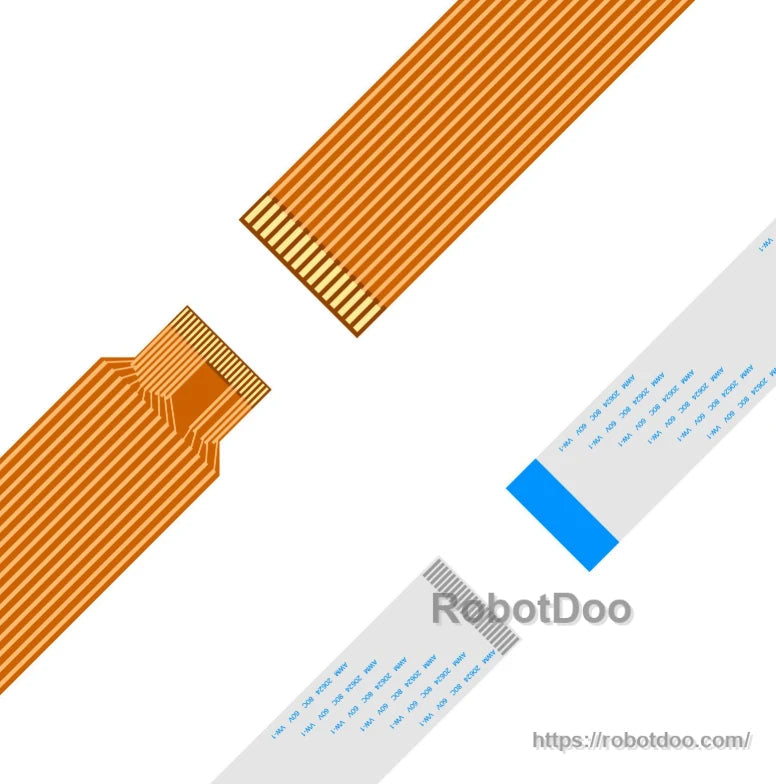

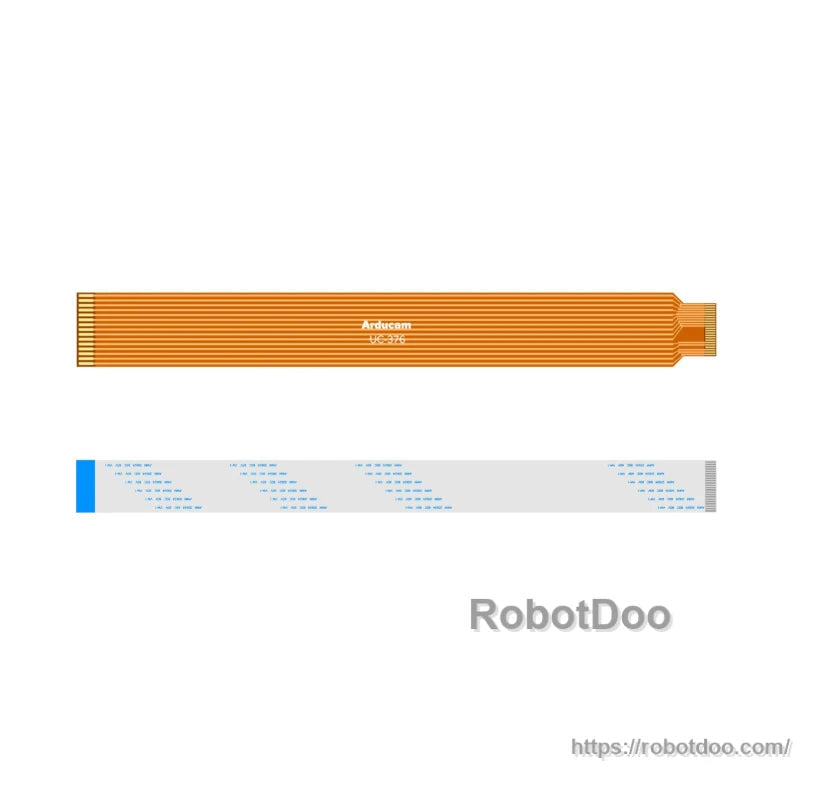

- 1 x 15cm 15-22 pin FPC cable
- 1 x 15cm 22-22 pin FFC cable
A Raspberry Pi board is not included. For product assistance, contact RobotDoo.
Applications
- Time-lapse and slow-motion capture
- 3D printer monitoring
- Wildlife observation cameras
- Industrial and agricultural imaging
- Autonomous mobile robotics and vision projects
- Astrophotography
