Overview

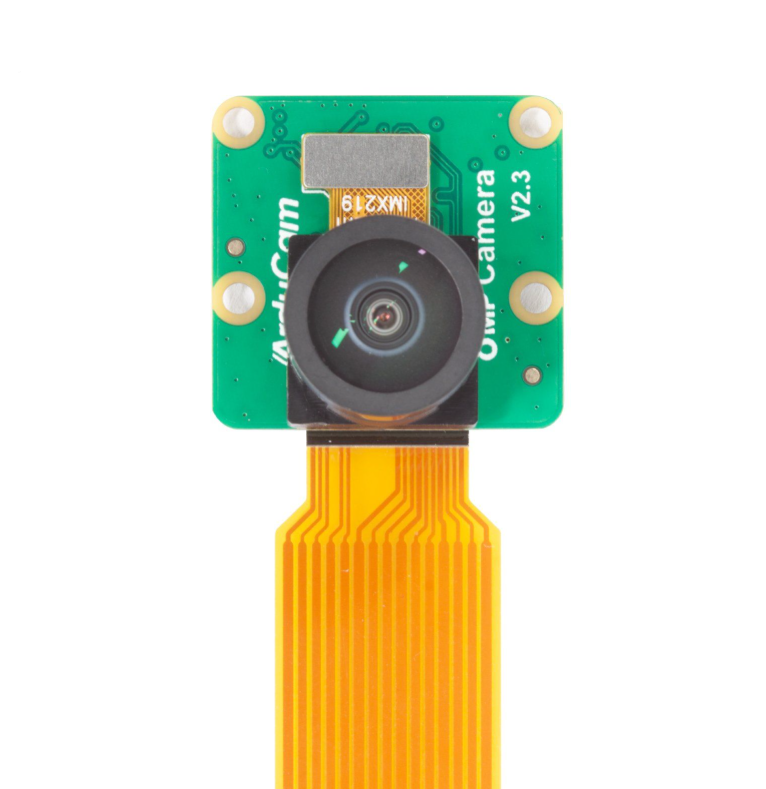

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Board and also can be used on other hardware like ARM, DSP, FPGA, etc. The highlight of this camera is its wide field of view.
Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into NVIDIA Jetson Orin kernel.
The lens on this camera is not interchangeable.
- Note:

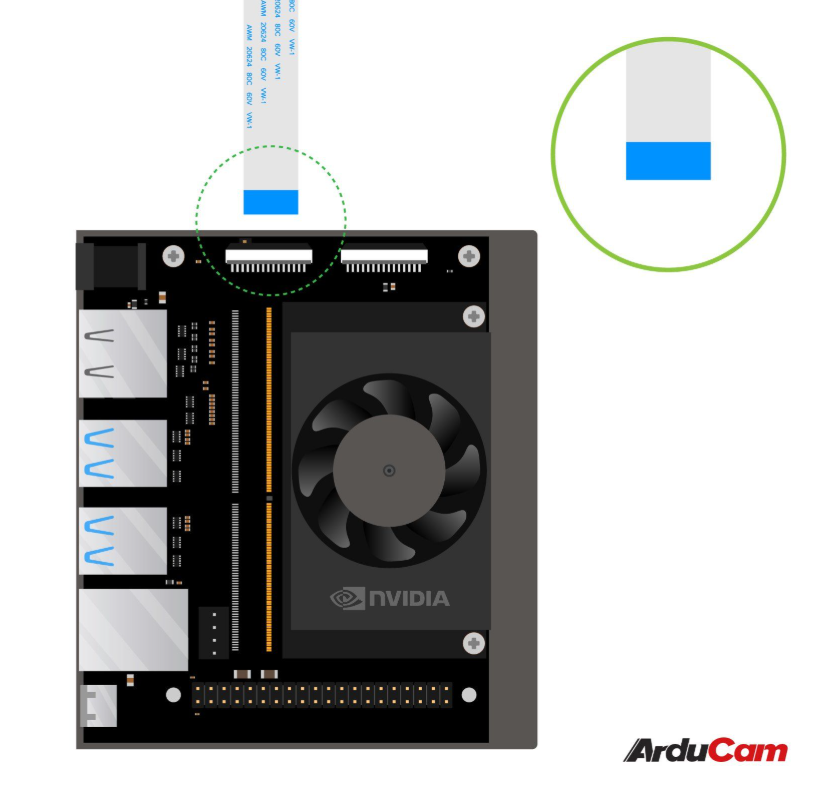

- For the Orin Nano/Orin NX, a 22-22 pin FFC cable is included. If you are using an AGX Orin, an additional camera adapter is required.
- This camera does not support the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4).
- ★KERNEL CAMERA DRIVER USED
- This camera relies on kernel drivers to work – one kernel version, one camera driver. Please refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.
★ SUPPORTED PLATFORM DISCLAIMER
This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.
Features
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Data Format: RAW8/RAW10
- EFL: 1.3mm
- F.NO: 2.0
- Focus Type: Fixed Focus

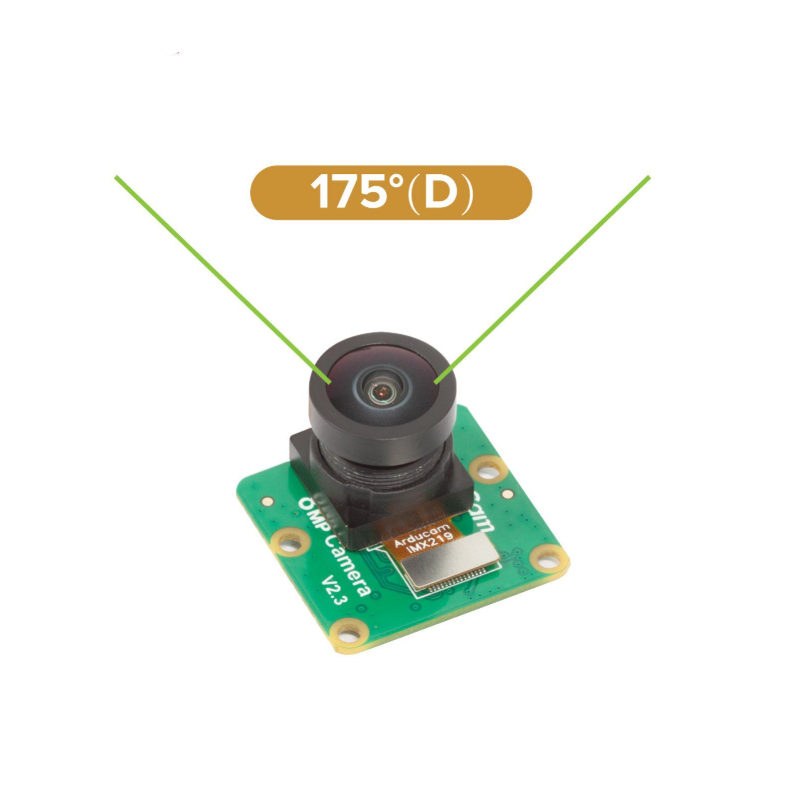

- View Angle: 175(D) x 155(H) x 115(V)
- Interface: MIPI CSI-2 2-lane/4-lane
- IR Sensitivity: Integral IR Filter, visible light only
Specifications
Camera
| Image Sensor | IMX219 |
| Still Resolution | 8 Megapixels |
| Video Modes | NVIDIA Jetson Orin NX/Orin Nano/AGX Orin: 3280x2464@21fps, 3280x1848@28fps, 1920x1080@30fps, 1640x1232@30fps, 1280x720@60fps |
| Sensor Resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 1.3mm |
| F.NO | F2.0 |
| Field of View(FOV) | 155°(H)×115°(V)×175°(D) |
| Lens Mount | M12 Mount |
Electrical & Mechanical

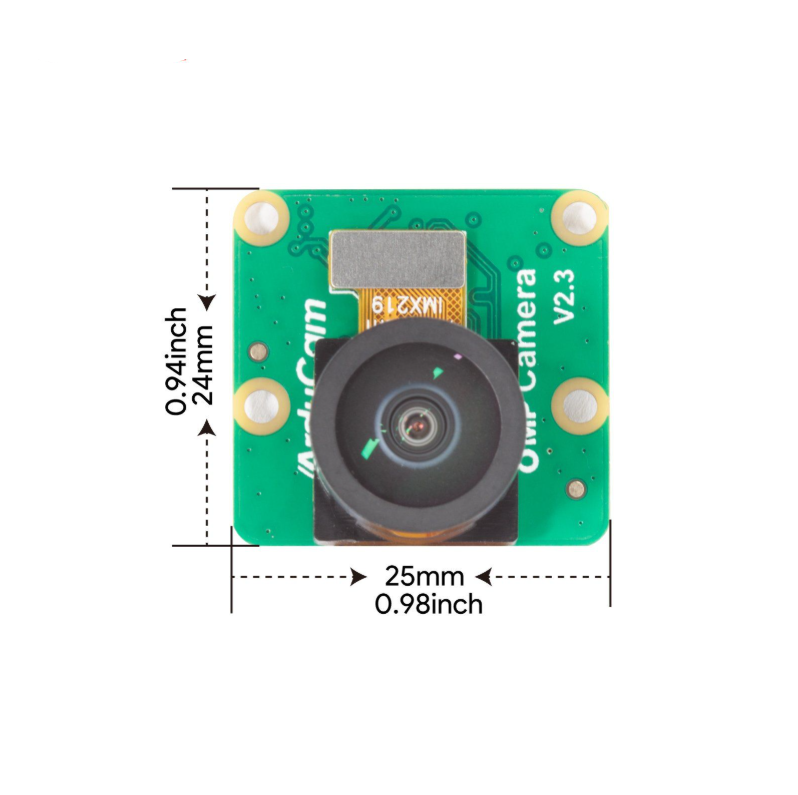

| Camera Board Size | 25 x 24mm |
| Peaking Current | 300mA |
Package Including
- 1pcs Arducam IMX219 Wide Angle Camera Module for NVIDIA Jetson Board

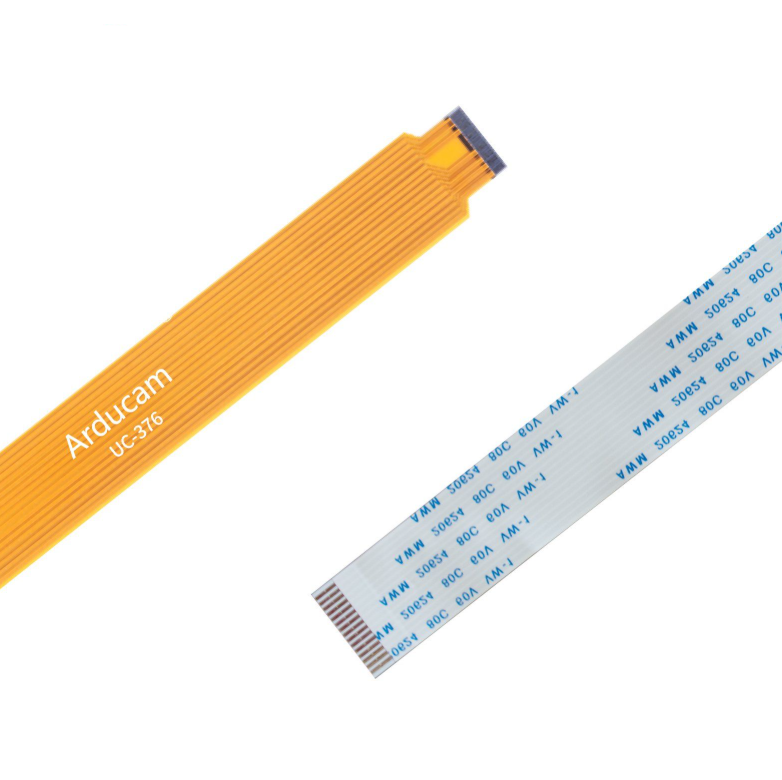

- 1pcs 15cm 15-22pin FPC cable
- 1pcs 15cm 22-22pin FPC cable
Documentation
- How to use the camera on NVIDIA Jetson Orin NX/AGX Orin
- How to use the camera on Jetson
IMX219 – 8MP Camera
Introduction IMX219 is a 1/4″ 8MP MIPI CSI-2 image sensor, it was adopted by the Raspberry pi V2 camera module back in 2016. Now the IMX219 camera is natively supported by the Jetson Nano and Xavier NX out of the box. Arducam made a lot of variation of this camera to address different use-cases for […]
Datasheet.pdf
3D drawing.step |
