DESCRIPTION
The AS5048A Magnetic Rotary Encoder Board is a compact, high-resolution magnetic position sensor designed for accurate angle measurement in motion control applications. Based on the AS5048A magnetic encoder IC, it delivers 12–14-bit angular resolution with both PWM and SPI output interfaces for flexible integration into embedded systems.
Its contactless magnetic sensing technology eliminates mechanical wear, providing excellent reliability and long service life. The compact PCB (15 × 17 mm) operates from a 5V supply and is ideal for BLDC motors, servo motors, gimbal motors, robotic actuators, AGVs, CNC equipment, and industrial automation.
The encoder requires only a properly aligned permanent magnet positioned 0.5–3 mm above the sensor surface for accurate angle measurement.
FEATURES
- High-precision AS5048A magnetic rotary encoder
- 12–14-bit angular resolution
- Dual output interfaces: PWM and SPI
- Contactless magnetic sensing technology
- 5V DC power supply
- Compact 15 × 17 mm PCB design
- Stable operation with low mechanical wear
- High-speed position feedback
- Easy integration into embedded control systems
- Suitable for precision servo and BLDC motor control
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model | AS5048A Encoder Board |
| Encoder IC | AS5048A |
| Resolution | 12–14 Bit |
| Output Interface | PWM / SPI |
| Supply Voltage | 5V DC |
| PWM Frequency | 460 Hz |

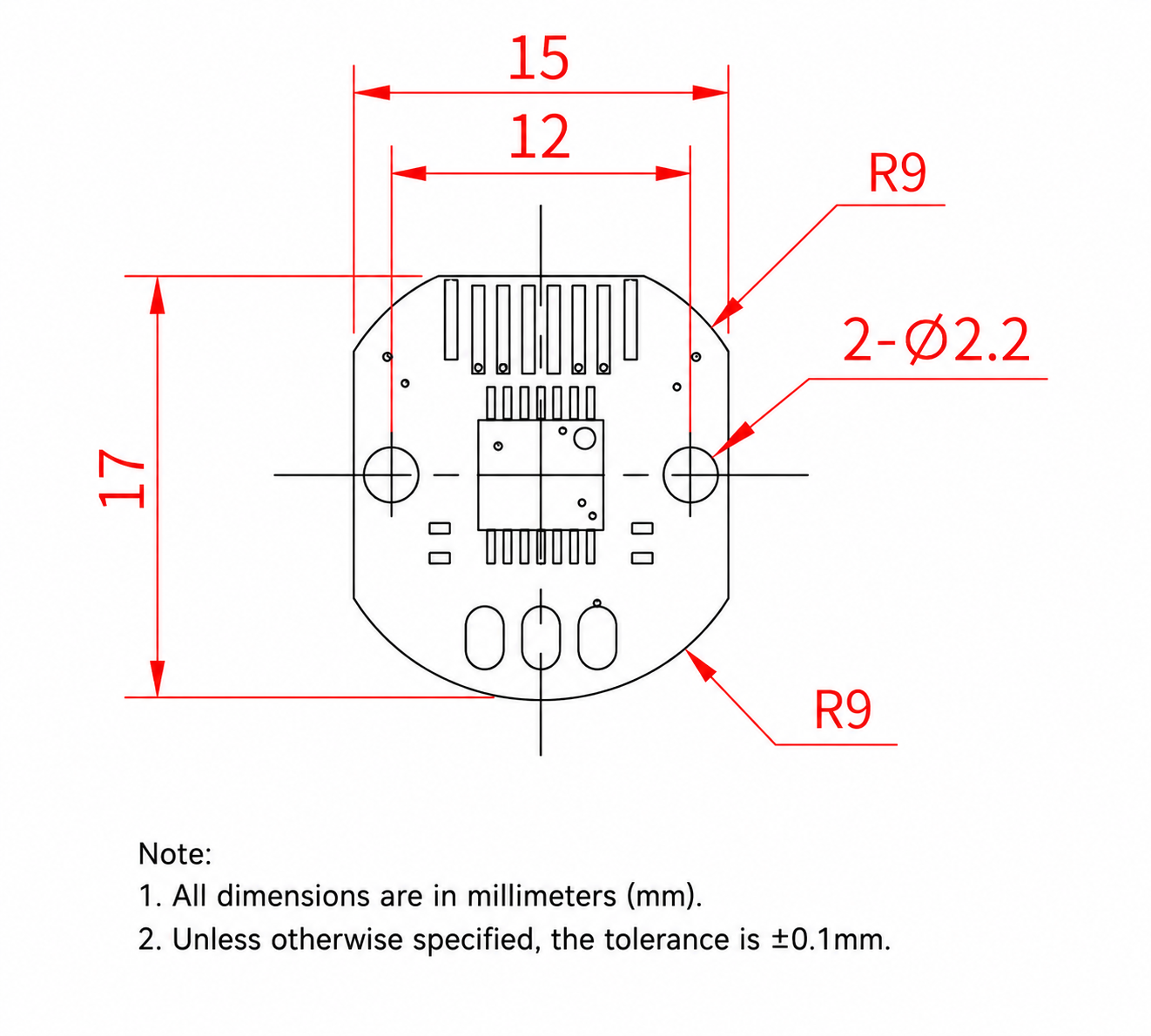

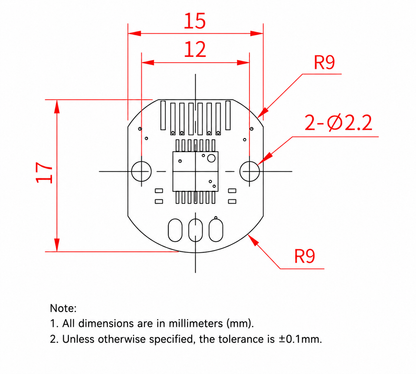

| PCB Size | 15 × 17 mm |
| Mounting Hole Diameter | Ø2.2 mm |
| Magnet Distance | 0.5–3 mm |
| Sensing Method | Contactless Magnetic |
| Position Measurement | 360° Absolute Angle |
| Operating Principle | Magnetic Rotary Encoder |

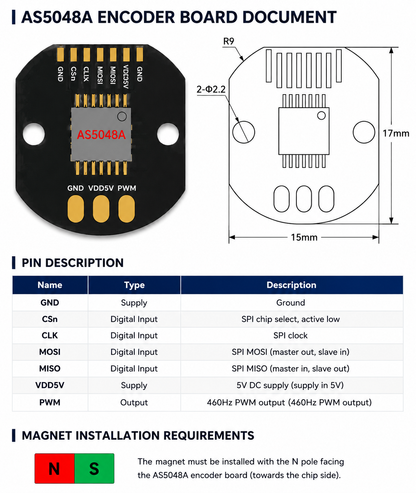

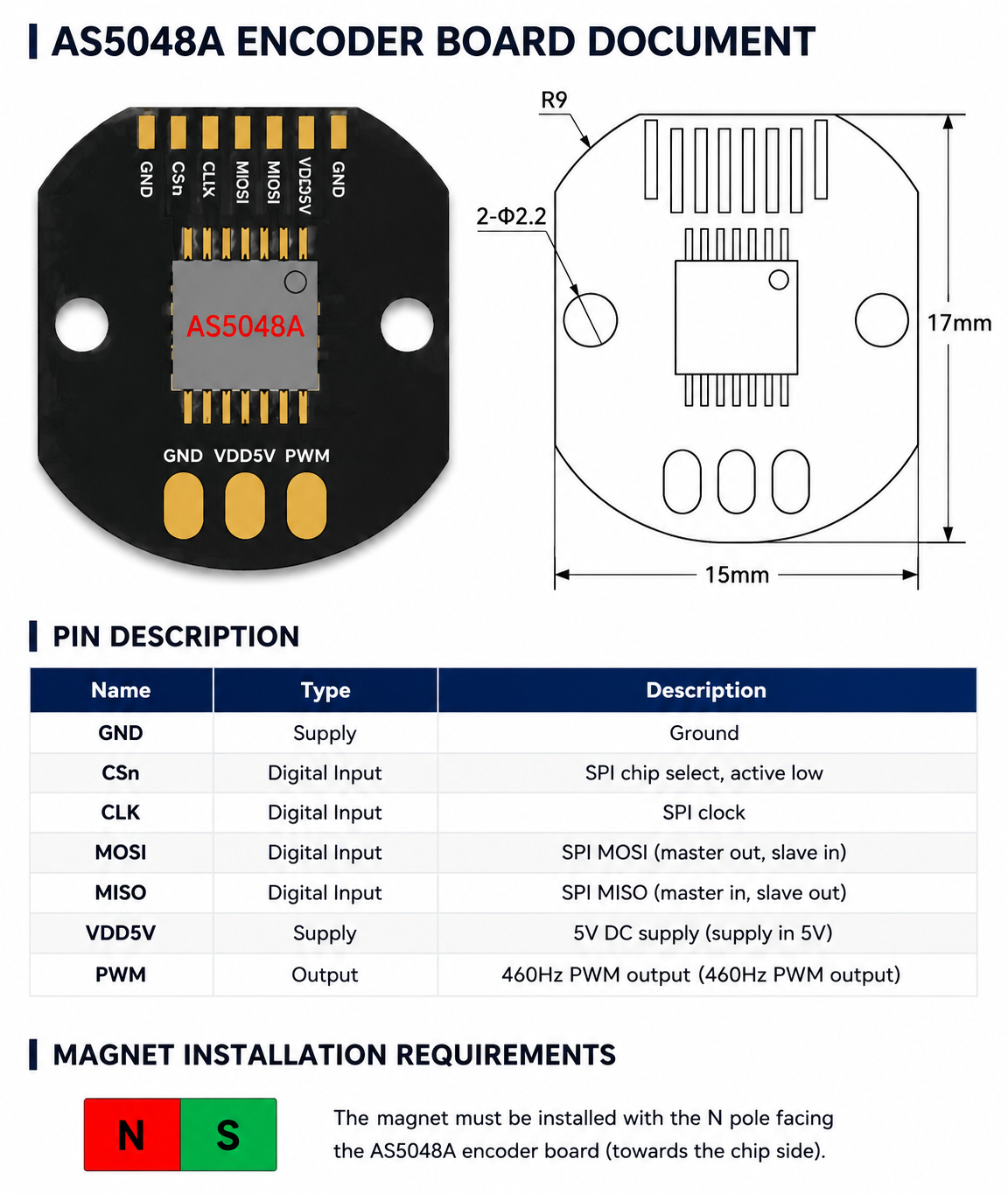

PIN DEFINITION (SPI)
| Pin | Function |
|---|---|
| GND | Ground |
| CSn | SPI Chip Select (Active Low) |
| CLK | SPI Clock |
| MOSI | SPI Master Out Slave In |
| MISO | SPI Master In Slave Out |
| VDD5V | 5V Power Supply |
| GND | Ground |

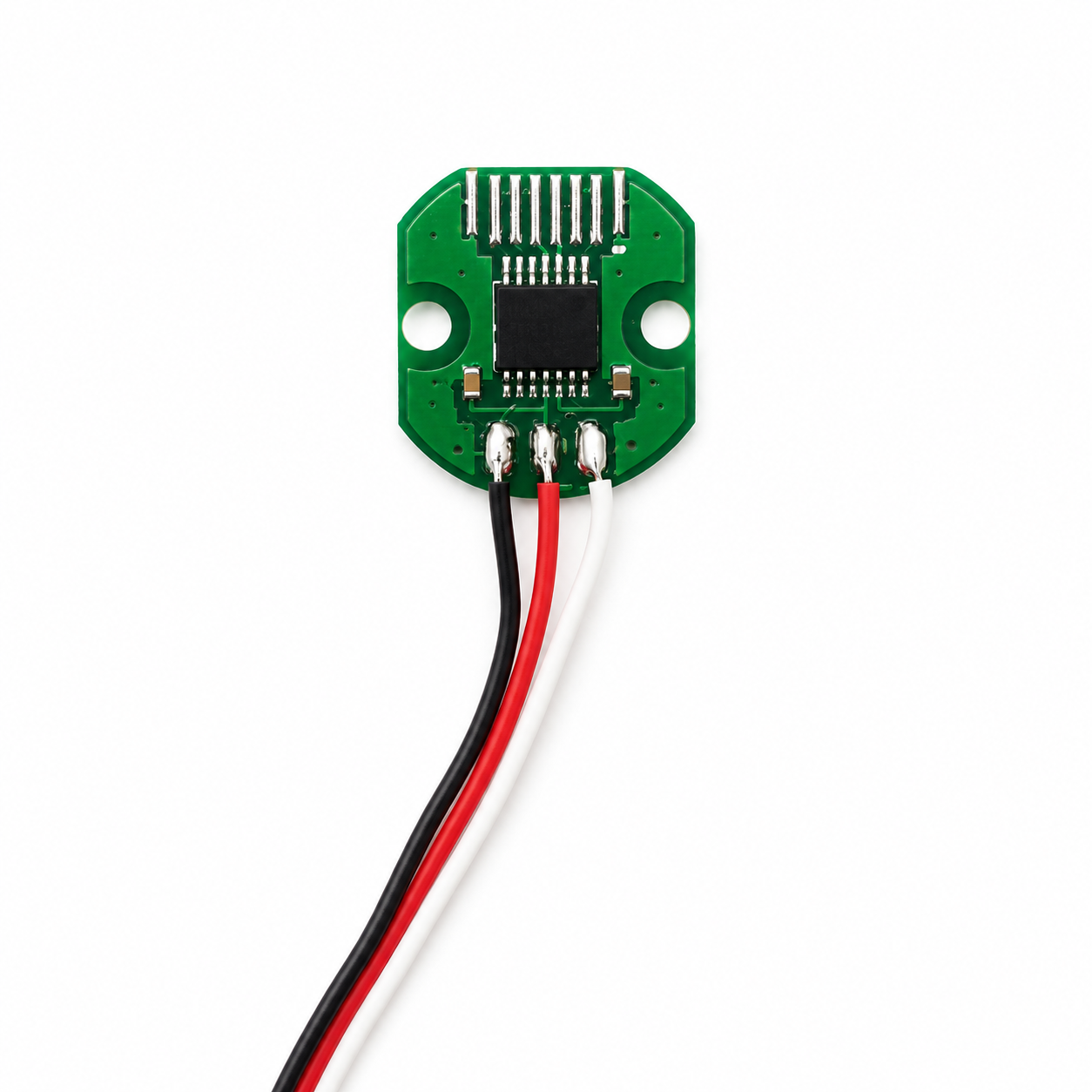

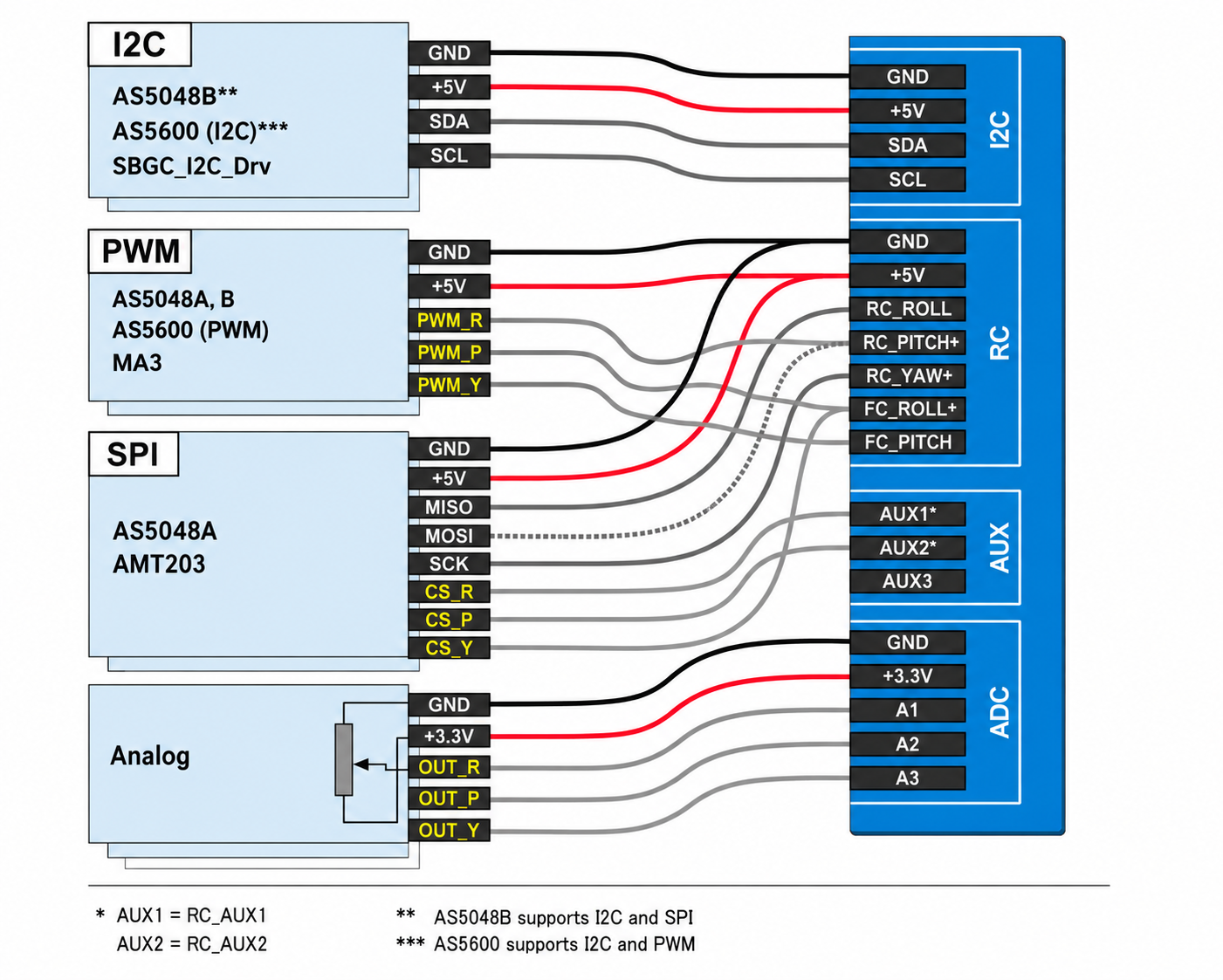

PWM Interface
| Pin | Function |
|---|---|
| GND | Ground |
| 5V | Power Supply |
| PWM | PWM Angle Output |
APPLICATIONS
- BLDC Motor Position Feedback
- Servo Motor Control
- Robot Joint Actuators
- Humanoid Robots
- Robotic Arms
- Gimbal Motors
- AGV & AMR Systems
- CNC Machines
- Precision Motion Control
- Industrial Automation
- Encoder Development Projects
PACKAGE INCLUDES
- 1 × AS5048A Magnetic Rotary Encoder Board
FAQ
Q: Is this an absolute encoder?
A: Yes. The AS5048A provides absolute 360° angular position measurement.
Q: Which communication interfaces are supported?
A: The board supports both SPI digital communication and PWM output.
Q: What supply voltage is required?
A: The encoder operates from a regulated 5V DC power supply.
Q: What is the recommended magnet distance?
A: The permanent magnet should be positioned approximately 0.5–3 mm above the encoder surface.
Q: What applications is this encoder suitable for?
A: It is widely used in BLDC motors, servo motors, robotic joints, robotic arms, gimbals, AGVs, CNC equipment, and industrial motion control systems.
