DESCRIPTION

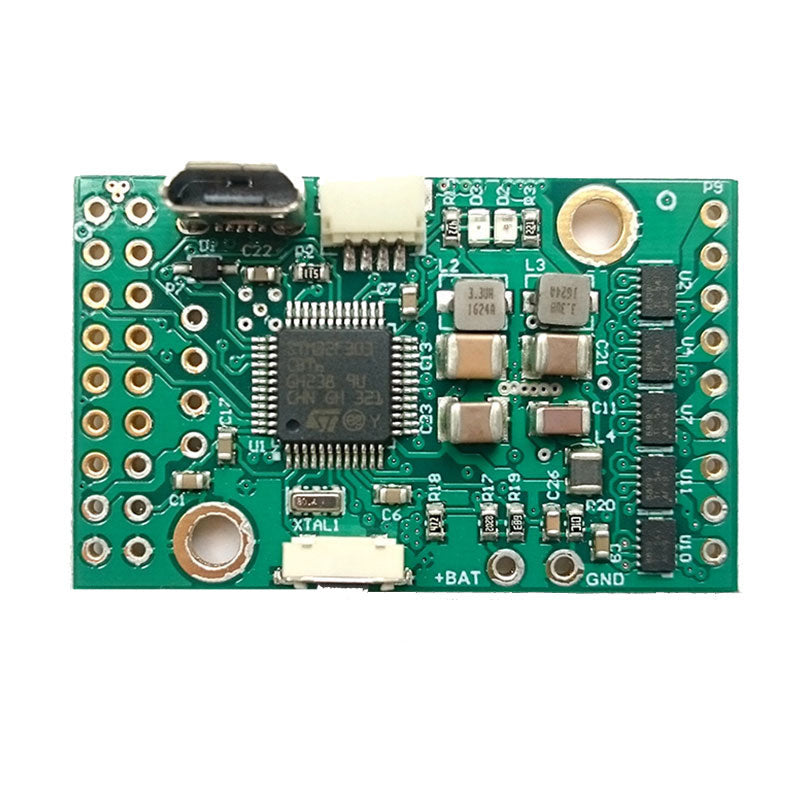

The BGC32-bit Tiny Revision B Brushless Gimbal Controller Board is a compact 32-bit stabilization controller designed for small camera gimbals, brushless motor stabilization systems, and robotic pan-tilt platforms.
Featuring an integrated IMU sensor, high-performance 32-bit processing architecture, and three-axis brushless motor control capability, this controller provides precise stabilization and smooth motion control for camera platforms, aerial systems, and custom robotic applications.
With its ultra-compact 40 × 25 mm PCB size, lightweight design, and support for 1S–6S LiPo power input, the Tiny Rev B controller is ideal for space-limited applications requiring accurate attitude control and reliable brushless motor driving.
The controller supports USB configuration, external RC control interfaces, and multiple communication ports for flexible integration into DIY gimbals, UAV systems, and robotics projects.
FEATURES
- 32-bit ARM-based brushless gimbal controller
- Compact 40 × 25 mm PCB design
- Integrated IMU sensor for stabilization feedback
- Supports 3-axis brushless gimbal control
- Compatible with small camera stabilization systems
- USB interface for configuration and firmware update
- Supports RC input and external control interfaces
- Low weight design for UAV and portable applications
- Suitable for DIY gimbals and robotic stabilization platforms
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Controller Type | 32-bit Brushless Gimbal Controller |
| Model | Tiny Revision B |
| Board Size | 40 × 25 mm |
| Weight | Approx. 5.84 g |
| Processor | 32-bit ARM MCU |
| Power Supply | 3.7–25V (1S–6S LiPo) |
| Maximum Motor Current | 1A |
| Stabilization Axis | 3-Axis |
| Sensor | Built-in IMU |

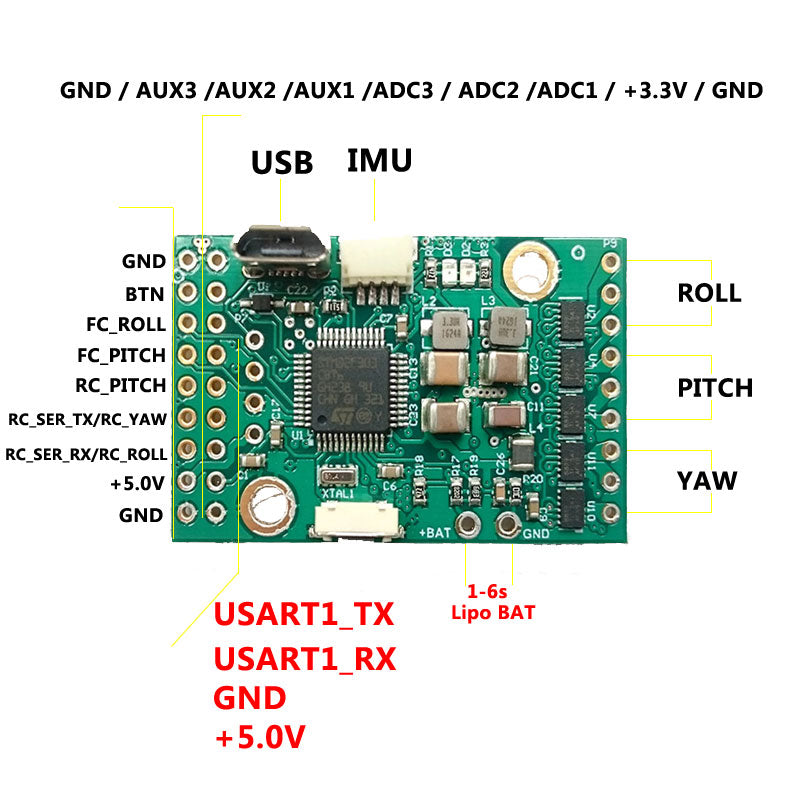

| Communication Interface | USB / UART / RC Interface |
| Motor Output | Roll / Pitch / Yaw |
| Application | Camera Gimbal, UAV, Robotics |
| PCB Height | Approx. 7 mm |
APPLICATIONS
- Brushless camera gimbal systems
- UAV and drone camera stabilization platforms
- FPV camera stabilizers
- Pan-tilt robotic mechanisms
- Autonomous inspection equipment
- DIY robotics projects
- Motion control experiments
PACKAGE INCLUDES
- 1 × BGC32-bit Tiny Revision B Brushless Gimbal Controller Board
