Description

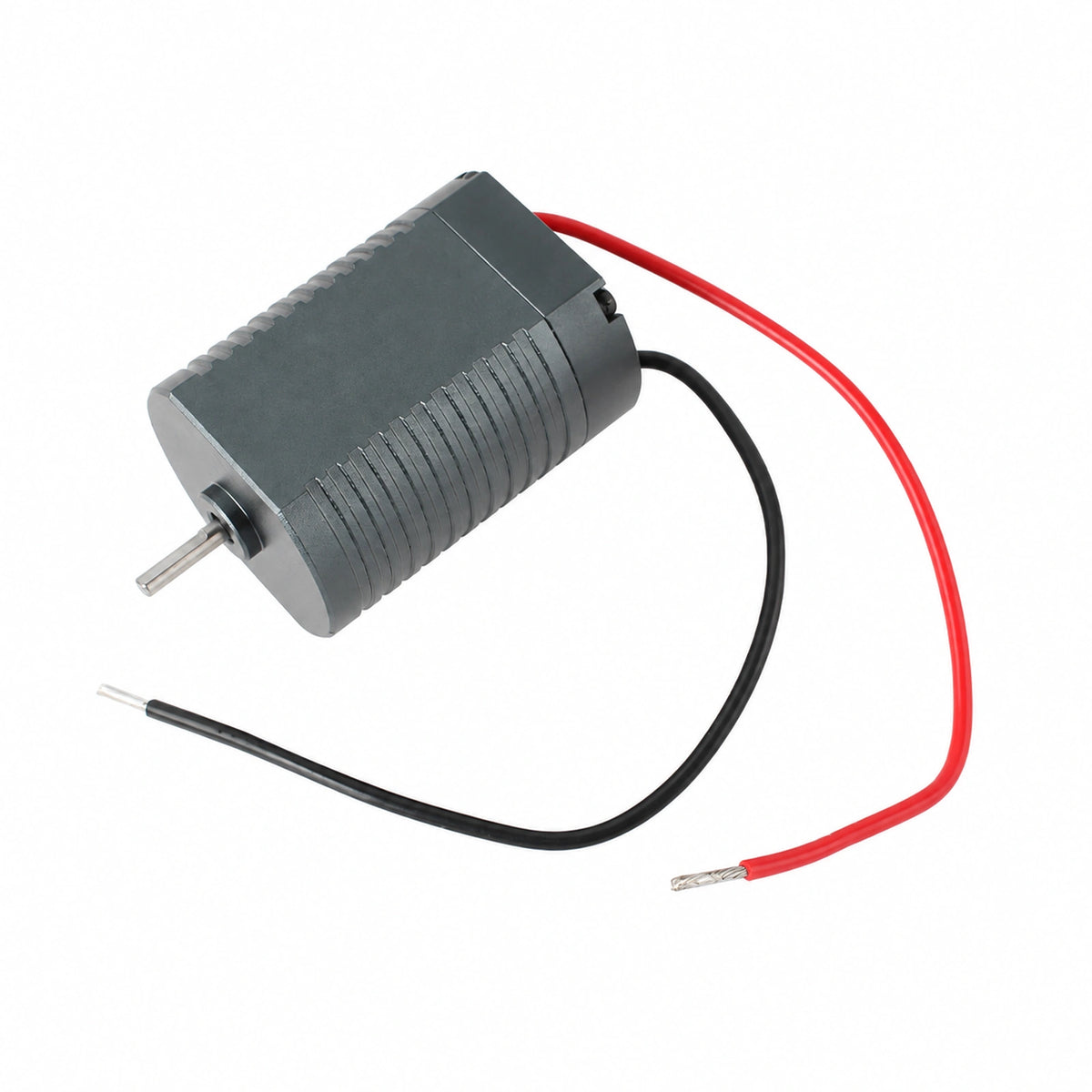

The BL370-F is a compact high-speed brushless DC motor designed for applications requiring high rotational speed, compact dimensions, and direct DC power connection.
The motor integrates its brushless driver electronics, eliminating the need for a separate external ESC or brushless motor driver. At 11.1V, the motor reaches a no-load speed of up to 44,000 RPM.
Built with N50UH neodymium magnets and a compact 43.6 × 24 × 19.7 mm body, the BL370-F is suitable for compact robotic mechanisms, high-speed rotating equipment, experimental devices, and custom automation projects.
A 2 mm D-shaped output shaft provides secure mechanical coupling, while the 75 mm 20AWG power leads simplify electrical integration.
Key Features
- High-speed brushless DC motor
- 11.1V rated operating voltage
- Up to 44,000 RPM no-load speed
- Built-in brushless motor driver
- No external brushless driver required
- N50UH neodymium permanent magnets
- Compact 43.6 × 24 × 19.7 mm body
- 2 mm D-shaped output shaft
- 9.5 mm output shaft length
- Maximum efficiency of 72.02%
- Up to 168.5W output at the maximum-power operating point
- Compact design for high-speed robotic and mechanical applications

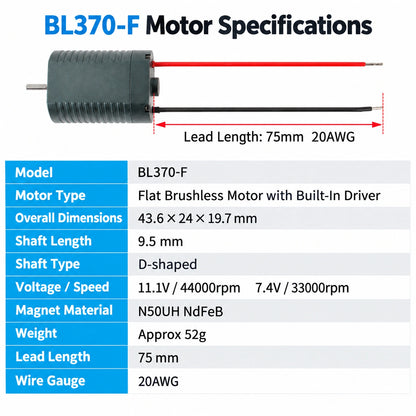

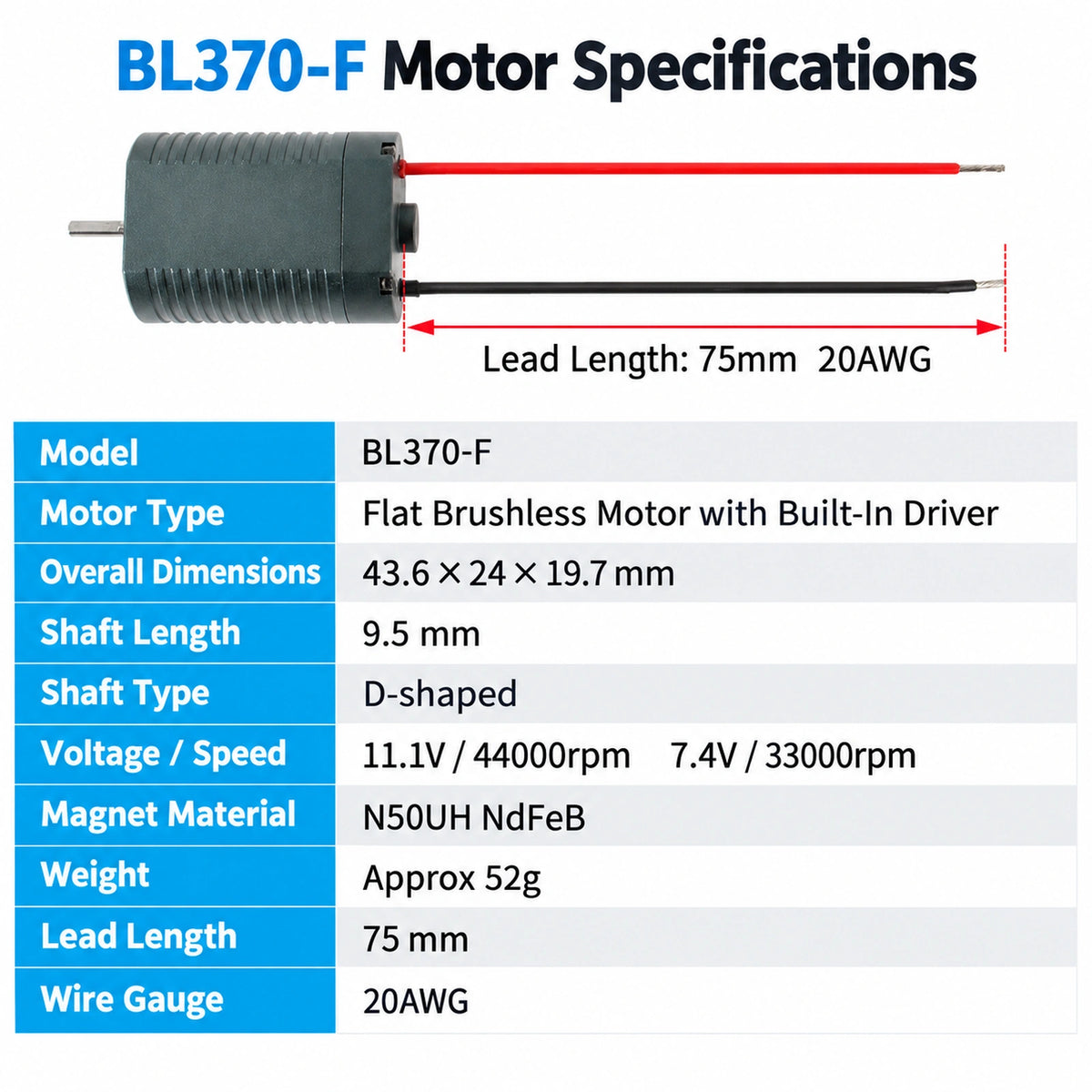

Specifications
| Specification | Value |
|---|---|
| Model | BL370-F |
| Motor Type | Brushless DC Motor |
| Driver | Built-in Brushless Driver |
| Rated Voltage | DC 11.1V |
| No-Load Speed | 44,000 RPM |
| No-Load Current | 1.00A |
| Stall Torque | 146.2 mN·m |
| Stall Current | 66.9A |
| Motor Dimensions | 43.6 × 24 × 19.7 mm |
| Output Shaft | D-Shaped Shaft |
| Shaft Diameter | 2.0 mm |
| Shaft Length | 9.5 mm |
| Magnet Material | N50UH Neodymium Magnet |
| Motor Weight | Approx. 52g |
| Wire Length | Approx. 75 mm |
| Wire Gauge | 20AWG |

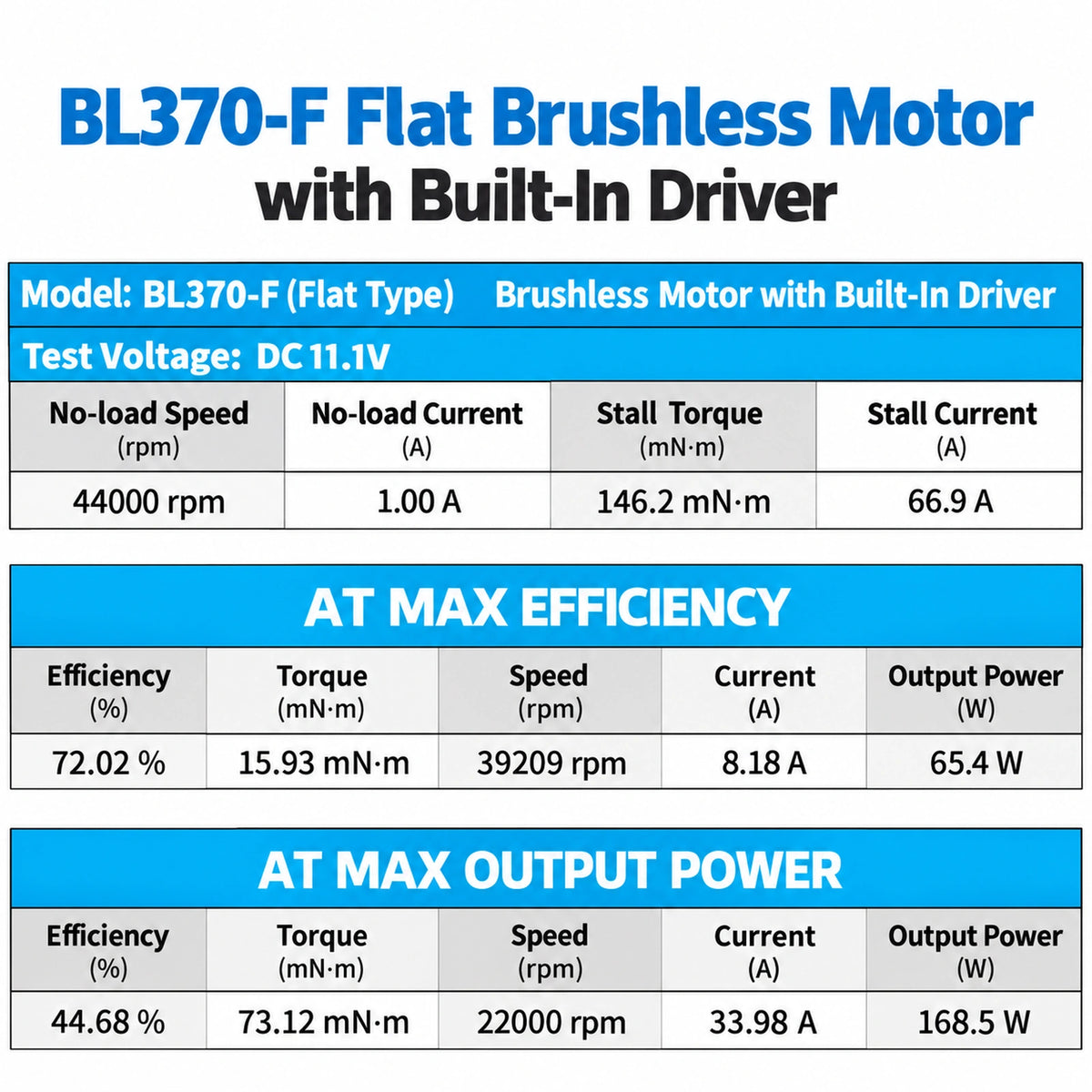

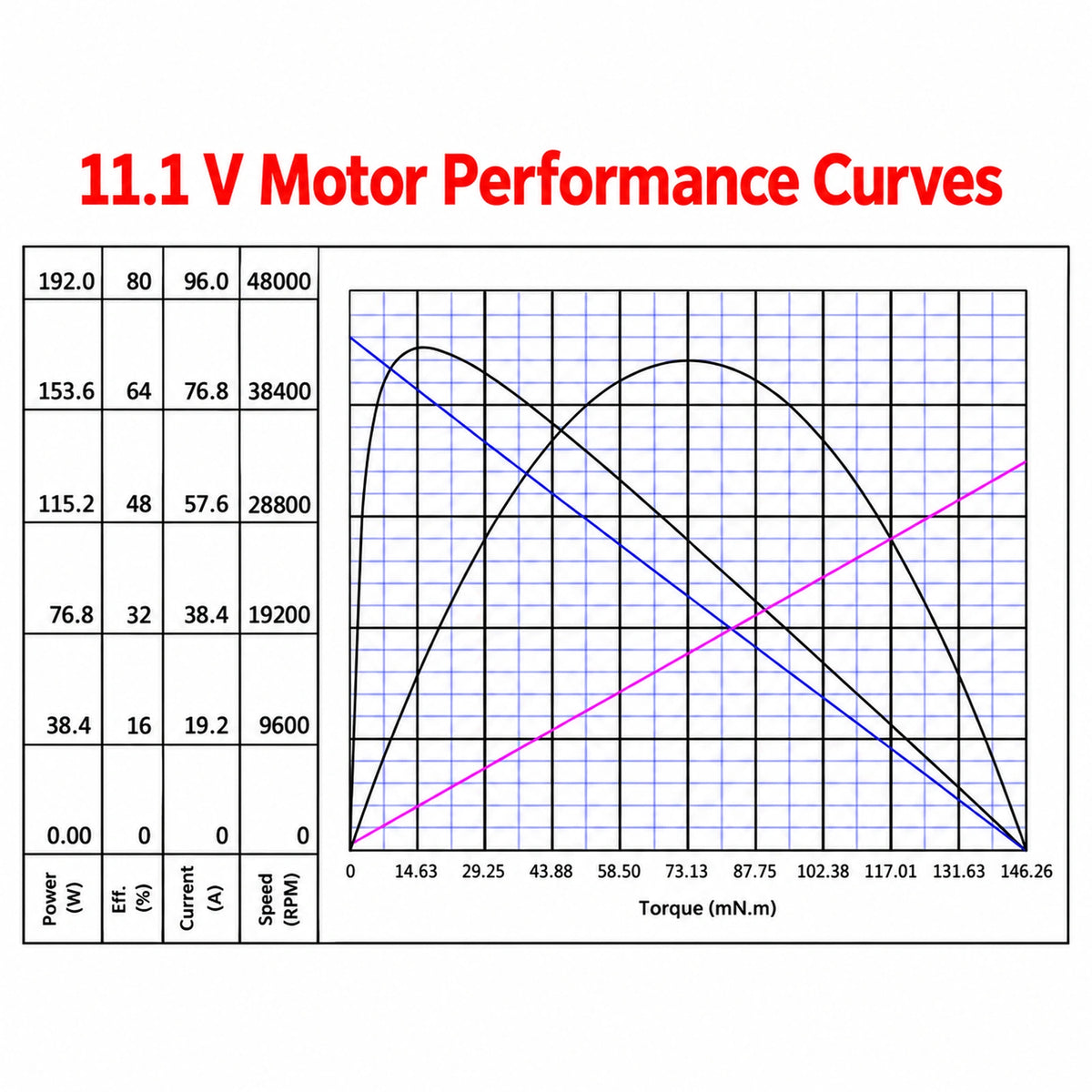

Performance at Maximum Efficiency
| Parameter | Value |
|---|---|
| Efficiency | 72.02% |
| Torque | 15.93 mN·m |
| Speed | 39,209 RPM |
| Current | 8.18A |
| Output Power | 65.4W |
Performance at Maximum Output Power
| Parameter | Value |
|---|---|
| Efficiency | 44.68% |
| Torque | 73.12 mN·m |
| Speed | 22,000 RPM |
| Current | 33.98A |
| Output Power | 168.5W |

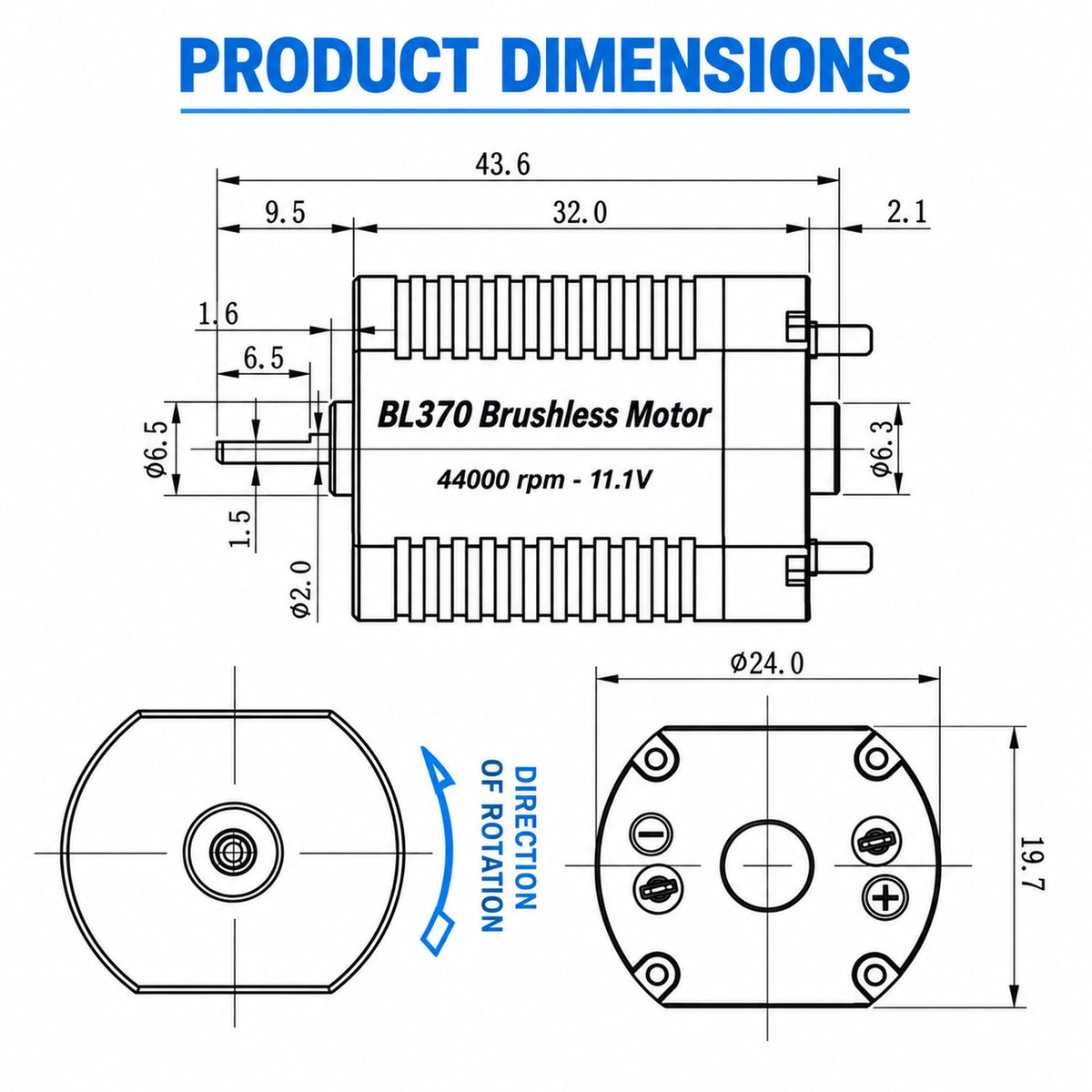

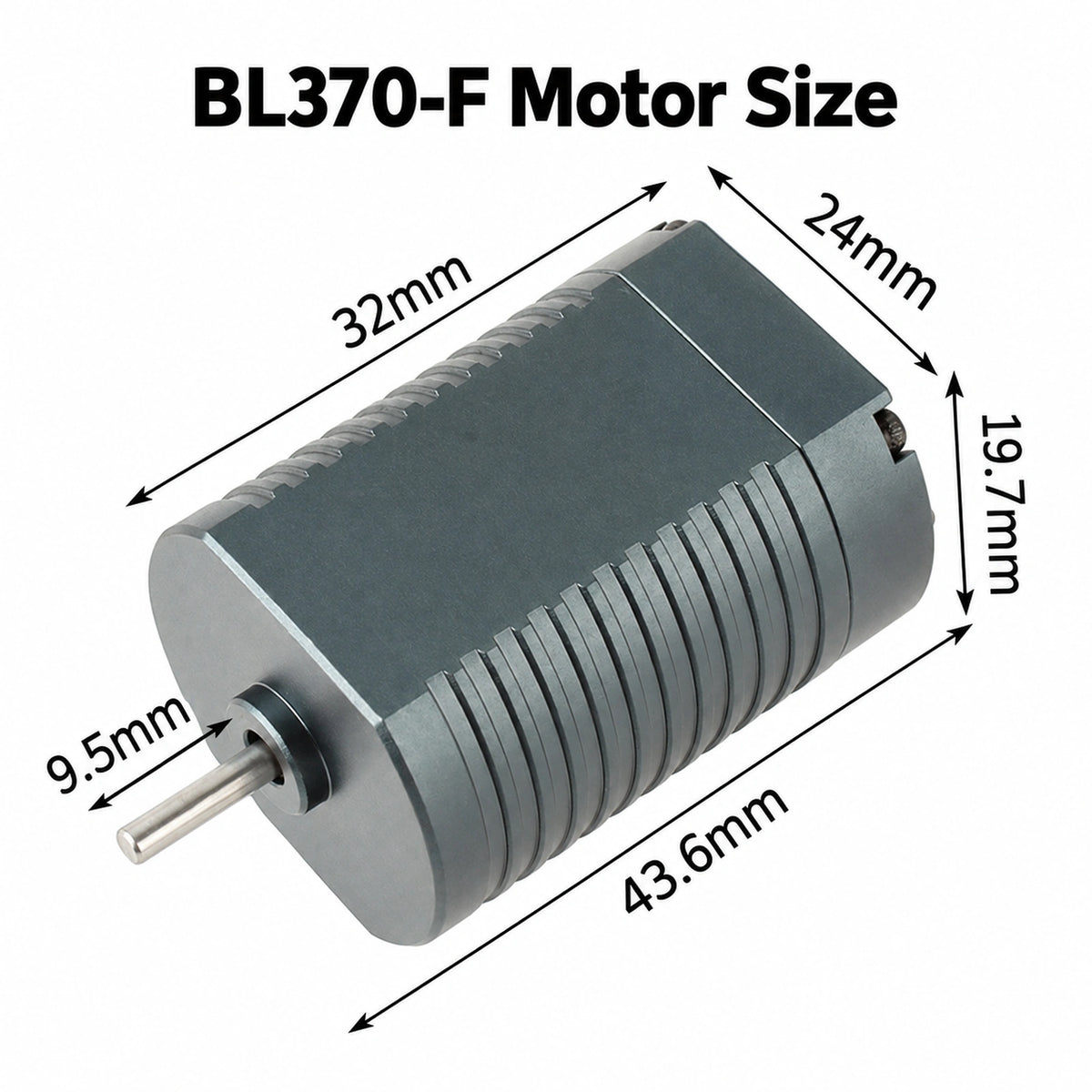

Dimensions
| Dimension | Value |
|---|---|
| Overall Motor Length | 43.6 mm |
| Main Body Length | 32.0 mm |
| Motor Width | 24.0 mm |
| Motor Height | 19.7 mm |
| Output Shaft Length | 9.5 mm |
| Output Shaft Diameter | 2.0 mm |
| Rear Shaft Diameter | 6.3 mm |
Applications
Suitable for high-speed robotics, compact automation mechanisms, experimental equipment, high-speed rotating mechanisms, DIY robotic projects, and other applications requiring a compact high-RPM brushless DC motor.
Package Includes
1 × BL370-F Brushless DC Motor with Built-in Driver
FAQ
Does this motor require an external brushless motor driver?
No. The BL370-F has a built-in brushless driver.
What is the no-load speed at 11.1V?
The specified no-load speed is 44,000 RPM.
What type of output shaft does it use?
It uses a 2 mm diameter D-shaped shaft with a 9.5 mm output length.
What is the motor weight?
Approximately 52g.
Can the motor be operated continuously at the stall condition?
No. Stall specifications represent a boundary operating condition and should not be treated as a continuous operating point.
