Overview

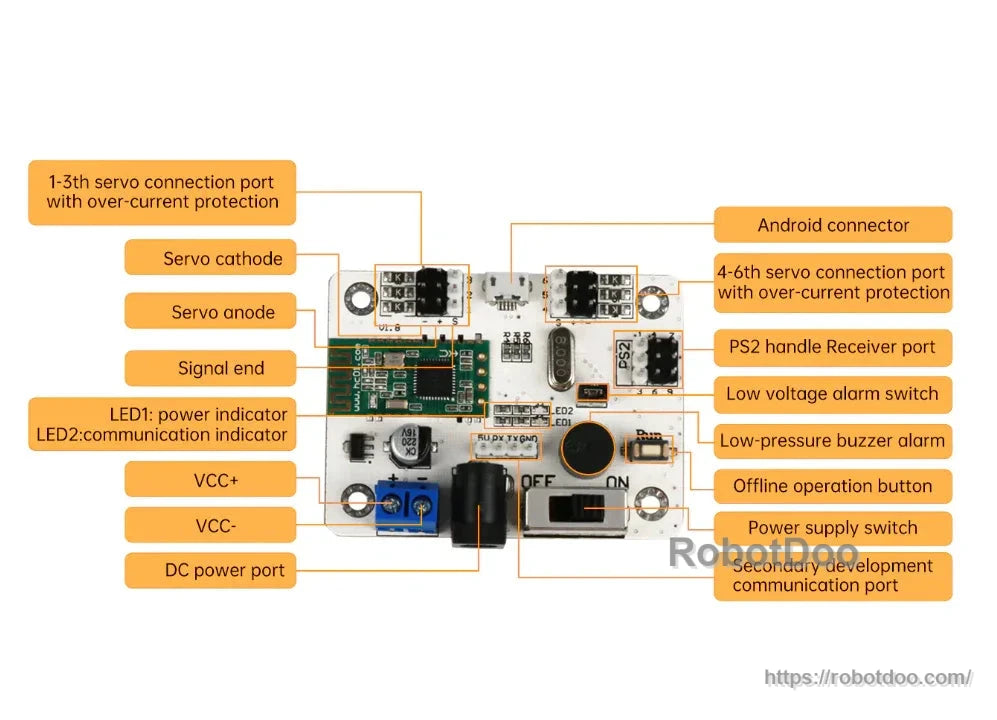

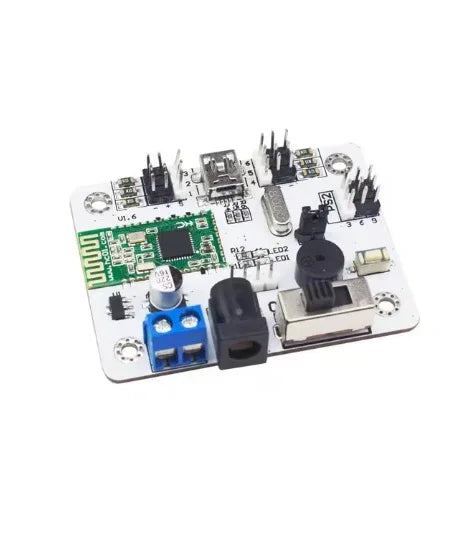

The 6 Channel Bluetooth 4.0 Servo Controller Module is designed for DIY robots and robotic arms. It supports remote control through an Android mobile phone app, PS2 controller input, online graphical programming, and serial communication through a reserved serial port.
Key Features
- Bluetooth 4.0 connectivity for Android mobile phone app control
- PS2 controller support
- Online graphical programming support
- Reserved serial port with a communication baud rate of 9600
- 5 mm DC power interface
- Low-voltage alarm
- Built-in switch
- Over-current protection
- Signal insulation protection
- External MP3 module connection
For product setup and application assistance, contact customer service at robotdoo.com.
Specifications
| Product type | 6 Channel Bluetooth 4.0 Servo Controller Module |
|---|---|
| Bluetooth | 4.0 |
| PS2 controller | Supported |
| Storage space | 16M |
| Graphical programming | Supported |
| MCU | Supported |
| Low-voltage alarm | Supported |
| Built-in switch | Supported |
| Over-current protection | Supported |
| Signal insulation protection | Supported |
| MP3 module | External connection |
| Communication baud rate | 9600 |
| Module size | 58 mm x 42 mm |
| Mounting size | 49 mm x 34 mm |
| Weight | 20 g |
