Description

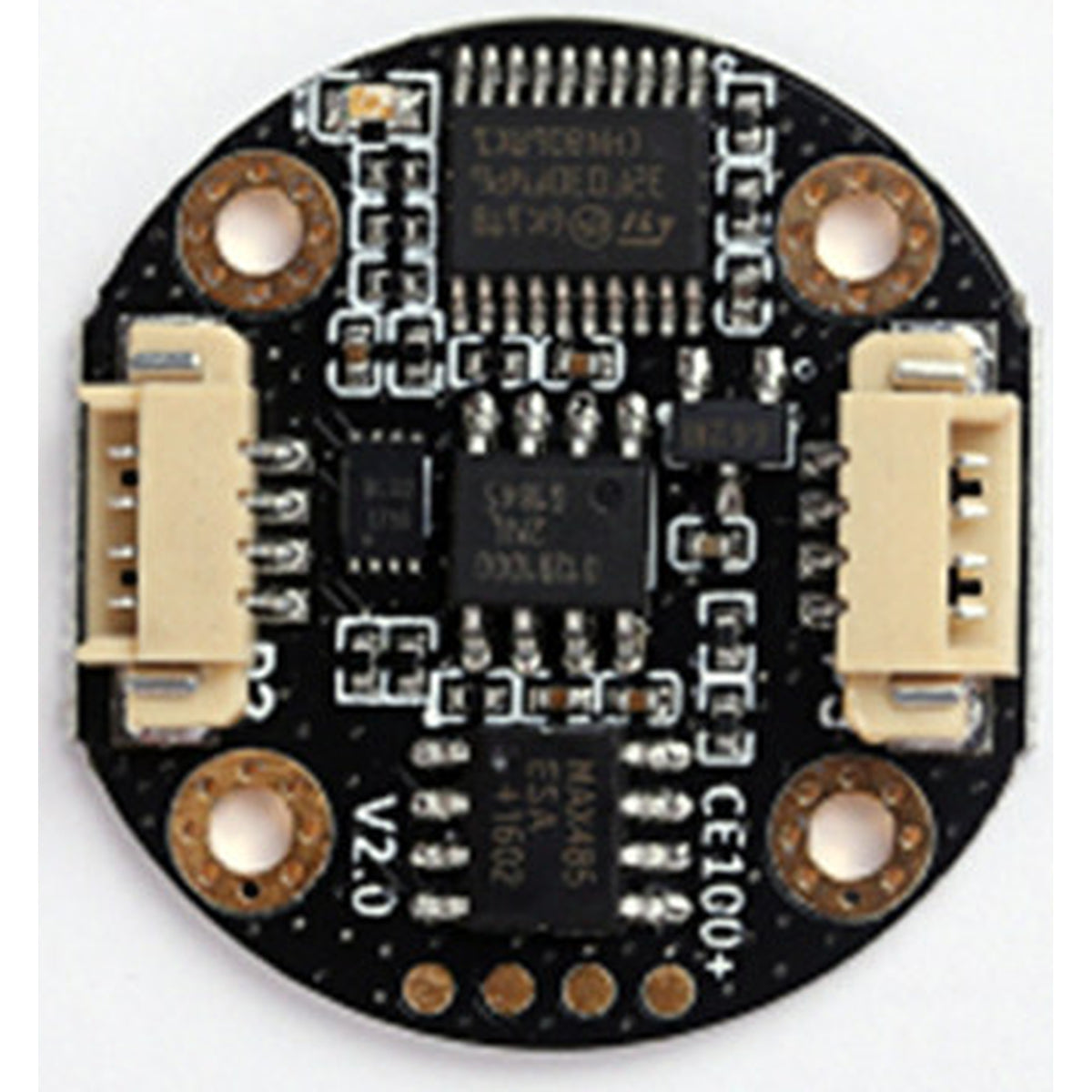

The CE100+ is a single-turn absolute magnetic rotary encoder designed for angular position, rotation and speed measurement applications.
It uses a 32-bit microcontroller together with a 15-bit magnetic encoder and provides both RS485 and TTL communication interfaces. The encoder supports a custom communication protocol and Modbus RTU.
The CE100+ operates from a 4.5–12V DC power supply and features a compact 24 × 24 mm PCB. Encoder parameters including device address, communication baud rate and rotation direction can be configured through the host software or custom protocol.
For proper magnetic sensing performance, the encoder PCB, magnetic encoder chip and matching diametrical magnet should be installed on the same axis.
Key Features
- 15-bit single-turn absolute magnetic encoder
- RS485 communication interface
- TTL communication interface
- Modbus RTU support
- Custom communication protocol support
- 4.5–12V DC operating voltage
- Configurable device address
- Configurable communication baud rate
- Configurable rotation direction
- Compact 24 × 24 mm PCB
- 1.25 mm 4-pin connector
- M2 mounting holes
- Host software available for configuration and testing
Specifications
| Specification | CE100+ |
|---|---|
| Product Type | Absolute Magnetic Rotary Encoder |
| Measurement Type | Single-Turn Absolute Position |
| Encoder Resolution | 15-bit |
| Microcontroller | 32-bit MCU |
| Communication Interface | RS485 / TTL |
| Communication Protocol | Custom Protocol / Modbus RTU |
| Operating Voltage | 4.5–12V DC |

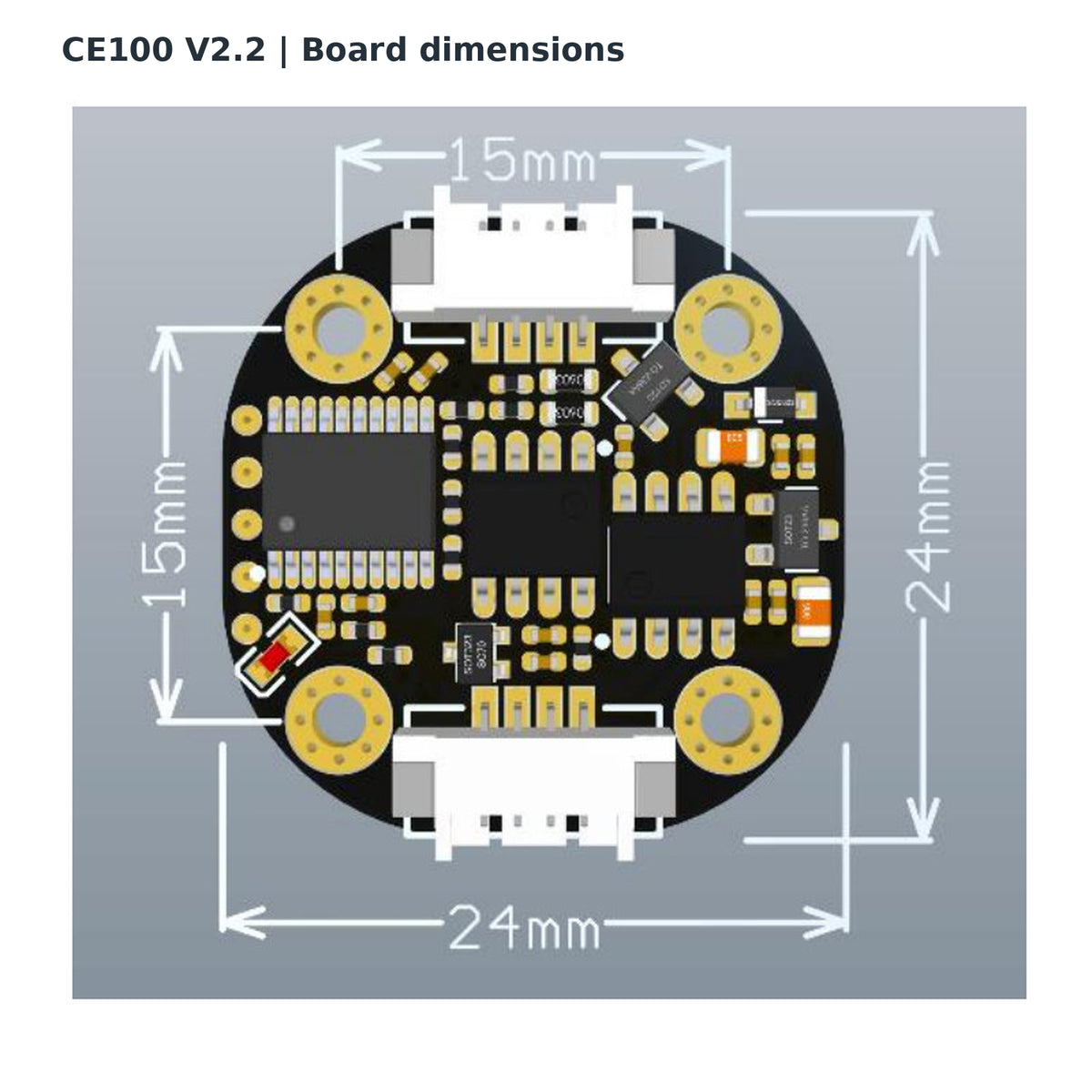

| PCB Size | 24 × 24 mm |
| Connector | 1.25 mm 4-Pin |
| Mounting Hole | M2 |
| Mounting Hole Diameter | 2.1 mm |
| Configurable Parameters | Address / Baud Rate / Rotation Direction |

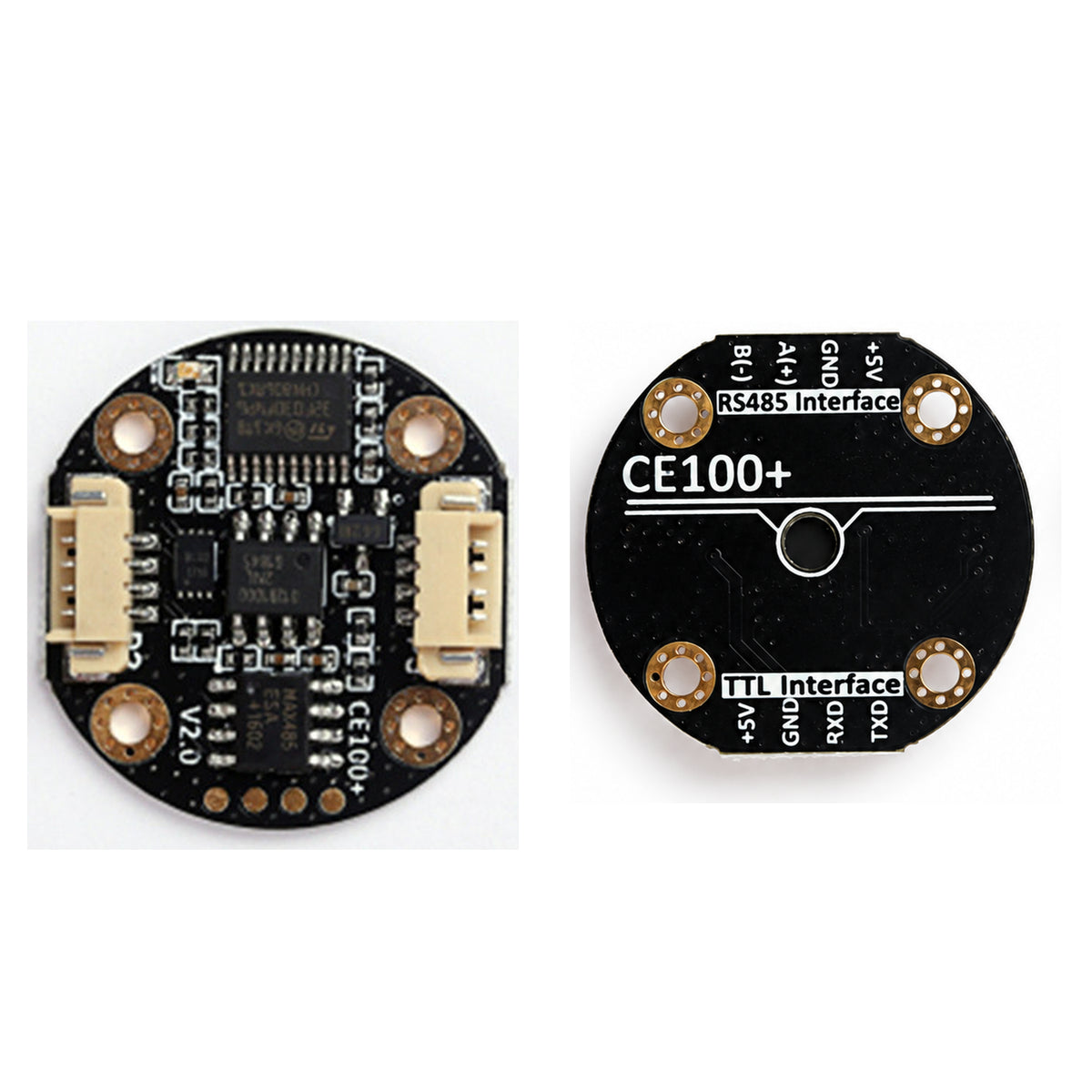

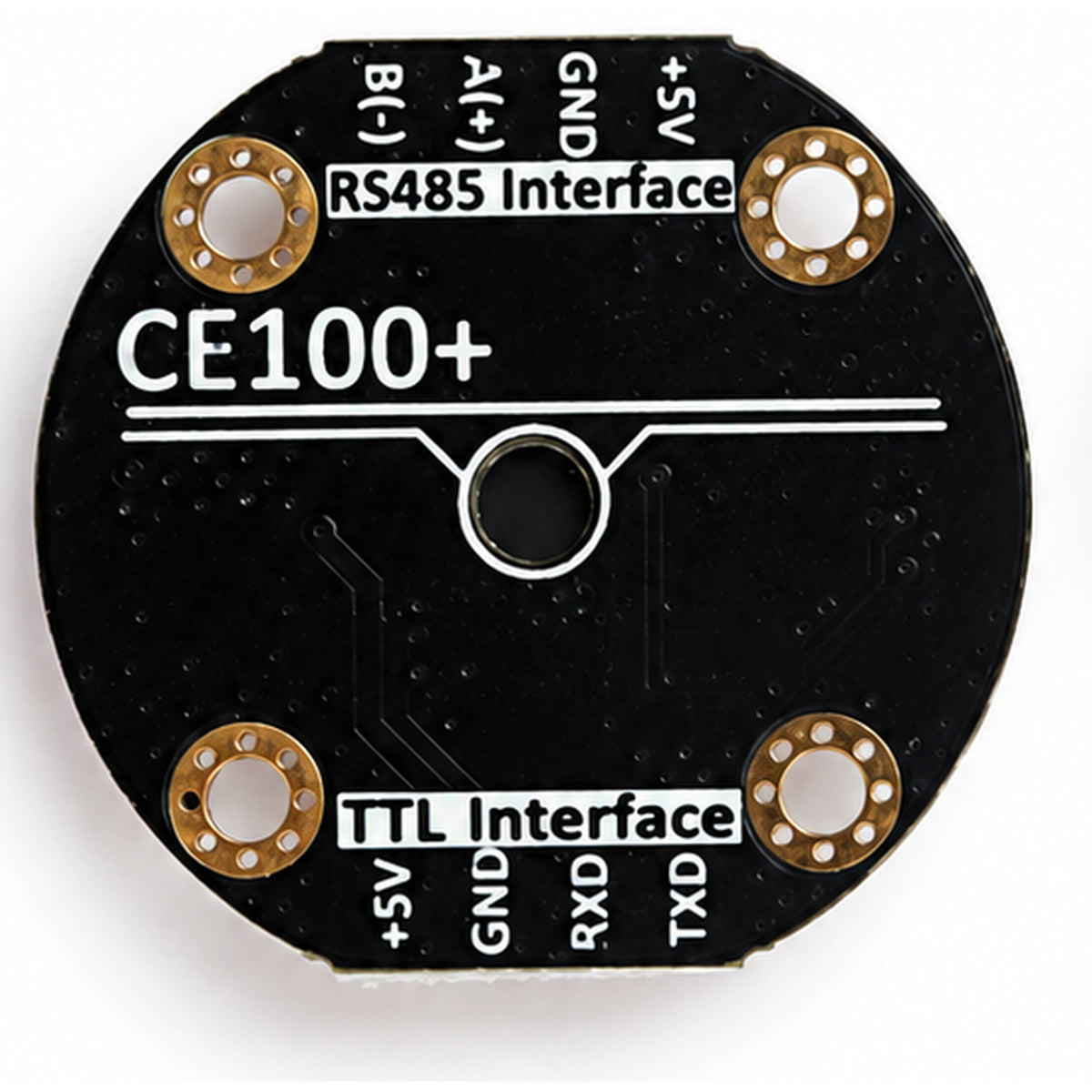

Interface
RS485 Interface
- +5V
- GND
- A(+)
- B(-)
TTL Interface
- +5V
- GND
- RXD
- TXD

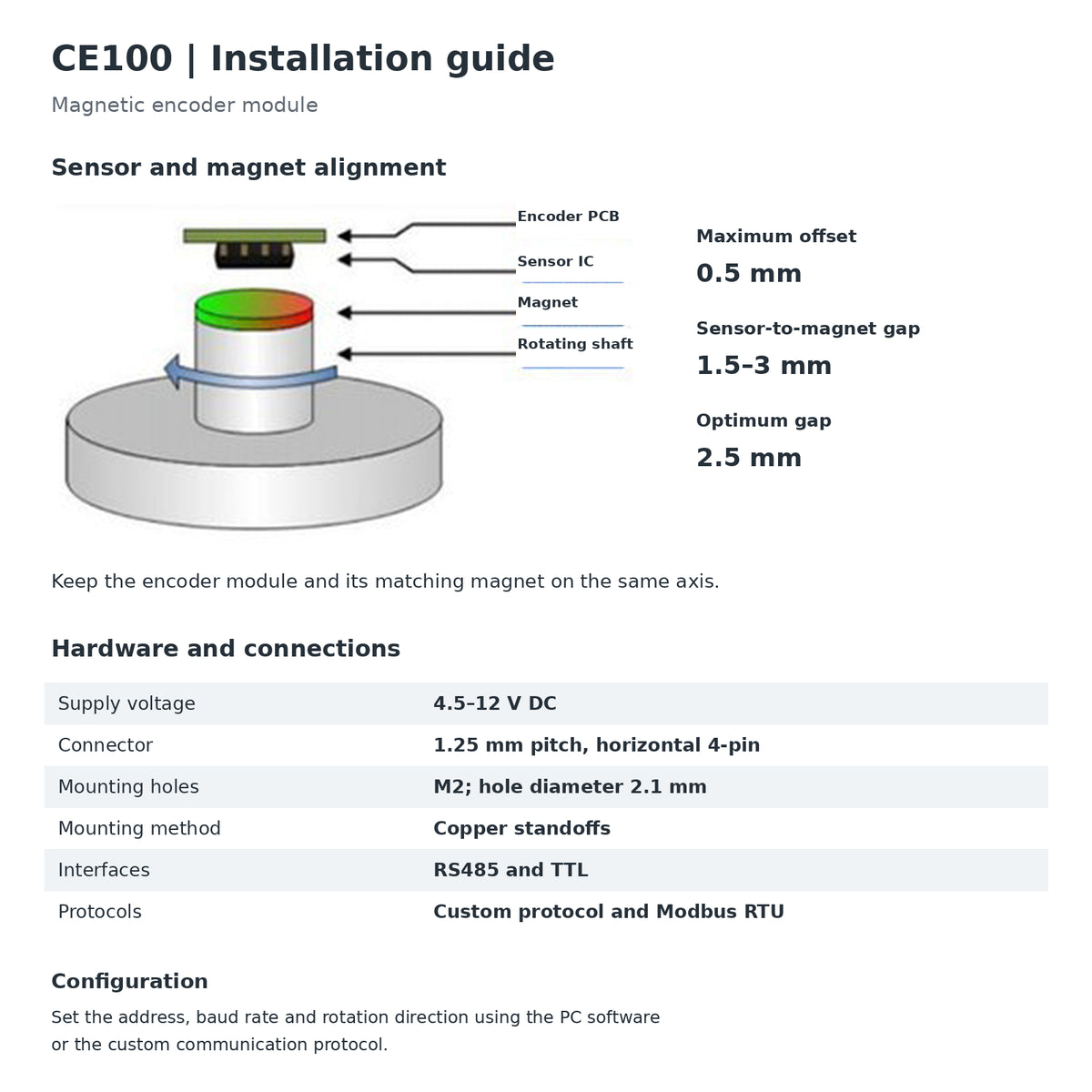

Installation Requirements
For optimal encoder performance, the encoder PCB, magnetic sensing chip and diametrical magnet should be installed concentrically on the same axis.
| Installation Parameter | Requirement |
|---|---|
| Maximum Lateral Offset | 0.5 mm |
| Recommended Magnet-to-Chip Distance | 1.5–3 mm |
| Optimal Magnet-to-Chip Distance | 2.5 mm |

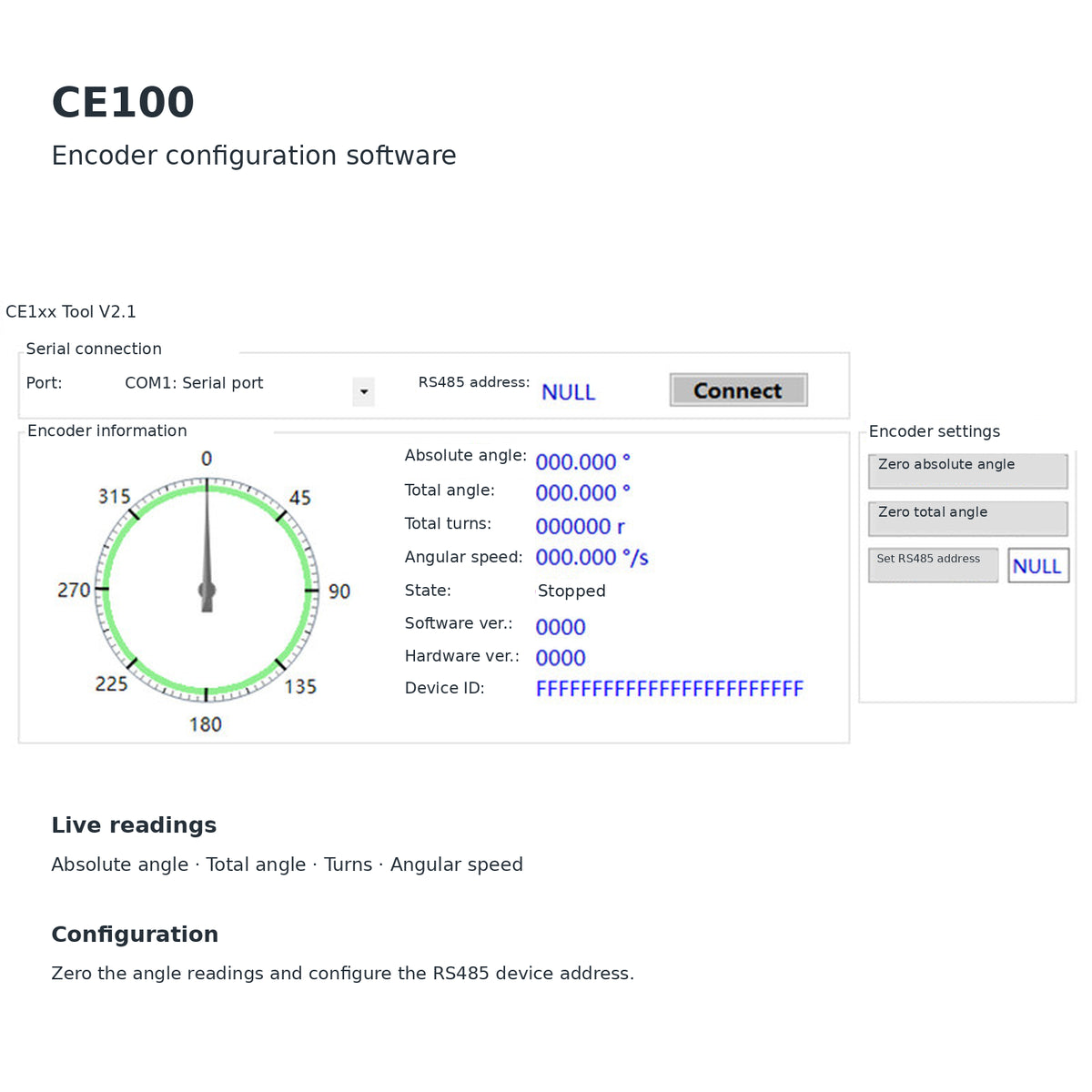

Software Configuration
The CE100+ can be connected to host software for encoder status monitoring and parameter configuration.
Supported configurable parameters include:
- Encoder device address
- Communication baud rate
- Rotation direction
The encoder supports both custom communication protocol and Modbus RTU.
Applications
- Angle measurement systems
- Position detection equipment
- Speed measurement equipment
- Servo motors
- Machine tools
- Tachometers
- Industrial robots
- Motion-control systems

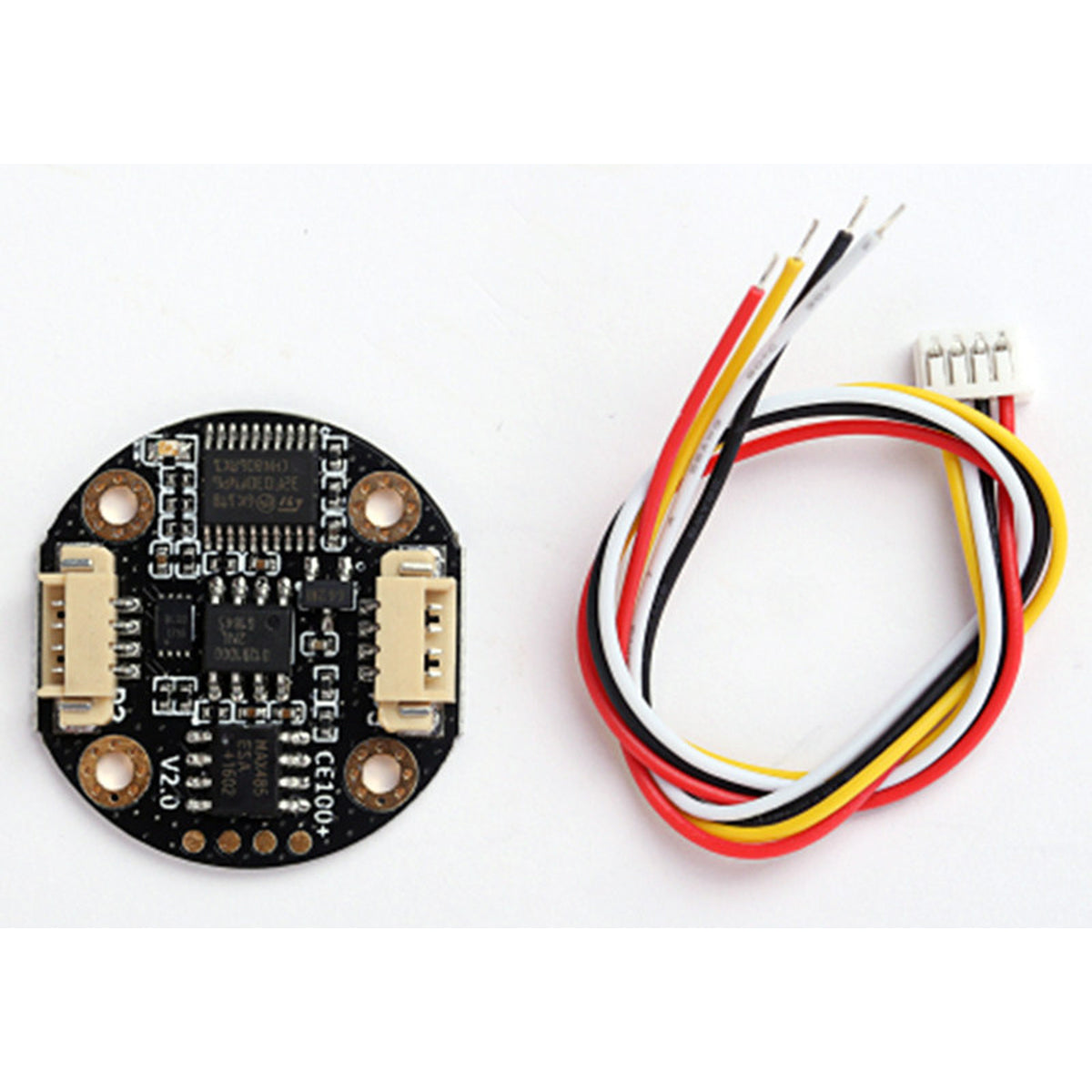

Package Includes
- CE100+ encoder module
FAQ
Is the CE100+ an absolute encoder?
Yes. The supplied documentation identifies it as a 15-bit single-turn absolute magnetic encoder.
What communication interfaces are supported?
The CE100+ provides RS485 and TTL interfaces.
Does it support Modbus RTU?
Yes. The supplied documentation states that both a custom communication protocol and Modbus RTU are supported.
What is the operating voltage?
The documented operating voltage is 4.5–12V DC.
Can the RS485 address be configured?
Yes. The encoder address can be configured through the host software or custom protocol.
Can the communication baud rate be changed?
Yes. The supplied documentation states that the communication baud rate is configurable.
Can the rotation direction be configured?
Yes. Rotation direction is listed as a configurable parameter.
What is the encoder resolution?
The encoder resolution is 15-bit.
