DESCRIPTION

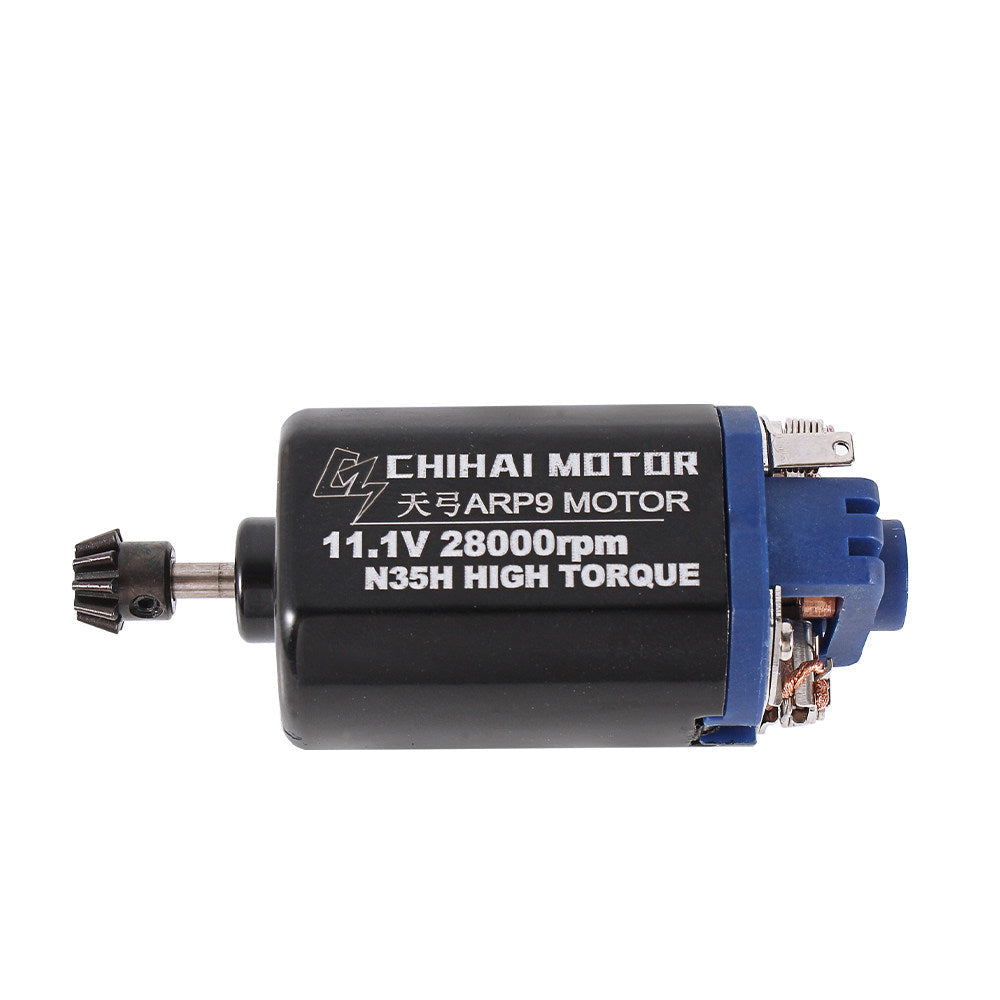

The CHIHAI ARR9 460 High Torque Motor is a performance-focused brushed DC motor designed for high-power RC, airsoft AEG upgrades, and DIY electric drive applications. Featuring a durable steel cut pinion gear, N35H high-performance neodymium magnet, ball bearing support structure, and dynamic balanced armature, this motor delivers stable mid-speed torque with strong acceleration and consistent output.
The 11.1V 28000RPM version is optimized for high torque and stable performance, while the optional 35000RPM version is designed for higher speed applications. The compact 460 motor structure includes a sealed plated housing, high-performance carbon brushes, and a heat-resistant nylon end cap for improved durability under demanding conditions.
Suitable for upgraded gearbox systems, high-speed electric builds, hobby projects, and custom drive systems.
KEY FEATURES
- High torque 460 brushed motor
- CHIHAI ARR9 motor series
- DC 11.1V operation
- 28000RPM high torque configuration
- Steel cut pinion gear included
- N35H high-performance neodymium magnet
- Ball bearing support structure
- Dynamic balanced armature
- High-performance wear-resistant carbon brushes
- Sealed plated motor housing
- Heat-resistant nylon end cap
- Stable mid-speed power output
- Suitable for RC and electric hobby upgrades
SPECIFICATIONS
| Item | Specification |
|---|---|
| Brand | CHIHAI MOTOR |
| Model | ARR9 |
| Motor Type | 460 Brushed DC Motor |
| Rated Voltage | DC 11.1V |
| No-Load Speed | 28000RPM |
| Optional Speed Version | 35000RPM |
| Magnet Type | N35H Neodymium Magnet |
| Gear Type | Steel Cut Pinion Gear |
| Bearing Structure | Ball Bearing |
| Housing Type | Sealed Plated Housing |
| End Cap Material | Heat-Resistant Nylon |
| Brush Type | High Performance Carbon Brush |

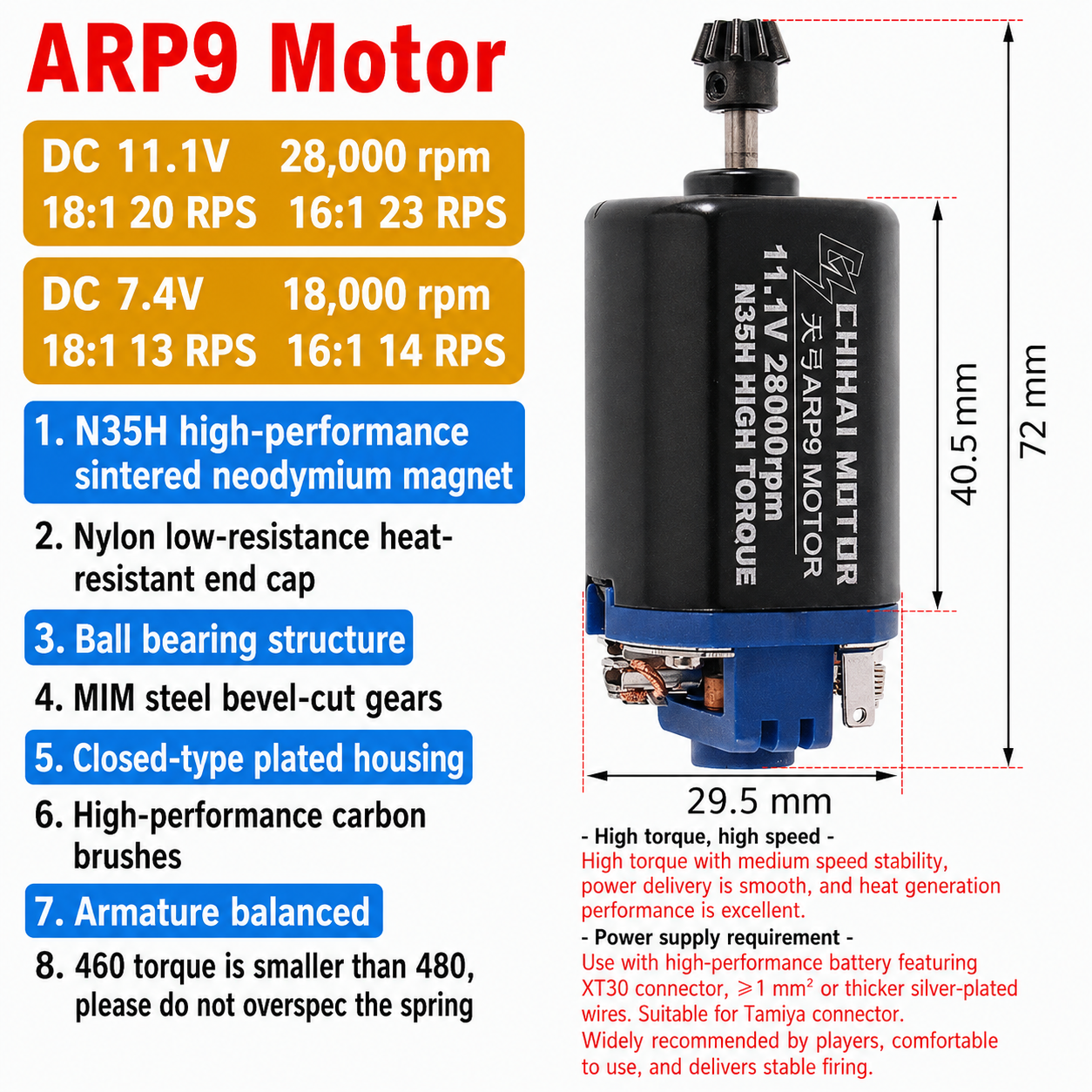

| Width | 29.5mm |
| Motor Body Length | 40.5mm |
| Overall Length | 72mm |
| Pinion Gear Length | 18.5mm |
VARIANT INFORMATION
ARR9 28000RPM Version
| Voltage | Speed |
|---|---|
| DC 11.1V | 28000RPM |
| DC 7.4V | 18000RPM |
Recommended Gear Ratio
- 13:1 ~ 16:1
- 18:1 response approximately 20 RPS
- 16:1 response approximately 23 RPS
Characteristics
- High torque
- Stable mid-speed power
- Smooth performance
- Better thermal stability under load

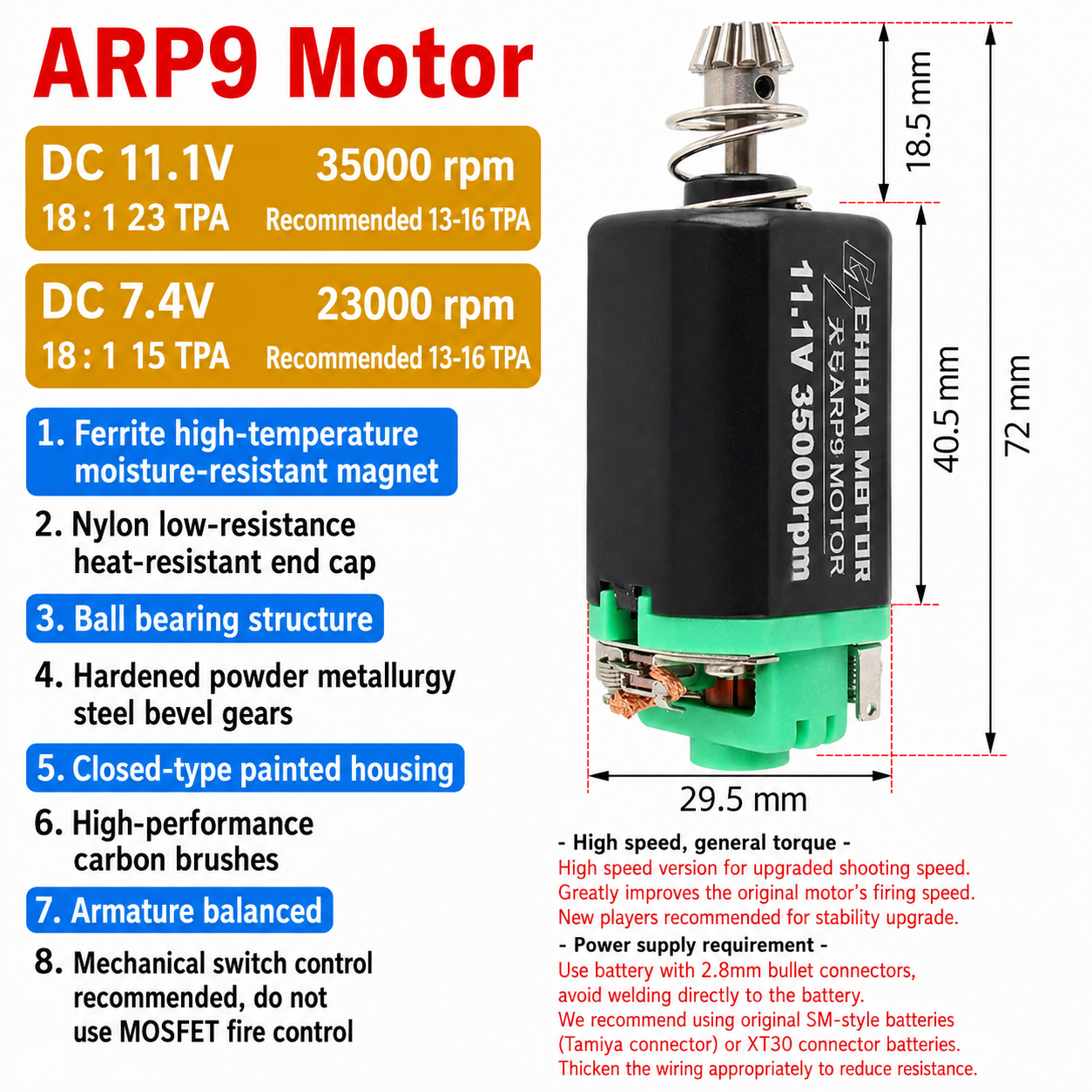

ARR9 35000RPM Version
| Voltage | Speed |
|---|---|
| DC 11.1V | 35000RPM |
| DC 7.4V | 23000RPM |
Characteristics
- Higher speed configuration
- Fast trigger response
- Recommended for speed builds
- Not recommended for low gear ratios below 13:1
PRODUCT HIGHLIGHTS
N35H High Performance Magnet
Strong neodymium magnetic structure provides enhanced torque and acceleration.
Heat Resistant Nylon End Cap
Low thermal conductivity nylon rear cover improves heat resistance and stability.
Ball Bearing Structure
Precision bearing support helps improve rotational stability and efficiency.
Steel Cut Pinion Gear
Durable MIM steel cut pinion gear designed for high-load transmission systems.
High Performance Carbon Brushes
Imported wear-resistant carbon brushes improve conductivity and service life.
Dynamic Balanced Armature
Balanced armature design reduces vibration and improves smooth operation.
APPLICATIONS
- Airsoft AEG gearbox upgrades
- RC vehicle modifications
- DIY electric projects
- High torque drive systems
- Hobby electronics
- High-speed motor builds
- Robotics projects
- Related Collections→
IMPORTANT NOTES
- High-performance batteries are recommended
- XT30 connector configuration is suggested
- Thick silver-plated wiring improves power delivery
- Continuous heavy load operation may increase motor temperature
- Mechanical switch control is recommended for high-speed configurations
PACKAGE INCLUDES
- 1 × CHIHAI ARR9 460 Motor
- 1 × Steel Cut Pinion Gear
