DESCRIPTION
The CHIHAI CHF-130WH series is a compact high-performance brushed DC motor lineup designed for high-speed and high-torque electric applications. Featuring multiple TPA winding configurations including 23TPA, 30TPA, and 50TPA variants, this motor series provides different speed and torque characteristics for RC toys, flywheel systems, DIY robotics, and custom electric projects.
Built with neodymium magnetic structure, precision armature balancing, and compact 130-size construction, the CHF-130WH motor series delivers stable power output and fast response in lightweight applications.
The 50TPA version focuses on higher torque and balanced output, while the 30TPA and 23TPA versions are optimized for ultra-high-speed operation.
KEY FEATURES
- CHF-130WH high-performance motor series
- Multiple TPA variants available
- High-speed brushed DC motor
- Compact 130-size structure
- Neodymium magnetic design
- Lightweight metal housing
- High torque output
- High RPM performance
- Suitable for flywheel systems
- Stable rotational performance
- Compact DIY power solution
- RC and electric hobby compatible

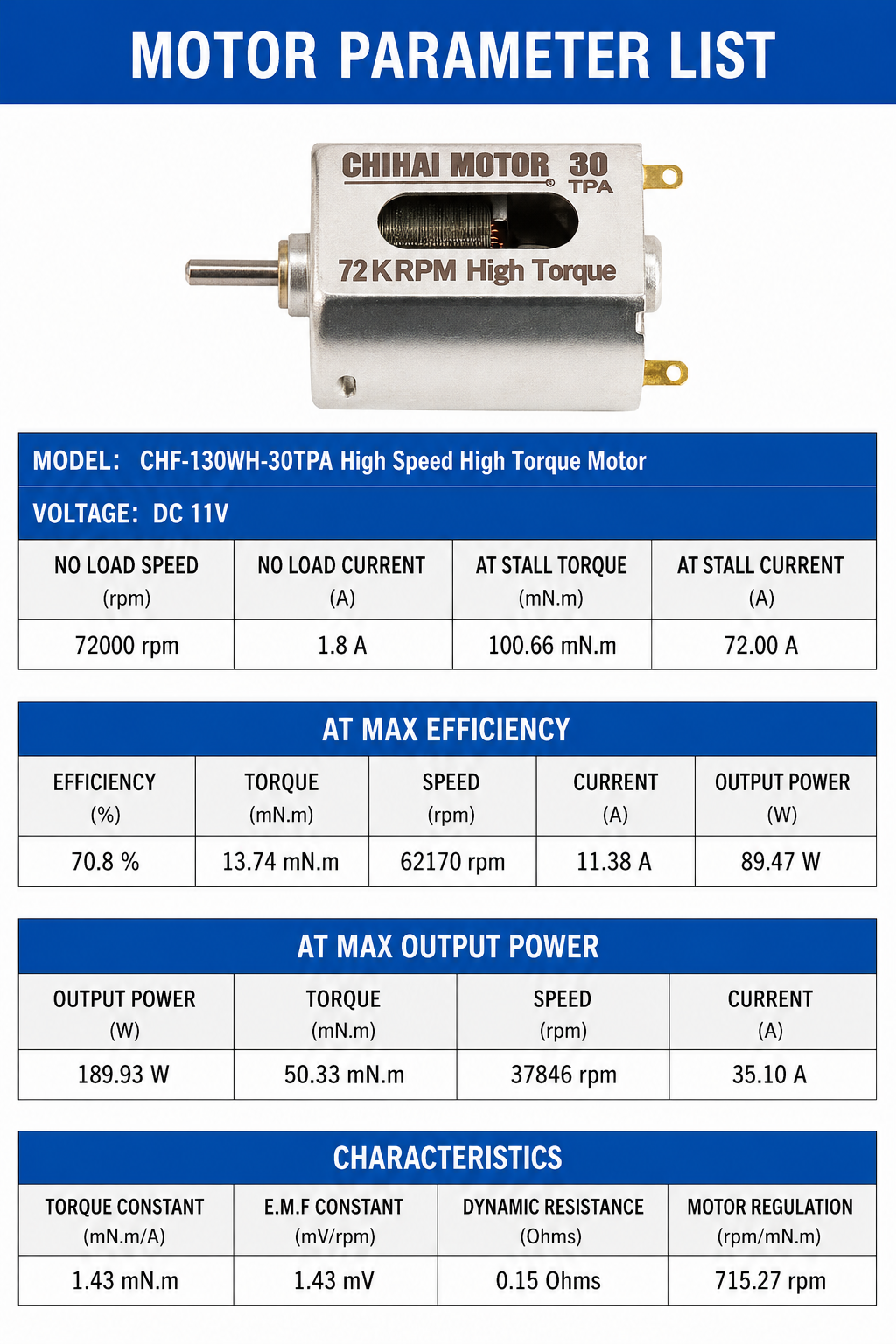

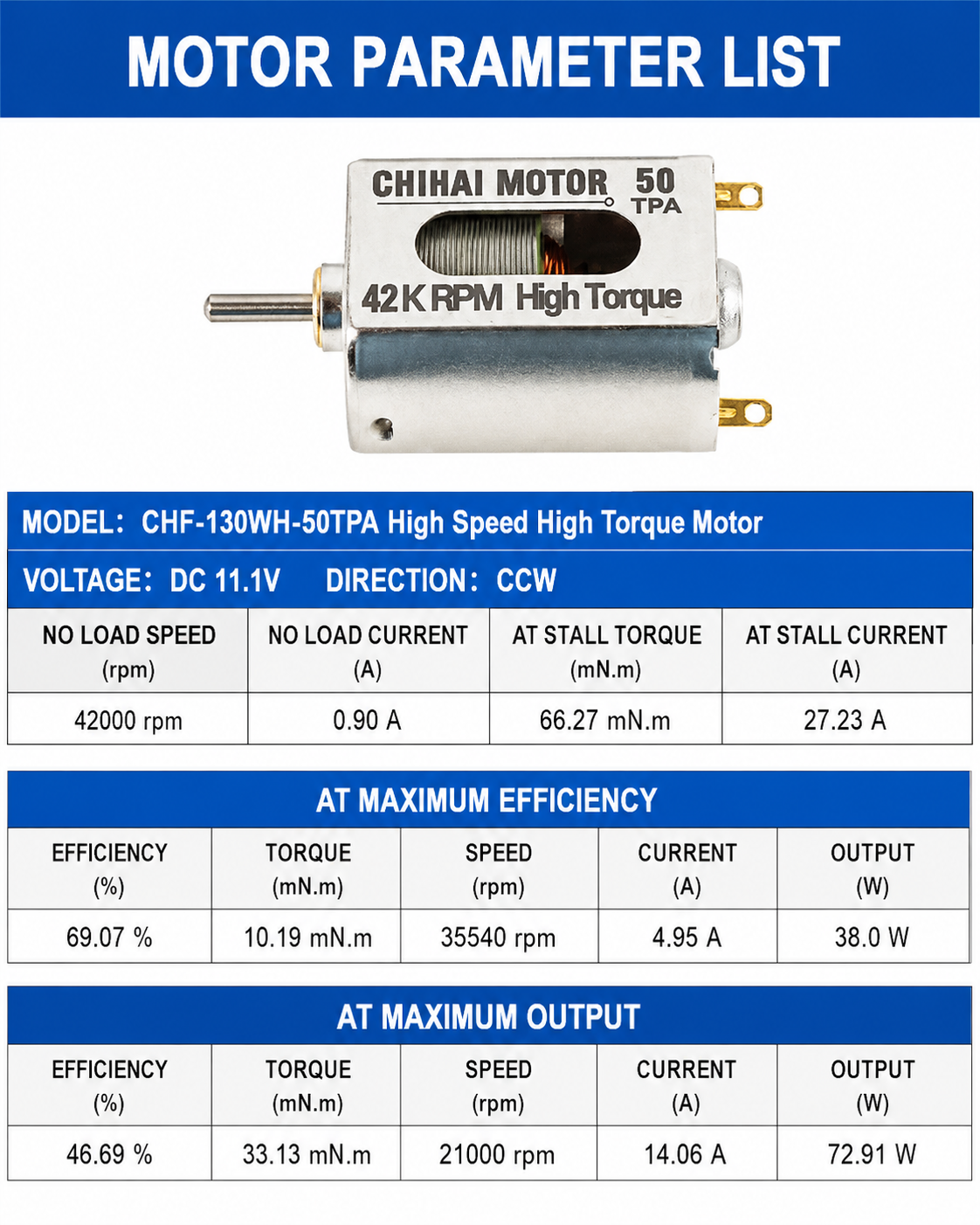

SPECIFICATION
DIMENSIONS
| Item | Size |
|---|---|
| Motor Length | 37mm |
| Motor Width | 20.4mm |
| Motor Thickness | 15.4mm |
| Shaft Diameter | 2mm |
| Shaft Length | 9.8mm |
APPLICATIONS
- Flywheel launch systems
- RC toy upgrades
- DIY robotics
- High-speed electric projects
- Hobby electronics
- Compact power systems
- RC vehicle modifications
- Electric toy motors
- Related Collections→
IMPORTANT NOTES
- Long continuous operation is not recommended
- Suggested runtime per cycle is within 10 seconds
- Proper cooling is recommended under heavy load
- High-current batteries improve performance
- Suitable wiring setup is recommended for high-speed variants
PACKAGE INCLUDES
Standard Version
- 1 × CHF-130WH Motor
Motor + Connector Wire Version
- 1 × CHF-130WH Motor
- 1 × Connector Wire Set
