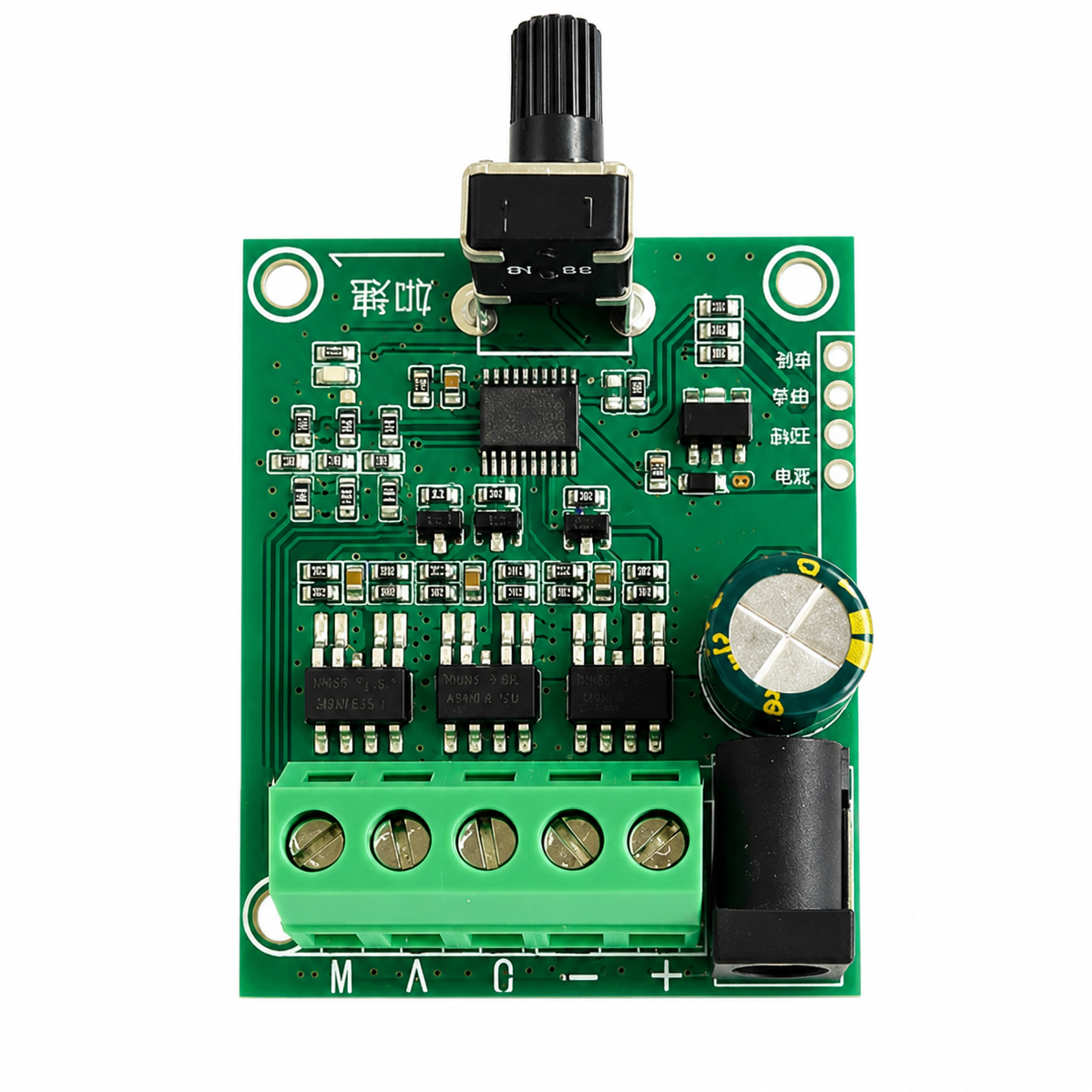

Product Description
The CT BLDC2475 is a compact 5-24V 75W sensorless brushless DC motor driver controller designed for small three-phase BLDC motors. It supports stable speed regulation, forward and reverse rotation control, brake functionality, and external stop control, making it suitable for robotics, cooling systems, automation devices, DIY motor projects, spindle applications, and embedded motion control systems.
This BLDC controller adopts a sensorless drive solution, eliminating the need for Hall sensors while maintaining reliable motor operation for compatible brushless DC motors. The integrated potentiometer speed control allows smooth motor adjustment, while the compact PCB structure makes installation convenient in space-limited applications.
Ideal for robot drive systems, cooling fan motors, hard drive spindle motors, small electric machinery, and engineering development projects.
Key Features
- Designed for 5-24V sensorless three-phase BLDC motors
- Rated power support up to 75W
- Maximum output current up to 3A
- Sensorless brushless motor control solution
- Built-in potentiometer speed adjustment
- Supports forward and reverse motor rotation
- Brake input for rapid motor stop
- External stop control function
- Compact PCB driver module design
- Suitable for robotics, automation, and DIY electronics projects
Specifications
| Parameter | Value |
|---|---|
| Brand | CT |
| Model | BLDC2475 |
| Product Type | Sensorless Brushless DC Motor Driver Controller |
| Motor Compatibility | 3-Phase Sensorless BLDC Motors |
| Input Voltage | 5-24V DC |
| Rated Power | 75W |
| Maximum Output Current | 3A |
| Phase Type | Three-Phase |
| Power Supply Type | DC Input |
| Control Method | Potentiometer Speed Regulation |
| Rotation Control | Forward / Reverse |
| Brake Function | Supported |
| Stop Function | Supported |
| Board Dimensions | Approx. 53 × 41 × 18 mm |

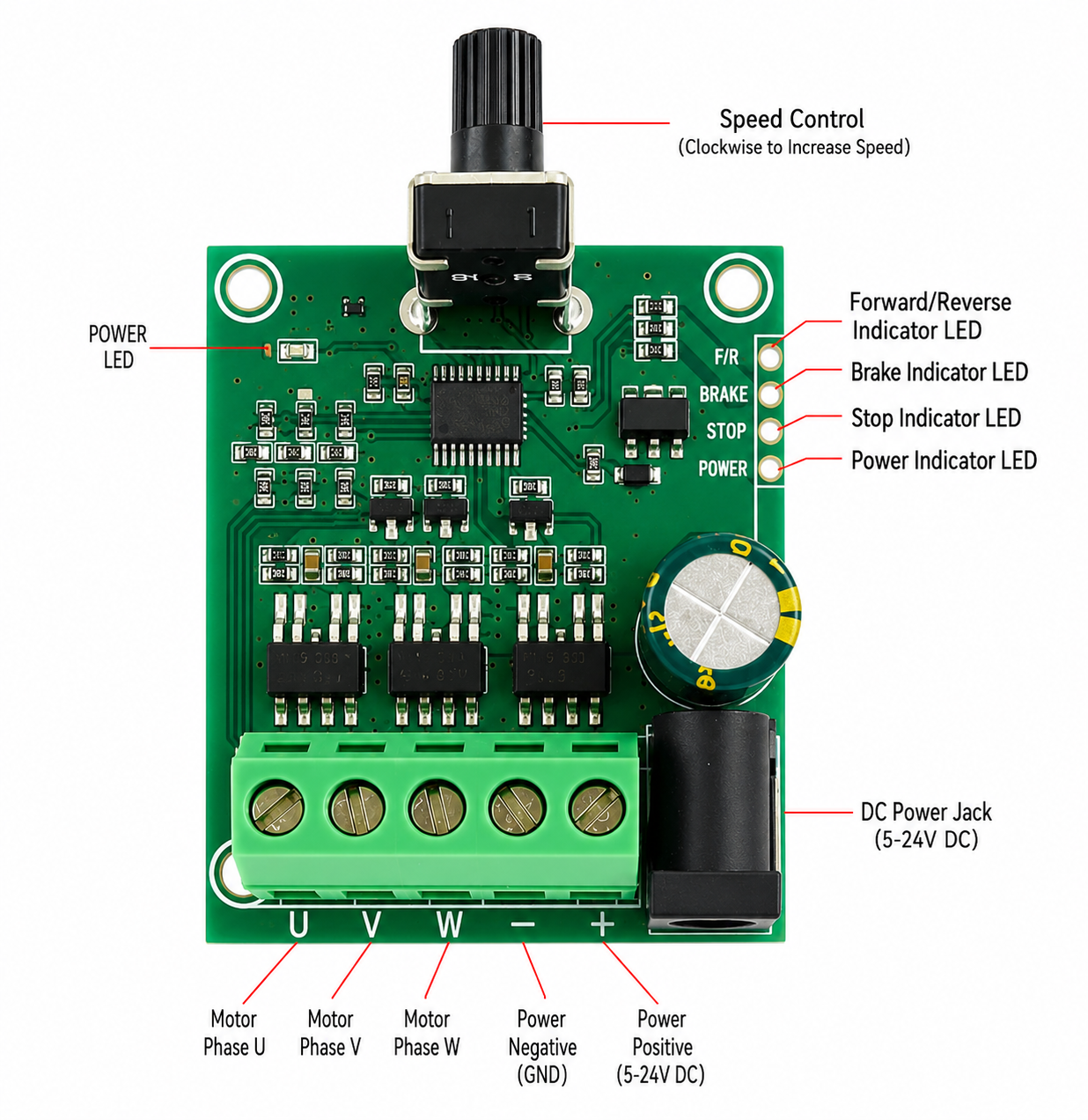

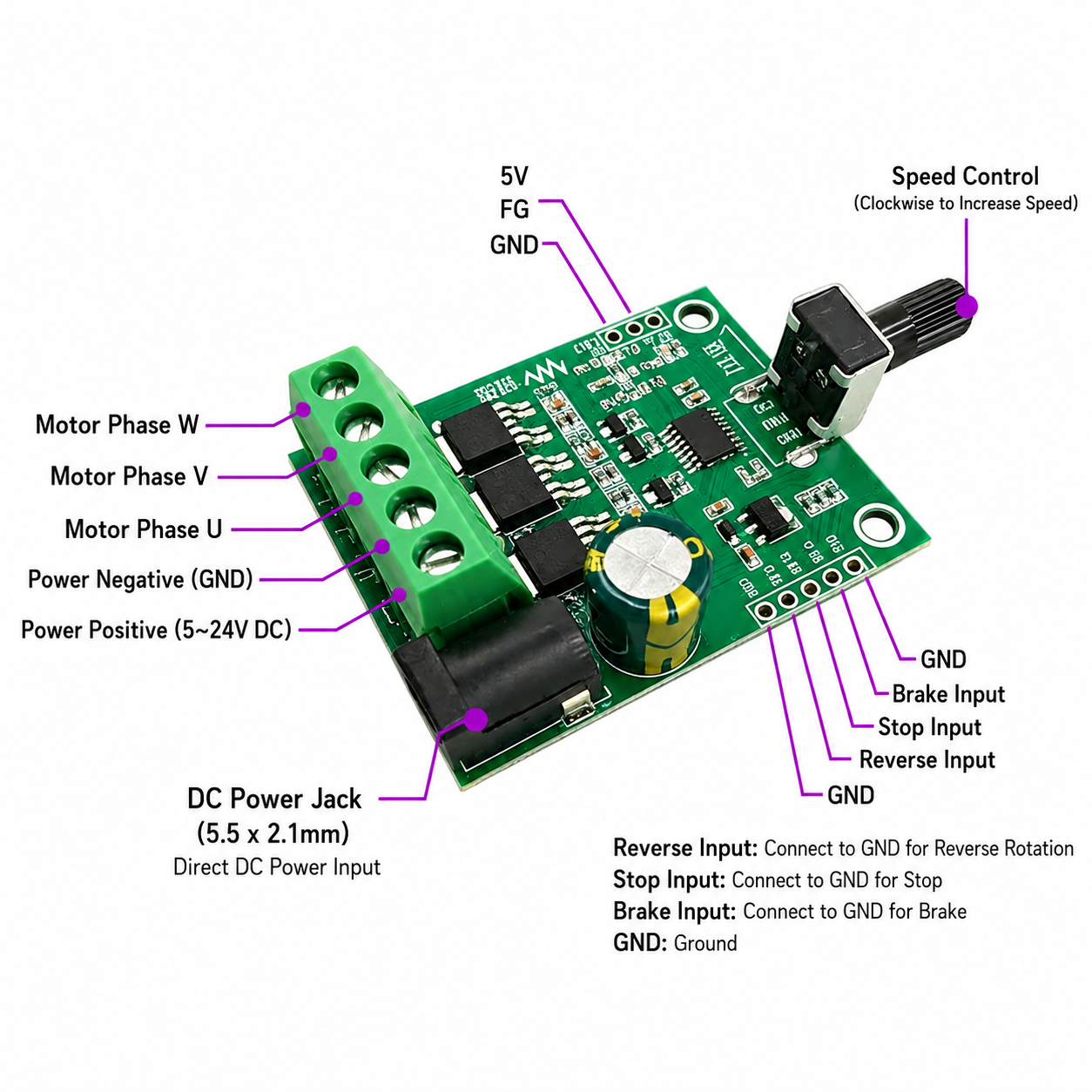

Interface & Wiring Instructions
| Interface | Description |
|---|---|
| + | DC Power Positive Input |
| - | DC Power Negative / GND |
| UVW | Connect to Motor Three-Phase Wires |
| STOP | Connect to GND for gradual stop |
| REV | Connect to GND for reverse rotation |
| BRAKE | Connect to GND for immediate braking |
| Speed Potentiometer | Clockwise increases speed, counterclockwise decreases speed |
Control Logic
- STOP pin floating or connected to 5V: Motor runs normally
- REV pin floating or connected to 5V: Forward rotation
- BRAKE pin floating or connected to 5V: Normal operation
- DC power jack and terminal power inputs are internally connected
Typical Applications
- Robot drive systems
- Smart robotics projects
- Hard disk spindle motor control
- Cooling fan motor control
- Small automation equipment
- Embedded motion control systems
- DIY electronics and engineering development
- Educational robotics projects
- Brushless motor experiments
- Industrial control prototypes
Important Notes
- Compatible with sensorless three-phase brushless DC motors only
- Input voltage should match motor operating requirements
- Ensure correct UVW phase wiring before operation
- Incorrect wiring may affect motor direction or startup performance
- Recommended for low and medium power BLDC applications
Package Includes
- 1 × CT BLDC2475 24V 75W Sensorless BLDC Motor Driver Module
