Overview

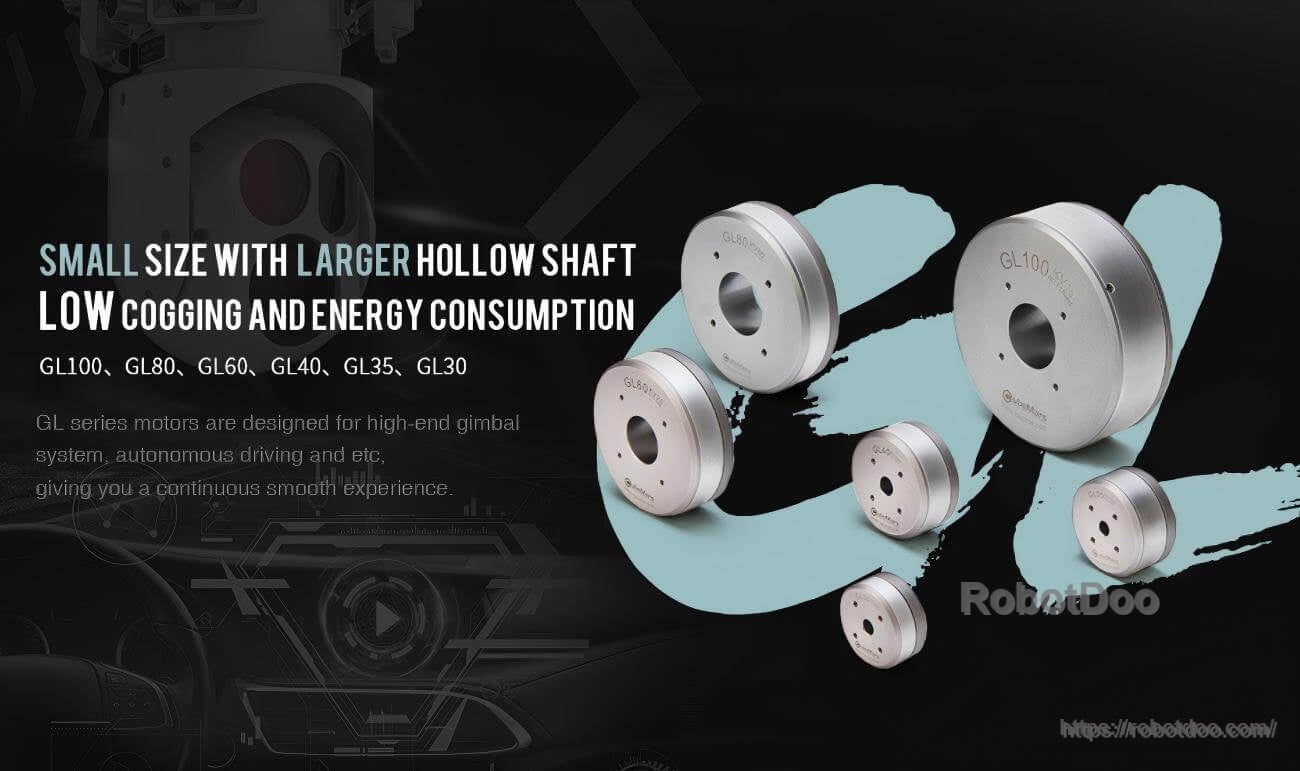

CubeMars GL35 Motor is a compact hollow-shaft motor designed for low cogging and low energy consumption in gimbal systems, drone pods, and autonomous driving/navigation systems.
Key Features

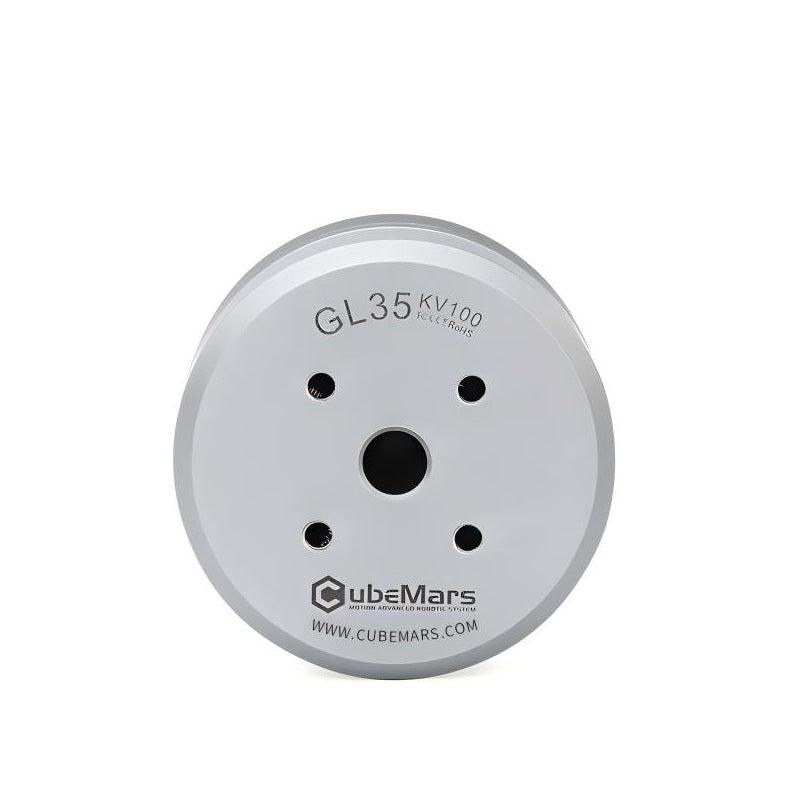

- Hollow shaft: 6 mm (supports routing signal and power cables)
- Low cogging for smoother control and easier interaction with the driver system
- IP45 rating

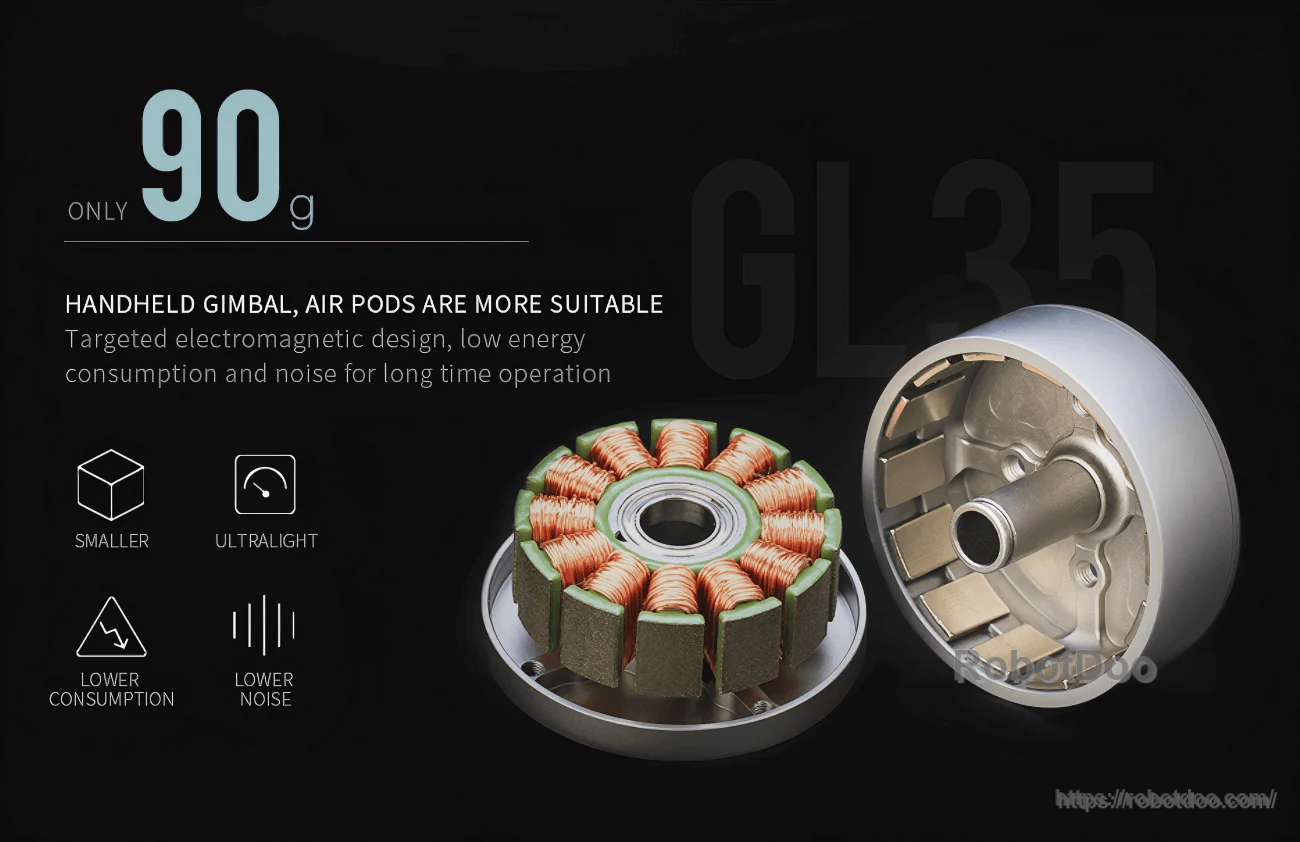

- Ultralight design: 90 g
- Targeted electromagnetic design for lower energy consumption and lower noise during long-time operation

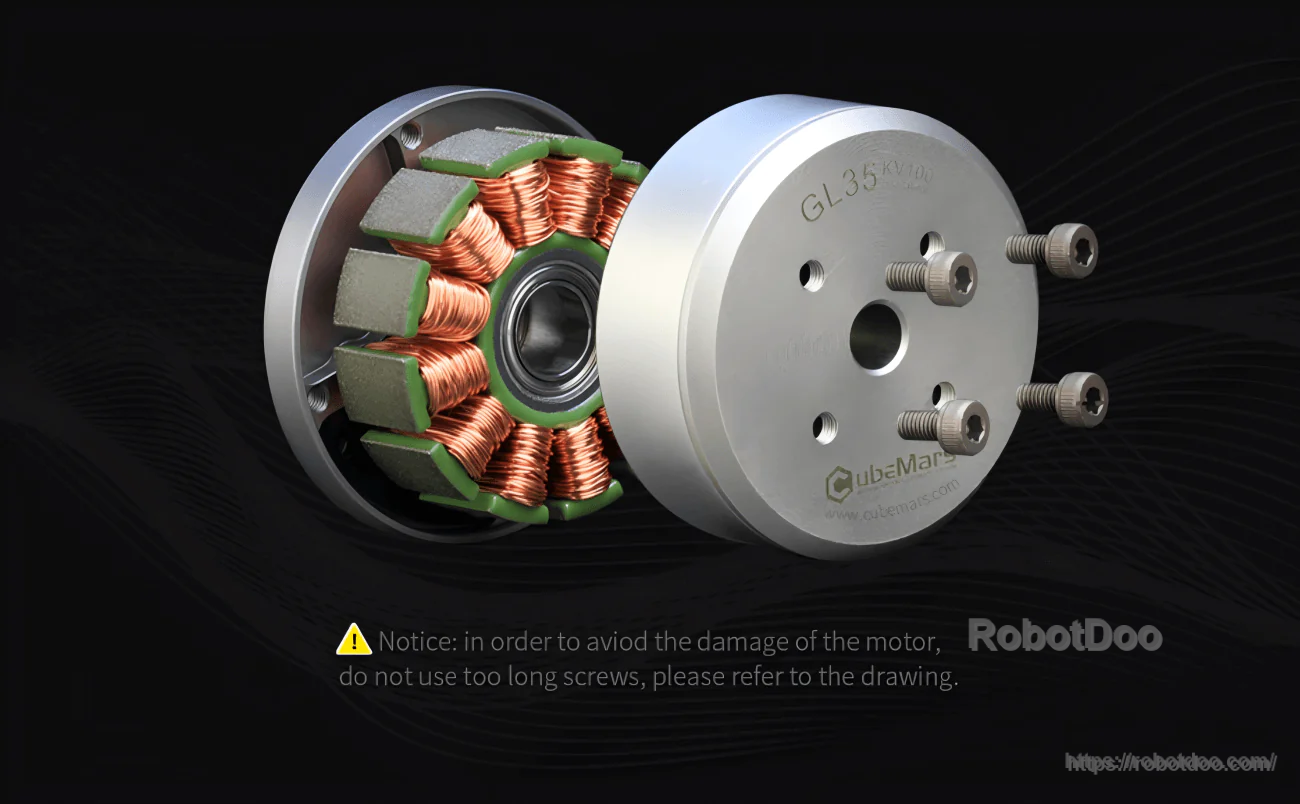

- Notice: To avoid motor damage, do not use screws that are too long; refer to the dimension drawing.
Specifications
| Peak torque | 0.46 N.m |
| Peak current | 4 ADC |
| No-load speed | 1320 rpm |
| Kv | 82.5 rpm/V |
| Kt | 0.115 N.m/A |
| Ke | 11.54 V/krpm |
| Phase to Phase resistance | 3600 mΩ |
| Phase to Phase inductance | 2100 μH |
| Inertia | 61 g.cm² |
| Km | 0.060610322 Nm/√W |
| Mechanical Time Constant | 1.66 ms |
| Maximum Torque Weight Ratio | 5.11 N.m/kg |
| Electrical Time Constant | 0.58 ms |
| Weight | 90 g |
| Rated Torque | 0.15 N.m |
| Rated Speed | 815 rpm |
| Rated Current | 1.3 ADC |
| Rated Voltage | 16 V |
| Insulation Class | H |
| Driving way | FOC |
| Operation Ambient Temperature | -20°C to 50°C |
| Winding type | star |
| Insulation High-Voltage | 500 V 5 mA/2 s |
| Insulation Resistance | 500 V 10 MΩ |
| Phase | 3 |
| Pole Pairs | 7 |
Applications
- Gimbal system
- Drone pods
- Autonomous driving/navigation systems
Manuals
Details

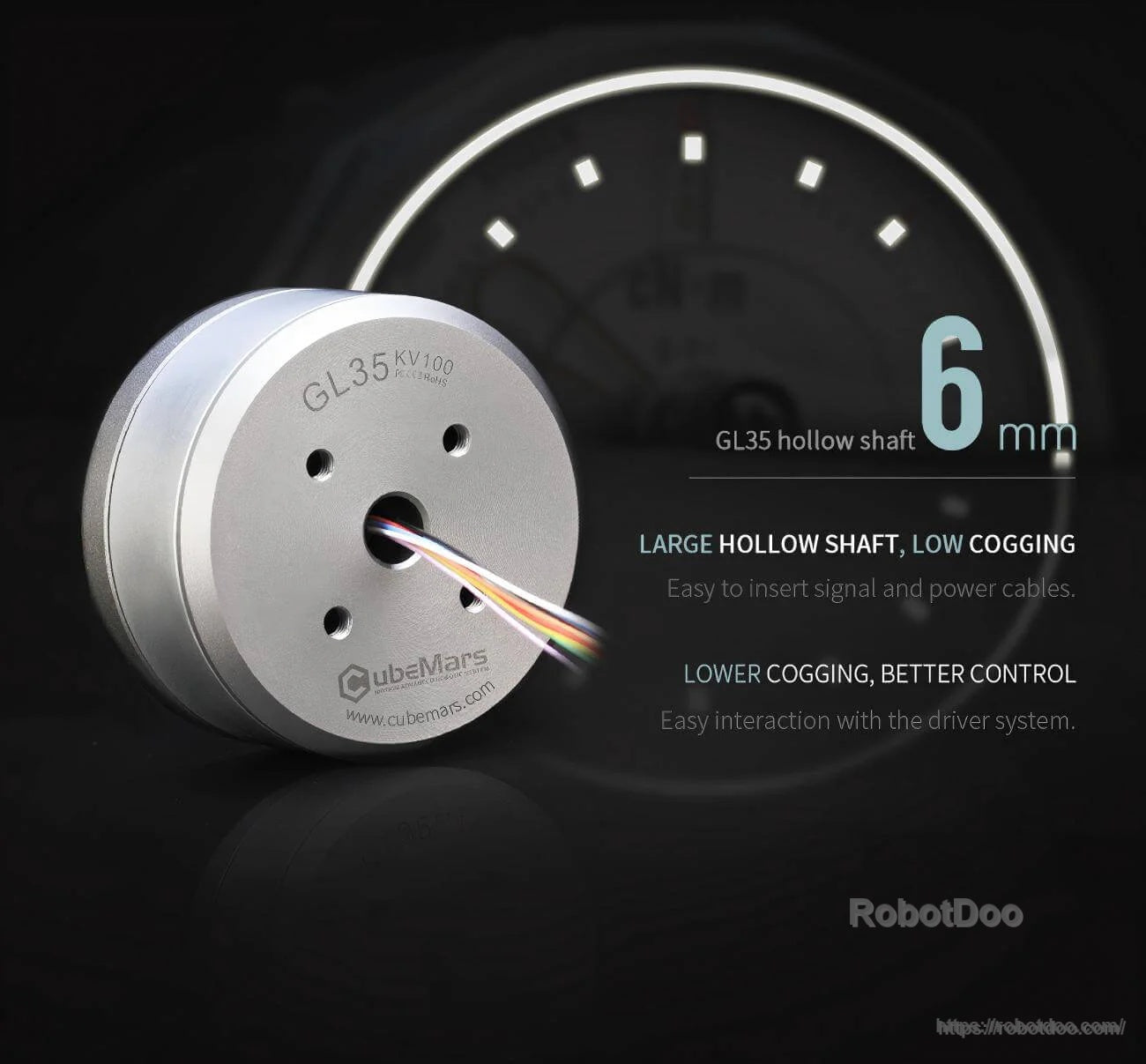

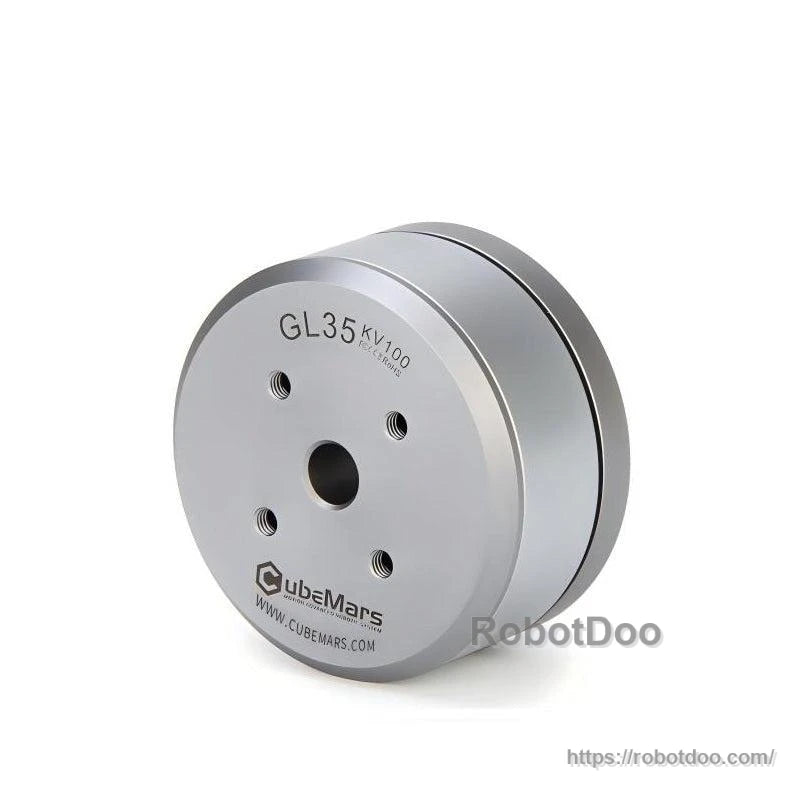

The 6 mm hollow shaft helps route signal and power cables cleanly through the motor for tighter gimbal or pod layouts.
Targeted electromagnetic design supports low energy consumption and reduced operating noise during long run times.
With an IP45 rating, the GL35 is suited for gimbal systems, drone pods, and autonomous driving/navigation integrations.
