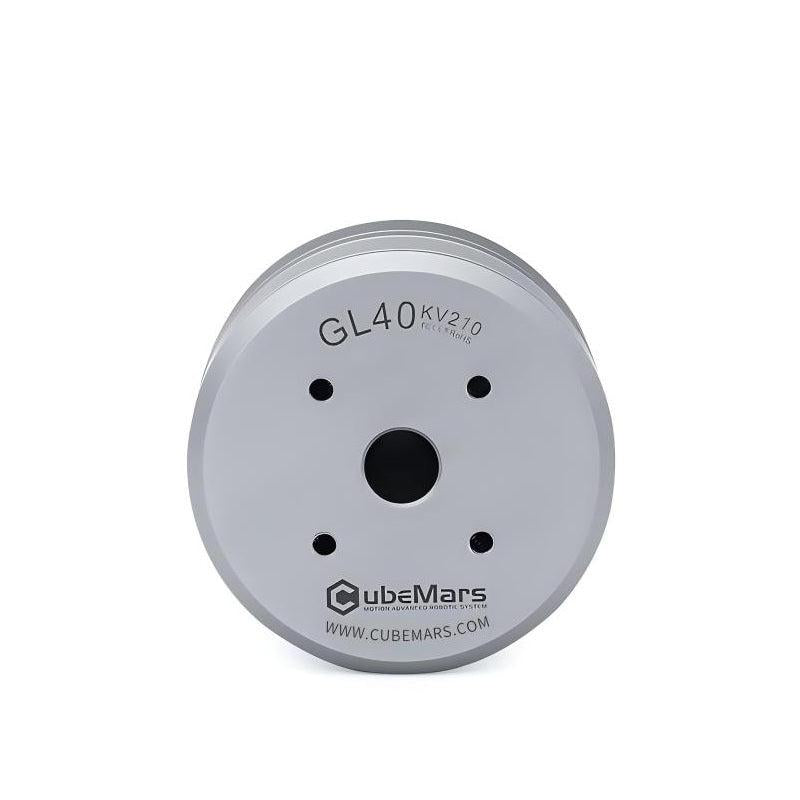

• CubeMars GL40 Hollow Shaft Motor front face, GL40 KV210 marking and center hollow bore

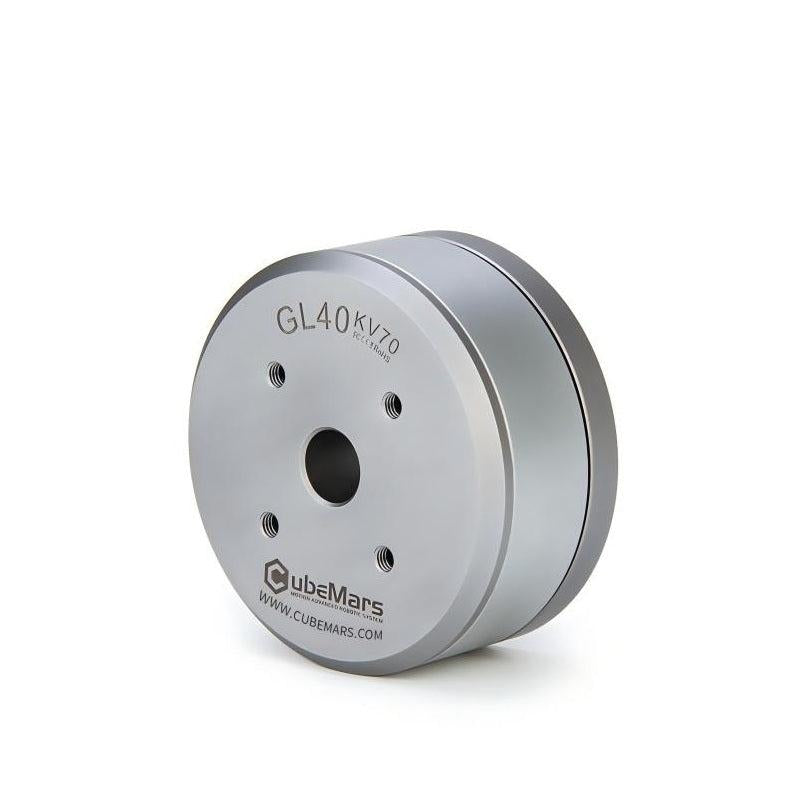

  • CubeMars GL40 motor angled view, front plate with mounting holes and hollow shaft opening

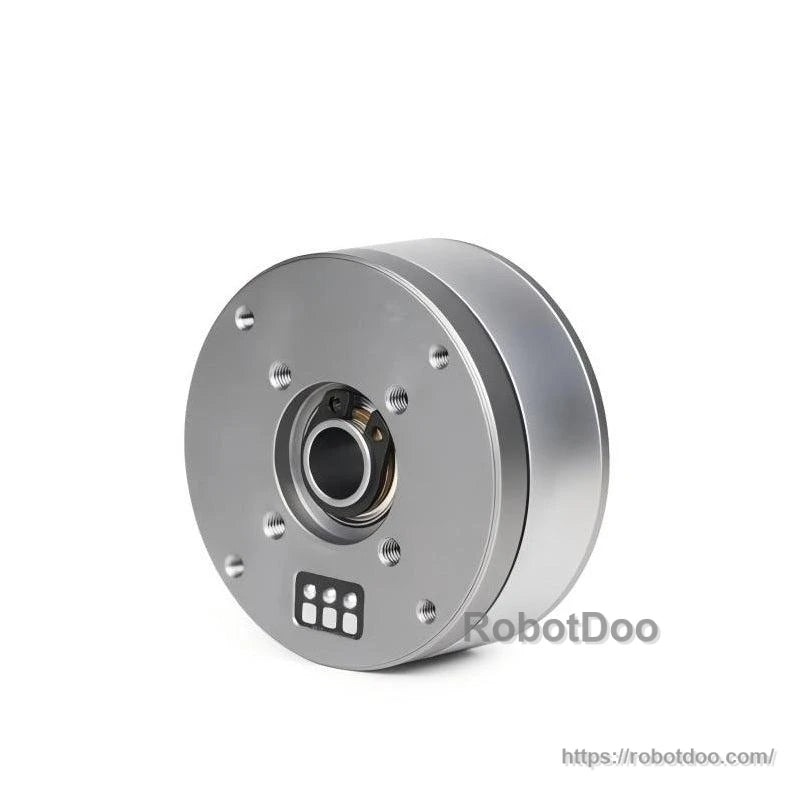

  • Rear view of GL40 hollow shaft motor showing connector pad block and inner bearing opening

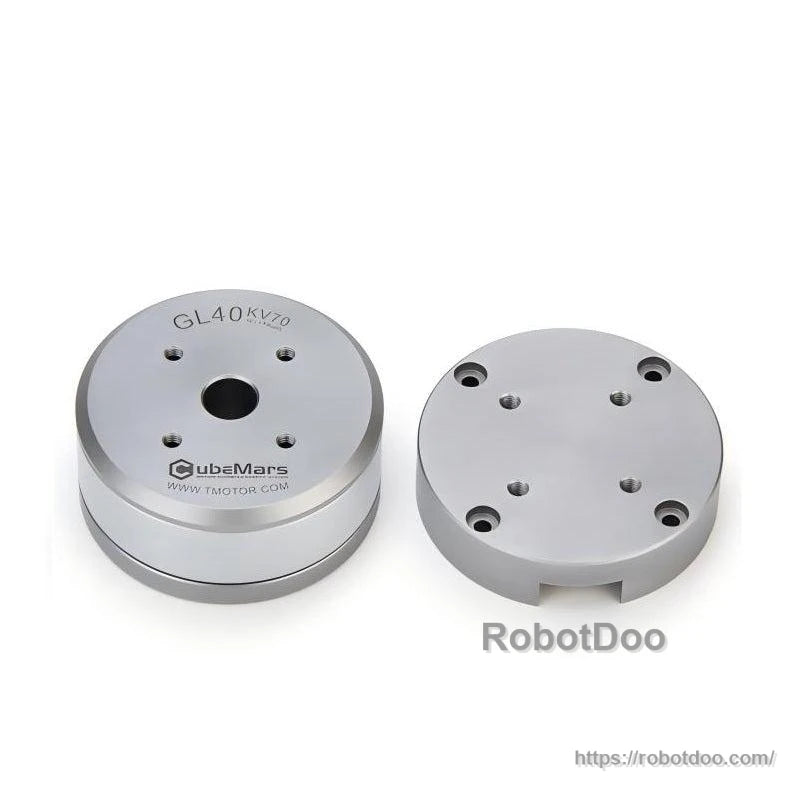

  • GL40 motor shown with separate round mounting plate, both sides displaying screw hole patterns

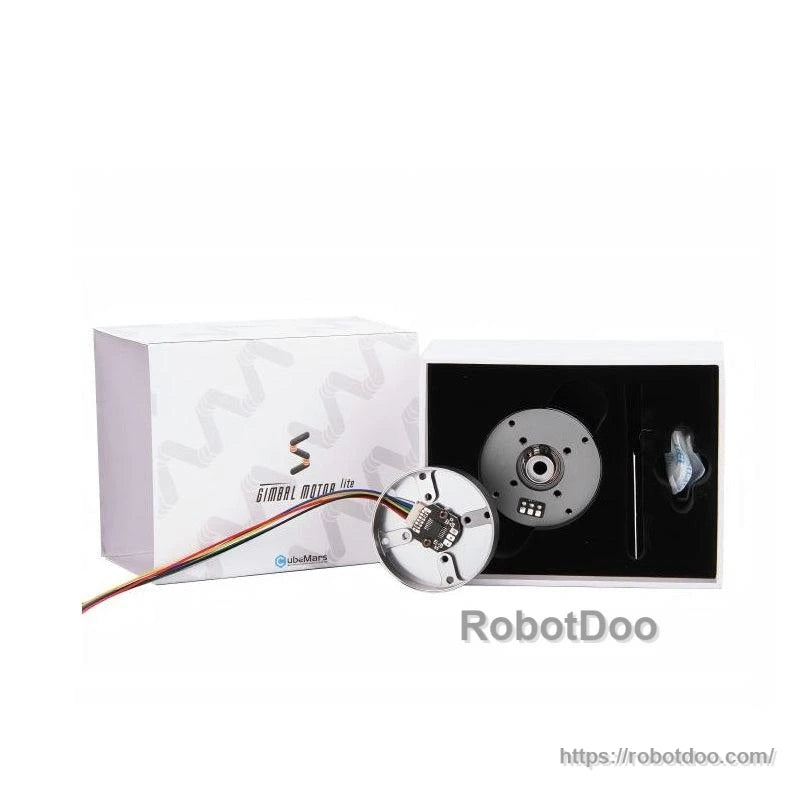

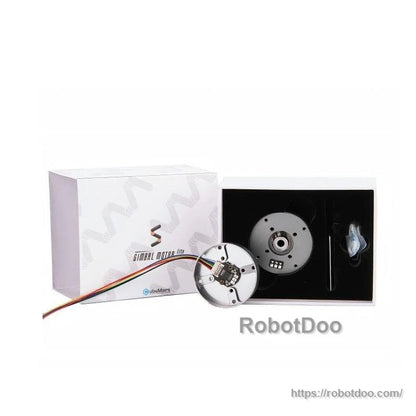

  • CubeMars GL40 Hollow Shaft Motor packaging with product box, motor, and included cable/accessory
1 5

CubeMars

CubeMars GL40 Hollow Shaft Motor KV70/KV210, 16V, IP45, 8 mm Bore for Gimbal Systems

CubeMars GL40 Hollow Shaft Motor KV70/KV210, 16V, IP45, 8 mm Bore for Gimbal Systems

$92.59 USD
$92.59 USD
Sale Sold out
Shipping calculated at checkout.
Version
View full details

Overview

CubeMars GL40 Motor is a compact hollow-shaft motor designed for gimbal systems, drone/air pods, and autonomous driving navigation systems. It features a larger hollow shaft, low cogging, and low energy consumption, supporting smooth control with FOC (field-oriented control) driving.

Key Features

  • GL40 hollow shaft: 8 mm
  • Large hollow shaft, low cogging: easy to insert signal and power cables
  • Lower cogging, better control: easy interaction with the driver system
  • Only 107 g
  • IP45 rating (waterproof and dustproof performance)
  • Targeted electromagnetic design for low energy consumption and lower noise during long-time operation
  • Notice: To avoid motor damage, do not use screws that are too long; refer to the drawing

Specifications

Parameter Value (KV70) Value (KV210)
Rated Voltage 16V 16V
Rated Current 1.62A 4.9A
Rated Speed 430rpm 2100rpm
Rated Torque 0.25N.m 0.25N.m
Peak Current 3.3A 14.9A
Peak Torque 0.5N.m 0.75N.m
Weight 107g 107g
No-Load Speed 1015rpm 3120rpm
Kv 63.5rpm/V 195rpm/V
Kt 0.150Nm/A 0.050Nm/A
Ke 15V/krpm 4.88V/krpm
Phase To Phase Resistance 4500ma9 500ma9
Phase To Phase Inductance 1800bcH 180bcH
Inertia 74g b7cmb2 74g b7cmb2
Km 0.070710678Nm/c3W 0.070710678Nm/c3W
Mechanical Time Constant 1.48ms 1.48ms
Electrical Time Constant 0.40ms 0.36ms
Maximum Torque Weight Ratio 4.67Nm/kg 7.01Nm/kg
Insulation High-Voltage 500V 5mA/2s 500V 5mA/2s
Driving Way FOC FOC
Insulation Resistance 500V 10Ma9 500V 10Ma9
Operation Ambient Temperature -20 b0C to 50 b0C -20 b0C to 50 b0C
Phase 3 3
Winding Type star star
Pole Pairs 14 14
Insulation Class H H

Applications

  • Gimbal system
  • Handheld gimbal
  • Drone/air pods
  • Autonomous driving navigation system

Manuals

Details

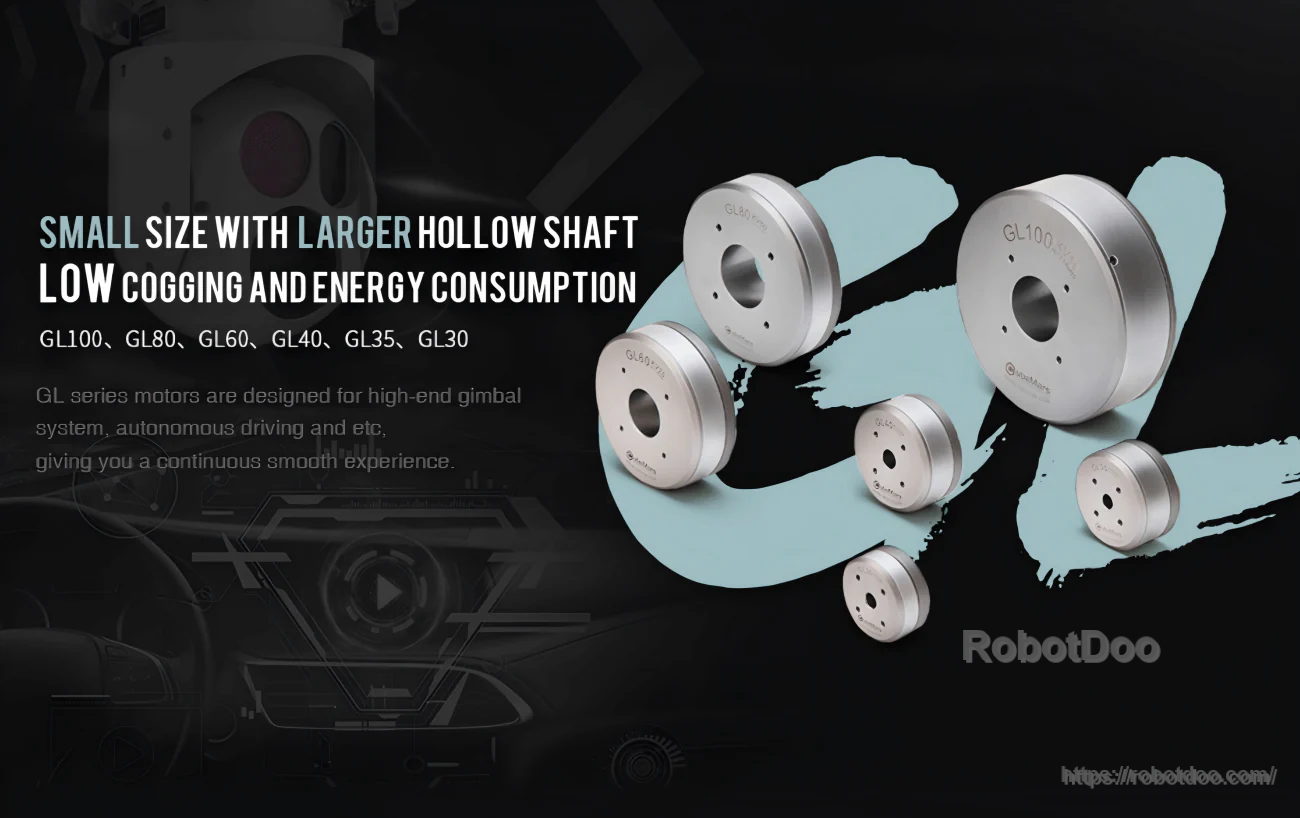

CubeMars GL40 Hollow Shaft Motor family overview highlighting compact size, low cogging, and larger hollow shaft

A compact hollow-shaft motor platform designed for smooth, efficient control in gimbals, drone pods, and navigation systems.

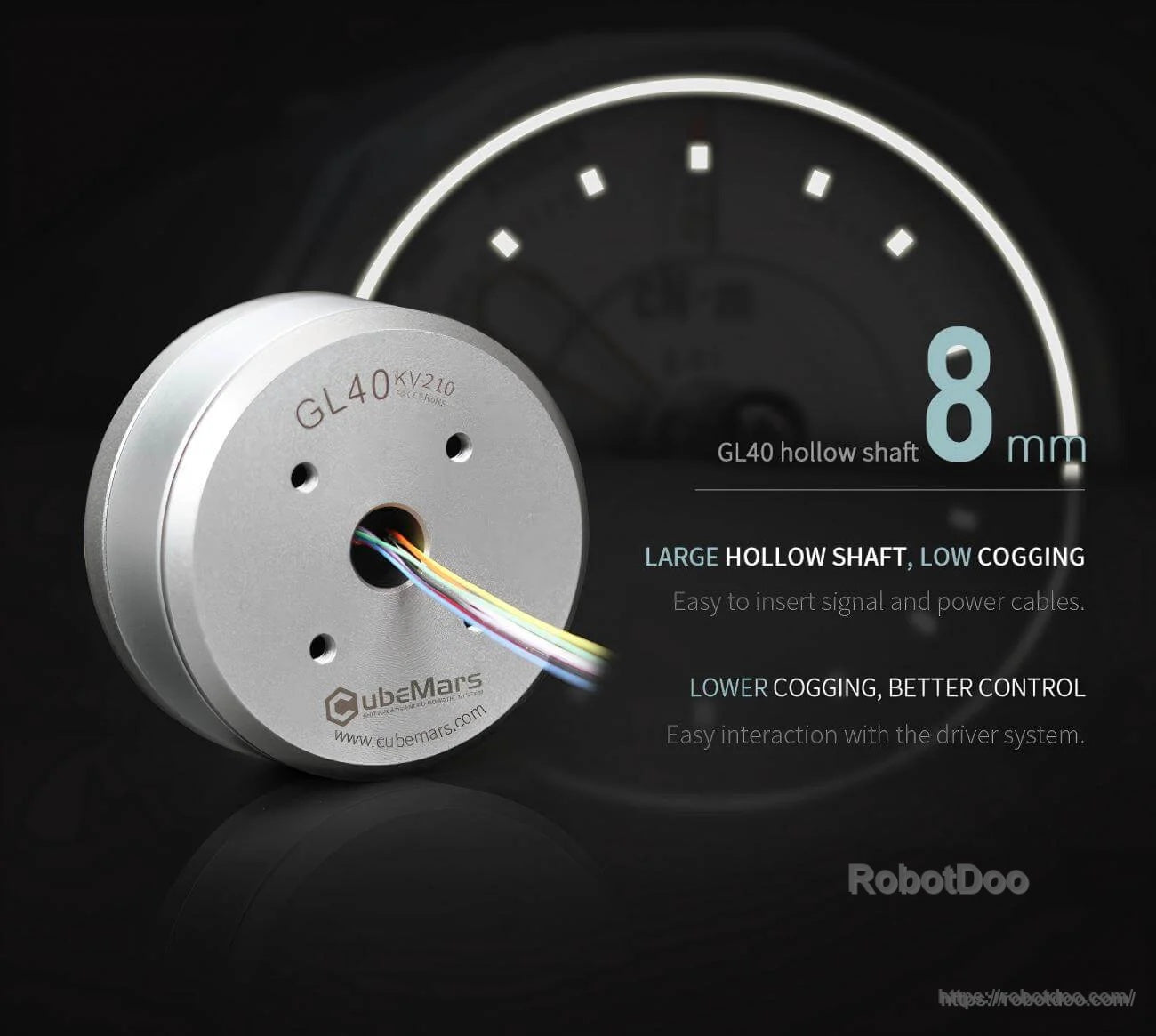

CubeMars GL40 motor front view with 8 mm hollow shaft for routing signal and power wires through the center

The 8 mm hollow shaft makes cable routing clean and simple while supporting low-cogging, stable operation with FOC driving.

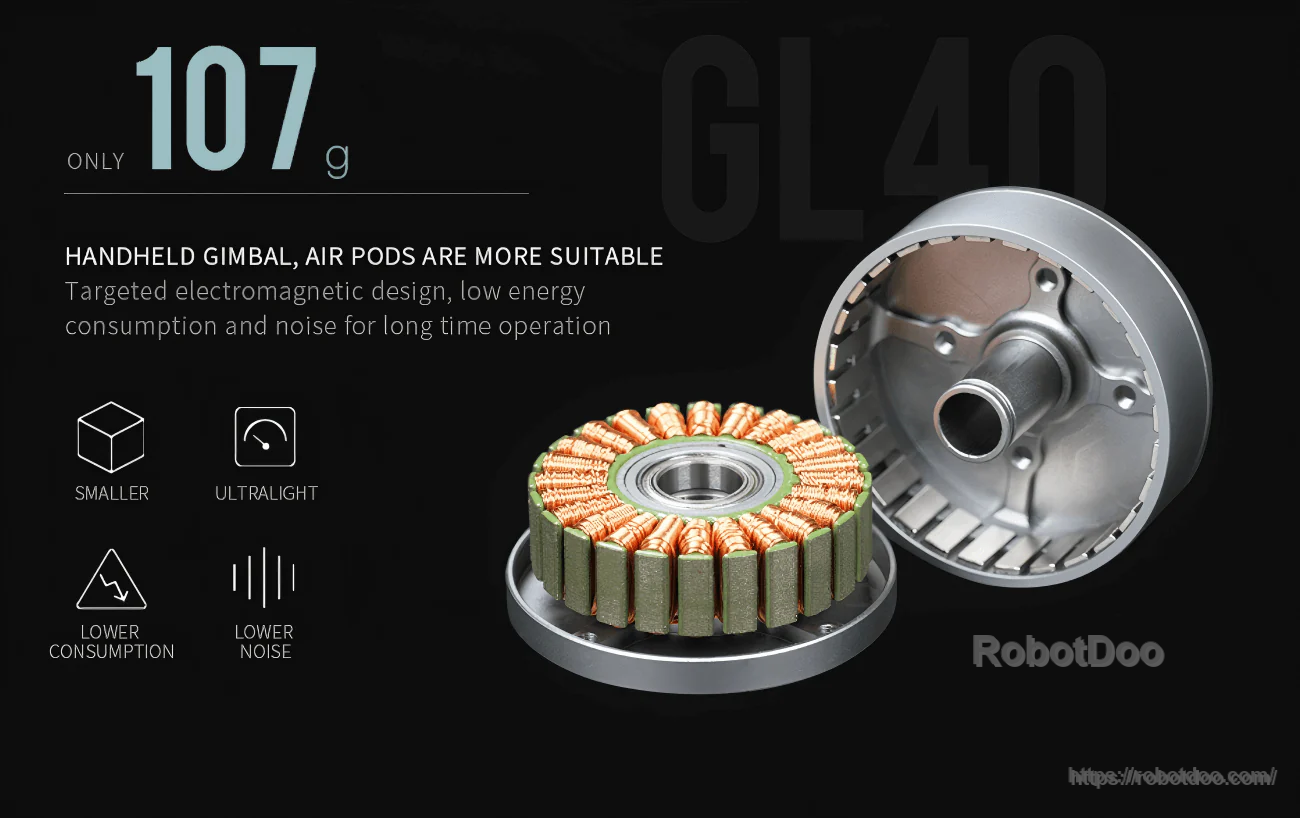

GL40 motor internal structure with stator windings and lightweight housing emphasizing 107 g ultralight buildIP45-rated GL40 motor applications across handheld gimbals, drone/air pods, and autonomous driving navigation hardware

An IP45-rated build helps maintain performance in dusty or splash-prone environments across common robotics and imaging setups.

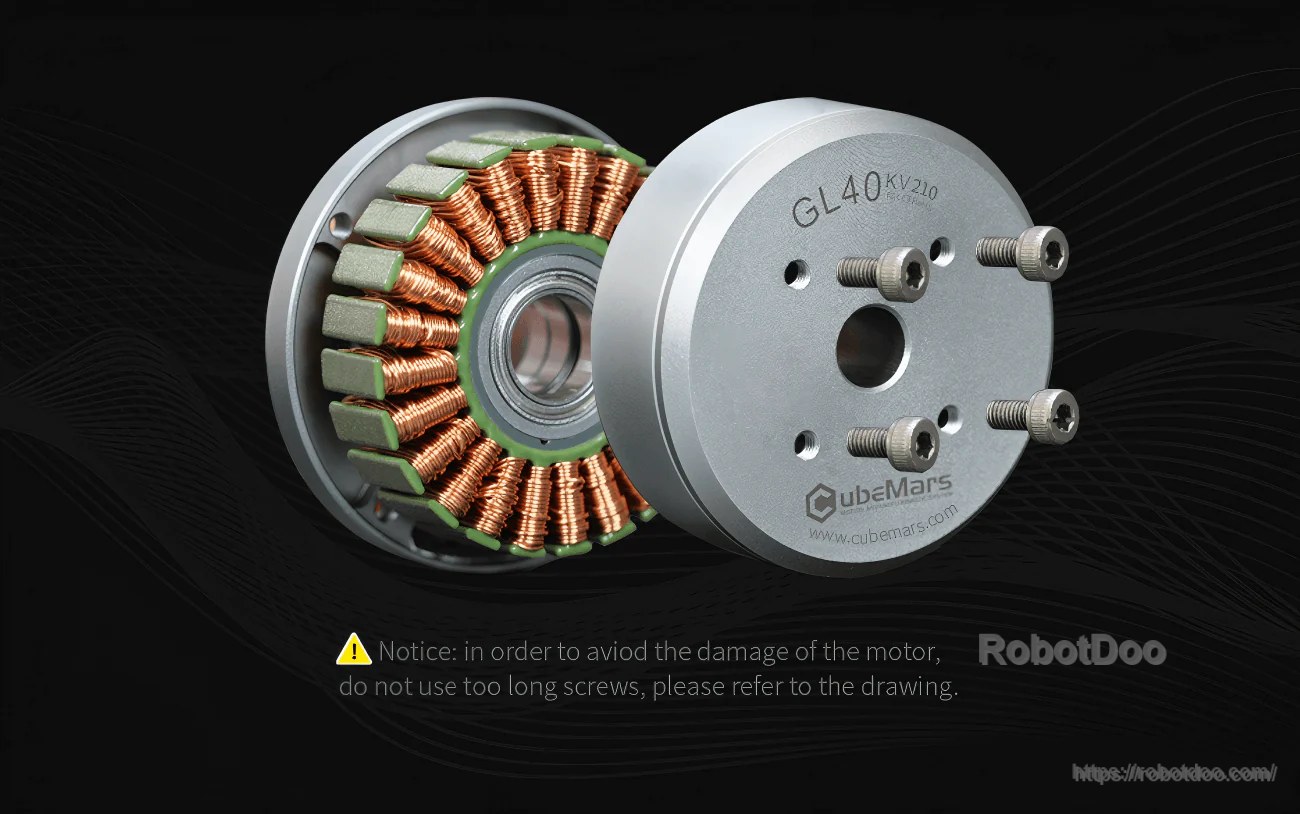

GL40 motor exploded view with mounting screws and warning to avoid overlong screws that could damage the motor
