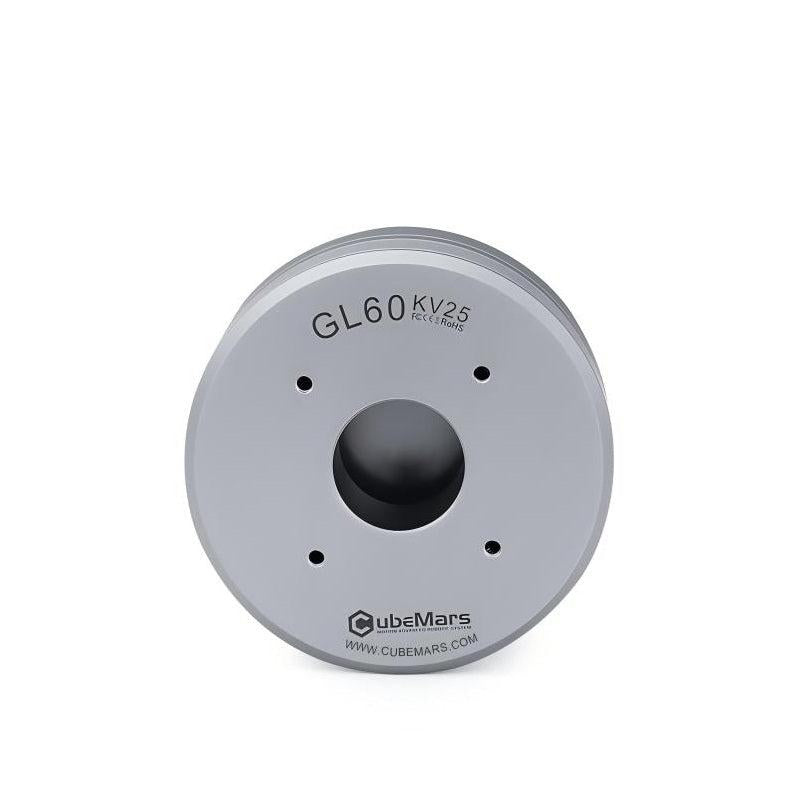

• CubeMars GL60 hollow shaft motor front face, GL60 KV25 marking and center bore

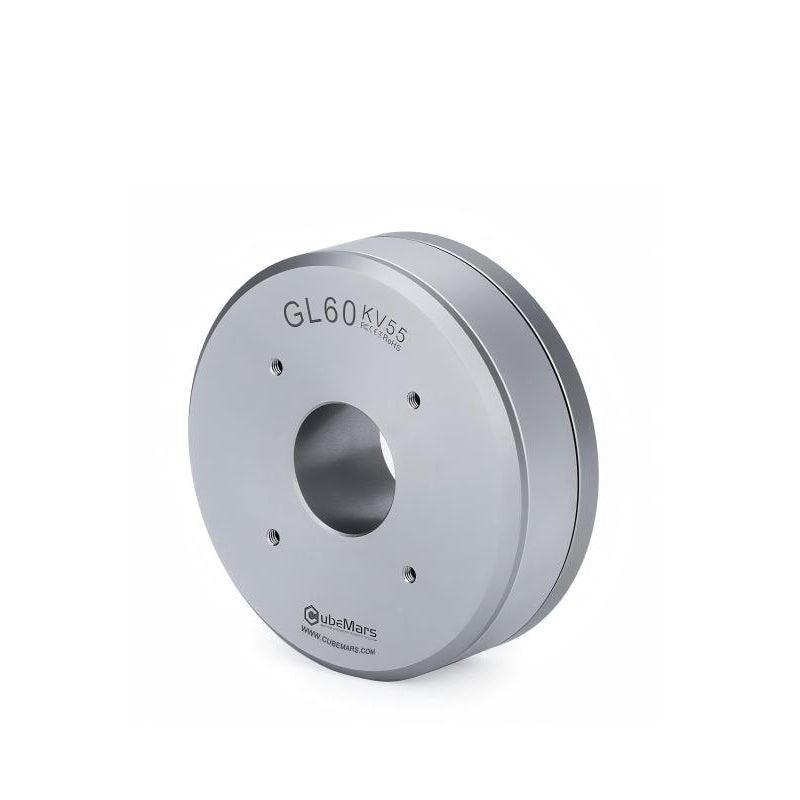

  • Angled view of GL60 KV55 hollow shaft motor showing round housing and mounting holes

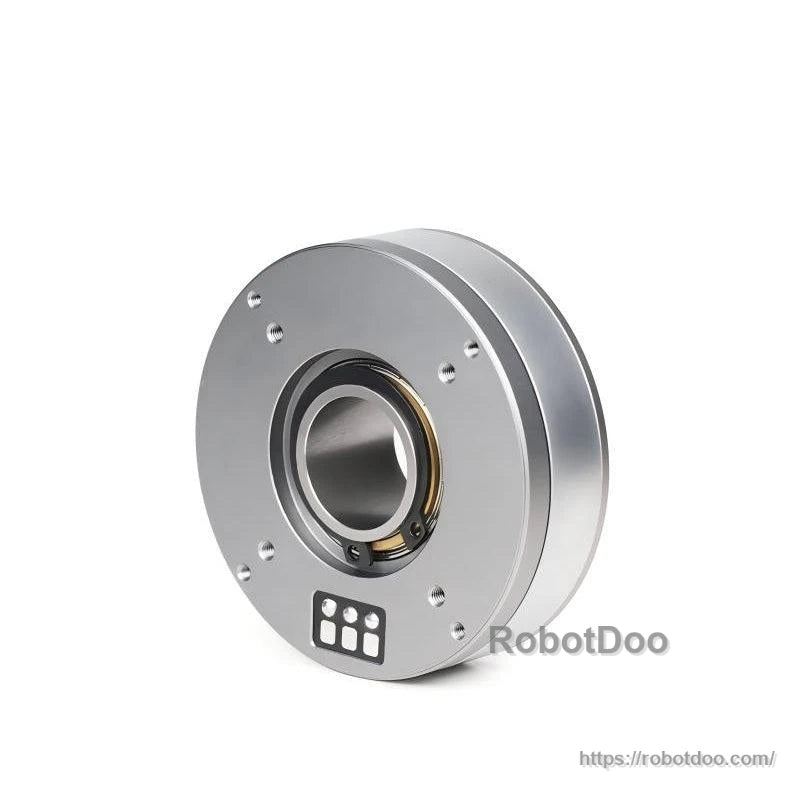

  • Rear side of hollow shaft motor with bearing opening and multi-pin connector block

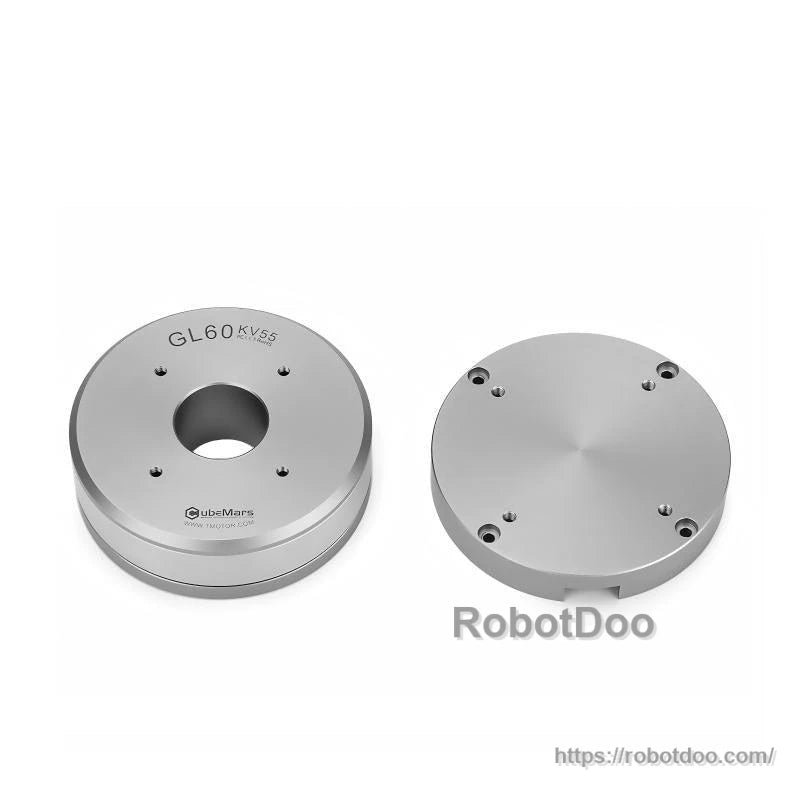

  • GL60 KV55 motor shown with separate back cover plate, front and rear faces side by side

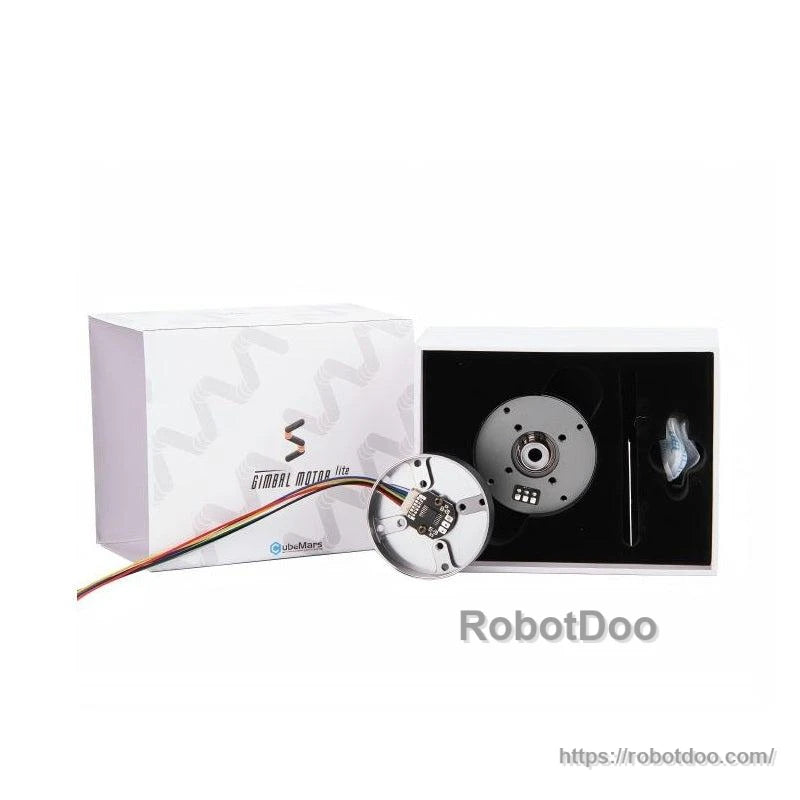

  • CubeMars GL60 hollow shaft motor package contents with motor, cable lead, foam tray, box
1 5

CubeMars

CubeMars GL60 Hollow Shaft Motor (KV25/KV55) 24V IP45, 20mm Bore for Gimbal & Camera Pods

CubeMars GL60 Hollow Shaft Motor (KV25/KV55) 24V IP45, 20mm Bore for Gimbal & Camera Pods

$135.79 USD
$135.79 USD
Sale Sold out
Shipping calculated at checkout.
Version
View full details

Overview

The CubeMars GL60 motor is a GL-series hollow shaft motor designed for applications such as gimbal systems, camera/drone pods, and autonomous driving navigation systems. It features a 20 mm hollow shaft, low cogging, and low energy consumption, with IP45 protection for use in various scenes.

Key Features

  • GL60 hollow shaft: 20 mm
  • Large hollow shaft, low cogging; easy to insert signal and power cables
  • Lower cogging, better control; easy interaction with the driver system
  • Only 226 g (KV55 version)
  • IP45: waterproof and dustproof
  • Smaller, ultralight, lower consumption, lower noise

Specifications

Parameter KV25 KV55
Mode KV25 KV55
Insulation High-Voltage 500V 5mA/2s 500V 5mA/2s
Insulation Resistance 500V 10MΩ 500V 10MΩ
Phase 3 3
Pole Pairs 14 14
Driving Way FOC FOC
Operation Ambient Temperature -20°C~50°C -20°C~50°C
Winding Type Star Star
Insulation Class H H
Ke 44.30V/krpm 20.05V/krpm
Phase To Phase Resistance 5500 mOhm 1200 mOhm
Phase To Phase Inductace 2720 uH 900 uH
Inertia 355 gcm^2 355 gcm^2
Km 0.191880645 Nm/√W 0.18713854 Nm/√W
Mechanical Time Constant 0.96 ms 1.01 ms
Electrical Time Constant 0.49 ms 0.75 ms
Weight 230 g 226 g
Maximum Torque Weight Ratio 7.61 Nm/Kg 7.74 Nm/Kg
Rated Voltage 24 V 24 V
No-Load Speed 516 rpm 1140 rpm
Rated Torque 0.6 N.m 0.6 N.m
Rated Speed 310 rpm 840 rpm
Rated Current 1.35 ADC 2.93 ADC
Peak Torque 1.75 N.m 1.75 N.m
Peak Current 4 ADC 8.9 ADC
Kv 21.5 rpm/V 47.5 rpm/V
Kt 0.450 Nm/A 0.205 Nm/A

Applications

  • Gimbal systems
  • Camera/drone pods
  • Autonomous driving navigation systems

Manuals

Details

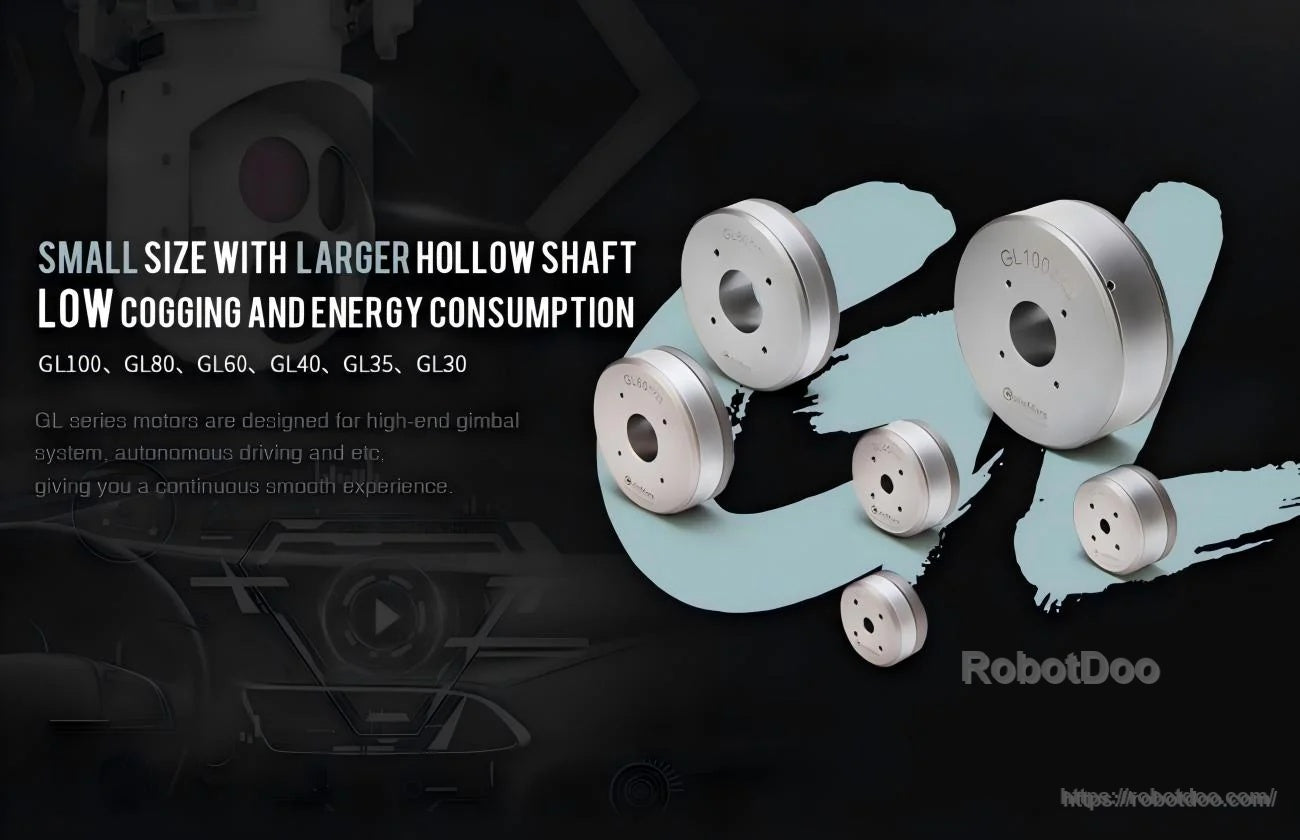

CubeMars GL60 hollow shaft motor series overview highlighting compact size, low cogging, and low energy use

Designed for smooth control in compact builds, the GL60 combines a large hollow shaft with low cogging and efficient operation.

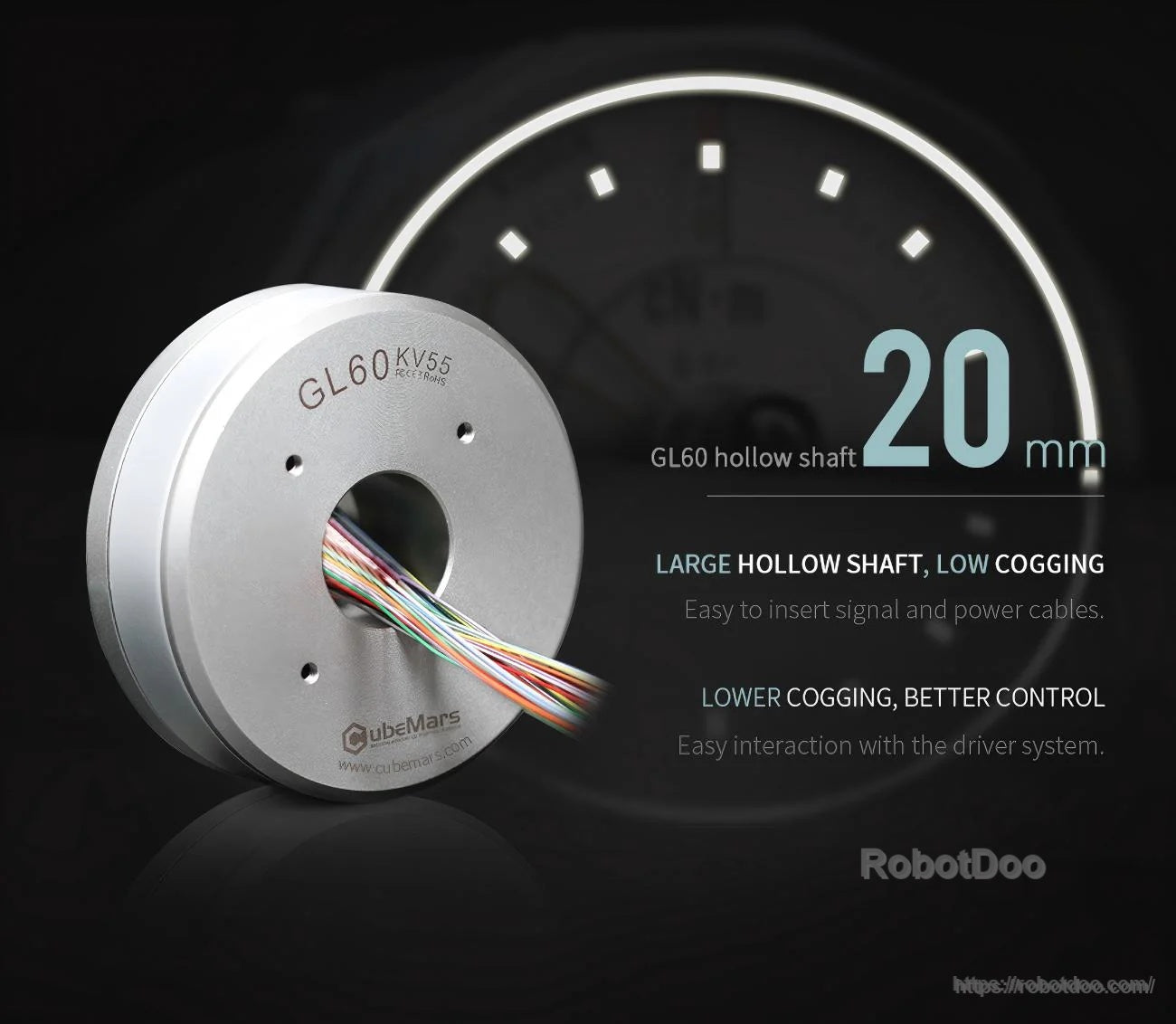

CubeMars GL60 Hollow Shaft Motor (KV55) with 20 mm hollow bore and cables routed through the center

A 20 mm hollow shaft makes it easy to route signal and power wiring through the motor for cleaner gimbal and pod assemblies.

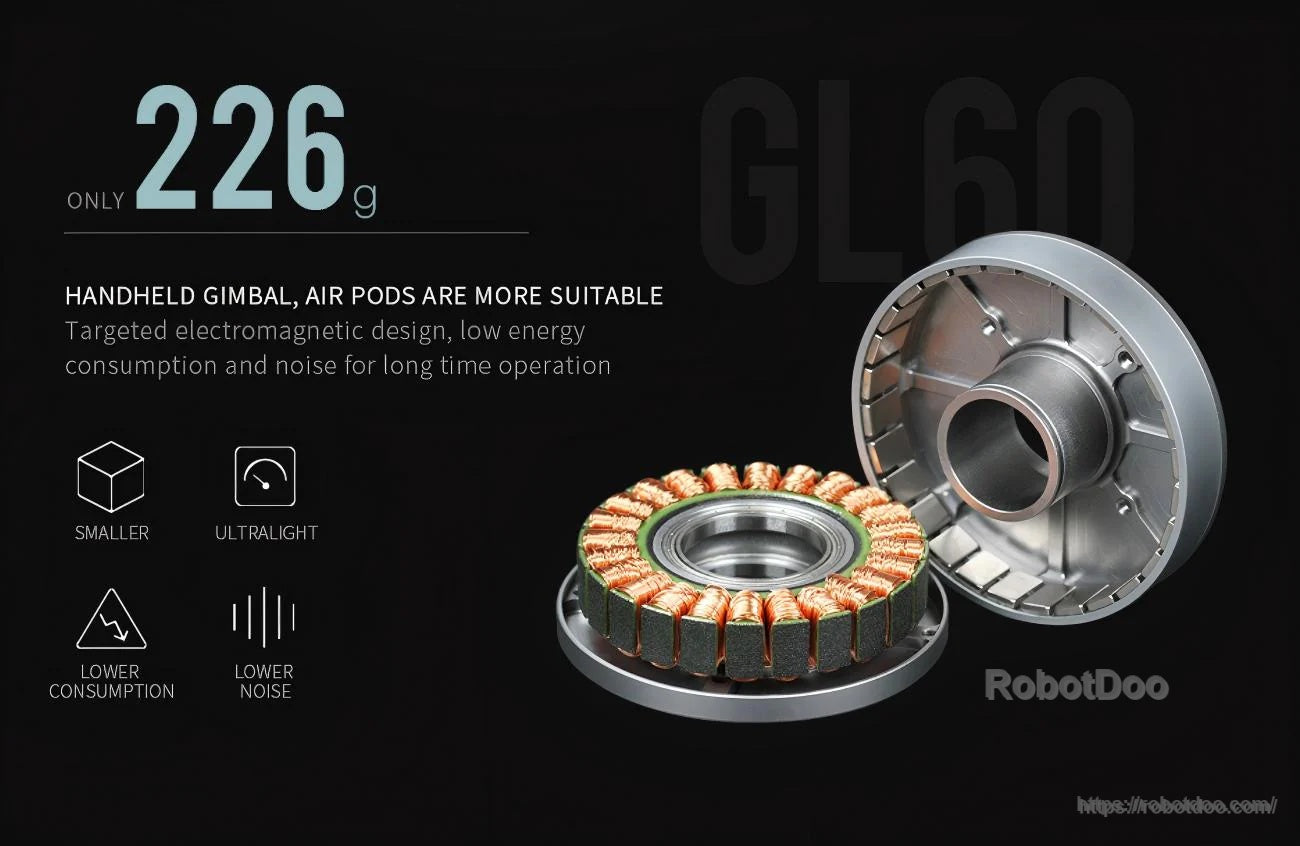

GL60 motor internal view showing stator windings and rotor housing, emphasizing ultralight 226 g construction

At only 226 g (KV55), the lightweight rotor–stator design helps reduce load while keeping control responsive.

IP45-rated GL60 motor applications montage for gimbal systems, drone camera pods, and autonomous navigation equipment

IP45 protection supports use across gimbals, camera/drone pods, and autonomous navigation setups where dust and splashes are a concern.
