Description

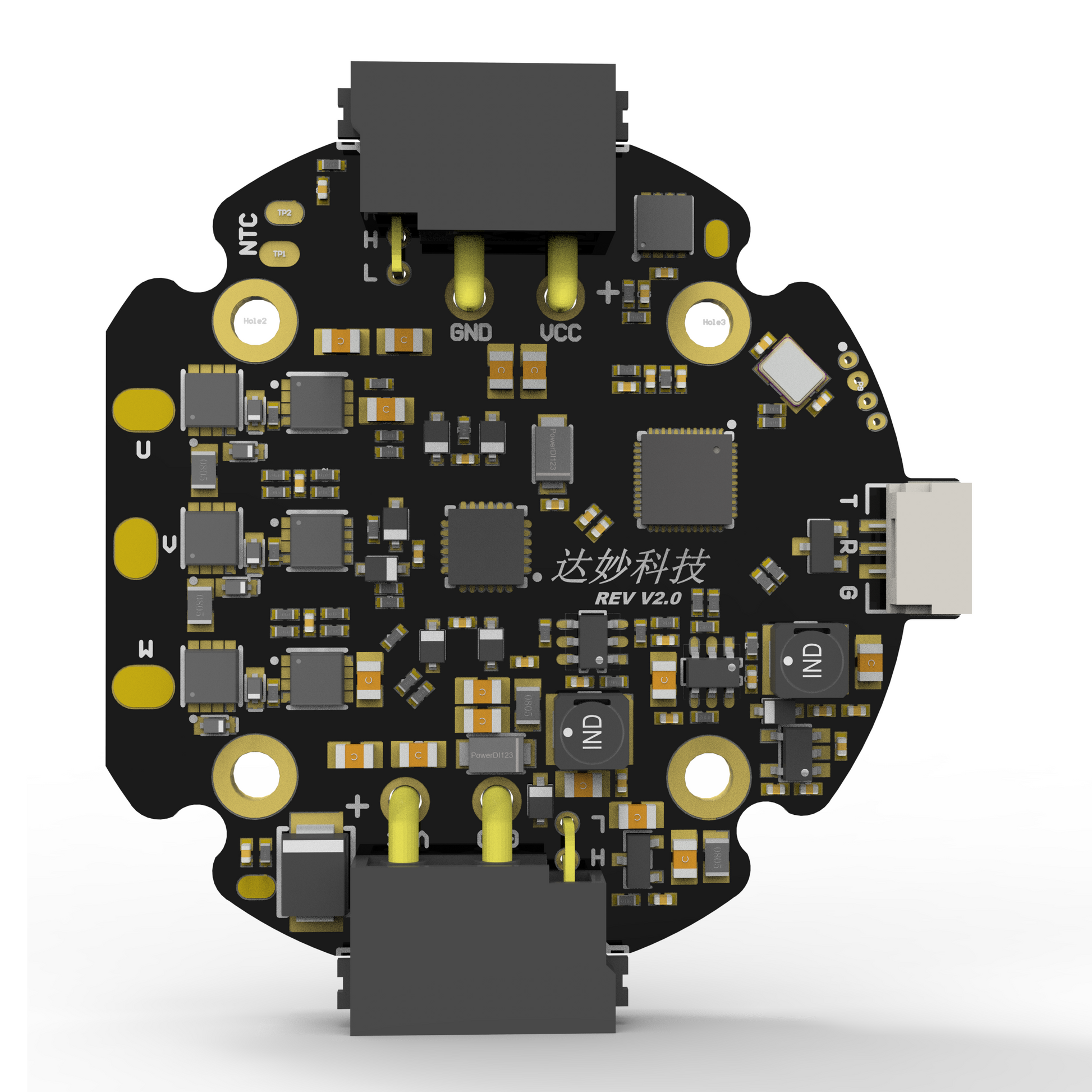

The DAMIAO DM40-1E is a compact FOC servo driver designed for robotic joint actuators, BLDC motors, gimbal systems, and lightweight robotic arms. Built around a Cortex-M4 MCU running at 200MHz, the controller supports MIT Mode, Velocity Mode, and Position Mode while providing CAN bus communication and UART parameter configuration.
Designed specifically for 35mm–43mm class motors, the DM40-1E supports dual encoder feedback architectures including dual magnetic encoders and magnetic encoder plus Hall sensor configurations. This enables precise motion control, smooth torque output, and reliable closed-loop positioning for robotics and automation applications.
The integrated Field-Oriented Control (FOC) algorithm delivers high efficiency, low vibration, and accurate motor control suitable for AGV robots, robotic joints, exoskeleton systems, pan-tilt platforms, and research robotics projects.
Key Features
- Cortex-M4 MCU running at 200MHz
- Advanced FOC (Field-Oriented Control) algorithm
- Supports MIT Control Mode
- Supports Velocity Control Mode
- Supports Position Control Mode
- CAN Bus communication
- UART parameter configuration and debugging
- Dual encoder support
- Magnetic encoder compatibility
- Compact round PCB design
- Optimized for 35mm–43mm BLDC motors
- Suitable for robotic joints and servo actuator systems
- Low latency real-time control architecture
Specifications
| Parameter | Value |
|---|---|
| Model | DM40-1E |
| Supply Voltage | 24V (4S–6S) |
| Absolute Maximum Voltage | ≤ 32V |
| MCU Core | Cortex-M4 |
| MCU Frequency | 200MHz |
| Communication Interface | CAN |
| Parameter Configuration | UART |
| Control Method | FOC |
| Continuous Current | 4A |
| Peak Current | 10A |
| Encoder Type | Magnetic Encoder |
| Encoder Support | Dual Encoder |
| Control Modes | MIT / Velocity / Position |
| Recommended Motor Size | 35mm–43mm BLDC Motors |
Applications
- Robotic Joint Actuators
- Humanoid Robots
- Quadruped Robots
- AGV Drive Systems
- Service Robots
- Educational Robotics
- Gimbal Stabilization Systems
- Research Platforms
- Precision Motion Control Systems
- Industrial Automation Equipment
Package Includes
Option 1 – Driver Only
- 1 × DAMIAO DM40-1E Servo Driver
Option 2 – Driver Development Kit
- 1 × DAMIAO DM40-1E Servo Driver
- CAN Communication Cable
- UART Configuration Cable
- Basic Debugging Accessories
FAQ
Does the DM40-1E support MIT control mode?
Yes. The driver supports MIT Mode, Velocity Mode, and Position Mode.
What motors are recommended?
The manufacturer recommends BLDC motors in the 35mm–43mm diameter range.
Does it support dual encoders?
Yes. Dual encoder feedback is supported.
Which communication protocol is used?
CAN bus is used for motion control communication, while UART is used for parameter configuration and debugging.
What is the maximum continuous current?
The driver supports 4A continuous current and 10A peak current.
Is the driver suitable for robotic joints?
Yes. The DM40-1E is specifically designed for robotic joint servo applications and actuator systems.
