Overview

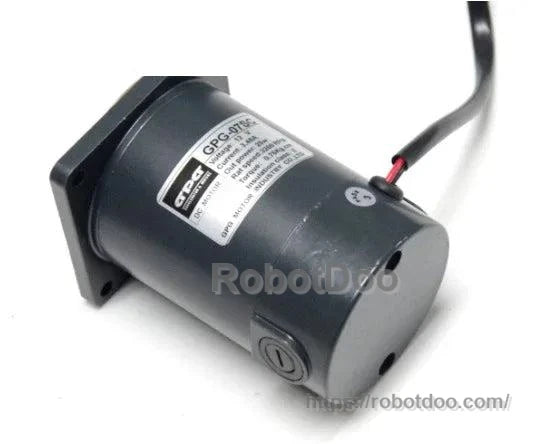

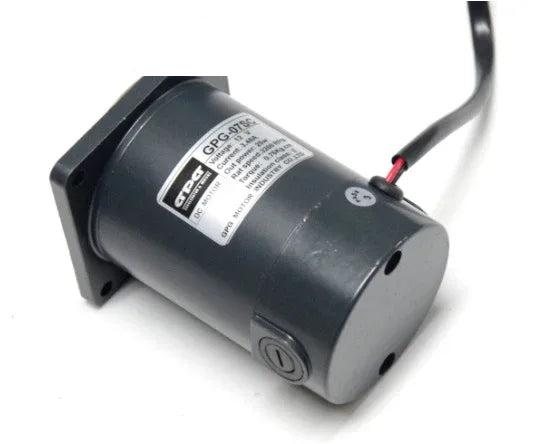

This DC motor is a 12V permanent magnet motor rated for 25W output power and a no-load speed of 1800 RPM. It supports reversible rotation and speed control, with smooth and quiet operation for continuous-use applications.
Key Features
- Permanent magnet motor design
- 25W output power
- Reversible rotation and speed controllable
- 2000-hour brush life
- Replaceable brushes
- Smooth and quiet operation
- Rated for continuous use
Specifications
| Motor type | Permanent magnet DC motor |
|---|---|
| Voltage | 12V DC |
| Output power | 25W |
| No-load speed | 1800 RPM |
| Loaded current at 12V | 3.6A |
| Unloaded current at 12V | 1.7A |
| Shaft diameter | 8mm |
| Shaft type | D-cut |
| Brush life | 2000 hours |
| Brushes | Replaceable |
| Operation | Continuous use |
