Overview

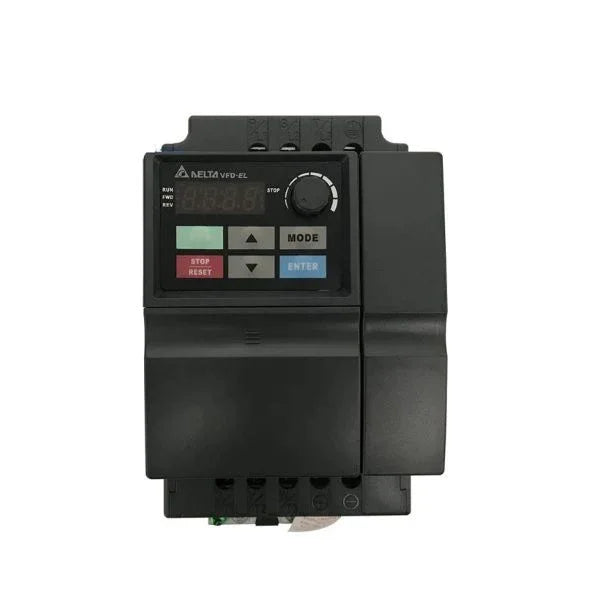

The Delta VFD-EL VFD022EL21A is a 2.2kW AC drive for variable-speed control of AC motors. It accepts 1-phase input from 200 to 240 VAC and provides 3-phase output. The drive is rated at 3 HP and 11 A under constant-torque operation.
Key Features
- VFD-EL series micro-type AC drive
- Built-in EMI filter and RFI switch
- DC bus sharing for side-by-side installation
- High-precision current detection
- Overload protection

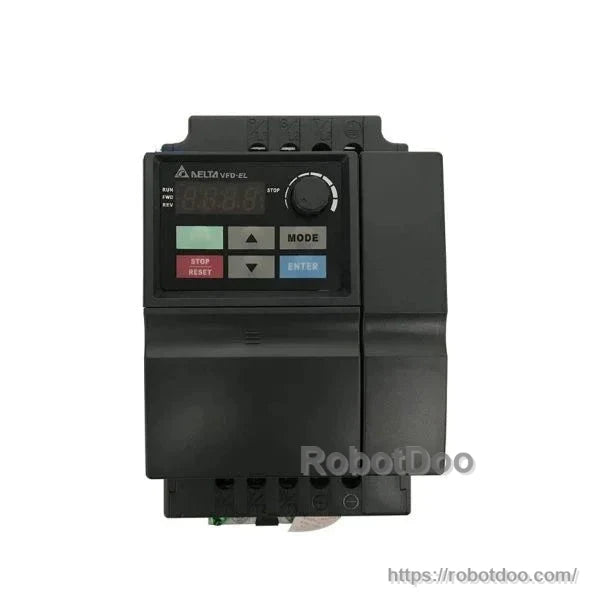

- Built-in keypad and operator controls
- DC injection braking and dynamic braking
- Dynamic braking transistor included
For product assistance, contact customer service at https://robotdoo.com/.
Specifications
| Manufacturer | Delta Products |
|---|---|
| Model | VFD022EL21A |
| Series | VFD-EL |
| Product type | AC drive |
| Rated power | 2.2 kW / 3 HP |
| Input voltage | 200 to 240 VAC |
| Input phase | 1-phase |
| Output phase | 3-phase |
| Rated current | 11 A |
| Maximum frequency | 600 Hz |
| Motor control | V/Hz (scalar) |
| Closed loop | No |
| AC line regeneration | No |
| Braking | DC injection and dynamic braking |
| Enclosure rating | IP20 |
| Frame size | B |
| Dimensions | 6.85 x 3.94 x 5.35 inches (H x W x D) |
