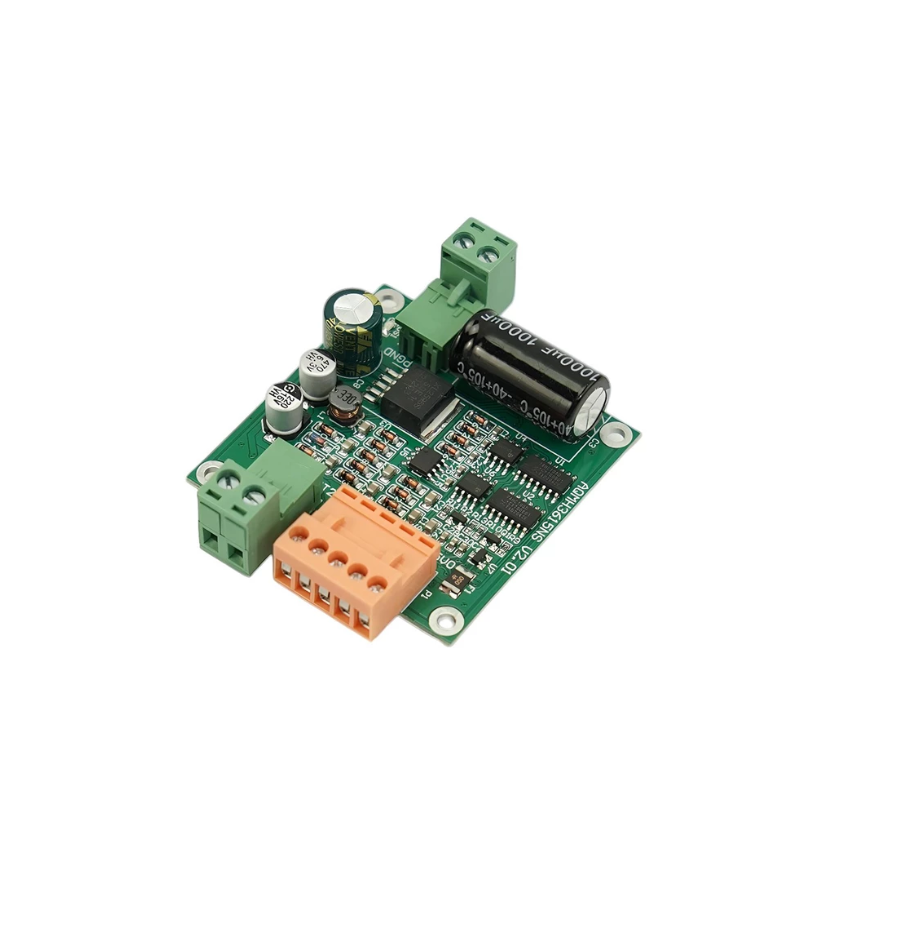

Overview
The 15A Single DC Motor Driver is a compact PWM speed-control module for brushed DC motor projects operating from a DC 12 ~ 36 V supply. It supports 3.3 V and 5 V control signals, includes under-voltage latch-out (UVLO) protection, and provides a 5 V auxiliary output for compatible control electronics.
Key Features
- PWM speed control for a single DC motor
- DC 12 ~ 36 V operating supply range
- Compatible with 3.3 V and 5 V logic control signals
- UVLO protection and ESD-protected interface
- 5 V auxiliary output, rated up to 500 mA
- M3 mounting holes for installation
Specifications
| Product type | 15A Single DC Motor Driver |
| Operating supply voltage | DC 12 ~ 36 V |
| Supply voltage limit | 6.5 ~ 40 V |
| Continuous operating current | 15A with simple heat sink |
| Peak current | 110 A |
| Speed control | PWM |
| Control signal high level | DC 2.0 ~ 5.5 V |
| Control signal low level | DC 0 ~ 0.8 V |
| Minimum valid pulse width | 200 ns |
| 5 V output current | 500 mA maximum |
| Working temperature | -25 ~ 85 °C |
| Mounting hole | M3 |
| Dimensions (L x W x H) | 55 x 55 x 20 mm |
| Weight | 42 g |
What's Included
- 15A Single DC Motor Driver x1
Applications
Suitable for compact brushed DC motor control systems requiring PWM speed adjustment and 3.3 V or 5 V logic-level control.
Manuals
Technical documentation is available in the Product Wiki. For product assistance, contact support@robotdoo.com.

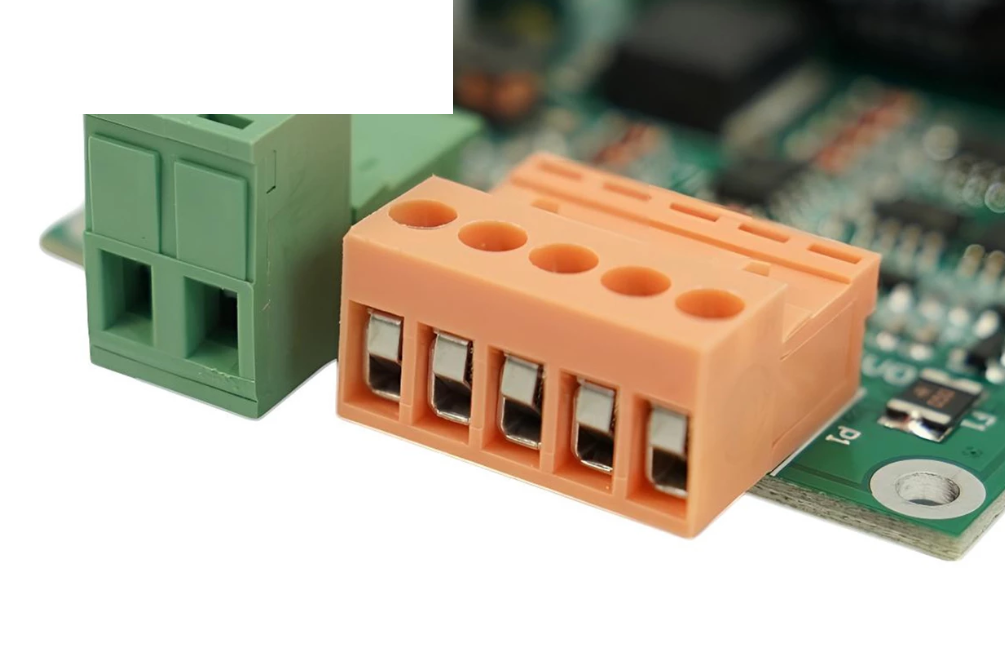

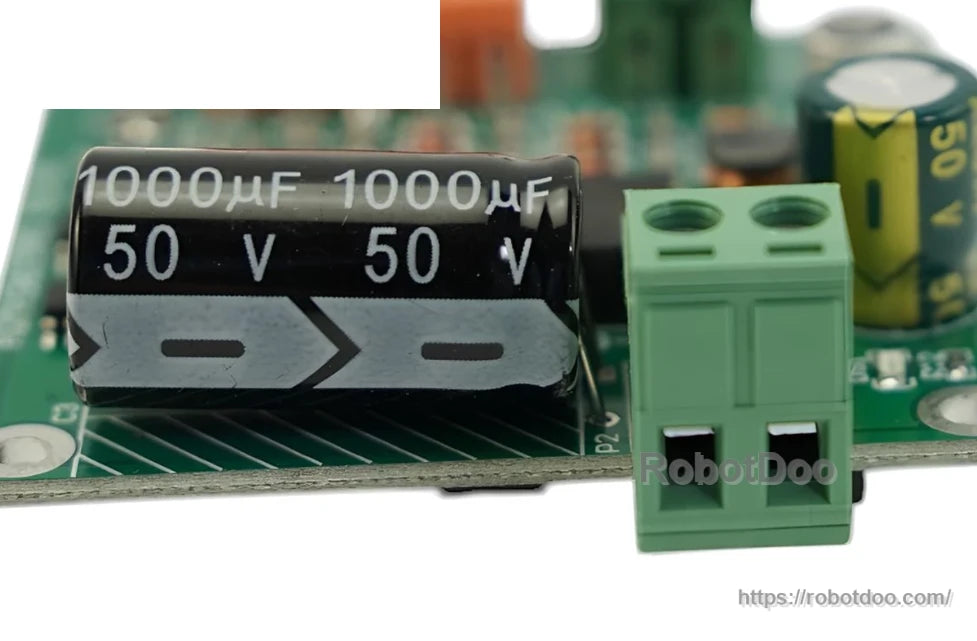

Details

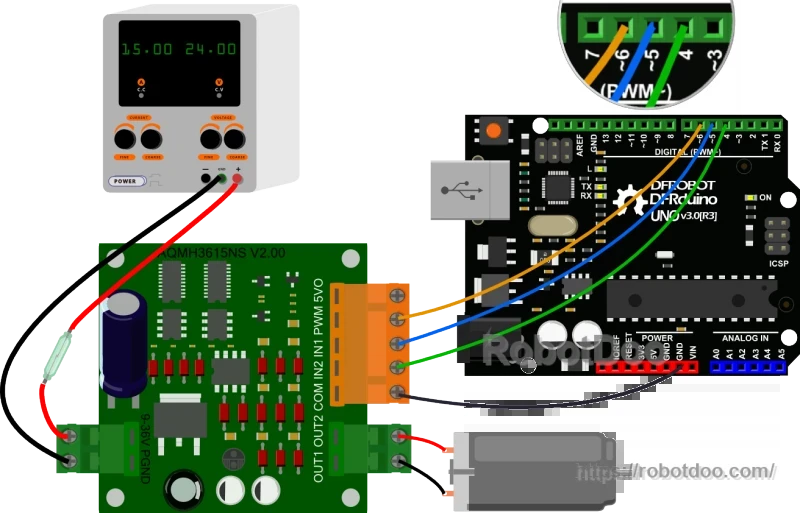

The compact driver connects a brushed DC motor to PWM control electronics and a DC power supply for adjustable speed operation.
