Product Description

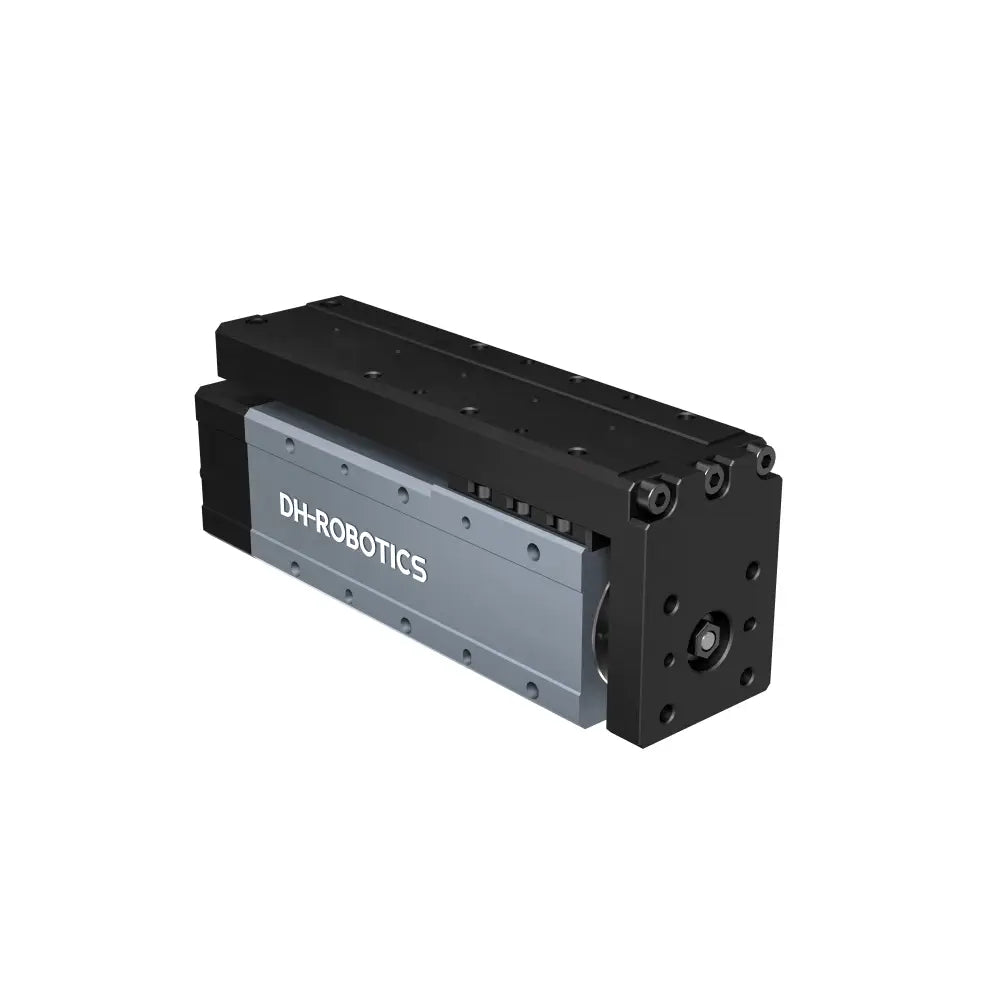

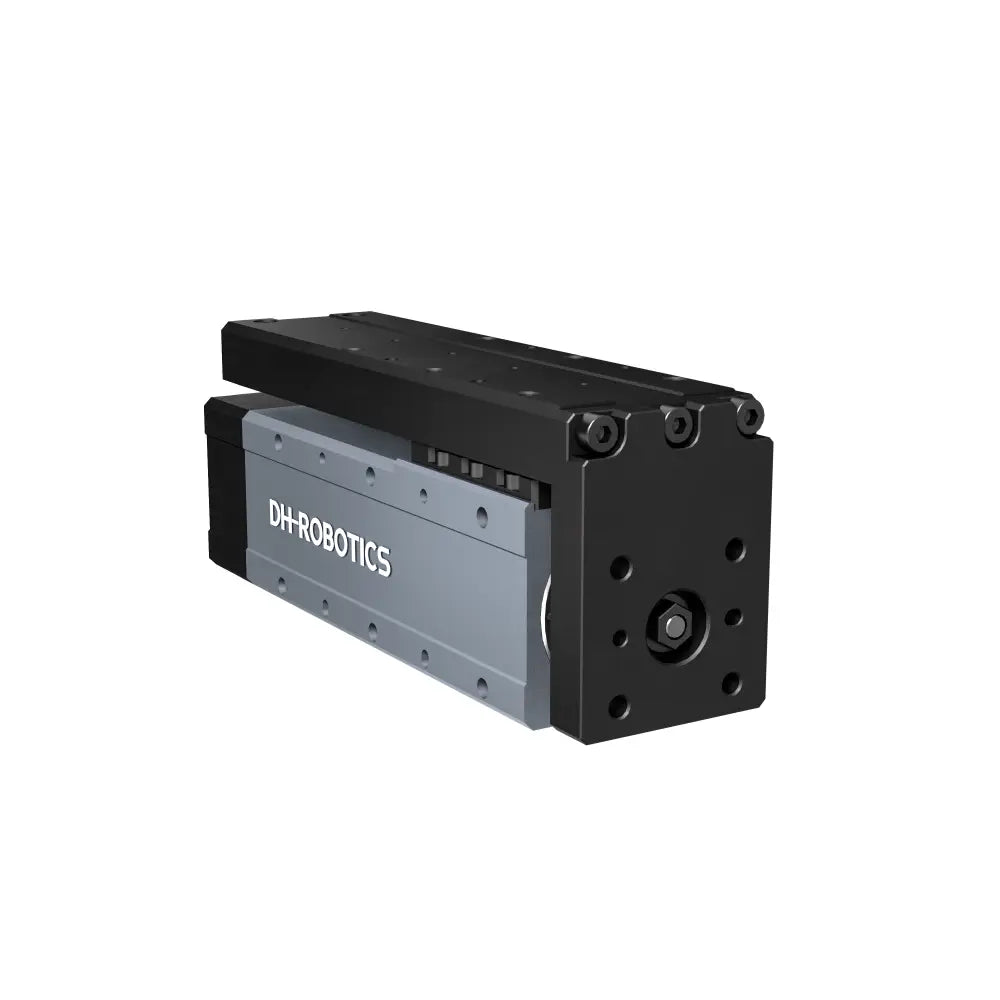

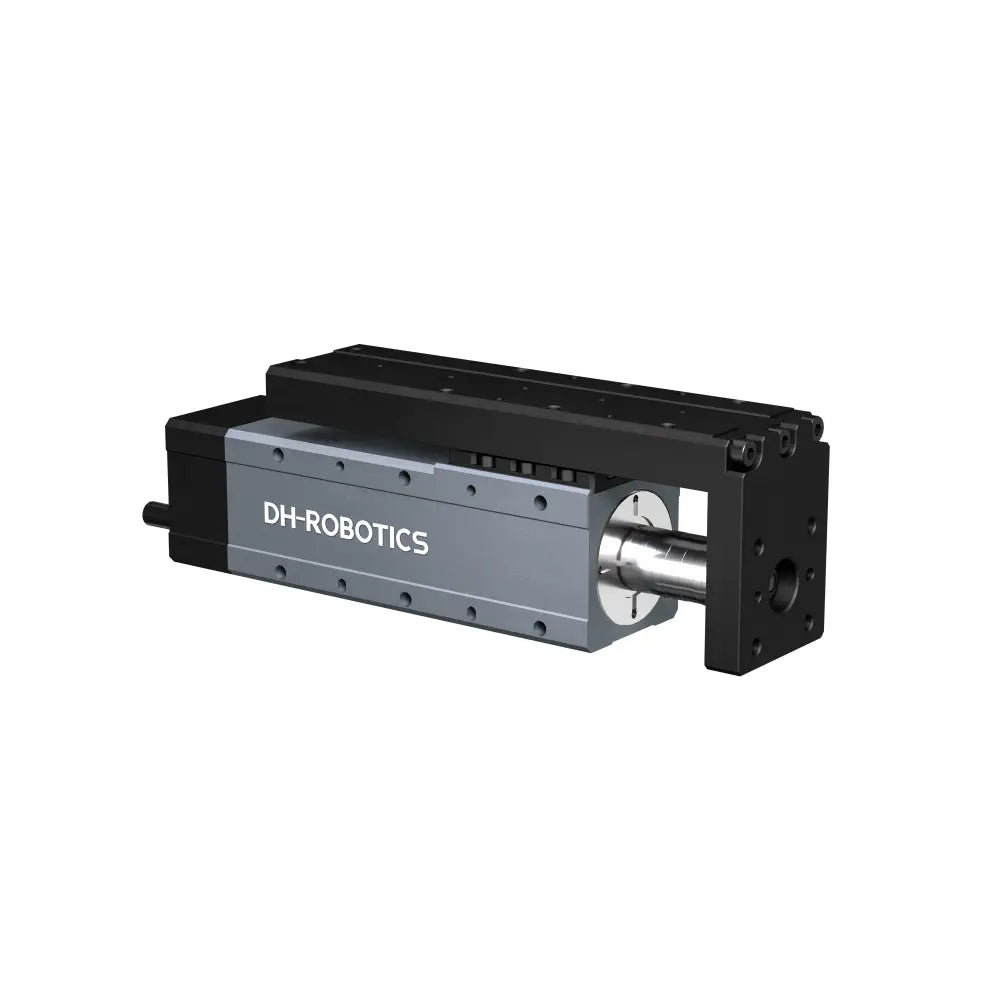

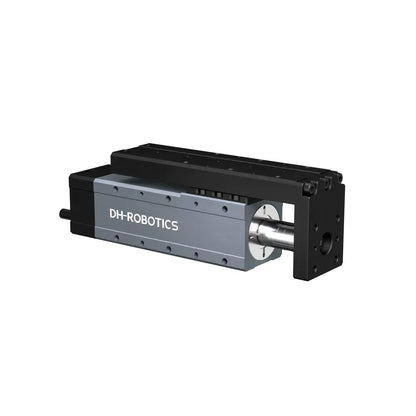

The DH-Robotics MCE-4G Miniature Table-Type Electric Cylinder is a precision servo-driven linear actuator engineered for compact automated systems, precision positioning, and intelligent motion control. Built with a high-performance servo motor and precision screw mechanism, this electric cylinder delivers responsive, smooth, and repeatable linear motion with programmable control.
Designed for space-constrained applications, the MCE-4G supports adjustable parameters including position, speed, and thrust, and allows multiple motion modes such as positioning, pushing, pulling, and pressing. Its robust integration and intelligent feedback system make it ideal for robotics, assembly automation, laboratory instruments, and precision equipment where accuracy and reliability are essential.
Key Features

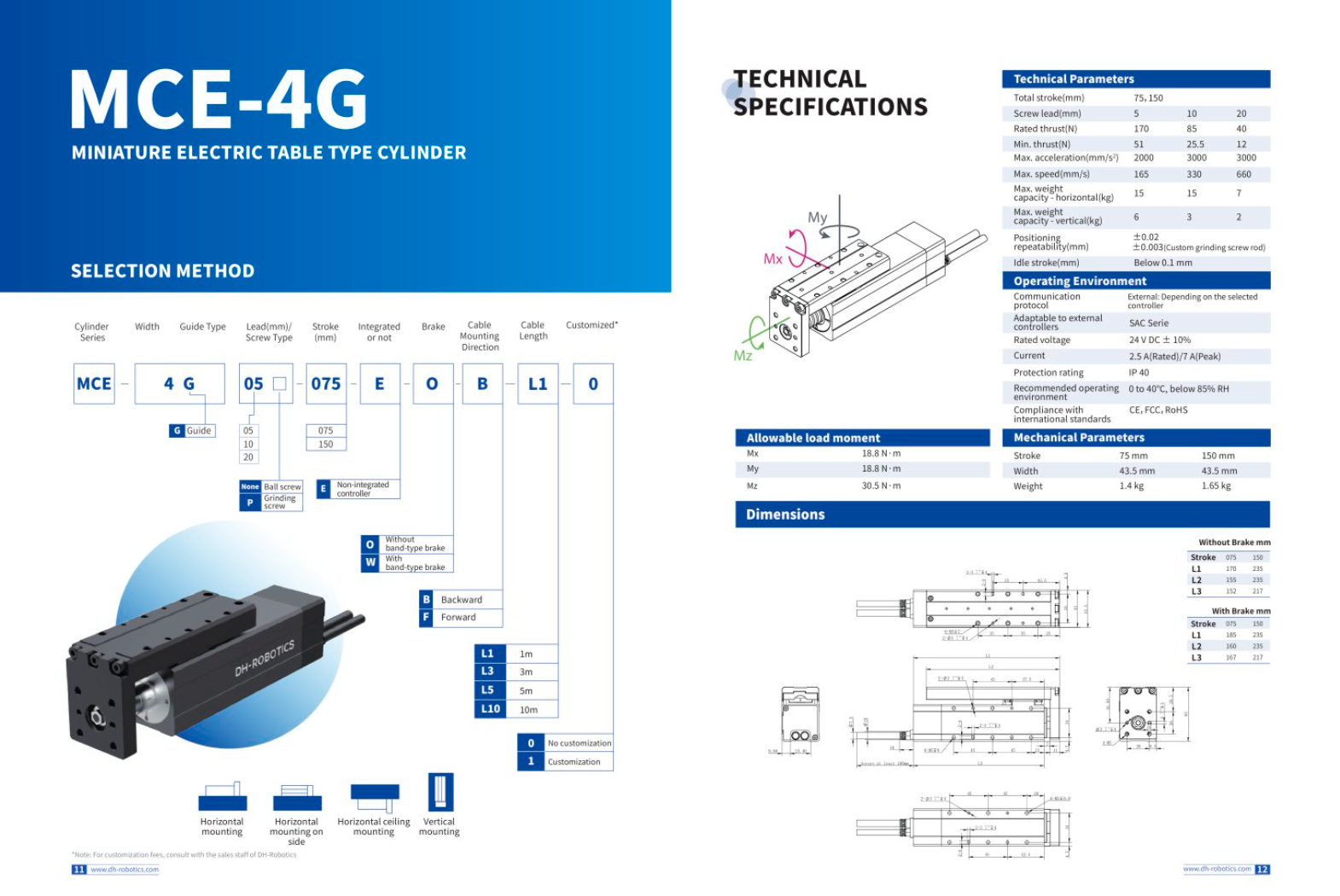

Specifications
⚠ Replace specific numerical values with actual numbers from supplier datasheet if available.
| Parameter | Description |
|---|---|
| Series | MCE-4G |
| Model | MCE-4G-05-075-E-O (or specific variant) |
| Actuator Type | Miniature Table-Type Electric Cylinder |
| Drive System | Servo Motor + Precision Screw |
| Control Modes | Position / Push / Pull / Press |
| Programmable Parameters | Position, Speed, Thrust |
| Motion Accuracy | High precision linear positioning |
| Guide Structure | Table-type linear guide |
| Protection Rating | Industrial standard (e.g., IP40, model dependent) |
| Feedback | Smart servo feedback control |
| Certifications | CE / FCC / RoHS (model dependent) |
| Construction | Compact rigid structure |
| Load Capability | Model dependent (consult datasheet) |
Applications
This precision electric cylinder is ideal for:
-
Robotics and automated manipulators
-
Precision positioning systems
-
Automated assembly and testing machines
-
Laboratory automation and research devices
-
Semiconductor, medical, and optical production equipment
-
Micro-assembly and motion control solutions
Package Includes
