Overview

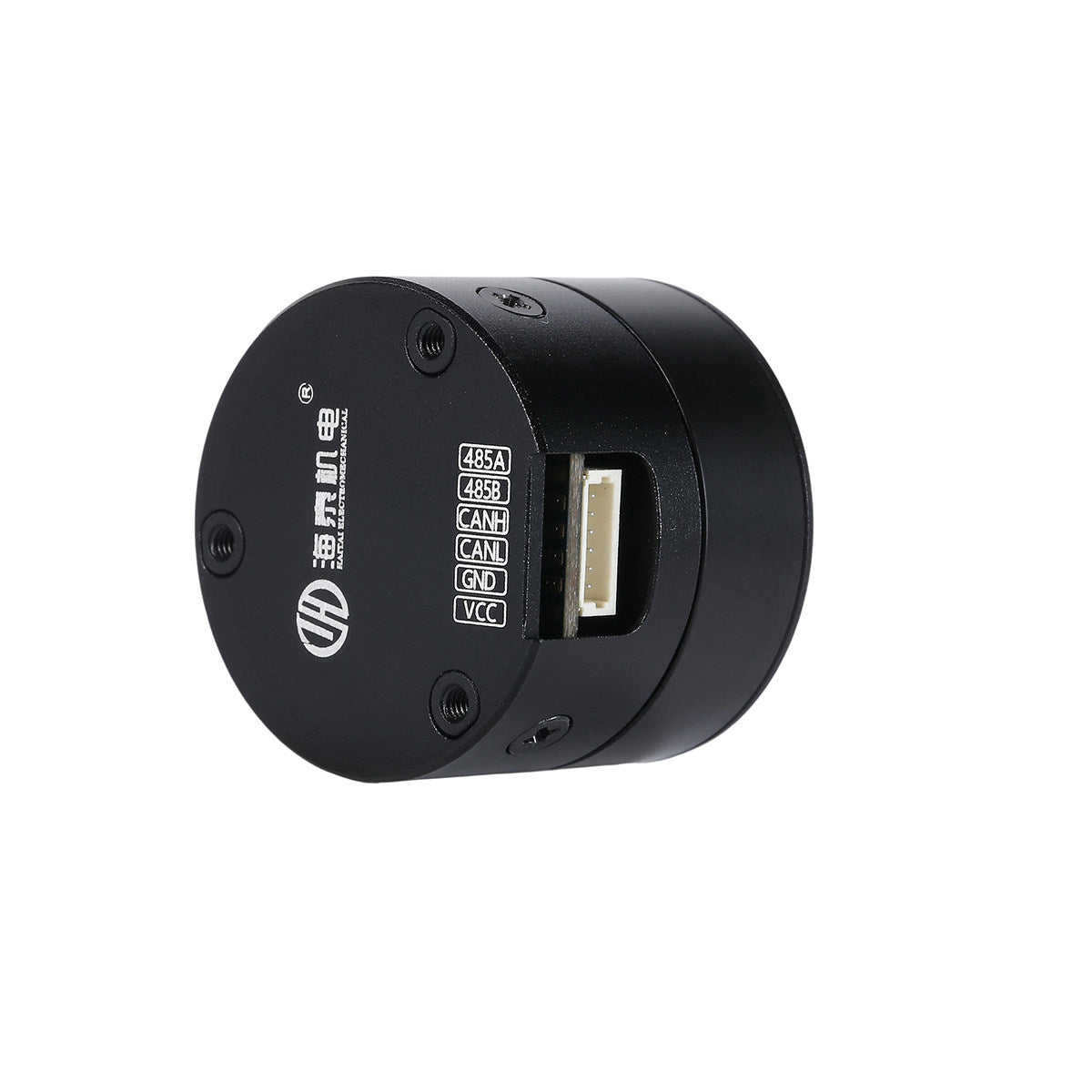

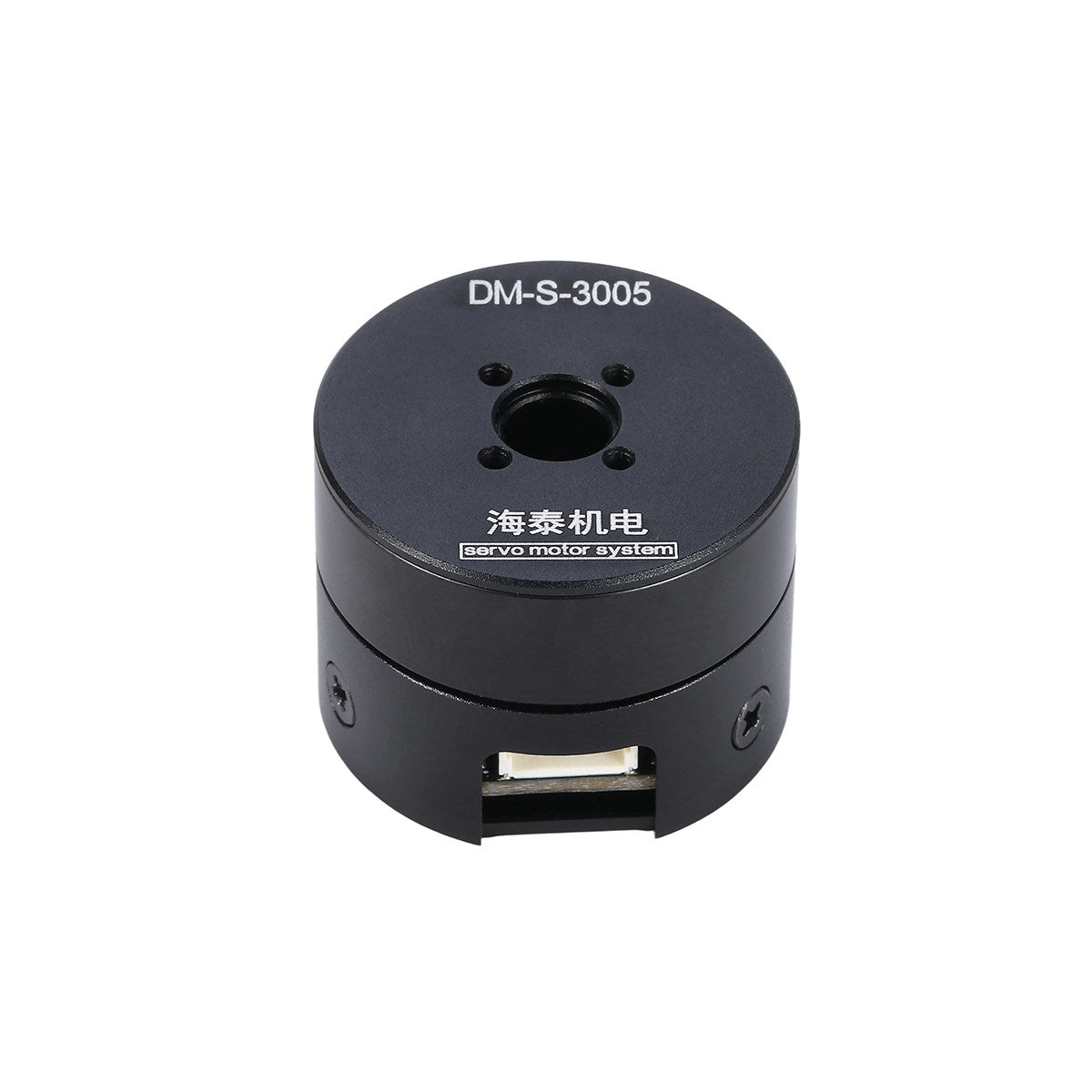

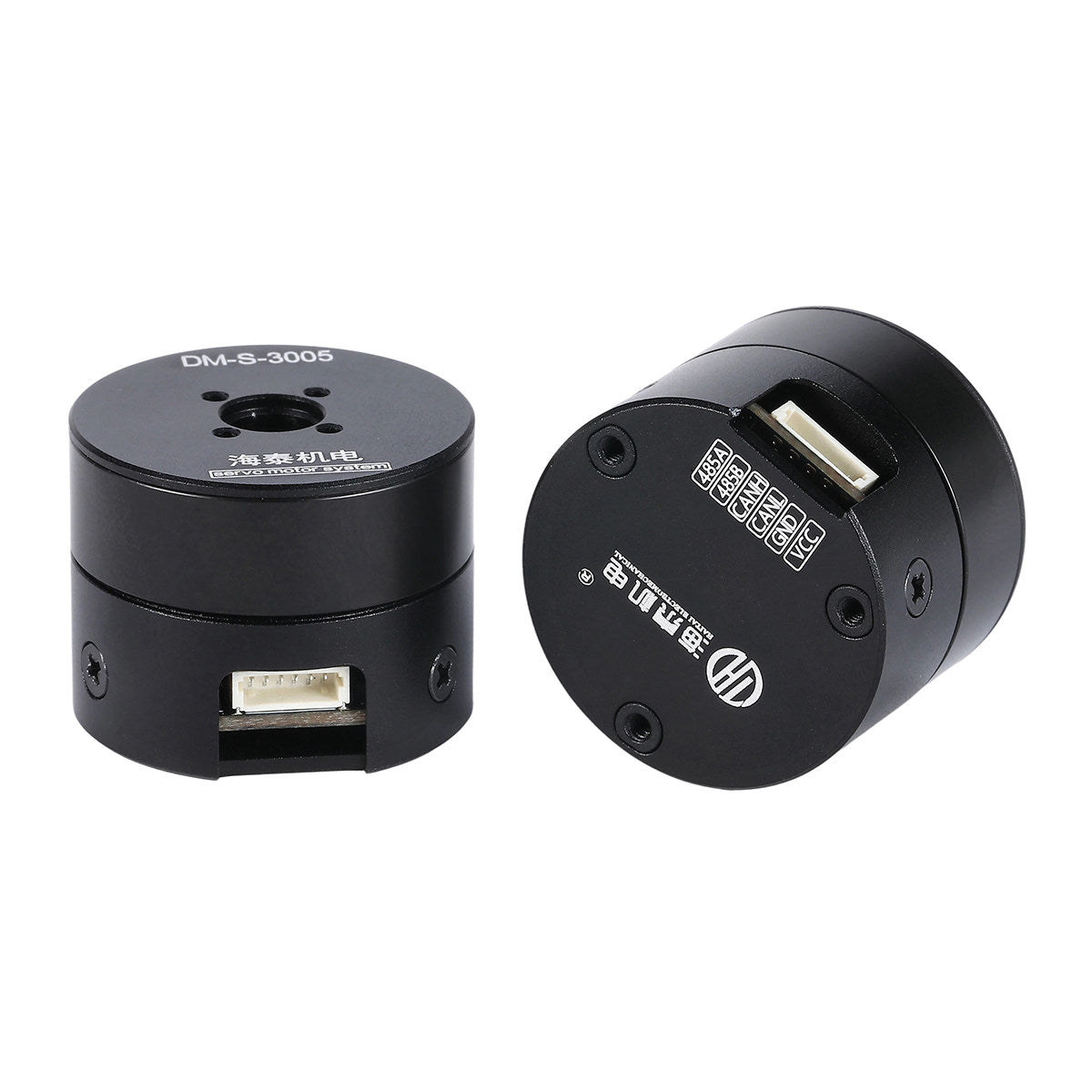

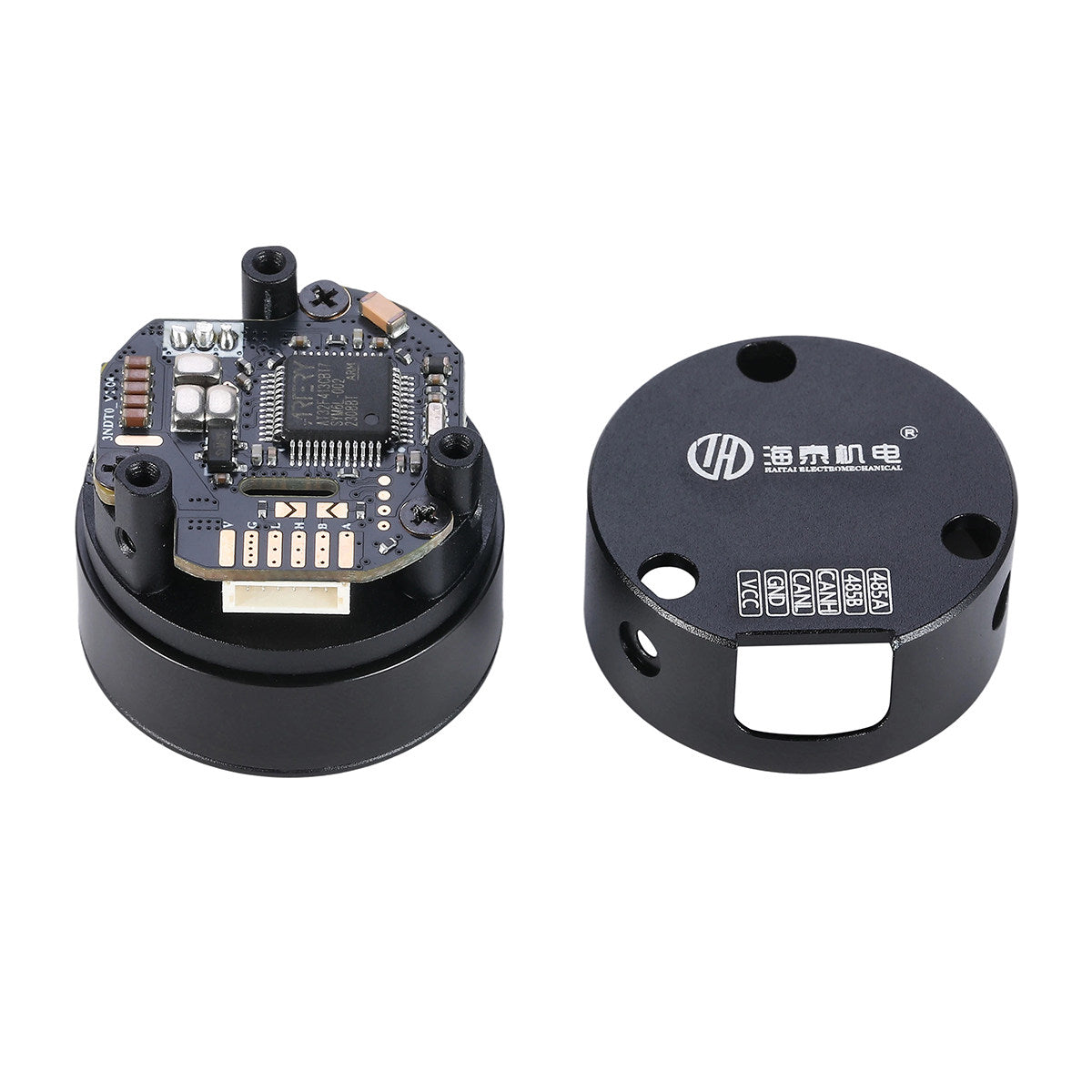

The DM-S-3005 Integrated Brushless Servo Motor is a compact direct-drive servo solution combining a high-efficiency brushless motor, FOC servo controller, and 14-bit single-turn absolute encoder into one integrated unit.
Designed for precision positioning and smooth low-speed motion, the DM-S-3005 supports RS485 and CAN communication, making it suitable for robotic joints, camera gimbals, pan-tilt systems, AGVs, inspection equipment, and precision automation.
Its lightweight 35 g construction and integrated drive reduce wiring complexity while improving system reliability and installation efficiency.
Features
- Integrated brushless servo motor with built-in FOC controller
- 14-bit single-turn absolute encoder
- RS485 & CAN communication
- High positioning accuracy
- Compact lightweight design
- Smooth low-speed operation
- Direct-drive architecture with zero backlash
- Suitable for continuous industrial operation
- Easy integration for robotic systems

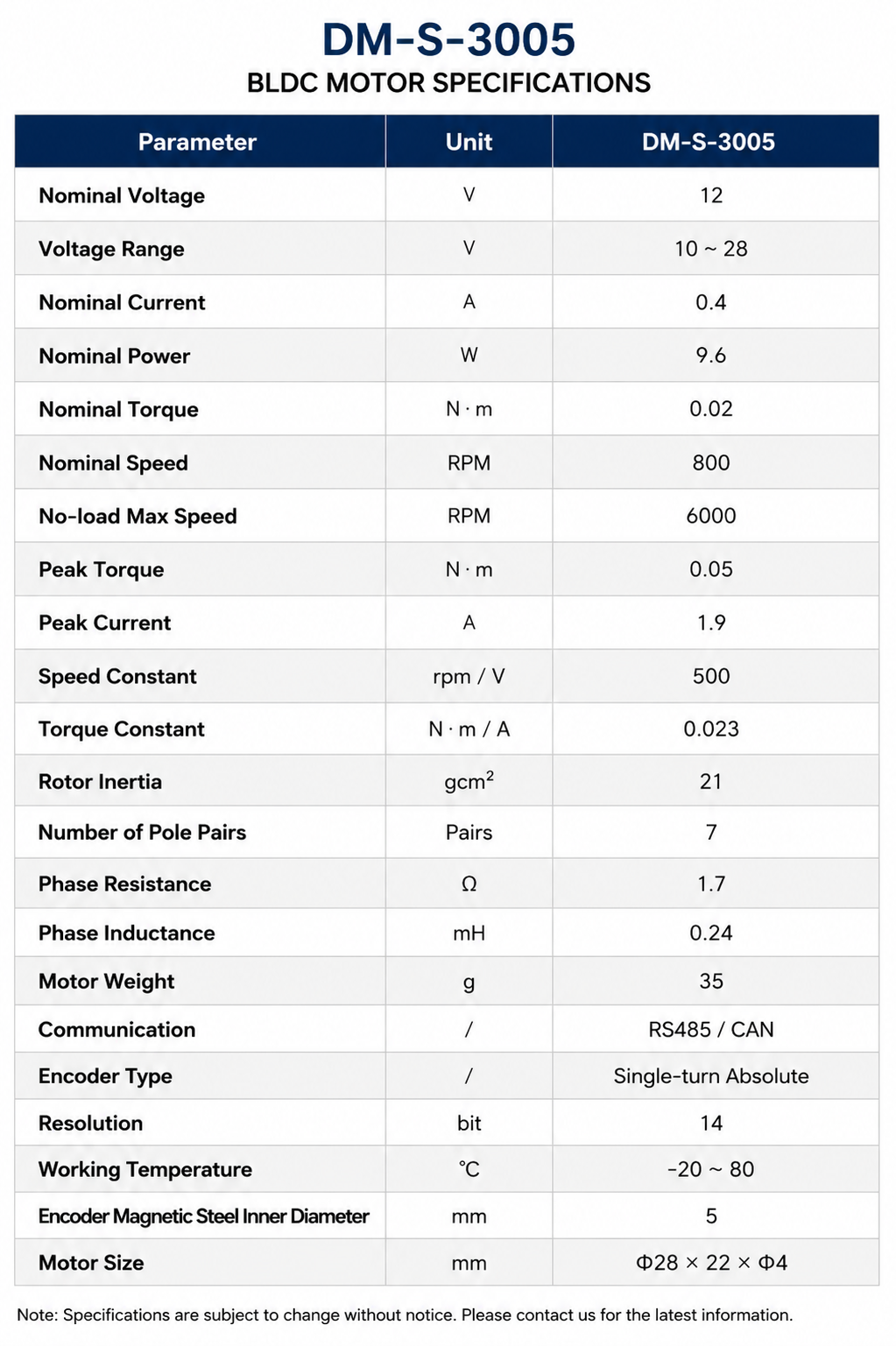

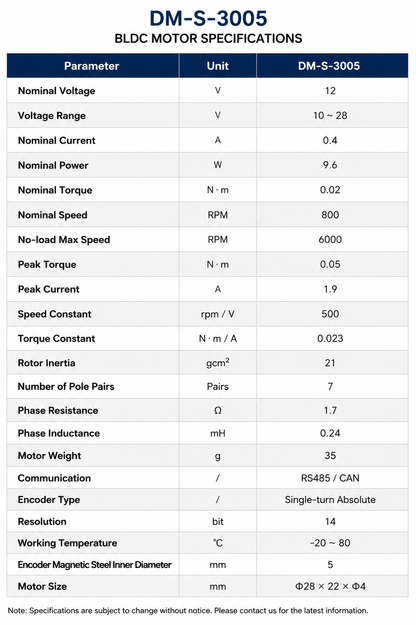

Specifications
| Parameter | Specification |
|---|---|
| Model | DM-S-3005 |
| Motor Type | Integrated Brushless Servo Motor |
| Rated Voltage | 12 V |
| Voltage Range | 10–28 V |
| Rated Current | 0.4 A |
| Rated Power | 9.6 W |
| Rated Torque | 0.02 N·m |
| Peak Torque | 0.05 N·m |
| Rated Speed | 800 RPM |
| Maximum No-load Speed | 6000 RPM |
| Peak Current | 1.9 A |
| Speed Constant | 500 rpm/V |
| Torque Constant | 0.023 N·m/A |
| Pole Pairs | 7 |
| Phase Resistance | 1.7 Ω |
| Phase Inductance | 0.24 mH |
| Rotor Inertia | 21 g·cm² |
| Encoder Type | 14-bit Single-turn Absolute Encoder |
| Communication | RS485 / CAN |
| Control Resolution | 14 bit |
| Encoder Magnet Inner Diameter | 5 mm |
| Working Temperature | -20°C to +80°C |
| Weight | 35 g |

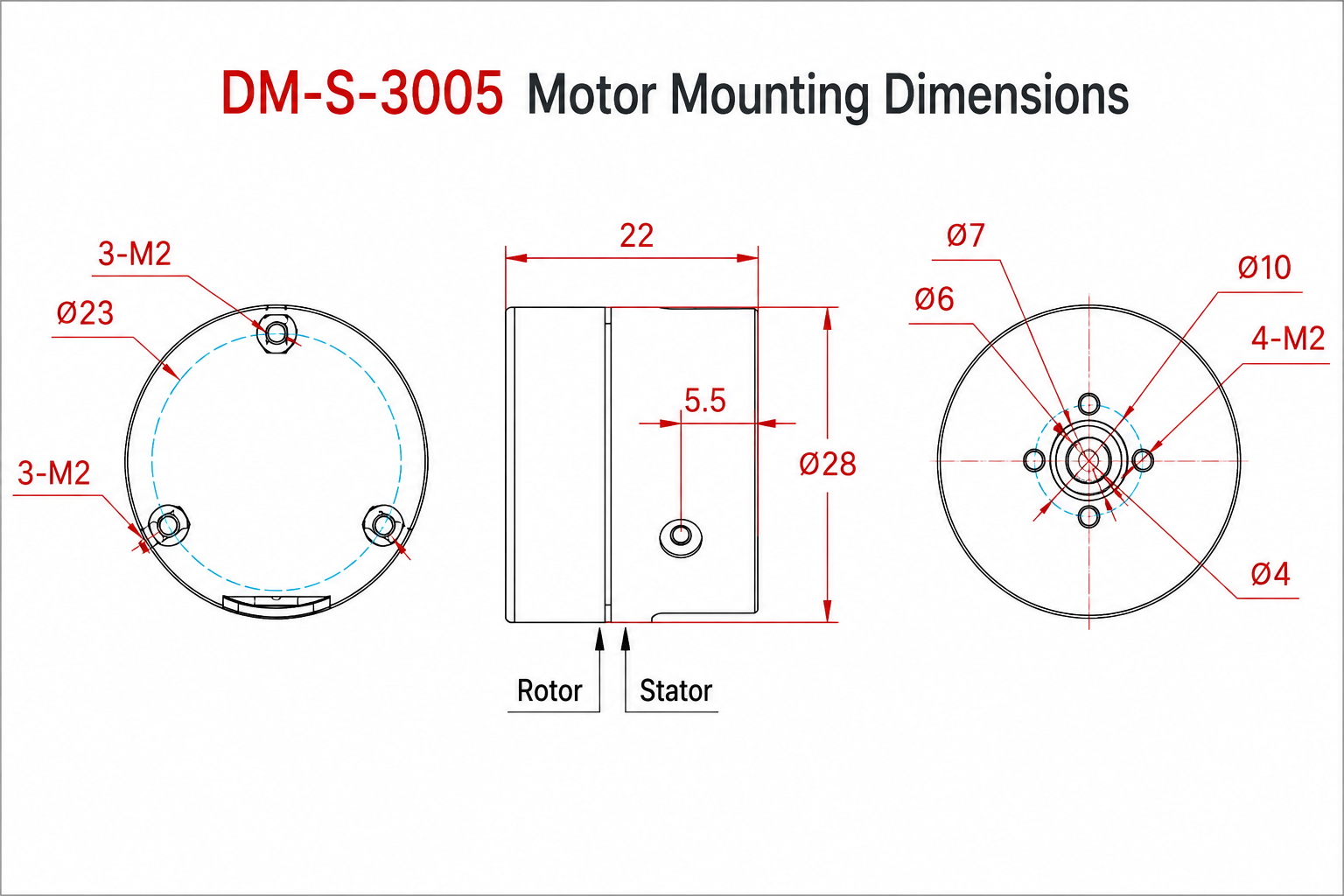

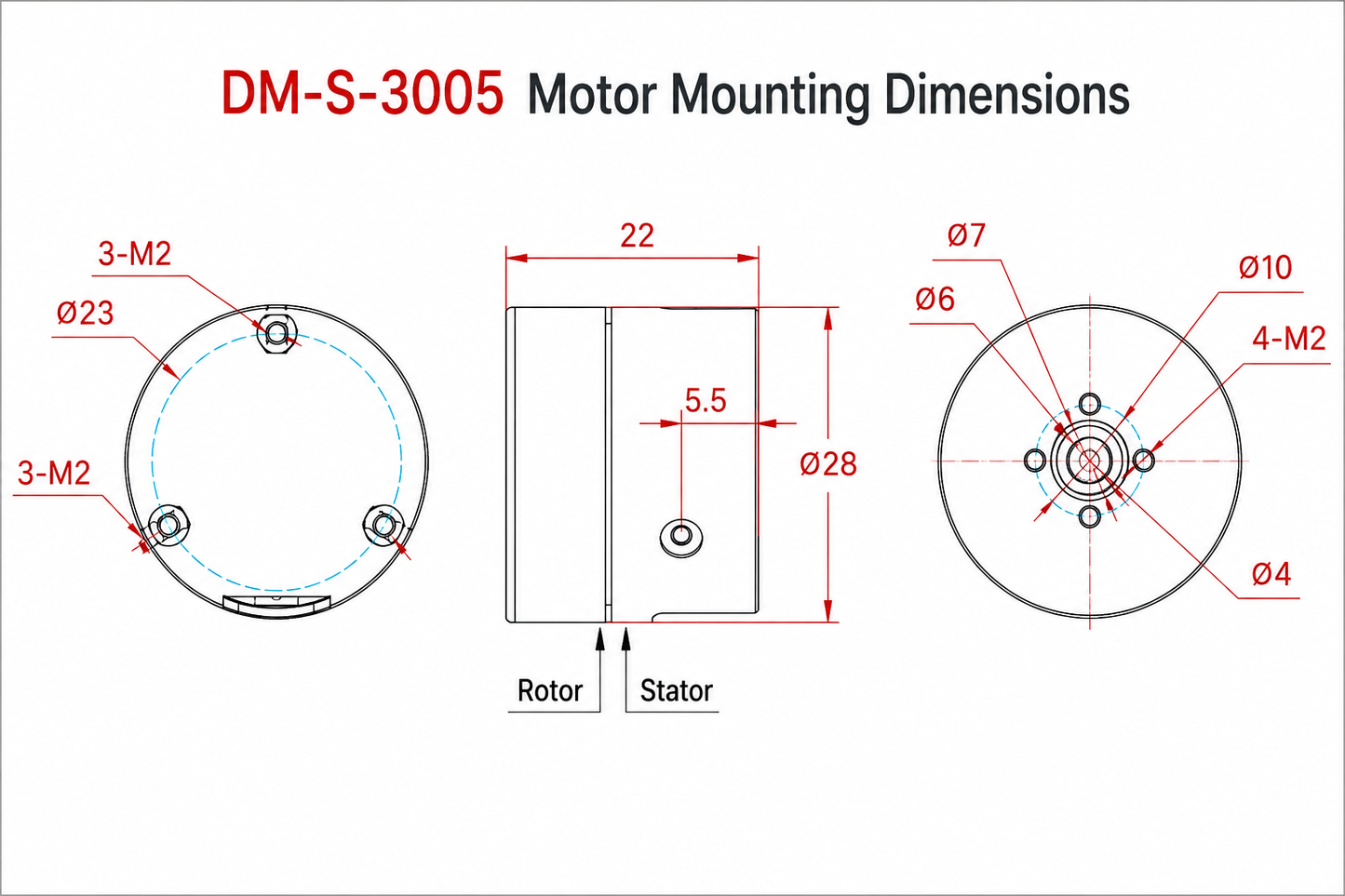

| Motor Size | Ø28 × 22 mm |
Applications
- Robotic joints
- Camera gimbals
- Pan-tilt platforms
- Inspection robots
- Mobile robots (AGV/AMR)
- Precision positioning systems
- Medical automation
- Educational robotics
- Laboratory equipment
- Embedded motion control
Package Includes
- 1 × DM-S-3005 Integrated Brushless Servo Motor
