Overview

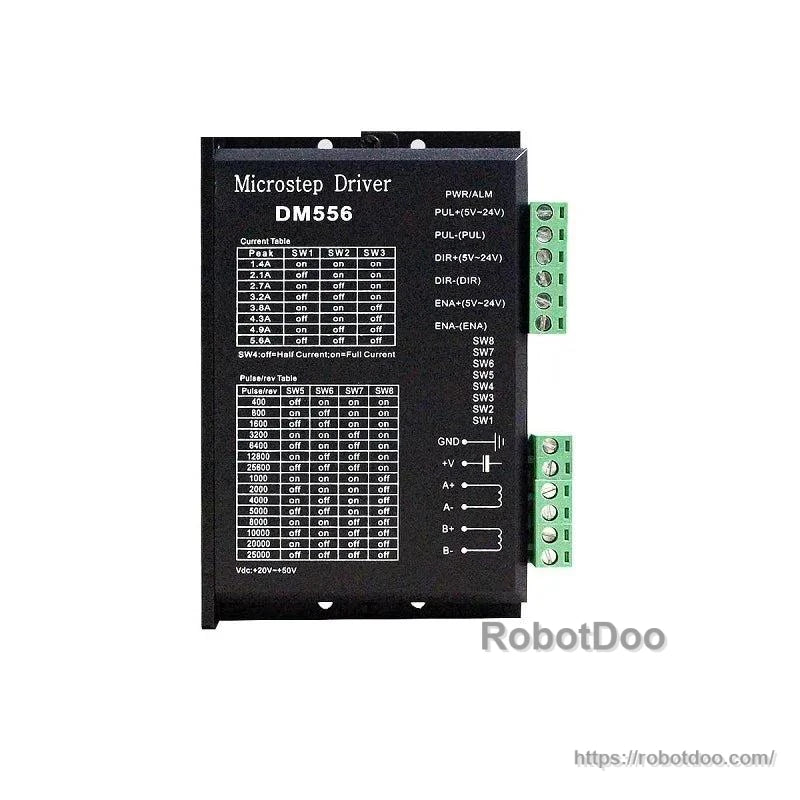

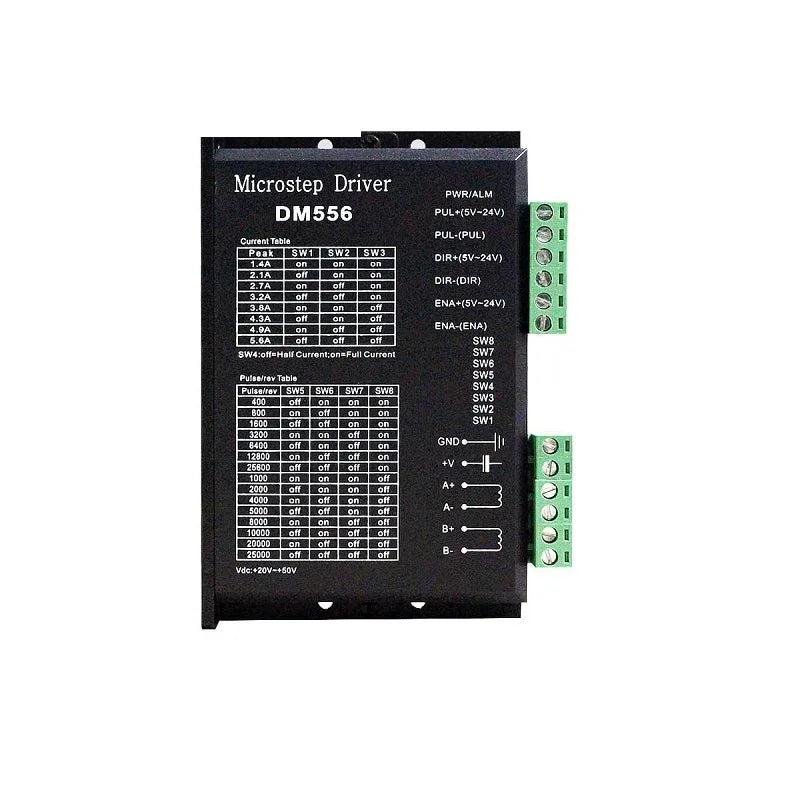

The DM556 2-phase stepper motor driver is designed for 42/57 stepper motors in automation equipment. It uses bipolar constant-current PWM drive and supports a 20-50V DC input supply, with adjustable output current for motion-control installations such as automatic packaging and engraving machines.
Key Features
- Eight selectable output-current levels from 1.0A to 5.6A in 0.5A increments.
- Optically isolated signal input.
- Maximum pulse response frequency of 200kHz.
- Bipolar constant-current PWM drive method.
- Designed for low-speed, low-noise operation and interference-resistant positioning control.
Specifications
| Model | DM556 |
| Motor Application | 42/57 stepper motor |
| Input Voltage | DC 20-50V |
| Output Current | 1.0-5.6A, 8 levels, 0.5A resolution |
| Drive Method | Bipolar constant-current PWM drive |
| Pulse Response Frequency | 200kHz max. |
| Insulation Resistance | >500MΩ |
| Insulation Strength | 500V/min |
| Dimensions | 118 x 75.5 x 34 mm |
Applications
Suitable for 42/57 stepper motor control in automatic packaging machines, engraving machines, and related automation equipment. For product assistance, contact RobotDoo customer service.
