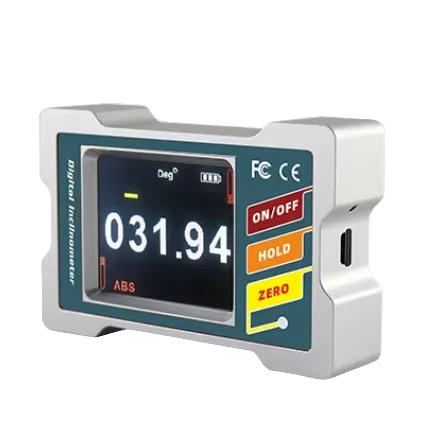

PRODUCT OVERVIEW
The DMI420 Digital Inclinometer is a high-precision angle measurement device designed for professional and industrial applications. It features dual-axis measurement, strong magnetic mounting, and a high-visibility LCD display for accurate and convenient angle detection.
With ±0.05° accuracy and support for both absolute and relative measurement modes, the DMI420 is widely used in construction, automotive inspection, and industrial alignment tasks.
KEY FEATURES
- High precision measurement accuracy up to 0.05°
- Dual-axis angle measurement (±90° range)
- Strong magnetic base for hands-free operation
- LCD color display with night vision support
- Data hold function for easy reading

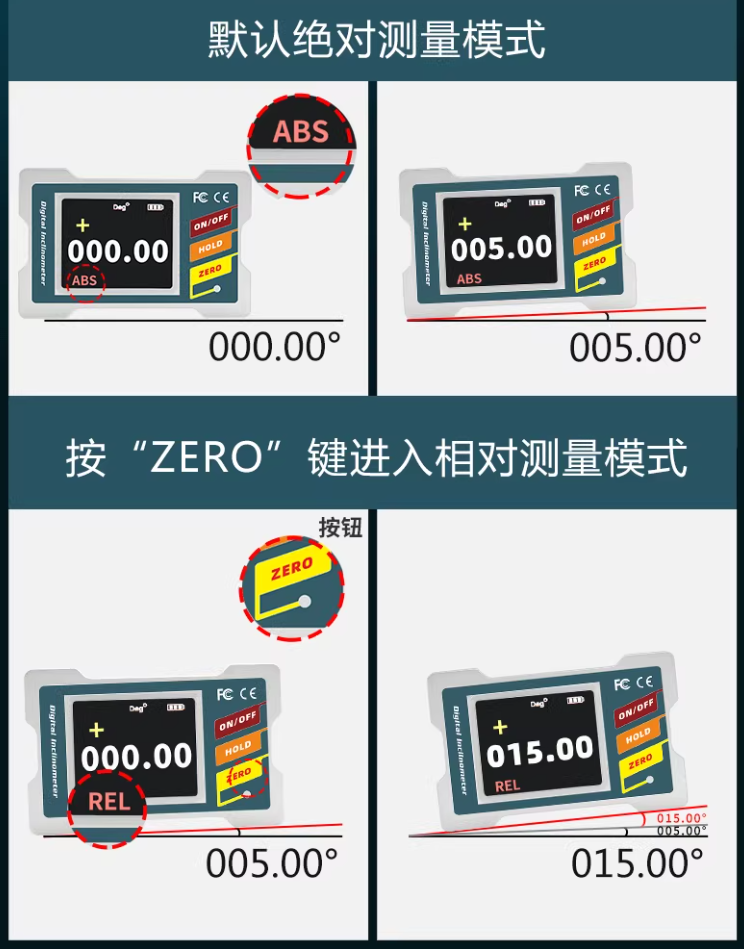

- Absolute / relative measurement mode switch
- Compact and portable design
- Built-in rechargeable lithium battery
WHY CHOOSE DMI420
✔ Accurate angle measurement for professional use
✔ Easy operation with intuitive button layout
✔ Strong magnetic adsorption for stable positioning
✔ Ideal for both field and workshop environments
APPLICATIONS
- Construction and engineering measurement
- Vehicle wheel alignment testing
- Road slope measurement
- Industrial equipment installation
- Pipeline installation
- Medical equipment leveling
MEASUREMENT SPECIFICATIONS

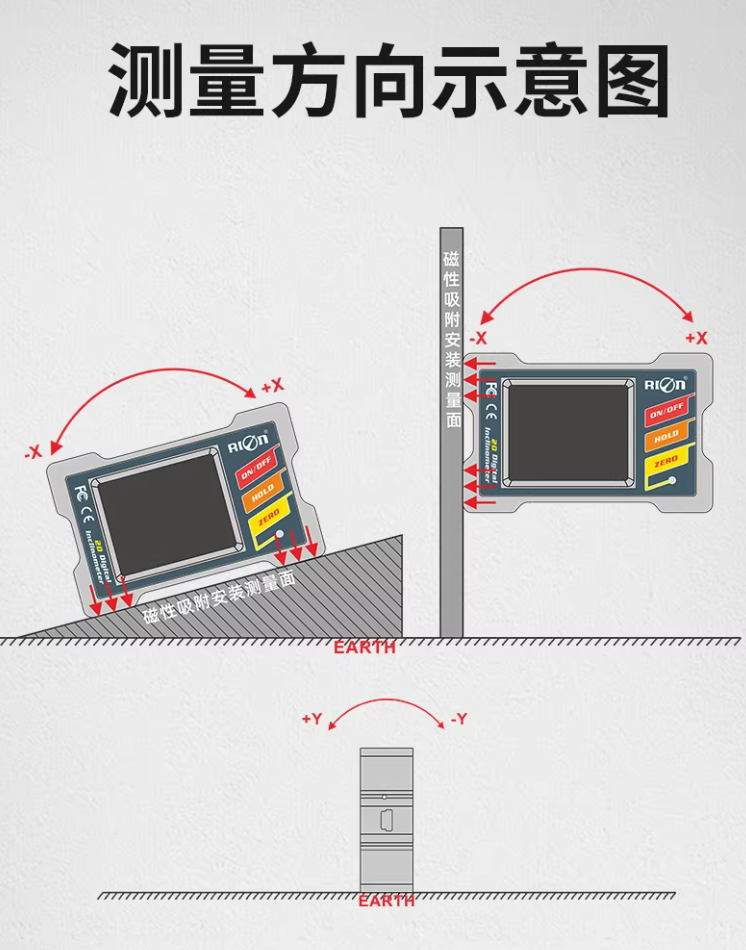

- Measurement Axis: Dual-axis
- Measurement Range: ±90°
- Accuracy: 0.05° (full range)
- Resolution: 0.01°
- mm/m Range: ±999.9 mm/m
- mm/m Accuracy: 0.9 mm/m
- mm/m Resolution: 0.1 mm/m

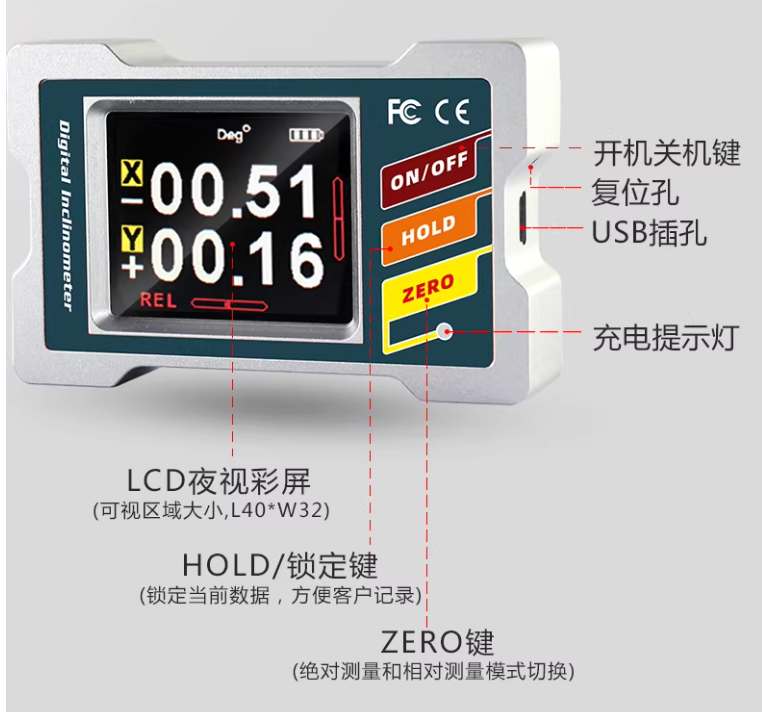

DISPLAY & FUNCTION
- Display: LCD color screen
- Visible Area: 40 × 32 mm
- Functions:
- HOLD (data lock)
- ZERO (absolute/relative switch)
- ON/OFF button
- Charging Indicator: Yes
GENERAL SPECIFICATIONS
- Model: DMI420
- Material: Aluminum alloy
- Battery: 3.7V rechargeable lithium battery
- Charging Time: 3 hours
- Working Time: 8 ±0.5 hours
- Weight: ≤140g

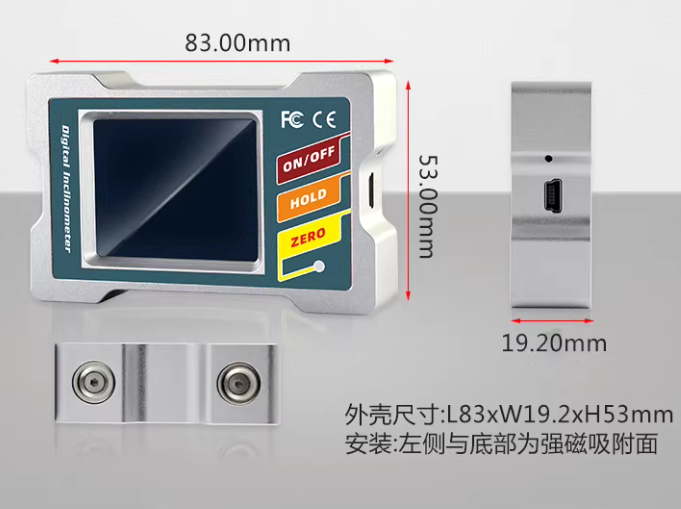

- Width: 19mm
- Height: 53mm
ENVIRONMENT & PROTECTION
- Protection Level: IP54
- Working Environment: Industrial use

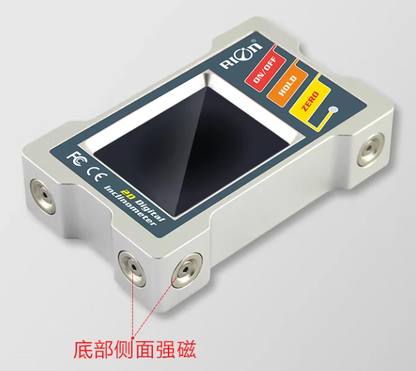

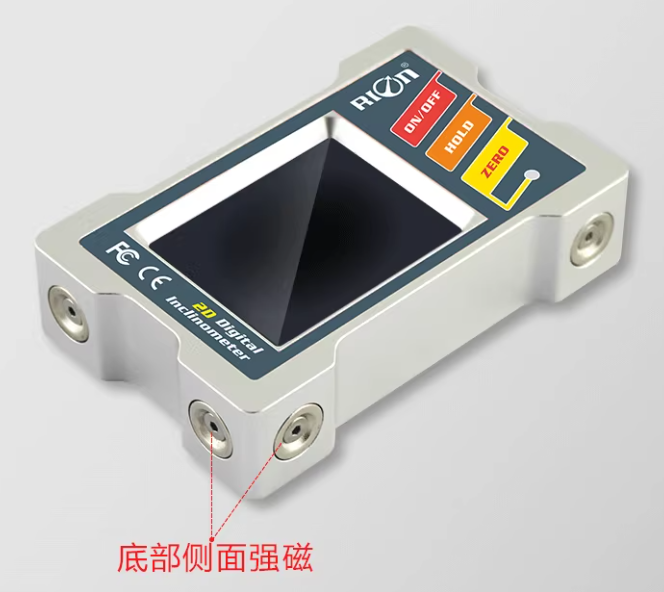

- Magnetic Base: Dual-side strong magnets

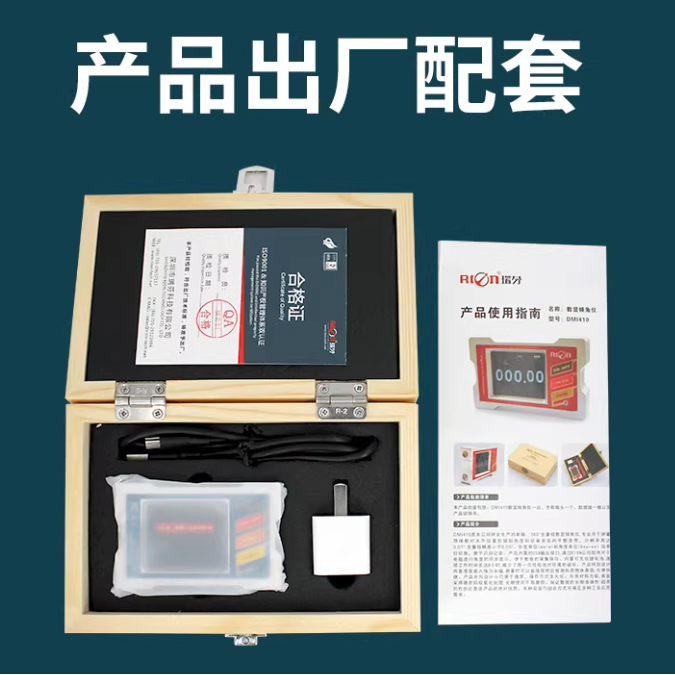

PACKAGE INCLUDES
- 1 × DMI420 Digital Inclinometer
- 1 × USB Charging Cable
NOTES
- Ensure proper surface contact for accurate measurement
- Avoid strong vibration during measurement
- Charge fully before first use
